047 - Throttle Pedal and Brake Hydraulic System - Valid for GD

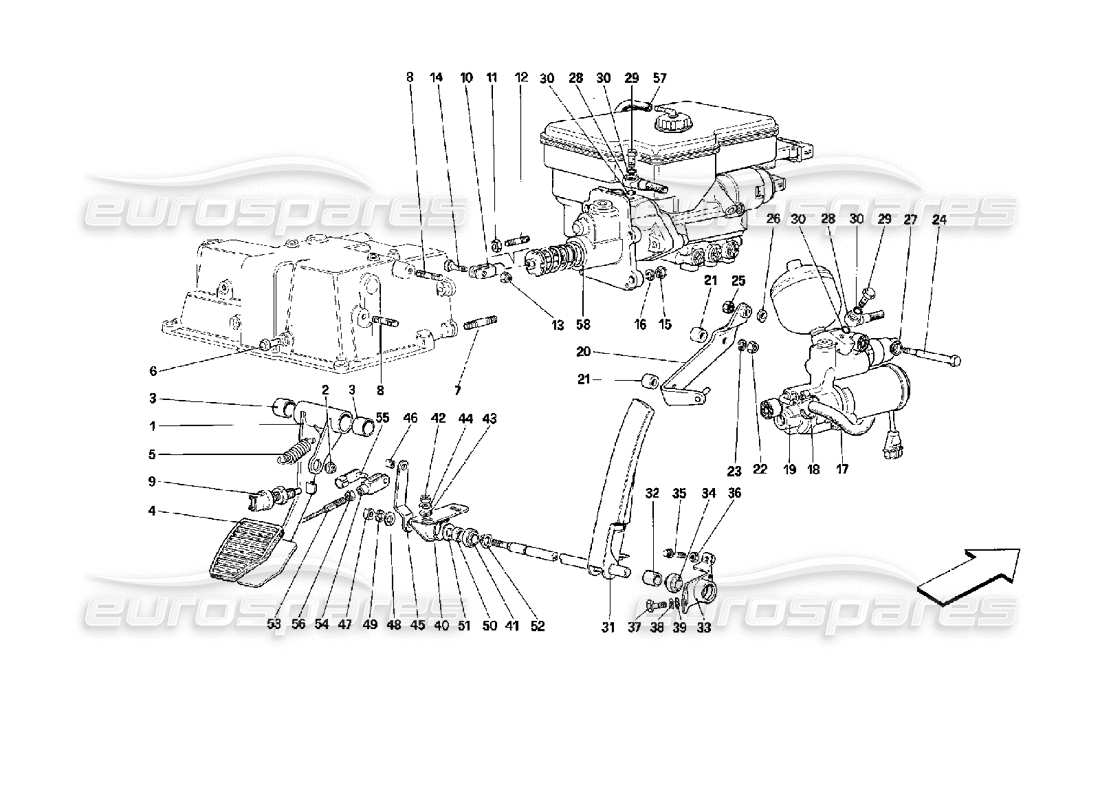

Ferrari Mondial 3.4 t Coupe/Cabrio Throttle Pedal and Brake Hydraulic System - Valid for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 140854
BRAKE PEDAL LEVER
from £161.76
from £161.76
# 002
MPN: 109407
BALL JOINT
from £21.94
from £21.94
# 003
MPN: 103163
BUSH
from £2.85
from £2.85
# 004
MPN: 106950
BRAKE PEDAL GUARD
from £11.68
from £11.68
# 005
MPN: 101305
SPRING
from £8.15
from £8.15
This part replaces part number 660343
# 006
MPN: 129612
SPRING ANCHOR PIN
from £1.72
from £1.72
# 007
MPN: 13543421
STUD BOLT
Supersession
Supersession
# 008
MPN: 13517121
STUD
Supersession
Supersession
# 009
MPN: 133555
STOP CONTROL SWITCH
from £18.60
from £18.60
# 010
MPN: 10007871
FORK
from £6.02
from £6.02
# 011
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 012
MPN: 13517121
STUD
Supersession
Supersession
# 013
MPN: 16104411
NUT
from £0.54
from £0.54
# 014
MPN: 130926
SCREW
from £4.51
from £4.51
# 015
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 016
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 017
MPN: 143313
PIPE FROM PUMP TO TANK
from £3.47
from £3.47
# 018
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604
# 019
-
BRAKE PUMP
# 020
MPN: 138185
BRAKE PUMP SUPPORT BRACKET
from £170.41
from £170.41
# 021
MPN: 129635
SPACER
from £1.85
from £1.85
# 022
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 023
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 024
MPN: 129636
SCREW
from £2.88
from £2.88
# 025
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 026
MPN: 121558
WASHER
from £1.09
from £1.09
# 027
MPN: 130861
WASHER
from £2.60
from £2.60
# 028
MPN: 131872
PIPE FROM PUMP TO ANTISKID SWITCHING UNIT
Supersession
Supersession
# 029
MPN: 131873
UNION
from £3.59
from £3.59
# 030
MPN: 70000510
O-RING KIT
from £94.57
from £94.57
This part replaces part number 131874
# 031
MPN: 138187
throttle pedal
from £135.84
from £135.84
# 032
MPN: 117991
SPACER
from £2.36
from £2.36
# 033
MPN: 116526
SUPPORT
from £44.82
from £44.82
# 034
MPN: 122430
BALL JOINT
from £80.49
from £80.49
# 035
MPN: 116527
SCREW
from £7.19
from £7.19
# 036
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 037
MPN: 16043221
SCREW
from £0.54
from £0.54
This part replaces part number 13842414 - and 1 more. Click to view details
# 038
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 039
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 040
MPN: 116528
SUPPORT
from £43.20
from £43.20
# 041
MPN: 122430
BALL JOINT
from £80.49
from £80.49
# 042
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 043
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 044
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 045
MPN: 132206
LEVER
from £14.07
from £14.07
# 046
MPN: 132212
BUSH
from £20.40
from £20.40
# 047
MPN: 16100824
NUT
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 048
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 049
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 050
MPN: 116529
SPACER
from £7.06
from £7.06
# 051
MPN: 105929
WASHER -THICK. MM. 0,3
from £0.73
from £0.73
# 051
MPN: 105930
WASHER -THICK. MM. 0,5
from £1.69
from £1.69
# 051
MPN: 105931
WASHER -THICK. MM. 0,7
from £0.57
from £0.57
# 052
MPN: 11066076
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11066075
# 053
MPN: 138429
THROTTLE CONTROL CABLE
from £48.38
from £48.38
# 054
MPN: 132290
FORK
from £13.23
from £13.23
# 055
MPN: 132291
PIN WITH SPRING
from £28.90
from £28.90
# 056
MPN: 10725011
NUT
from £0.94
from £0.94
# 057
MPN: 136192
BREATHING PIPE
from £1.03
from £1.03
# 058
-
ANTISKID SWITCHING UNIT
