046 - Clutch Release Control - Valid for GD

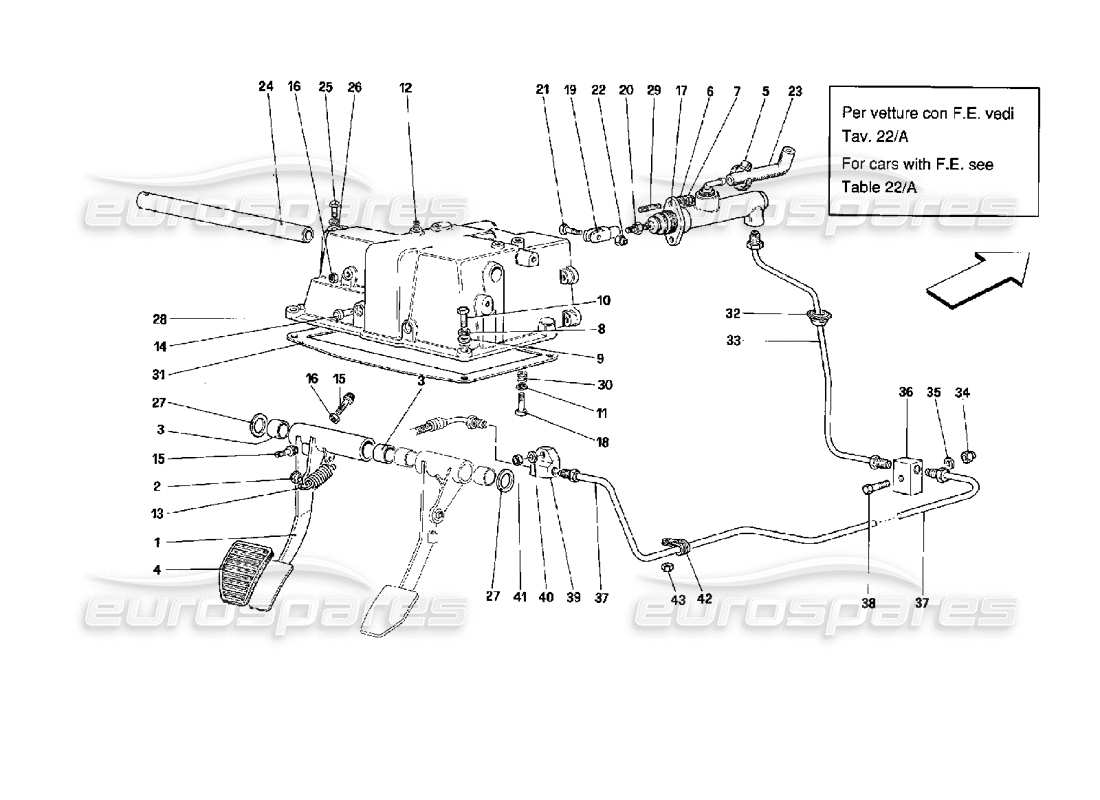

Ferrari Mondial 3.4 t Coupe/Cabrio Clutch Release Control - Valid for GD Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 140853
CLUTCH PEDAL
from £179.05
from £179.05
# 002
MPN: 109407
BALL JOINT
from £21.75
from £21.75
# 003
MPN: 103163
BUSH
from £2.83
from £2.83
# 004
MPN: 106949
CLUTCH PEDAL GUARD
from £17.95
from £17.95
# 005
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604
# 006
MPN: 12638501
WASHER
from £0.53
from £0.53
# 007
MPN: 133215
NUT
from £3.05
from £3.05
This part replaces part number 64342800
# 008
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 009
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 010
MPN: 16043621
SCREW
from £1.07
from £1.07
# 011
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 012
MPN: 13525170
HELICOIL
from £0.47
from £0.47
# 013
MPN: 101305
SPRING
from £8.07
from £8.07
This part replaces part number 660343
# 014
MPN: 129612

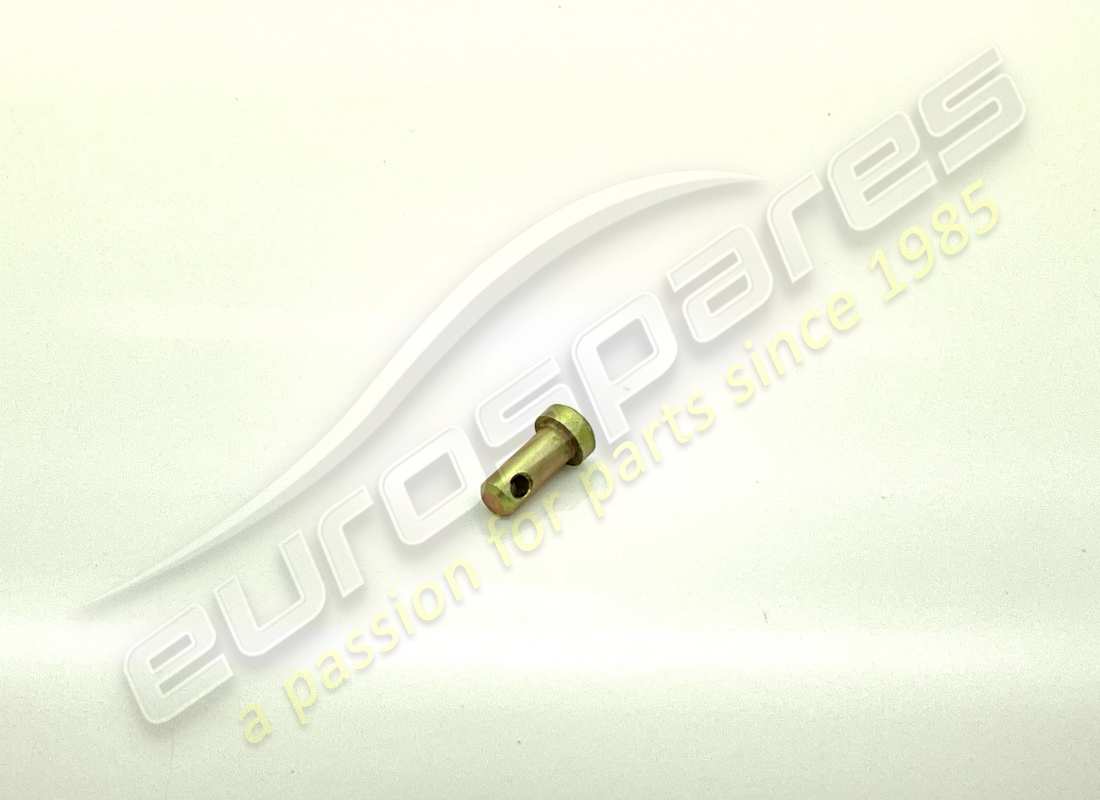

PIN
from £1.41
from £1.41
# 015
MPN: 144011
CLUTCH ADJUSTMENT CAP
from £10.00
from £10.00
# 016
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 017
MPN: 175211
Clutch Pump
from £87.66
from £87.66
This part replaces part number 123416 - and 2 more. Click to view details
# 018
MPN: 16043321
SCREW
from £0.47
from £0.47
# 019
MPN: 10248271

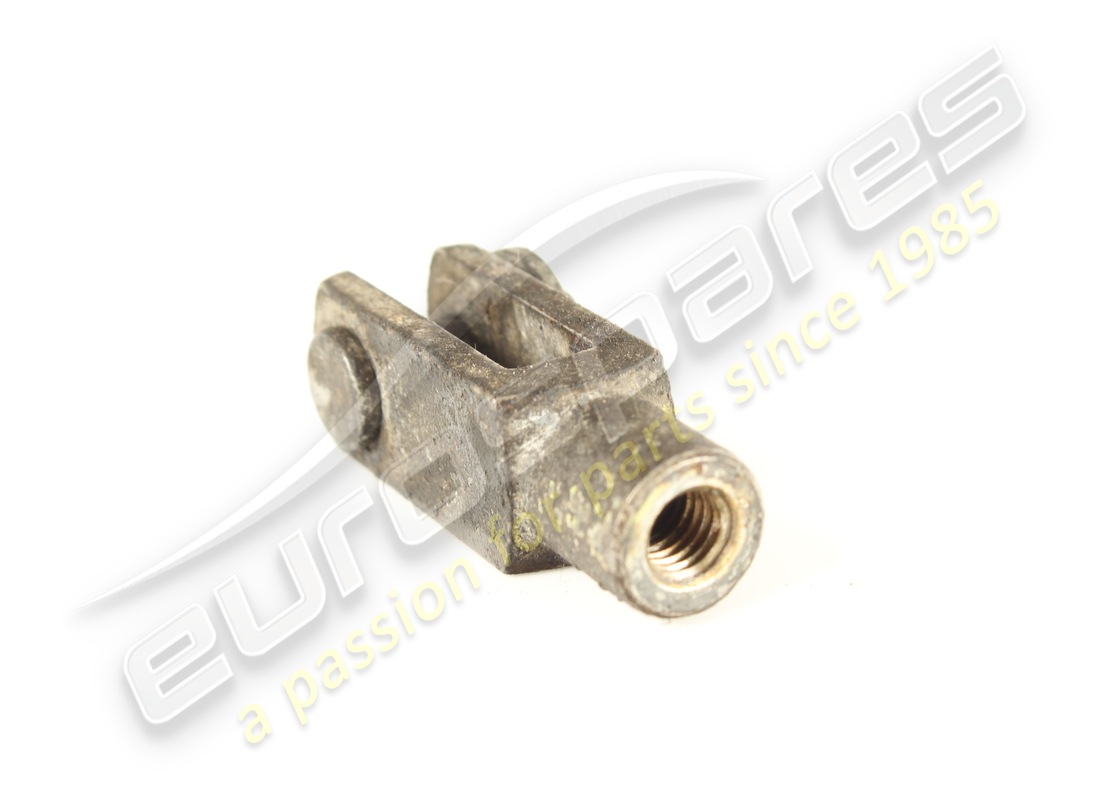

FORK
from £12.71
from £12.71
# 020
MPN: 16102311
NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 021
MPN: 130926
SCREW
from £3.70
from £3.70
# 022
MPN: 16104411
NUT
from £0.47
from £0.47
# 023
MPN: 134903
PIPE FROM PUMP TO TANK
from £1.80
from £1.80
# 024
MPN: 131319
PEDAL FASTENING PIN
from £75.70
from £75.70
# 025
MPN: 10902221
SCREW
from £0.59
from £0.59
# 026
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 027
MPN: 106083
THRUST WASHER -THICK. MM. 1,0
from £0.71
from £0.71
# 027
MPN: 113833
THRUST WASHER -THICK. MM. 1,1
from £1.84
from £1.84
# 027
MPN: 113834
THRUST WASHER -THICK. MM. 1,2
from £2.07
from £2.07
# 027
MPN: 113835
THRUST WASHER -THICK. MM. 1,3
from £1.84
from £1.84
# 027
MPN: 113836
THRUST WASHER -THICK. MM. 1,4
from £2.30
from £2.30
# 028
MPN: 142094

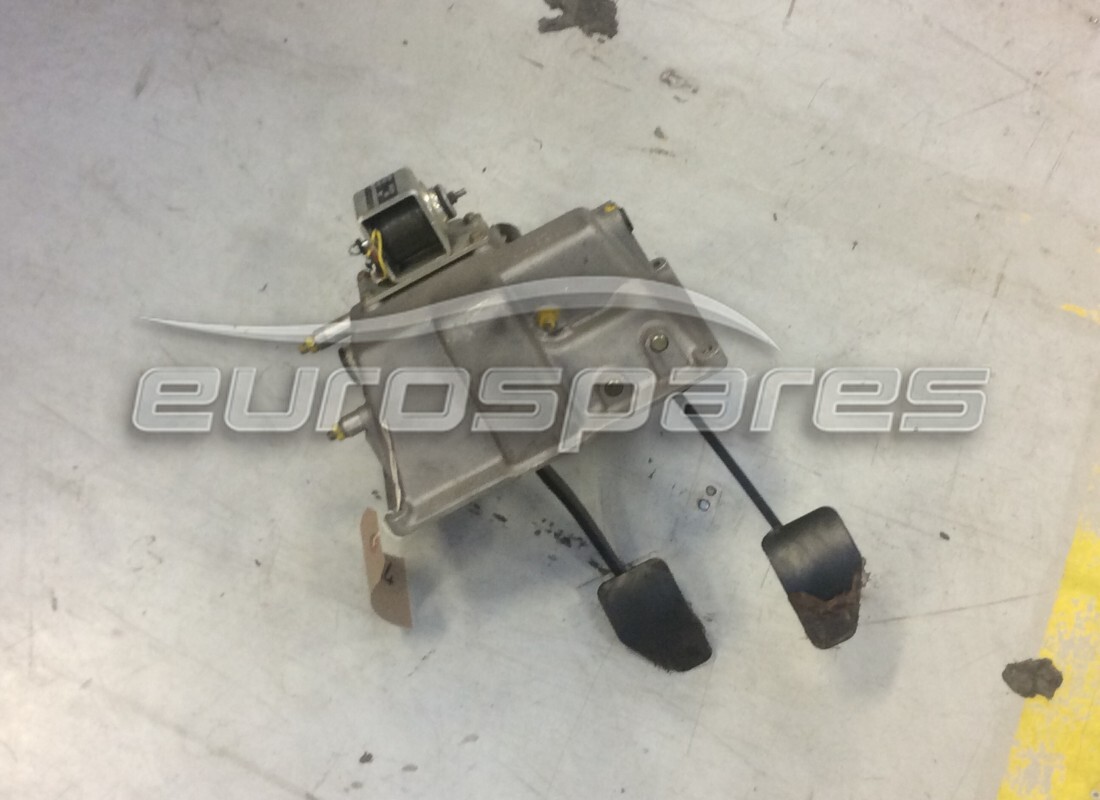

CONTROL PEDAL SUPPORT
from £472.50
from £472.50
# 029
MPN: 16100814
STUD BOLT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 030
MPN: 13525770
HELICOIL
from £1.54
from £1.54
This part replaces part number 103830
# 031
MPN: 129615
GASKET
from £8.77
from £8.77
# 032
MPN: 105369
CABLE GROMMET -NOT FOR F.E.-
from £19.10
from £19.10
# 032
MPN: 141457
PLUG -VALID FOR F.E.-
from £13.88
from £13.88
# 033
MPN: 138274
COMPLETE PIPE FROM CLUTCH PUMP
from £20.46
from £20.46
# 034
MPN: 12575411
NUT
Supersession
Supersession
# 035
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 036
MPN: 139375
FRONT UNION
from £83.52
from £83.52
# 037
MPN: 138275
INTERMEDIATE PIPE -COUPE'-
from £36.70
from £36.70
# 037
MPN: 142416
INTERMEDIATE PIPE -CABRIOLET-
from £35.66
from £35.66
# 038
MPN: 10902821
SCREW
from £1.07
from £1.07
This part replaces part number 10902801 - and 1 more. Click to view details
# 039
MPN: 139471
REAR UNION
from £12.68
from £12.68
# 040
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 041
MPN: 12575411
NUT
Supersession
Supersession
# 042
MPN: 10440990
BRACKET
from £0.77
from £0.77
# 043
MPN: 12575411
NUT
Supersession
Supersession
