043 - Electric Generation System

Ferrari Mondial 3.4 t Coupe/Cabrio Electric Generation System Parts Diagram

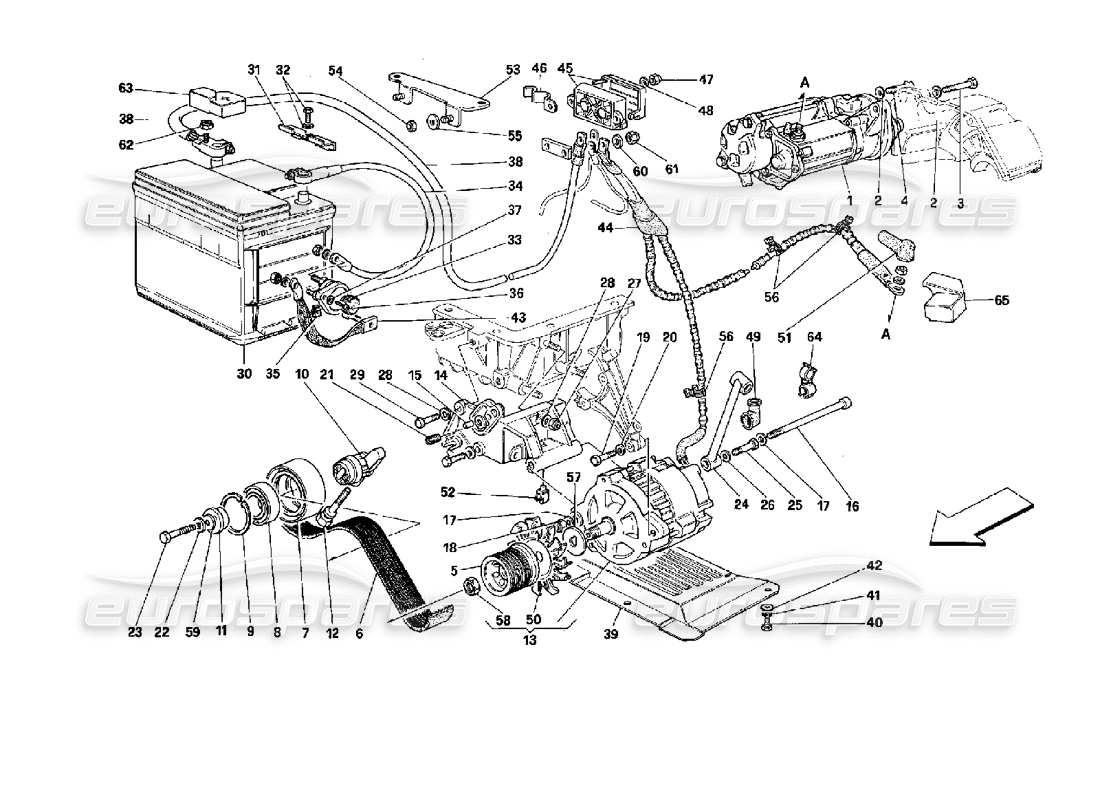

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 141706

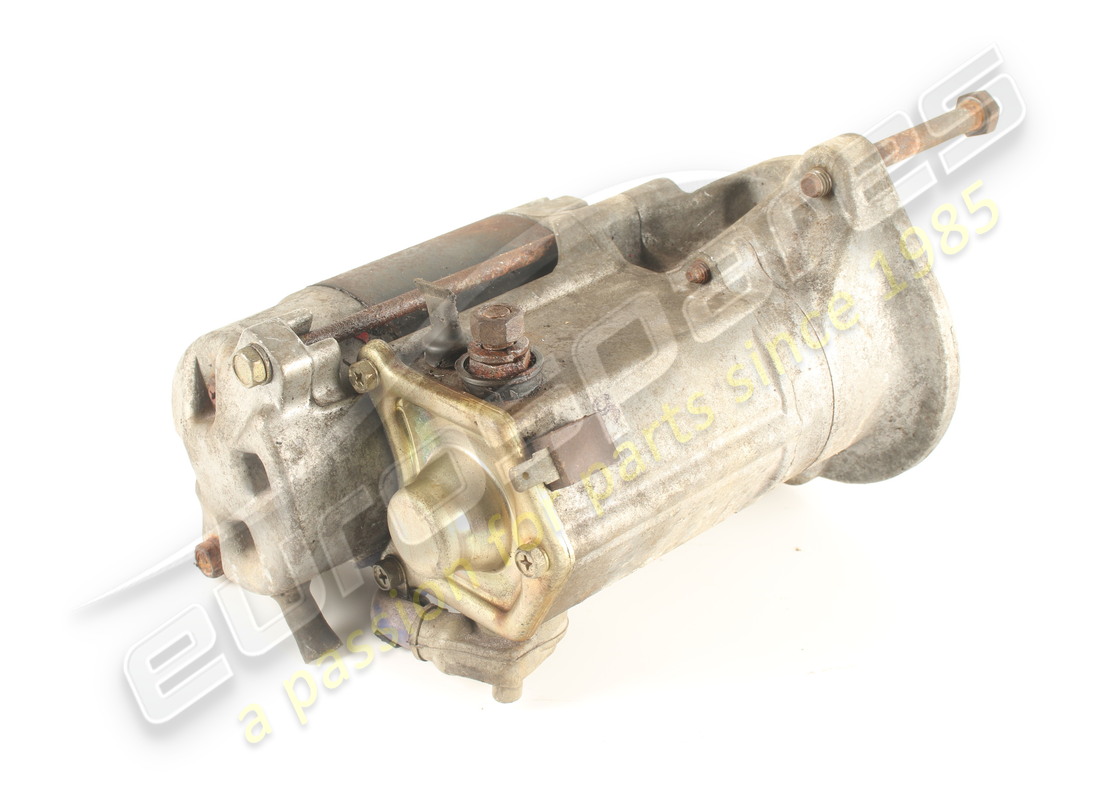

                                                                                                            STARTING MOTOR (BLACK COLOUR)
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 134387
                                                                                                            # 001
                                                                                                            MPN: 151852
                                                                                                            STARTING MOTOR (SILVER COLOUR)
                                                                                                            from £1,029.88
                                                                                                            from £1,029.88
                                                                                                            # 002
                                                                                                            MPN: 12601374

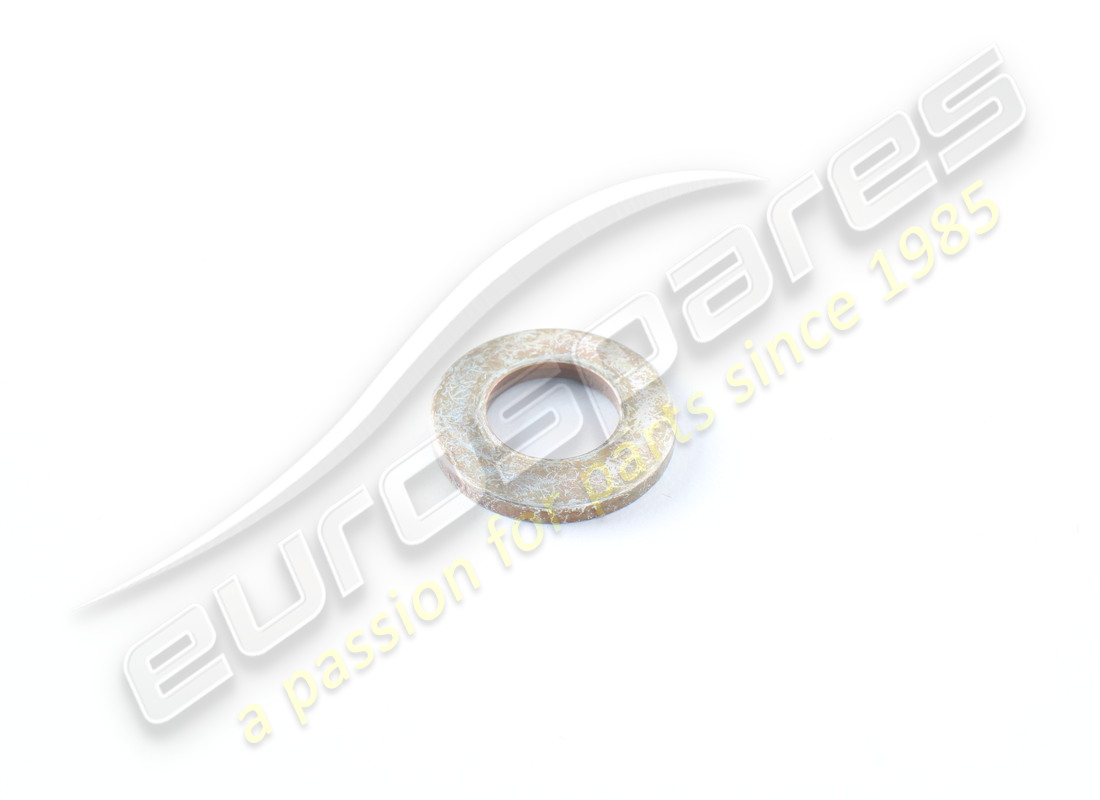

                                                                                                            WASHER
                                                                                                            from £0.30
                                                                                                            from £0.30
                                                                                                            This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                                            # 003
                                                                                                            MPN: 16044721
                                                                                                            SCREW
                                                                                                            from £0.83
                                                                                                            from £0.83
                                                                                                            # 004
                                                                                                            MPN: 16044224
                                                                                                            SCREW
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 16044221 which we have in stock
                                                                                                            # 005
                                                                                                            MPN: 140643
                                                                                                            GENERATOR PULLEY
                                                                                                            from £77.70
                                                                                                            from £77.70
                                                                                                            This part replaces part number 137281
                                                                                                            # 006
                                                                                                            MPN: 199823
                                                                                                            ALTERNATOR & WATER PUMP BELT
                                                                                                            from £13.60
                                                                                                            from £13.60
                                                                                                            This part replaces part number 139449
                                                                                                            # 006
                                                                                                            MPN: 199827
                                                                                                            ALTERNATOR & WATER PUMP BELT
                                                                                                            Poly - V - K8 type
                                                                                                            from £27.09
                                                                                                            from £27.09
                                                                                                            This part replaces part number 152730 - and 1 more. Click to view details
                                                                                                            # 007
                                                                                                            MPN: 139323
                                                                                                            BELT TIGHTENING PULLEY
                                                                                                            from £377.32
                                                                                                            from £377.32
                                                                                                            # 008
                                                                                                            MPN: 177436
                                                                                                            BEARING
                                                                                                            from £21.81
                                                                                                            from £21.81
                                                                                                            This part replaces part number 139368
                                                                                                            # 009
                                                                                                            MPN: 11061076
                                                                                                            SEEGER RING
                                                                                                            from £0.62
                                                                                                            from £0.62
                                                                                                            This part replaces part number 11061075 - and 1 more. Click to view details
                                                                                                            # 010
                                                                                                            MPN: 139358
                                                                                                            BELT TIGHTENING HUB
                                                                                                            from £77.23
                                                                                                            from £77.23
                                                                                                            # 011
                                                                                                            MPN: 142473
                                                                                                            SPACER FOR BEARING
                                                                                                            from £19.05
                                                                                                            from £19.05
                                                                                                            This part replaces part number 139360
                                                                                                            # 012
                                                                                                            MPN: 139309
                                                                                                            ADJUSTMENT SCREW
                                                                                                            from £31.03
                                                                                                            from £31.03
                                                                                                            # 013
                                                                                                            MPN: 139421
                                                                                                            ALTERNATOR 105 AH
                                                                                                            ALTERNATIVE USED 393050214
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 013
                                                                                                            MPN: 156653

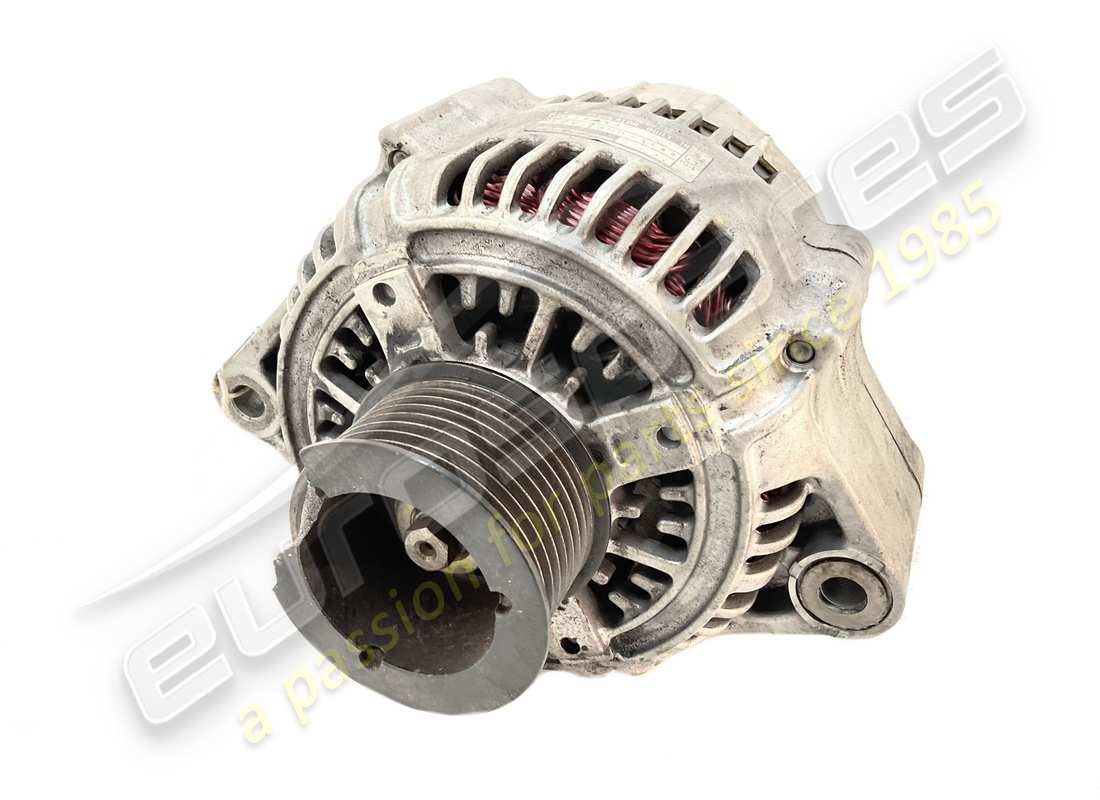

                                                                                                            ALTERNATOR 140 AH
                                                                                                            (Nippon Denso)
                                                                                                            from £486.59
                                                                                                            from £486.59
                                                                                                            # 014
                                                                                                            MPN: 139295
                                                                                                            BELT TIGHTENING AND GENERATOR SUPPORT
                                                                                                            from £545.00
                                                                                                            from £545.00
                                                                                                            # 015
                                                                                                            MPN: 125717
                                                                                                            DOWEL
                                                                                                            from £1.57
                                                                                                            from £1.57
                                                                                                            # 016
                                                                                                            MPN: 130431
                                                                                                            SCREW
                                                                                                            from £13.41
                                                                                                            from £13.41
                                                                                                            # 017
                                                                                                            MPN: 13550401
                                                                                                            WASHER
                                                                                                            from £0.49
                                                                                                            from £0.49
                                                                                                            # 018
                                                                                                            MPN: 12575625
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 121660 - and 2 more. Click to view details
                                                                                                            # 019
                                                                                                            MPN: 16043821
                                                                                                            SCREW
                                                                                                            from £0.49
                                                                                                            from £0.49
                                                                                                            # 020
                                                                                                            MPN: 11193879
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 021
                                                                                                            MPN: 13526070
                                                                                                            HELI-COIL
                                                                                                            from £1.96
                                                                                                            from £1.96
                                                                                                            This part replaces part number 104657
                                                                                                            # 022
                                                                                                            MPN: 138194
                                                                                                            WASHER
                                                                                                            from £14.83
                                                                                                            from £14.83
                                                                                                            # 023
                                                                                                            MPN: 11288021
                                                                                                            SCREW
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 024
                                                                                                            MPN: 141027
                                                                                                            GENERATOR REAR SUPPORT
                                                                                                            from £53.00
                                                                                                            from £53.00
                                                                                                            This part replaces part number 139510
                                                                                                            # 025
                                                                                                            MPN: 16043821
                                                                                                            SCREW
                                                                                                            from £0.49
                                                                                                            from £0.49
                                                                                                            # 026
                                                                                                            MPN: 11193879
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 027
                                                                                                            MPN: 16104411
                                                                                                            NUT
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            # 028
                                                                                                            MPN: 12601374
                                                                                                            WASHER
                                                                                                            from £0.30
                                                                                                            from £0.30
                                                                                                            This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                                            # 030
                                                                                                            MPN: 118060
                                                                                                            12V-66AH-300A BATTERY
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 030
                                                                                                            MPN: 61933900
                                                                                                            12V-70AH-420A BATTERY
                                                                                                            - In alternative
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 118060 - and 1 more. Click to view details
                                                                                                            # 031
                                                                                                            MPN: 62573400
                                                                                                            BATTERY FASTENING BRACKET
                                                                                                            from £22.50
                                                                                                            from £22.50
                                                                                                            # 032
                                                                                                            MPN: 13824514
                                                                                                            SCREW WITH WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 033
                                                                                                            MPN: 139607
                                                                                                            BATTERY DISCONNECTION SWITCH
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 034
                                                                                                            MPN: 116754
                                                                                                            CABLE FROM BATTERY TO BATTERY DISCONNECTION DEVICE
                                                                                                            - Valid till stock exhaustion
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 034
                                                                                                            MPN: 155070
                                                                                                            COPPER BRAID
                                                                                                            - Valid after stock exhaustion of 116754
                                                                                                            from £23.07
                                                                                                            from £23.07
                                                                                                            This part replaces part number 116754 - and 1 more. Click to view details
                                                                                                            # 035
                                                                                                            MPN: 61067800
                                                                                                            SPRING
                                                                                                            from £1.00
                                                                                                            from £1.00
                                                                                                            # 036
                                                                                                            MPN: 15688278
                                                                                                            SCREW
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 037
                                                                                                            MPN: 12637806
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 038
                                                                                                            MPN: 138109
                                                                                                            CABLE FROM BATTERY TO TERMINAL BOARD
                                                                                                            - Valid till stock exhaustion
                                                                                                            from £104.98
                                                                                                            from £104.98
                                                                                                            # 038
                                                                                                            MPN: 144268
                                                                                                            CABLE FROM BATTERY TO TERMINAL BOARD
                                                                                                            - Valid after stock 'exhaustion of 138109
                                                                                                            from £200.16
                                                                                                            from £200.16
                                                                                                            This part replaces part number 138109 which we have in stock - and 1 more. Click to view details
                                                                                                            # 039
                                                                                                            MPN: 140373
                                                                                                            GENERATOR PROTECTION SHIELD
                                                                                                            from £435.27
                                                                                                            from £435.27
                                                                                                            This part replaces part number 139424
                                                                                                            # 039
                                                                                                            MPN: 140373
                                                                                                            GENERATOR PROTECTION SHEET - CABRIOLET
                                                                                                            from £435.27
                                                                                                            from £435.27
                                                                                                            This part replaces part number 139424
                                                                                                            # 040
                                                                                                            MPN: 10902221
                                                                                                            SCREW
                                                                                                            from £0.57
                                                                                                            from £0.57
                                                                                                            # 041
                                                                                                            MPN: 127494
                                                                                                            WASHER
                                                                                                            (minimum order quantity = 20)
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                            # 042
                                                                                                            MPN: 12643724
                                                                                                            WASHER
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                            # 043
                                                                                                            MPN: 116753
                                                                                                            BATTERY DISCONNECTION DEVICE CONNECTION PLAIT
                                                                                                            - Talid till stock exhaustion
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 043
                                                                                                            MPN: 155068
                                                                                                            COPPER BRAID
                                                                                                            - Valid after stock exhaustion of 116753
                                                                                                            from £50.04
                                                                                                            from £50.04
                                                                                                            This part replaces part number 116753
                                                                                                            # 044
                                                                                                            MPN: 138110
                                                                                                            CABLE FROM TERMINAL BOARD TO STARTING MOTOR AND GENERATOR - COUPE'
                                                                                                            - Valid till stock exhaustion
                                                                                                            from £82.01
                                                                                                            from £82.01
                                                                                                            # 044
                                                                                                            MPN: 140670
                                                                                                            CABLE FROM TERMINAL BOARD TO STARTING MOTOR AND GENERATOR - CABRIOLET
                                                                                                            - Valid for Starting motor 141706 - Valid till stock exhaustion
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 044
                                                                                                            MPN: 144269
                                                                                                            CABLE FROM TERMINAL BOARD TO STARTING MOTOR AND GENERATOR - CABRIOLET
                                                                                                            - Valid for Starting motor 141706 - Valid after stock exhaustion of 140670
                                                                                                            from £109.06
                                                                                                            from £109.06
                                                                                                            This part replaces part number 140670
                                                                                                            # 044
                                                                                                            MPN: 144271
                                                                                                            CABLE FROM TERMINAL BOARD TO STARTING MOTOR AND GENERATOR - COUPE'
                                                                                                            - Valid after stock exhaustion of 138110
                                                                                                            from £150.16
                                                                                                            from £150.16
                                                                                                            This part replaces part number 138110 which we have in stock
                                                                                                            # 044
                                                                                                            MPN: 154447
                                                                                                            CABLE FROM TERMINAL BOARD TO STARTING MOTOR AND GENERATOR - CABRIOLET
                                                                                                            - Valid for Starting motor 151852
                                                                                                            from £467.22
                                                                                                            from £467.22
                                                                                                            # 045
                                                                                                            MPN: 170114
                                                                                                            CABLE CONNEC. TERMINAL BOARD
                                                                                                            from £7.20
                                                                                                            from £7.20
                                                                                                            This part replaces part number 153357
                                                                                                            # 046
                                                                                                            MPN: 139954
                                                                                                            BRACKET
                                                                                                            from £113.73
                                                                                                            from £113.73
                                                                                                            # 047
                                                                                                            MPN: 12574115
                                                                                                            NUT
                                                                                                            from £1.10
                                                                                                            from £1.10
                                                                                                            # 048
                                                                                                            MPN: 10519377
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                            # 049
                                                                                                            MPN: 125329
                                                                                                            CAP
                                                                                                            from £3.19
                                                                                                            from £3.19
                                                                                                            # 050
                                                                                                            MPN: 143863
                                                                                                            FAN
                                                                                                            from £14.41
                                                                                                            from £14.41
                                                                                                            # 051
                                                                                                            MPN: 124683
                                                                                                            CAP
                                                                                                            - Valid for Starting motor 151852
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 139937
                                                                                                            # 052
                                                                                                            MPN: 14574287
                                                                                                            SPRING
                                                                                                            from £4.98
                                                                                                            from £4.98
                                                                                                            # 053
                                                                                                            MPN: 141243
                                                                                                            BRACKET
                                                                                                            - Valid for Cabriolet only
                                                                                                            from £10.51
                                                                                                            from £10.51
                                                                                                            # 054
                                                                                                            MPN: 12574011
                                                                                                            NUT
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            # 055
                                                                                                            MPN: 10519201
                                                                                                            WASHER
                                                                                                            from £0.86
                                                                                                            from £0.86
                                                                                                            This part replaces part number 10519281
                                                                                                            # 056
                                                                                                            MPN: 139965
                                                                                                            SPRING
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            # 057
                                                                                                            MPN: 140614
                                                                                                            WASHER
                                                                                                            from £3.07
                                                                                                            from £3.07
                                                                                                            This part replaces part number 143864
                                                                                                            # 058
                                                                                                            MPN: 144255
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 059
                                                                                                            MPN: 11190579
                                                                                                            WASHER
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            # 061
                                                                                                            MPN: 16104411
                                                                                                            NUT
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            # 063
                                                                                                            MPN: 144727
                                                                                                            PROTECTION CAP FOR POSITIVE CLAMP
                                                                                                            - Valid for F.E.
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 123674/T - and 1 more. Click to view details
                                                                                                            # 064
                                                                                                            MPN: 155669
                                                                                                            SPRING
                                                                                                            from £50.65
                                                                                                            from £50.65
                                                                                                            # 065
                                                                                                            MPN: 149426
                                                                                                            PROTECTION
                                                                                                            - Valid for Starting motor 141706
                                                                                                            from £3.23
                                                                                                            from £3.23
