040 - Rear Suspension - Shock Absorber and Brake Disc

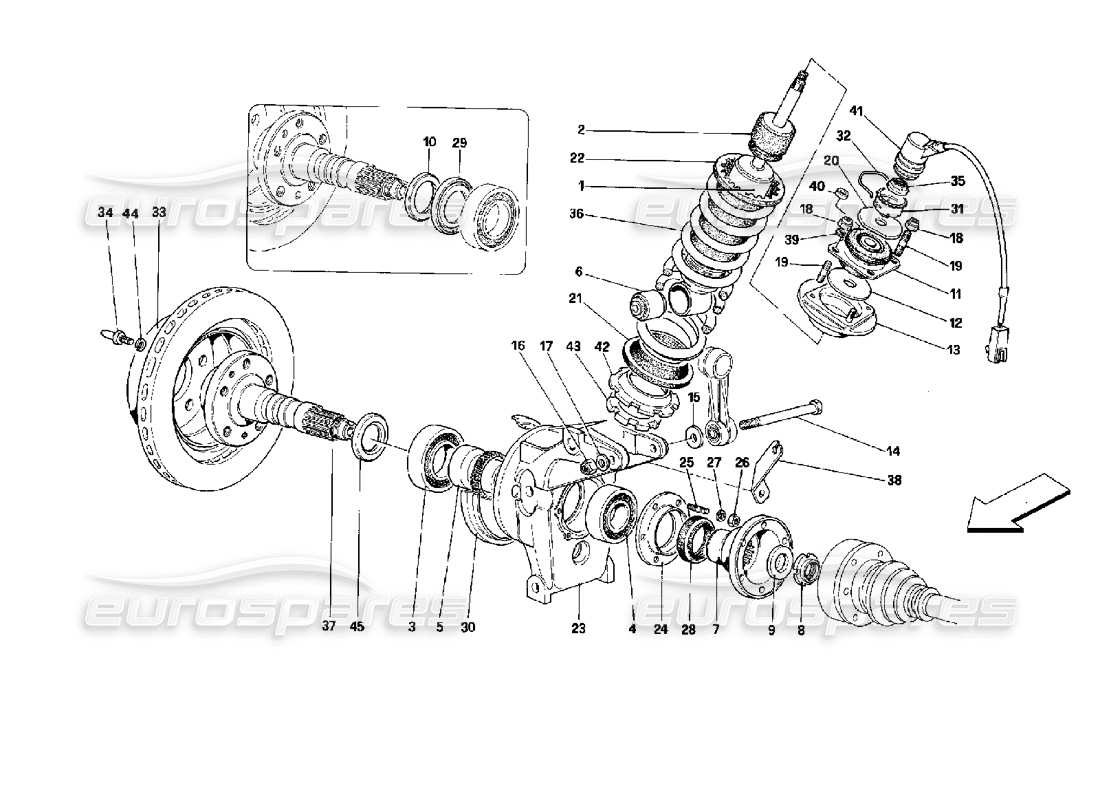

Ferrari Mondial 3.4 t Coupe/Cabrio Rear Suspension - Shock Absorber and Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 137830
SHOCK ABSORBER
- Sold in pair
Supersession
Supersession
# 002
MPN: 137827
PLUG
# 003
MPN: 144807
OUTER BEARING
from £125.00
from £125.00
This part replaces part number 125935
# 004
MPN: 145805
INNER BEARING
from £73.60
from £73.60
This part replaces part number 125934
# 005
MPN: 145551
SPACER WITH TOOTHED WHEEL
Supersession
Supersession
This part replaces part number 132409
# 006

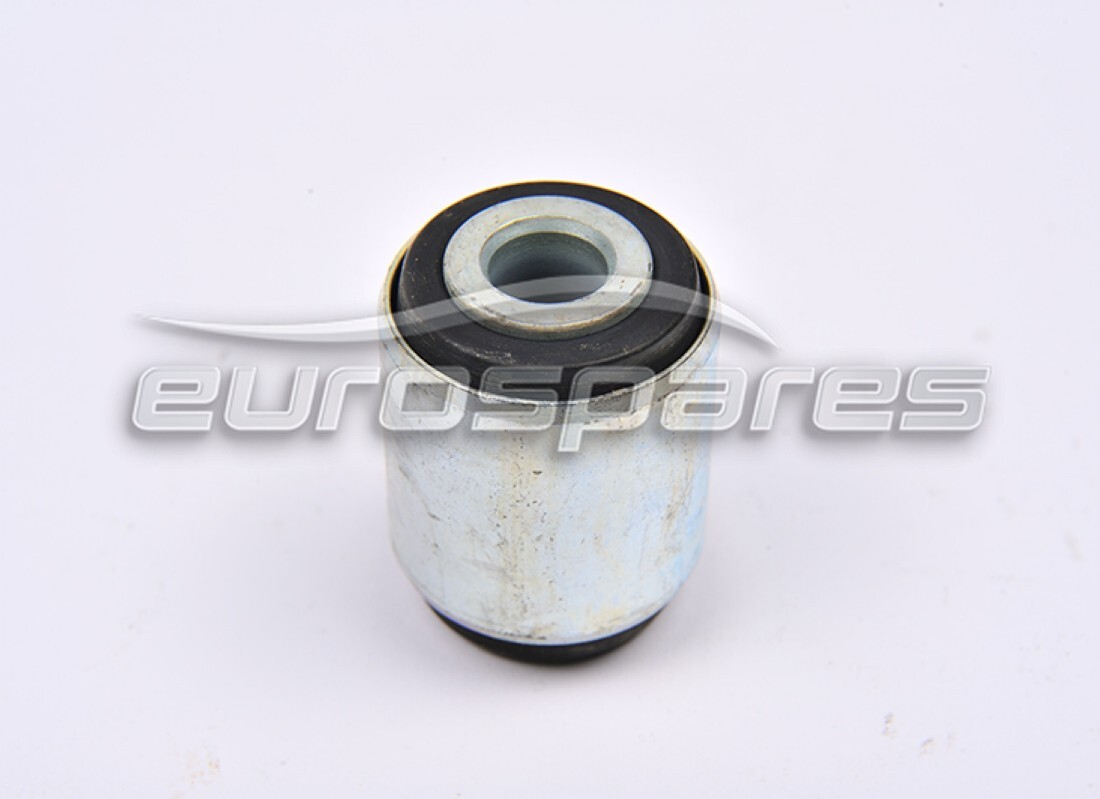

MPN: 130516
ESTENDBLOCK
from £28.17
from £28.17
# 007
MPN: 119372
FLANGE CONNECTING AXLE SHAFTS
from £341.84
from £341.84
# 008
MPN: 102289
RING NUT
from £45.52
from £45.52
This part replaces part number 700648
# 009
MPN: 105511
WASHER
from £33.71
from £33.71
This part replaces part number 700753
# 010
MPN: 124965
SPACER
- Not as spare parts - Replace with 144858 eliminating the ring 124966
from £38.21
from £38.21
# 012
MPN: 114815
WASHER
from £0.86
from £0.86
# 013
MPN: 151547
CAP
from £63.94
from £63.94
This part replaces part number 114809 - and 1 more. Click to view details
# 014
MPN: 105901
SCREW
from £17.72
from £17.72
# 015
MPN: 132199
WASHER
from £2.55
from £2.55
# 016
MPN: 16105125
NUT
Supersession
Supersession
# 017
MPN: 10520021
WASHER
from £0.59
from £0.59
This part replaces part number 10520001
# 018
MPN: 104030
NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 019
MPN: 13543521
STUD BOLT
Supersession
Supersession
# 020
MPN: 137825
WASHER
from £0.76
from £0.76
# 021
MPN: 113581
LOWER SPACER
from £6.34
from £6.34
This part replaces part number 387000338 - and 2 more. Click to view details
# 022
MPN: 113582
UPPER SPACER
from £100.65
from £100.65

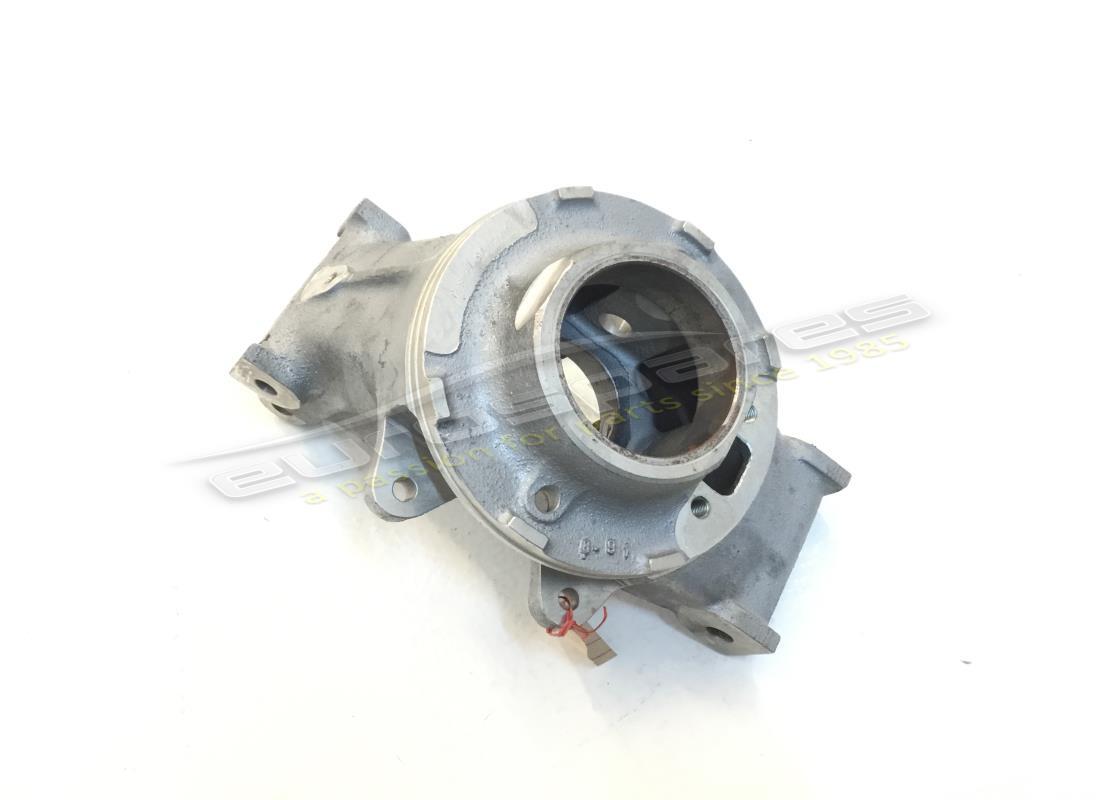

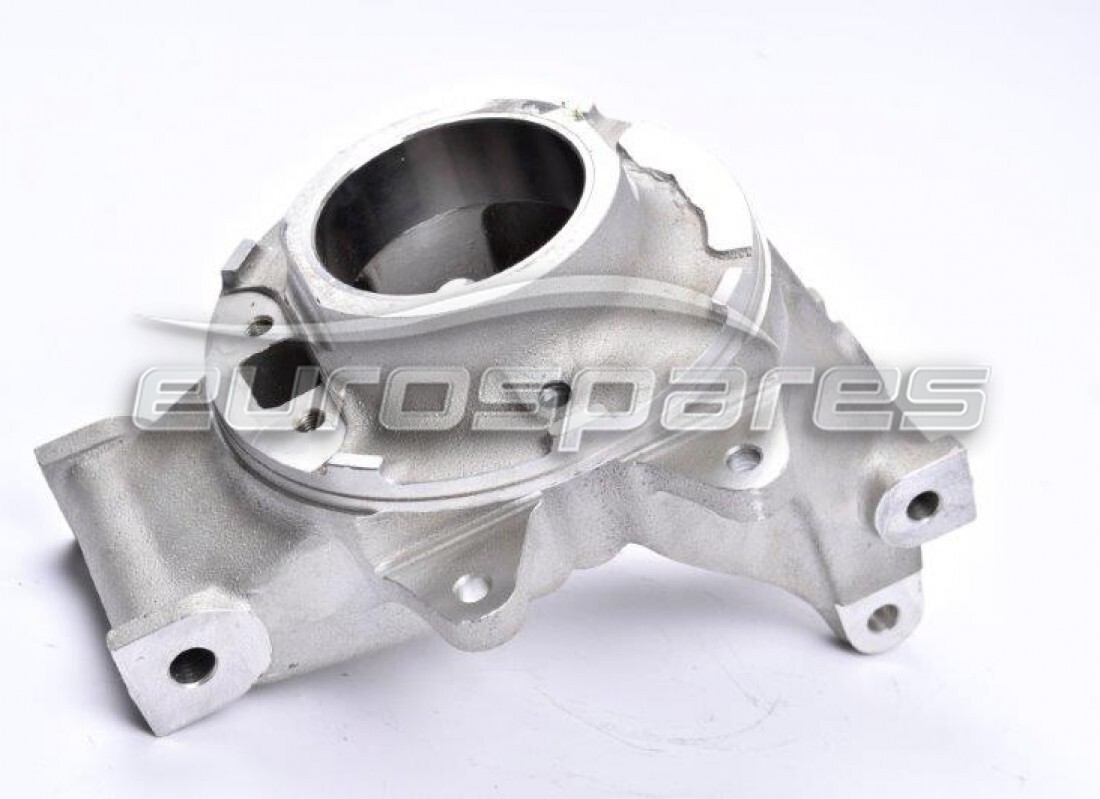

# 023
MPN: 136249
RIGHT HUB HOLDER
- Valid till car Ass. Nr. 6500
from £441.44
from £441.44
# 023
MPN: 136250
LEFT HUB HOLDER
- Valid till car Ass. Nr. 6500
from £1,484.90
from £1,484.90
# 023
MPN: 151238
RIGHT HUB HOLDER
- Valid from car Ass. Nr. 6501
from £925.50
from £925.50
This part replaces part number 142992
# 023
MPN: 151239
LEFT HUB HOLDER
- Valid from car Ass. Nr. 6501
from £962.52
from £962.52
This part replaces part number 142993
# 024
MPN: 125976
FLANGE FOR BEARING
from £28.01
from £28.01
# 025
MPN: 13543324
STUD BOLT
from £0.84
from £0.84
This part replaces part number 13543321
# 026
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 027
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 028
MPN: 115968/A
SEALING RING
from £32.12
from £32.12
# 029
MPN: 108047
CENTRIFUGAL RING
from £54.21
from £54.21
# 030
MPN: 103117
SPLASH GUARD
from £6.13
from £6.13
# 031
MPN: 137824
SUPPORT
from £7.77
from £7.77
# 032
MPN: 142079
SPRING
from £5.93
from £5.93
# 033

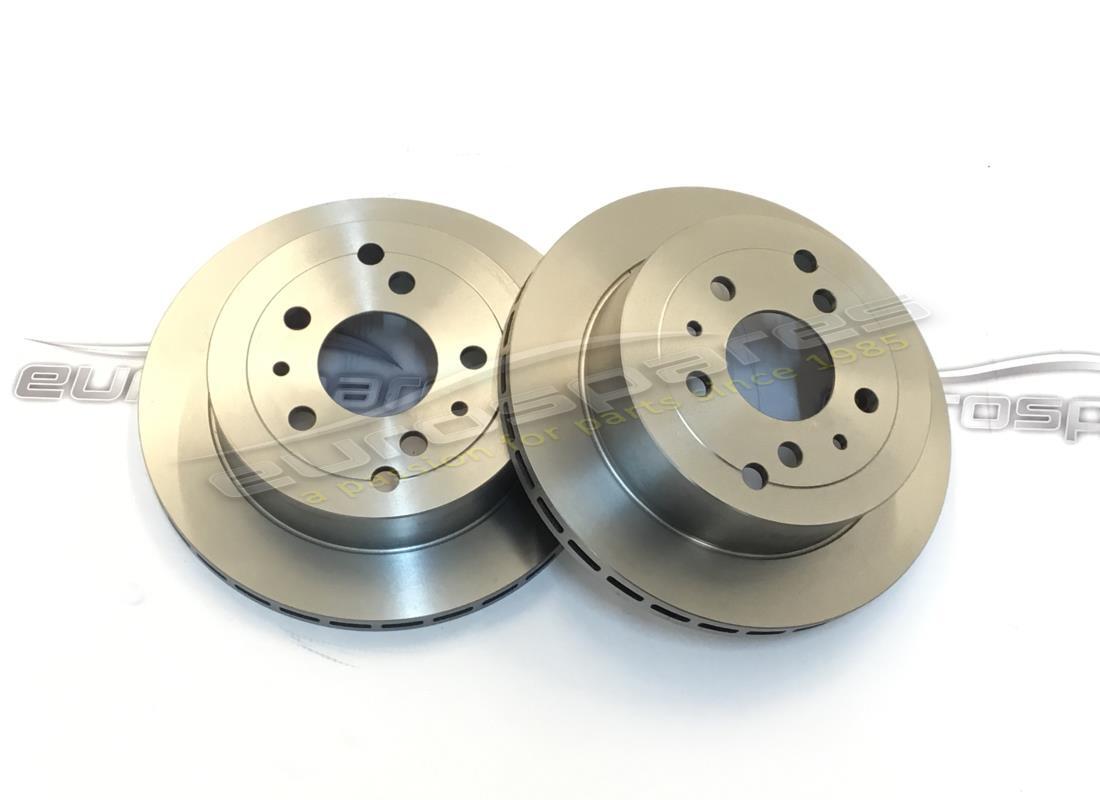

MPN: 117186
BRAKE DISC
from £175.00
from £175.00
# 034
MPN: 104370
CENTERING SCREW
from £5.12
from £5.12
This part replaces part number 139981
# 035
MPN: 137826
NUT
from £1.74
from £1.74

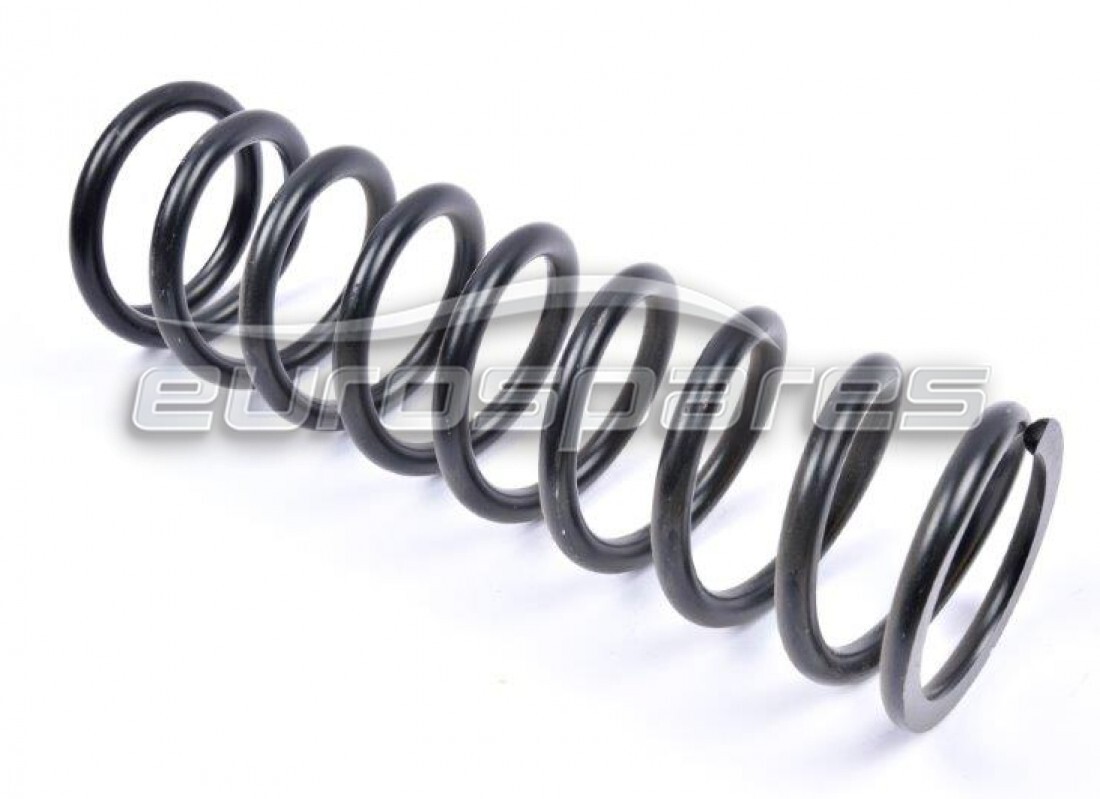

# 036
MPN: 143043
SUSPENSION SPRING
- Sold in pair
from £91.93
from £91.93
This part replaces part number 141498
# 037
MPN: 144951
SHAFT WITH REAR HUB
from £1,670.82
from £1,670.82
This part replaces part number 132408
# 037
MPN: 144951
SHAFT
- Valid from car Ass. Nr. 2181
from £1,670.82
from £1,670.82
This part replaces part number 132408
# 038
MPN: 131869
RH BRACKET
from £3.00
from £3.00
# 038
MPN: 131870
LH BRACKET
from £3.00
from £3.00
# 039
MPN: 12646724
WASHER
from £0.47
from £0.47
This part replaces part number 12601571 - and 3 more. Click to view details
# 040
MPN: 113113
WASHER
from £4.35
from £4.35
# 041
MPN: 137831
ACTUATOR
from £1,374.19
from £1,374.19
# 042
MPN: 155086
PLATE
from £45.07
from £45.07
# 043
MPN: 141860
THREADED RING NUT
from £63.87
from £63.87
# 044
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 045
MPN: 144858
SPACER
- Valid till car Ass. Nr. 2180 - For hub Shaft 132408
from £69.25
from £69.25
# 045
MPN: 144907
SPACER
- Valid from car Ass. Nr. 2181 - For hub Shaft 144951
from £202.89
from £202.89
