039 - Front Suspension - Wishbones

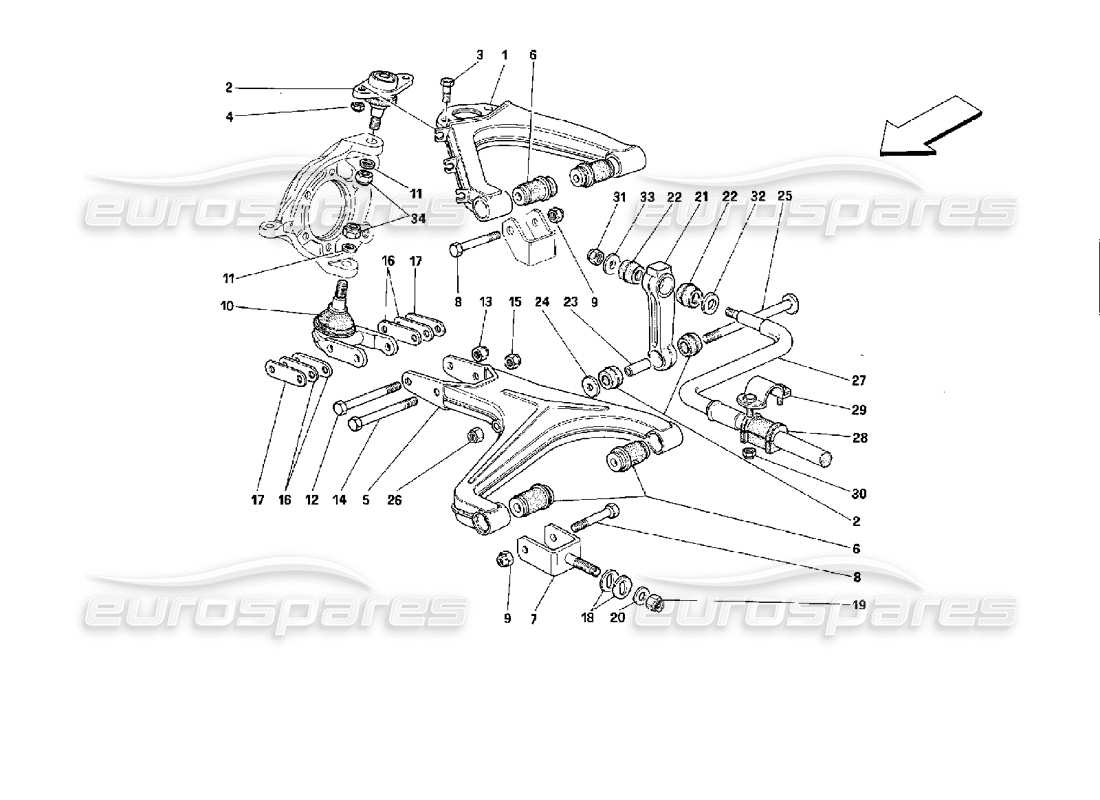

Ferrari Mondial 3.4 t Coupe/Cabrio Front Suspension - Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 139493
UPPER LEVER
- Valid from car 79818
from £240.61
from £240.61
# 001
MPN: 141433

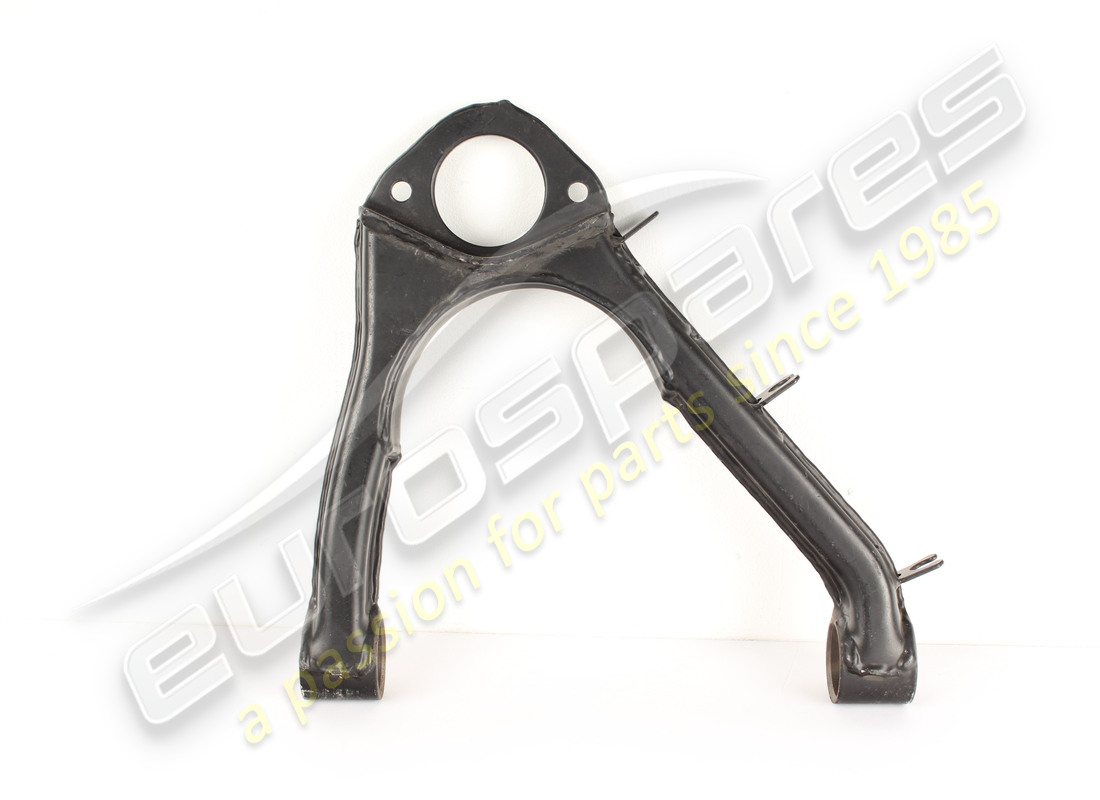

UPPER LEVER
- Valid till car 79807
from £331.55
from £331.55
# 002
MPN: 132776
UPPER BALL JOINT
from £51.47
from £51.47
# 003
MPN: 16043721
SCREW
from £1.13
from £1.13
# 004
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 005
MPN: 143005
LOWER LEVER
from £450.74
from £450.74
This part replaces part number 132666 - and 1 more. Click to view details
# 006
MPN: 154537
FLAMBLOCK
USE : 163038/154536
from £27.17
from £27.17
This part replaces part number 104398 - and 1 more. Click to view details
# 007
MPN: 136858
LOWER FORK
from £19.37
from £19.37
# 008
MPN: 106419
SCREW
from £8.11
from £8.11
This part replaces part number 100808 - and 9 more. Click to view details
# 009
MPN: 16105125
NUT
Supersession
Supersession
# 010
MPN: 133944
LOWER BALL JOINT
from £50.00
from £50.00
This part replaces part number 114462 - and 13 more. Click to view details
# 011
MPN: 101445
WASHER
from £0.59
from £0.59
# 012
MPN: 15971621
SCREW
from £7.94
from £7.94
This part replaces part number 104519
# 013
MPN: 12575625
NUT
Supersession
Supersession
This part replaces part number 121660 - and 2 more. Click to view details
# 014
MPN: 132667
SCREW
from £20.99
from £20.99
# 015
MPN: 16105125
NUT
Supersession
Supersession
# 016
MPN: 101022
CHASSE ADJUSTMENT PLATE
from £1.22
from £1.22
This part replaces part number 153963
# 017
MPN: 115073
CHASSE ADJUSTMENT PLATE
- Possible fitting
from £0.79
from £0.79
This part replaces part number 153964
# 018
MPN: 107025
THRUST WASHER - THICK. MM 1
Supersession
Supersession
# 018
MPN: 107338
THRUST WASHER - THICK. MM 1,5
from £13.10
from £13.10
This part replaces part number 107418
# 018
MPN: 107339
THRUST WASHER - THICK. MM. 2
from £1.04
from £1.04
This part replaces part number 107419
# 018
MPN: 107340
THRUST WASHER - THICK. MM. 2,5
from £1.11
from £1.11
This part replaces part number 107420
# 018
MPN: 107341
THRUST WASHER - THICK. MM. 3
from £2.84
from £2.84
This part replaces part number 107421
# 018
MPN: 107422
THRUST WASHER - THICK. MM. 3,25
Supersession
Supersession
# 019
MPN: 150238
NUT
from £0.47
from £0.47
This part replaces part number 12575821 - and 2 more. Click to view details
# 020
MPN: 103024
WASHER
from £1.99
from £1.99
# 021
MPN: 114691
BAR LINK
from £322.83
from £322.83
# 022
MPN: 100984
LINK PAD
from £6.64
from £6.64
This part replaces part number 126097 - and 1 more. Click to view details
# 023
MPN: 100985
SPACER
from £21.06
from £21.06
This part replaces part number 64431
# 024
MPN: 105334
WASHER
Supersession
Supersession
# 025
MPN: 132665
LINK FASTENING PIN
from £12.62
from £12.62
# 026
MPN: 16105125
NUT
Supersession
Supersession
# 027
MPN: 136621
STABILIZER BAR Ø 22
- Replaced by bar 140654 with pad 140655
Supersession
Supersession
# 027
MPN: 140654
STABILIZER BAR Ø 23
from £101.98
from £101.98
This part replaces part number 136621 - and 1 more. Click to view details
# 028
MPN: 130606

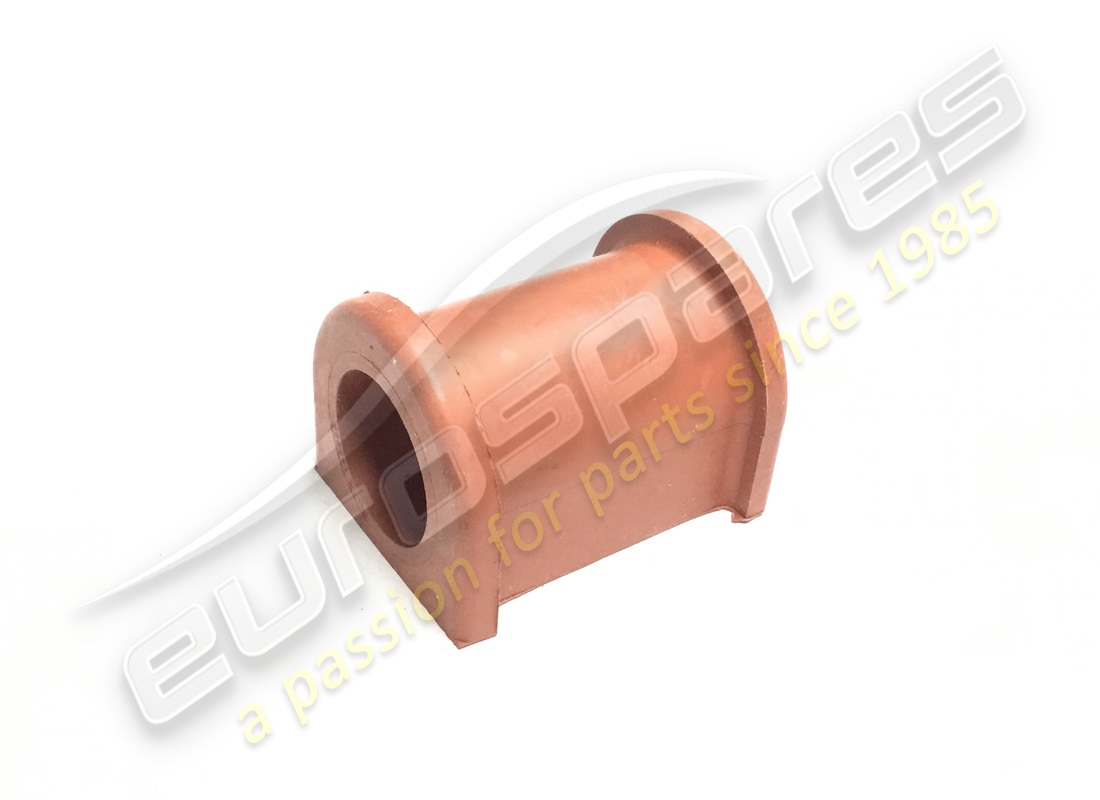

PAD FOR BAR Ø 22
from £47.05
from £47.05
# 028
MPN: 140655
PAD FOR BAR Ø 23
from £15.25
from £15.25
# 029
MPN: 138389
PAD FASTENING PLATE
from £68.86
from £68.86
This part replaces part number 133227
# 030
MPN: 14058511
NUT
from £0.47
from £0.47
# 031
MPN: 12575625
NUT FOR BAR
Supersession
Supersession
This part replaces part number 121660 - and 2 more. Click to view details
# 032
MPN: 10520221
WASHER
from £0.92
from £0.92
# 033
MPN: 112874
WASHER
from £10.91
from £10.91
# 034
MPN: 12574725
NUT
from £4.22
from £4.22
