Ferrari Mondial 3.4 t Coupe/Cabrio Hydraulic Steering Pumps and Pipings Parts Diagram

036 - Hydraulic Steering Pumps and Pipings

Ferrari Mondial 3.4 t Coupe/Cabrio Hydraulic Steering Pumps and Pipings Parts Diagram

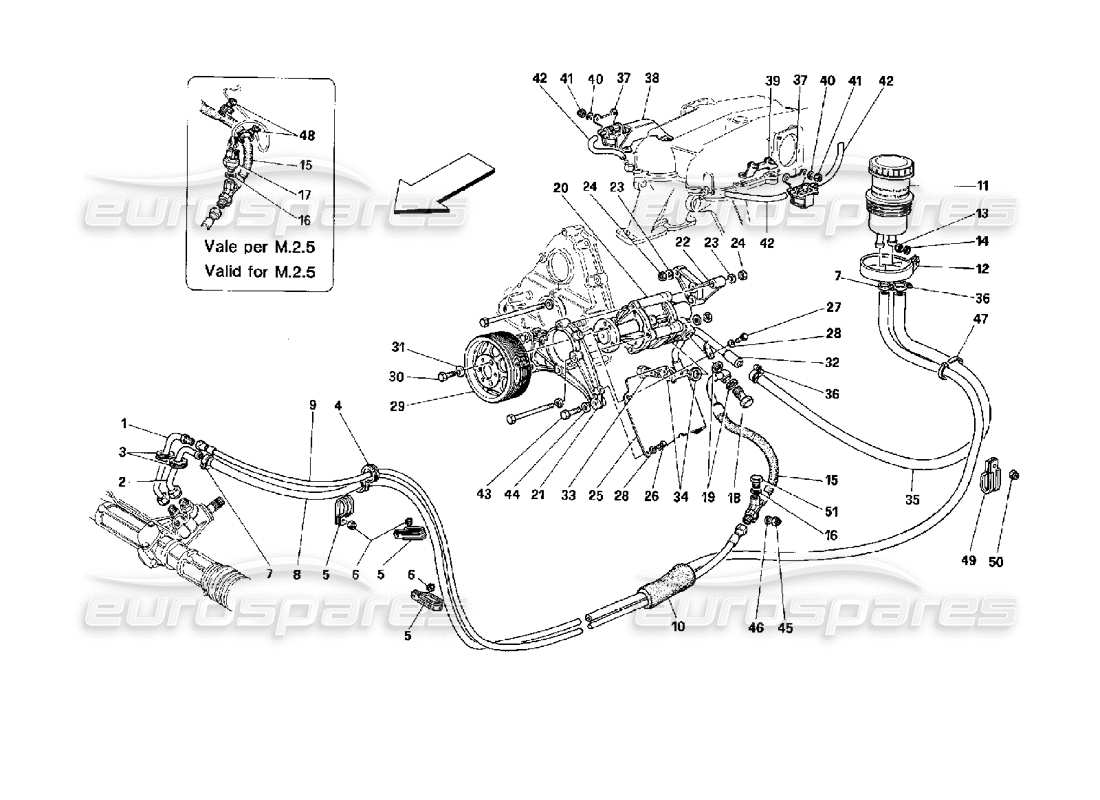

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price

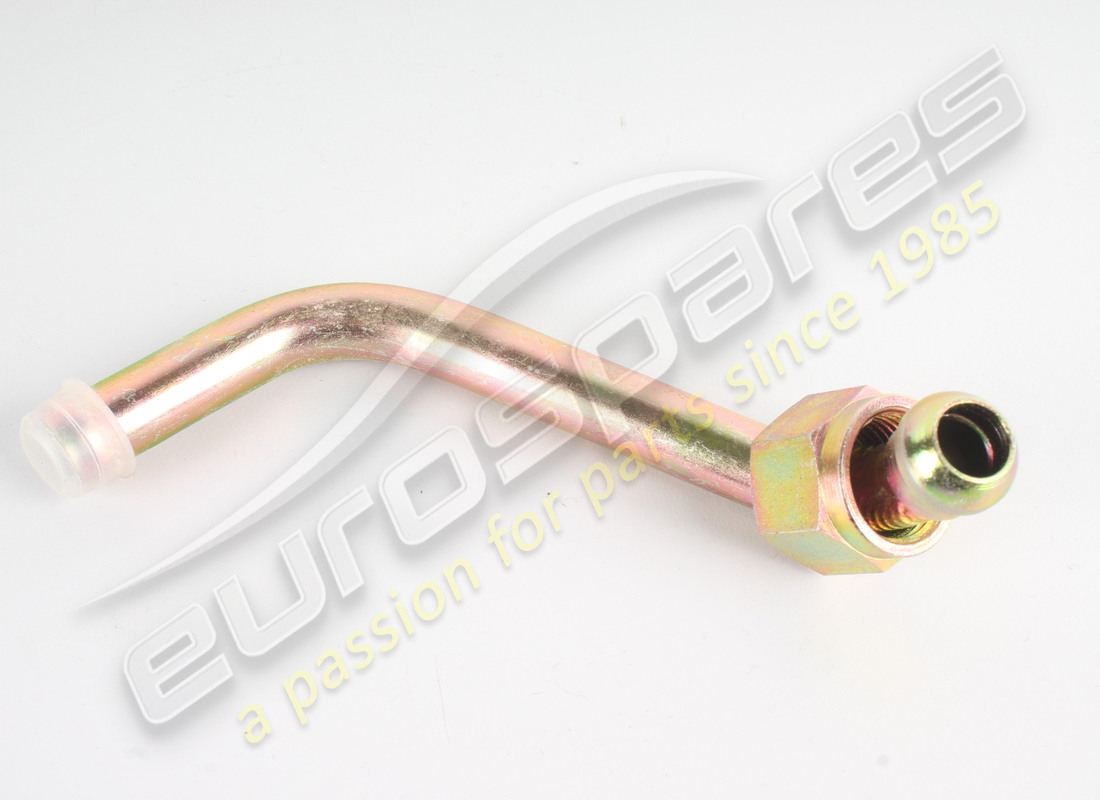

                                                                                      # 001
                                                                                      MPN: 138867
                                                                                      INLET PIPE ON DRIVE BOX
                                                                                      - Not for GD
                                                                                      from £41.26
                                                                                      from £41.26
                                                                                      # 001
                                                                                      MPN: 138886
                                                                                      INLET PIPE ON DRIVE BOX
                                                                                      - Vale for GD
                                                                                      from £44.22
                                                                                      from £44.22
                                                                                      # 002
                                                                                      MPN: 138868
                                                                                      OUTLET PIPE ON DRIVE BOX
                                                                                      - Not for GD
                                                                                      from £36.81
                                                                                      from £36.81
                                                                                      # 002
                                                                                      MPN: 138885
                                                                                      OUTLET PIPE ON DRIVE BOX
                                                                                      - Valid for GD
                                                                                      from £40.77
                                                                                      from £40.77
                                                                                      # 003
                                                                                      MPN: 10396780
                                                                                      INSULATING RING
                                                                                      from £1.10
                                                                                      from £1.10
                                                                                      # 004
                                                                                      MPN: 10396880
                                                                                      FAIRLEAD
                                                                                      from £2.35
                                                                                      from £2.35
                                                                                      # 005
                                                                                      MPN: 139512
                                                                                      PIPES FASTENING BRACKET
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      # 007
                                                                                      MPN: 13000390
                                                                                      CLAMP
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                      # 008
                                                                                      MPN: 137467
                                                                                      PIPE FROM DRIVE BOX TO TANK - COUPE'
                                                                                      - Not for GD
                                                                                      from £94.36
                                                                                      from £94.36
                                                                                      This part replaces part number 179257
                                                                                      # 008
                                                                                      MPN: 138893
                                                                                      PIPE FROM DRIVE BOX TO TANK
                                                                                      - Valid for GD
                                                                                      from £116.58
                                                                                      from £116.58
                                                                                      # 008
                                                                                      MPN: 141253
                                                                                      PIPE FROM DRIVE BOX TO TANK - CABRIOLET
                                                                                      - Not for GD
                                                                                      from £52.69
                                                                                      from £52.69
                                                                                      # 009
                                                                                      MPN: 108031
                                                                                      PROTECTION PIPE
                                                                                      from £13.11
                                                                                      from £13.11
                                                                                      # 009
                                                                                      MPN: 137535
                                                                                      DELIVERY PIPE FROM PUMP - COUPE'
                                                                                      - Not for GD
                                                                                      from £138.93
                                                                                      from £138.93
                                                                                      # 009
                                                                                      MPN: 138892
                                                                                      DELIVERY PIPE FROM PUMP
                                                                                      - Valid for GD
                                                                                      from £104.62
                                                                                      from £104.62
                                                                                      # 009
                                                                                      MPN: 141246
                                                                                      DELIVERY PIPE FROM PUMP - CABRIOLET
                                                                                      - Not for GD
                                                                                      from £118.93
                                                                                      from £118.93
                                                                                      # 011
                                                                                      MPN: 144932
                                                                                      OIL TANK
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 139371
                                                                                      # 012
                                                                                      MPN: 143638
                                                                                      TANK FASTENING BRACKET
                                                                                      from £7.02
                                                                                      from £7.02
                                                                                      # 014
                                                                                      MPN: 14496501
                                                                                      WASHER
                                                                                      from £0.86
                                                                                      from £0.86
                                                                                      # 015
                                                                                      MPN: 138880
                                                                                      DELIVERY PIPE ON PUMP
                                                                                      from £194.57
                                                                                      from £194.57
                                                                                      # 016
                                                                                      MPN: 10261060
                                                                                      GASKET
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 017
                                                                                      MPN: 139376
                                                                                      PRESSURE SWITCH
                                                                                      - Valid for M. 2.5
                                                                                      from £33.50
                                                                                      from £33.50
                                                                                      # 018
                                                                                      MPN: 10185111
                                                                                      PIPE UNION
                                                                                      from £2.80
                                                                                      from £2.80
                                                                                      # 019
                                                                                      MPN: 10280060
                                                                                      GASKET
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 100501 - and 3 more. Click to view details
                                                                                      # 020
                                                                                      MPN: 139511
                                                                                      HYDRAULIC SERVO-CONTROL PUMP WITH BRACKET
                                                                                      from £592.54
                                                                                      from £592.54
                                                                                      # 021
                                                                                      MPN: 139507
                                                                                      FRONT BRACKET
                                                                                      - Not as spare parts - With assembly 139511
                                                                                      # 022
                                                                                      -
                                                                                      REAR BRACKET
                                                                                      # 023
                                                                                      MPN: 13550401
                                                                                      WASHER
                                                                                      from £0.49
                                                                                      from £0.49
                                                                                      # 024
                                                                                      MPN: 12575625
                                                                                      NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 121660 - and 2 more. Click to view details
                                                                                      # 025
                                                                                      MPN: 140424
                                                                                      ANTI-HEAT PANEL
                                                                                      from £165.58
                                                                                      from £165.58
                                                                                      # 026
                                                                                      MPN: 10979411
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 027
                                                                                      MPN: 10902011
                                                                                      SCREW
                                                                                      from £1.10
                                                                                      from £1.10
                                                                                      This part replaces part number 10902411
                                                                                      # 028
                                                                                      MPN: 11197774
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                      # 029
                                                                                      MPN: 137436
                                                                                      PUMP PULLEY
                                                                                      from £283.39
                                                                                      from £283.39
                                                                                      # 030
                                                                                      MPN: 16043124
                                                                                      SCREW
                                                                                      from £0.30
                                                                                      from £0.30
                                                                                      This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
                                                                                      SCREW Genuine Ferrari Part - Used In stock
                                                                                      Removed from 458 engine 178999
                                                                                      # 031
                                                                                      MPN: 11193879
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 032
                                                                                      MPN: 139350
                                                                                      NON FLEXIBLE PIPE CONNECTING PUMP TO TANK
                                                                                      from £40.90
                                                                                      from £40.90
                                                                                      # 033
                                                                                      MPN: 10184411
                                                                                      PIPE UNION
                                                                                      from £30.13
                                                                                      from £30.13
                                                                                      # 034
                                                                                      MPN: 143311
                                                                                      GASKET
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 035
                                                                                      MPN: 140370
                                                                                      TANK-PUMP CONNECTION RUBBER PIPE
                                                                                      from £25.10
                                                                                      from £25.10
                                                                                      # 036
                                                                                      MPN: 13000390
                                                                                      CLAMP
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                      # 037
                                                                                      MPN: 139595
                                                                                      SOLENOID VALVE FOR HYDRAULIC SERVO-CONTROL
                                                                                      from £14.32
                                                                                      from £14.32
                                                                                      # 038
                                                                                      MPN: 139596
                                                                                      RH BRACKET
                                                                                      from £6.19
                                                                                      from £6.19
                                                                                      # 039
                                                                                      MPN: 139597
                                                                                      LH BRACKET
                                                                                      from £5.09
                                                                                      from £5.09
                                                                                      # 040
                                                                                      MPN: 14496401
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 041
                                                                                      MPN: 102948
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                      # 042
                                                                                      MPN: 141235
                                                                                      PIPE ON SOLENOID VALVE
                                                                                      from £2.13
                                                                                      from £2.13
                                                                                      This part replaces part number 253376
                                                                                      # 043
                                                                                      MPN: 16043821
                                                                                      SCREW
                                                                                      from £0.49
                                                                                      from £0.49
                                                                                      # 044
                                                                                      MPN: 11193879
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 046
                                                                                      MPN: 14496501
                                                                                      WASHER
                                                                                      from £0.86
                                                                                      from £0.86
                                                                                      # 047
                                                                                      MPN: 105550
                                                                                      CLAMP
                                                                                      from £1.28
                                                                                      from £1.28
                                                                                      # 048
                                                                                      MPN: 139965
                                                                                      SPRING
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 049
                                                                                      MPN: 10441690
                                                                                      BRACKET
                                                                                      from £1.10
                                                                                      from £1.10
                                                                                      This part replaces part number 1044690
                                                                                      # 051
                                                                                      MPN: 10300540
                                                                                      CAP
                                                                                      - Valid for M. 2.7
                                                                                      from £2.90
                                                                                      from £2.90
