033 - Front Brakes Calipers

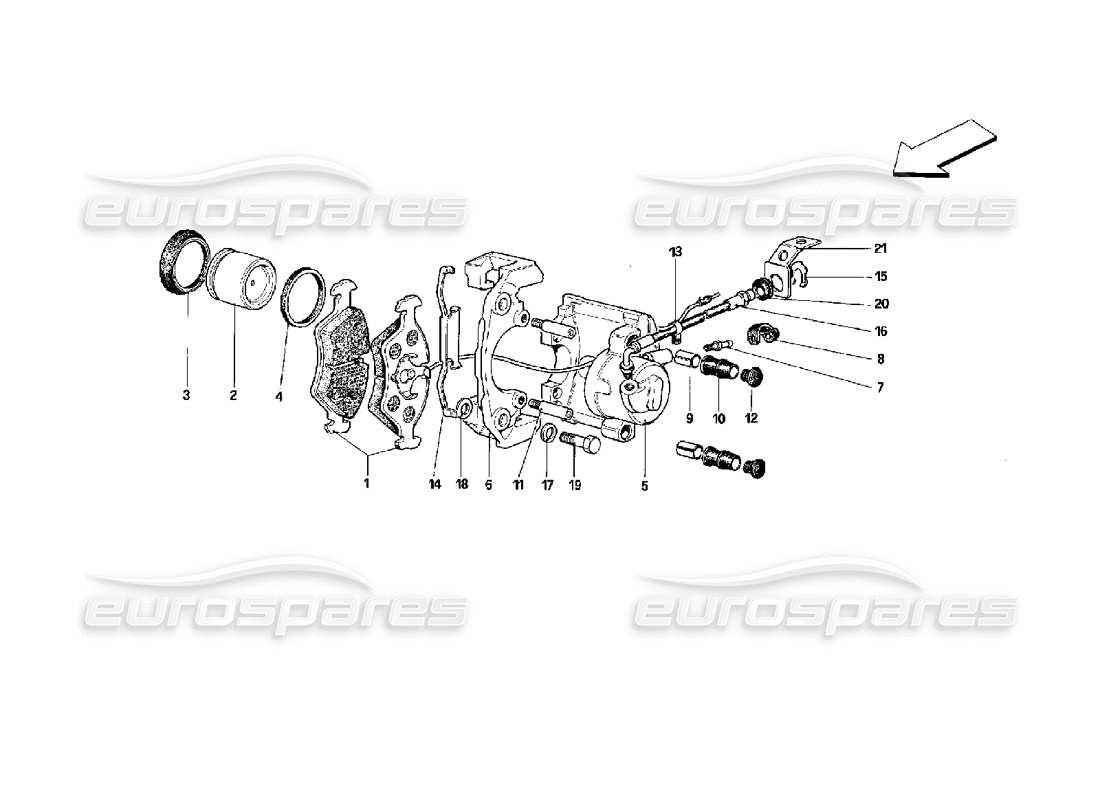

Ferrari Mondial 3.4 t Coupe/Cabrio Front Brakes Calipers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 00
MPN: 116928

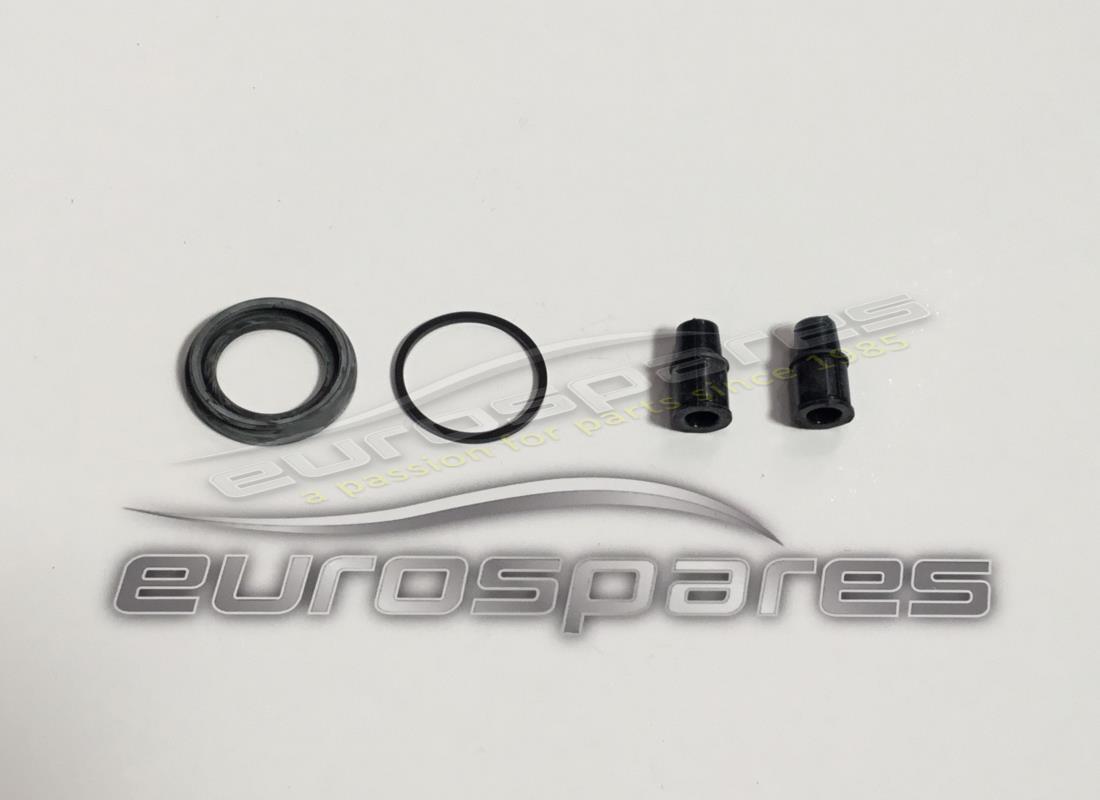

OVERHAUL KIT FOR REAR CALIPERS
per caliper
from £57.08
from £57.08
# 000
MPN: 116927

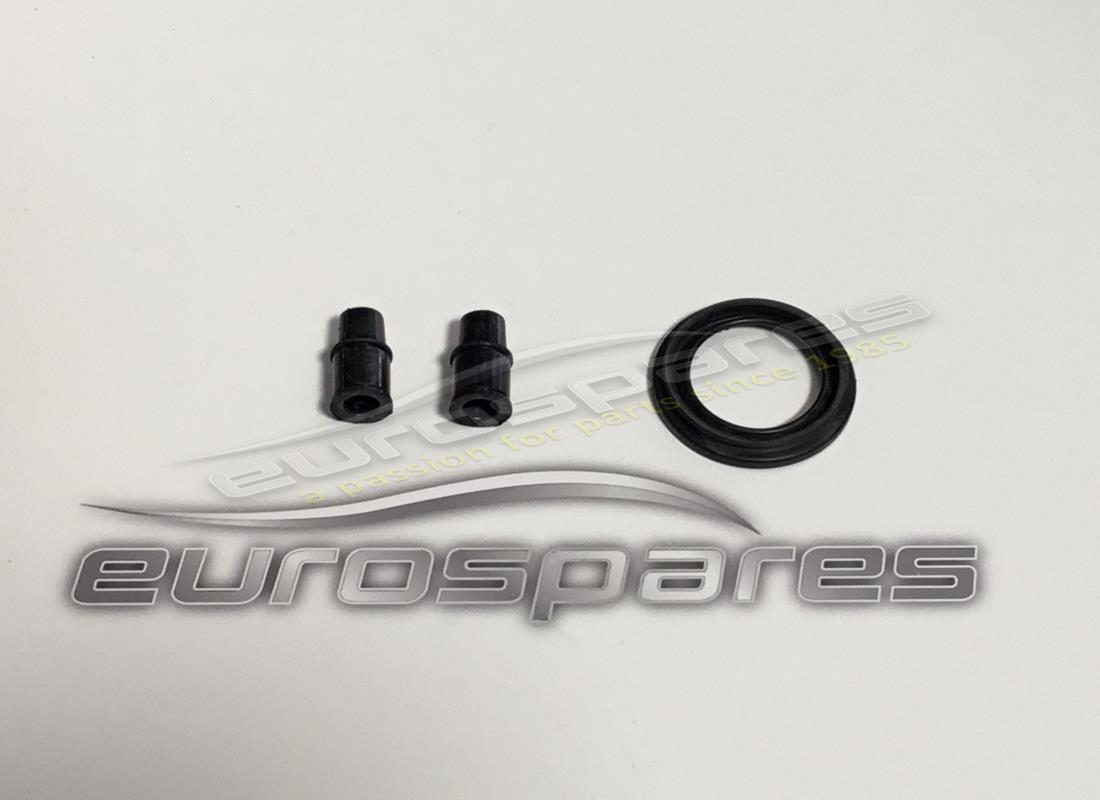

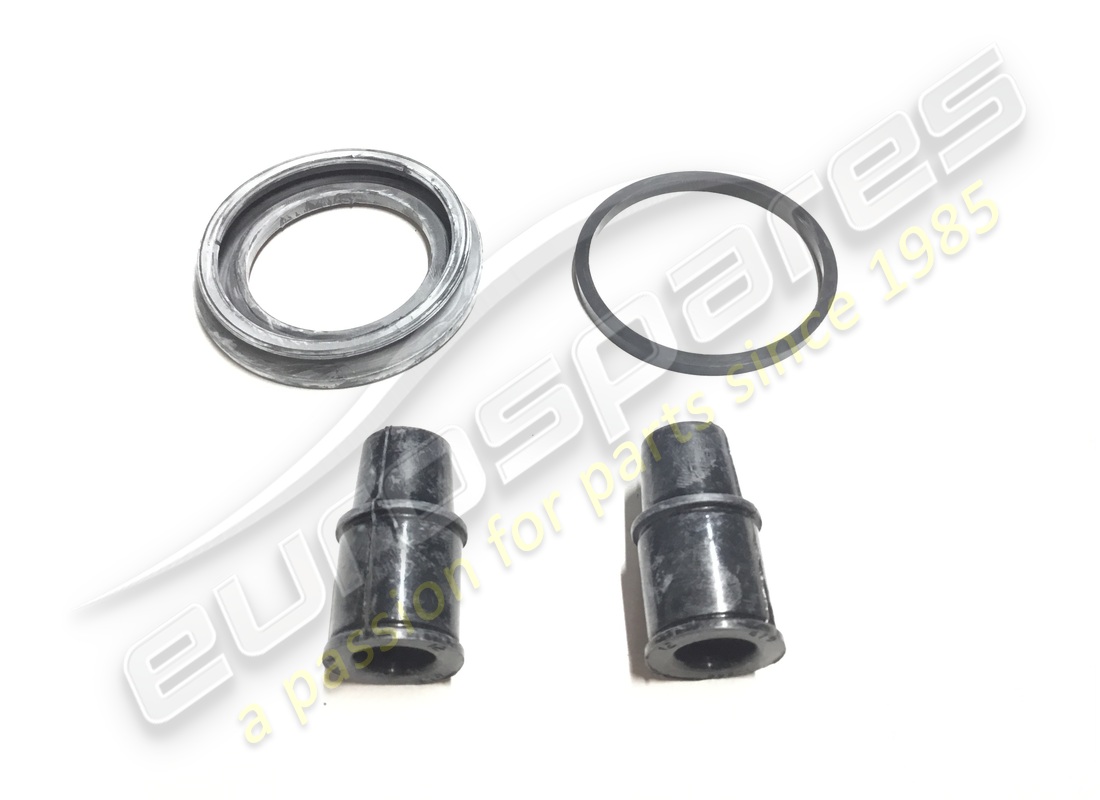

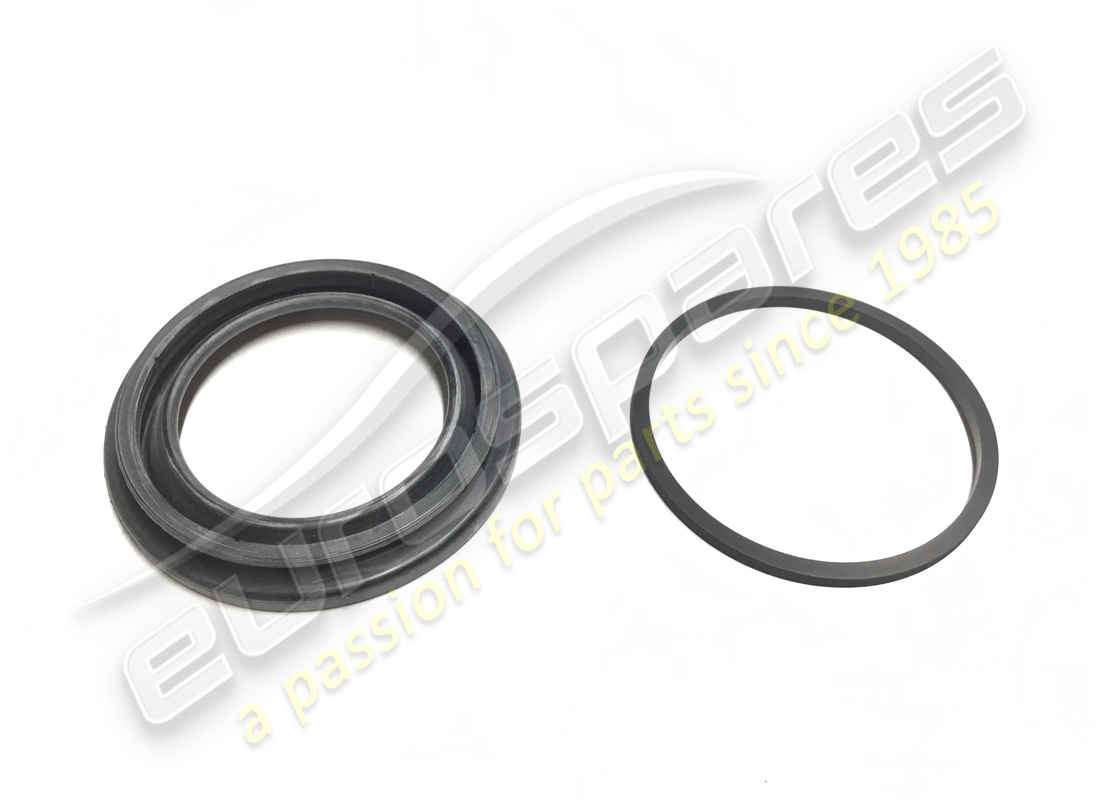

OVERHAUL KIT FOR FRONT CALIPERS
per caliper
from £50.40
from £50.40
# 000
MPN: 136603

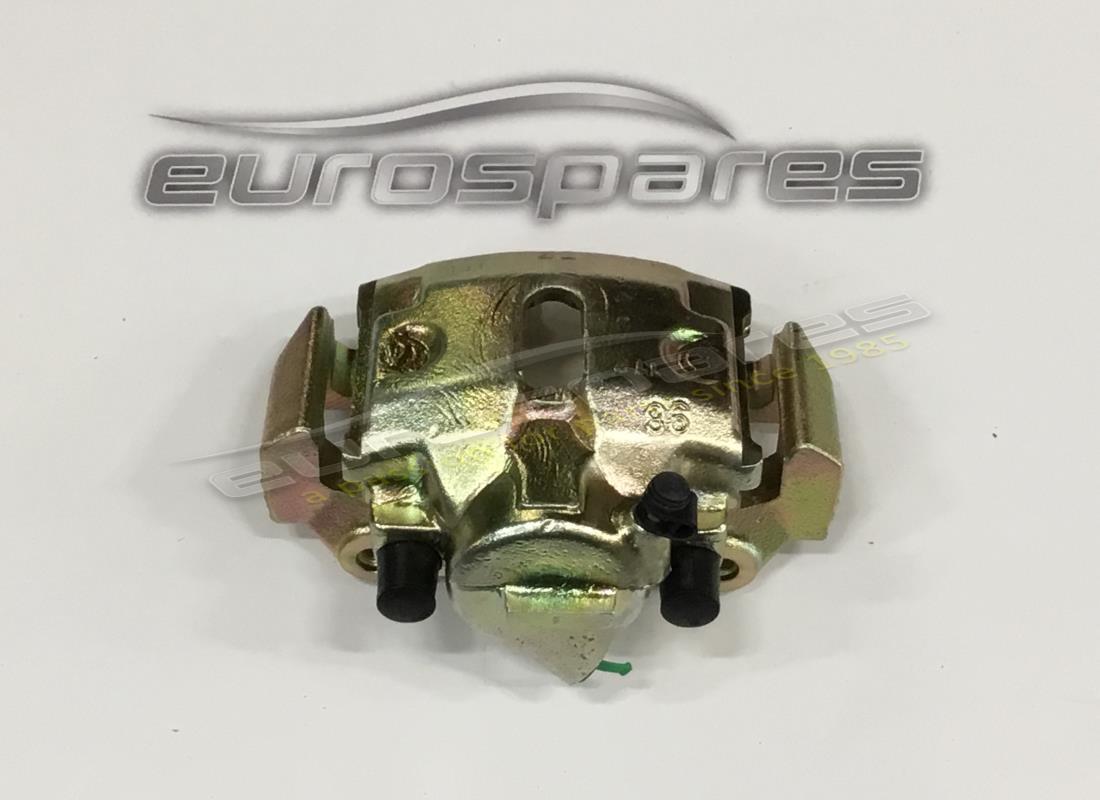

RIGHT REAR CALIPER UNIT
from £196.81
from £196.81
This part replaces part number 117184 - and 4 more. Click to view details
# 001
MPN: 135704
FRONT PADS
Supersession
Supersession
# 001
MPN: 136600

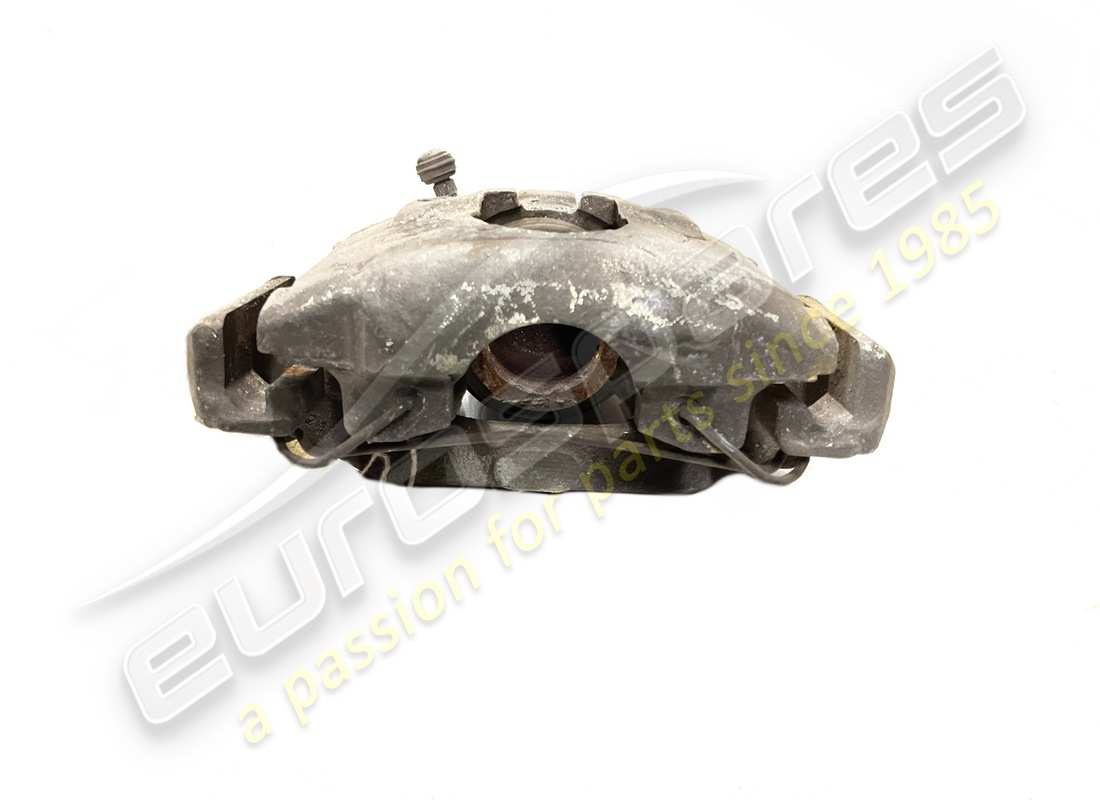

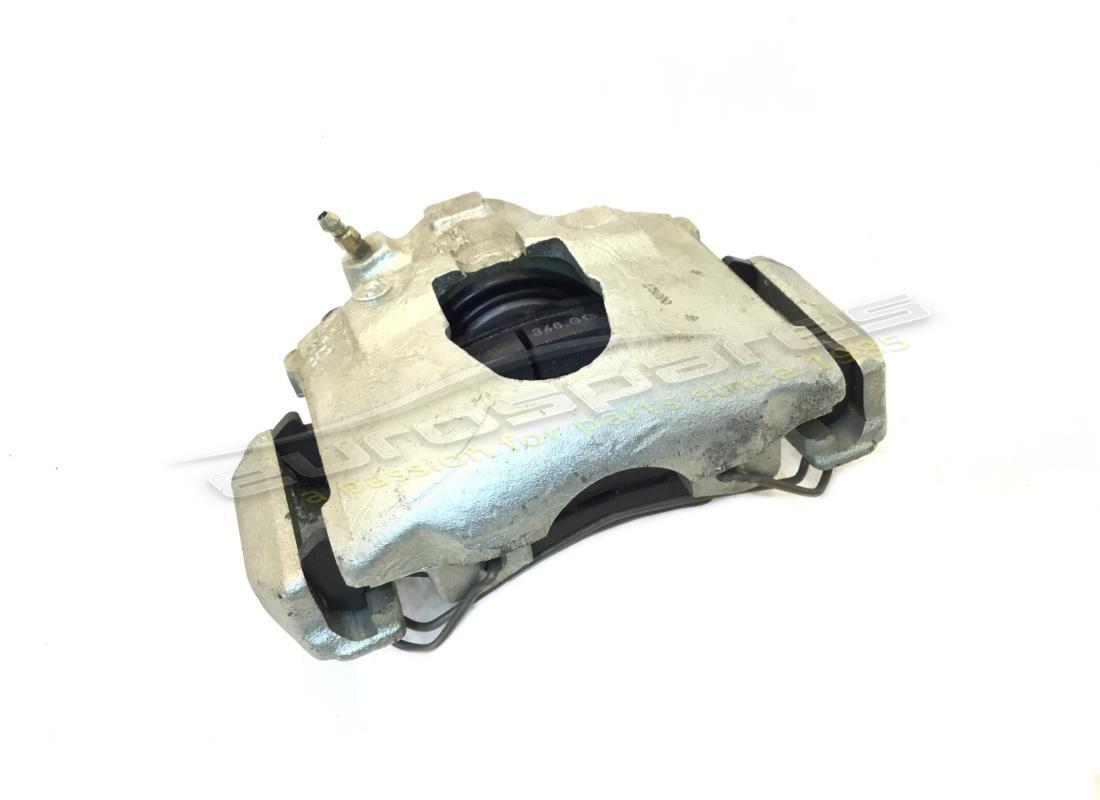

RIGHT FRONT CALIPER UNIT
from £317.79
from £317.79
This part replaces part number 117181 - and 2 more. Click to view details
# 001
MPN: 136601

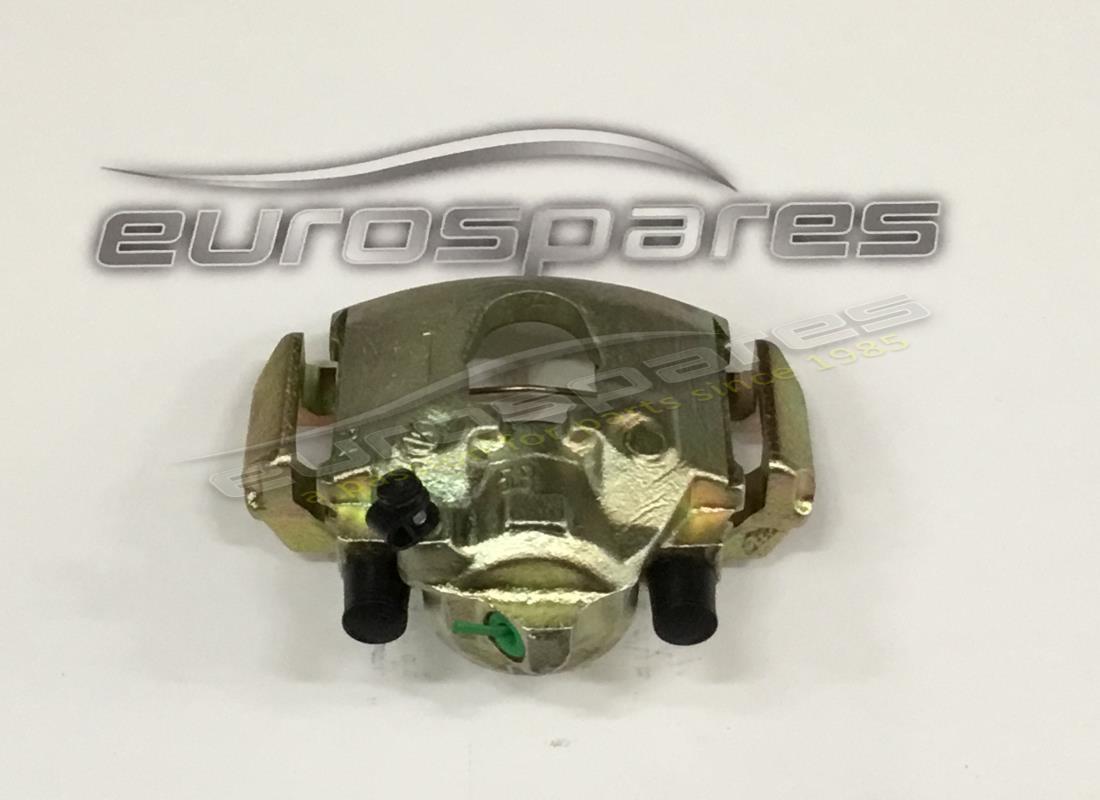

LEFT FRONT CALIPER UNIT
from £170.72
from £170.72
This part replaces part number 117182 which we have in stock - and 4 more. Click to view details
# 002
MPN: ATE
BRAKE CYLINDER 136600 AND 136601
- With assembly
# 003
MPN: ATE
SEALING RING
- With kit no. 116927
# 004
MPN: ATE
STOP RING
- With kit no. 116927
# 005
MPN: ATE
CYLINDER BODY
- With assembly 136600 and 136601
# 006
MPN: ATE
SUPPORT FOR CALIPER
- With assembly 136600 and 136601
# 007
MPN: ATE
BLEEDER
- With assembly 136600 and 136601
# 008
MPN: ATE
BLEEDER CAP
- With assembly 136600 and 136601
# 009
MPN: ATE
GUIDE BUSH
- With kit no. 116927
# 010
MPN: ATE
DUST PROTECTION RING
- With kit no. 116927
# 011
MPN: 95691540
THREADED PIN
from £23.48
from £23.48
# 012
MPN: ATE
CAP
- With kit no. 116927
# 013
MPN: 14560187
CLAMP (CABLE TIE)
from £0.47
from £0.47
This part replaces part number 40135402 which we have in stock
# 014
MPN: 95691541
CLIP FOR CALIPER
from £15.96
from £15.96
# 015
MPN: 116374
CLAMP FOR HOSE
from £1.19
from £1.19
# 016
MPN: 118101
FRONT BRAKE HOSE
from £75.00
from £75.00
# 017
MPN: 106854
WASHER
Supersession
Supersession
# 018
MPN: 108922
DITTO, THICKNESS 0,7 MM.
Supersession
Supersession
# 018
MPN: 156260
WASHER BETWEEN CALIPER AND STUB AXLE, 0,2 MM. THICKNESS
from £0.64
from £0.64
This part replaces part number 108918
# 018
MPN: 156261
DITTO, THICKNESS 0,3 MM.
from £2.97
from £2.97
This part replaces part number 108919
# 018
MPN: 156262
DITTO, THICKNESS 0,5 MM.
from £0.64
from £0.64
This part replaces part number 108920
# 018
MPN: 156263
DITTO, THICKNESS 0,6 MM.
from £0.65
from £0.65
This part replaces part number 108921
# 018
MPN: 156265
DITTO, THICKNESS 0,8 MM.
from £1.56
from £1.56
This part replaces part number 108923
# 018
MPN: 156266
DITTO, THICKNESS 1,0 MM.
from £0.64
from £0.64
This part replaces part number 108924
# 019
MPN: 117193
SCREW FIXING CALIPER TO STUB AXLE
from £28.94
from £28.94
# 020
MPN: 40134801
FAIR-LEAD
Supersession
Supersession
# 021
MPN: 118102
BRACKET FOR HOSE
from £11.76
from £11.76
# 021
MPN: 136602

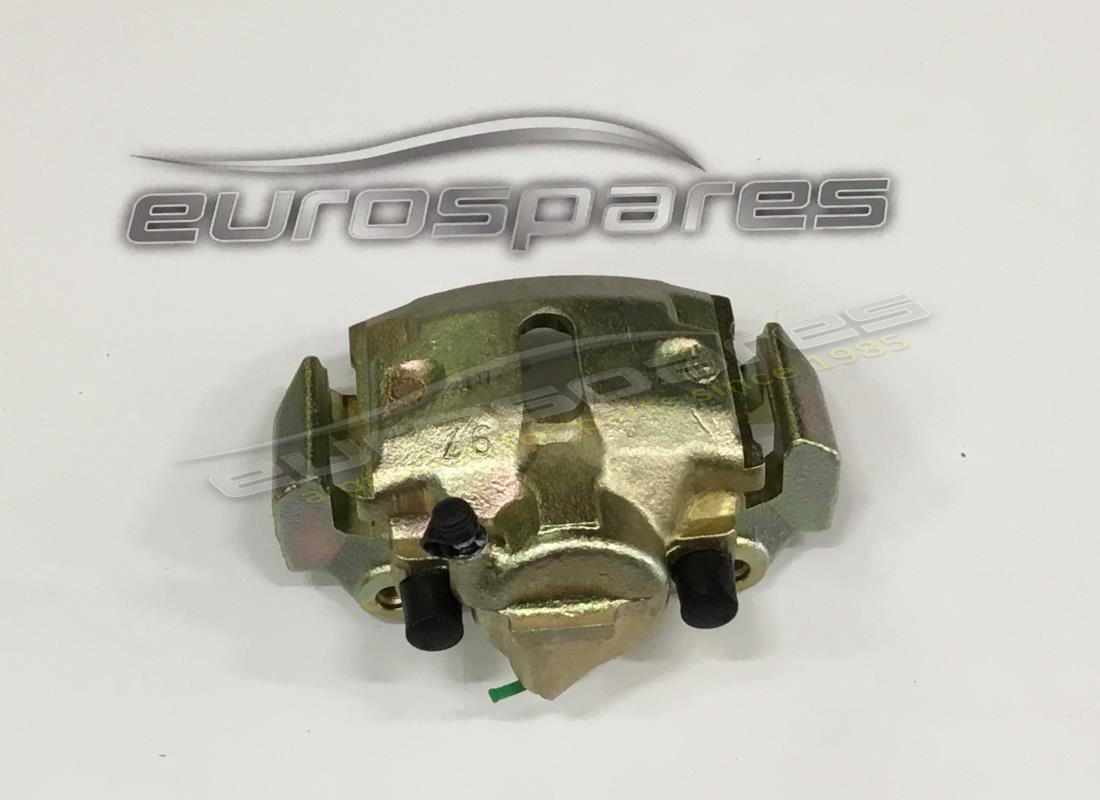

LEFT REAR CALIPER UNIT
from £178.51
from £178.51
This part replaces part number 117183 - and 3 more. Click to view details
