Ferrari Mondial 3.4 t Coupe/Cabrio Gearbox Covers - Valid for Cars With 4P Parts Diagram

024A - Gearbox Covers - Valid for Cars With 4P

Ferrari Mondial 3.4 t Coupe/Cabrio Gearbox Covers - Valid for Cars With 4P Parts Diagram

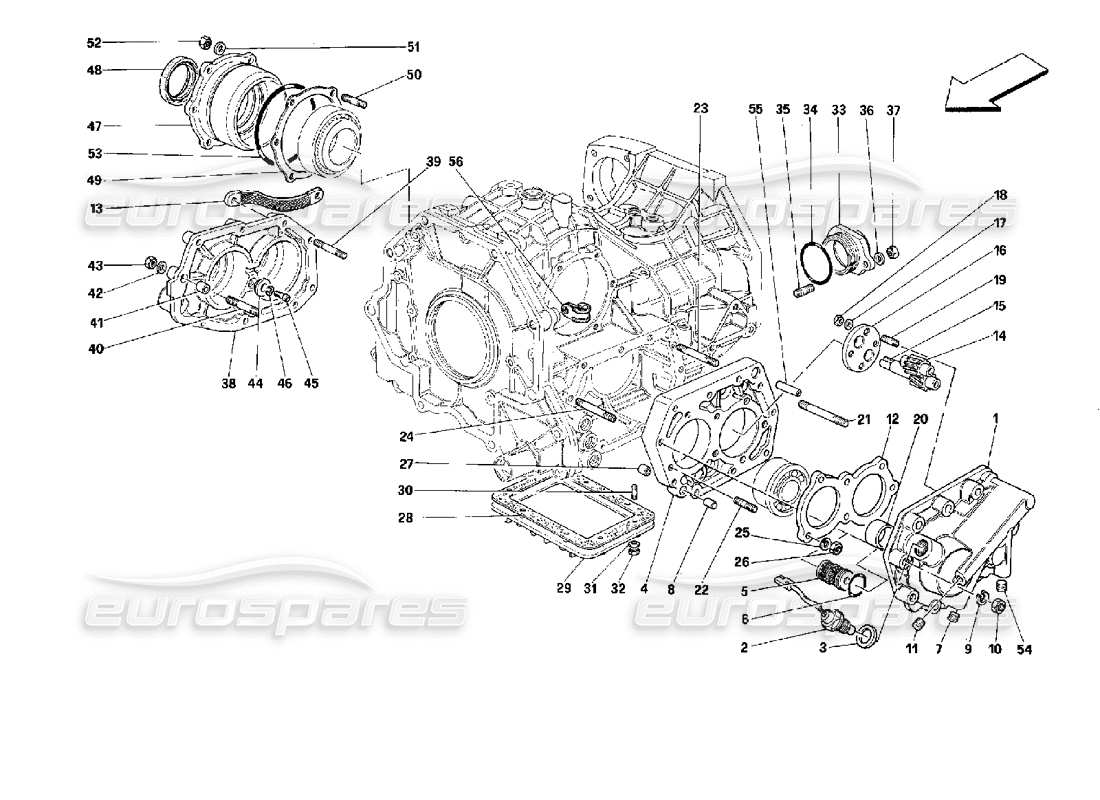

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 135739
                                                                                              LH Side Cover
                                                                                              - Not for flange 145272 - Not as spare part
                                                                                              from £285.24
                                                                                              from £285.24
                                                                                              # 001
                                                                                              MPN: 153149

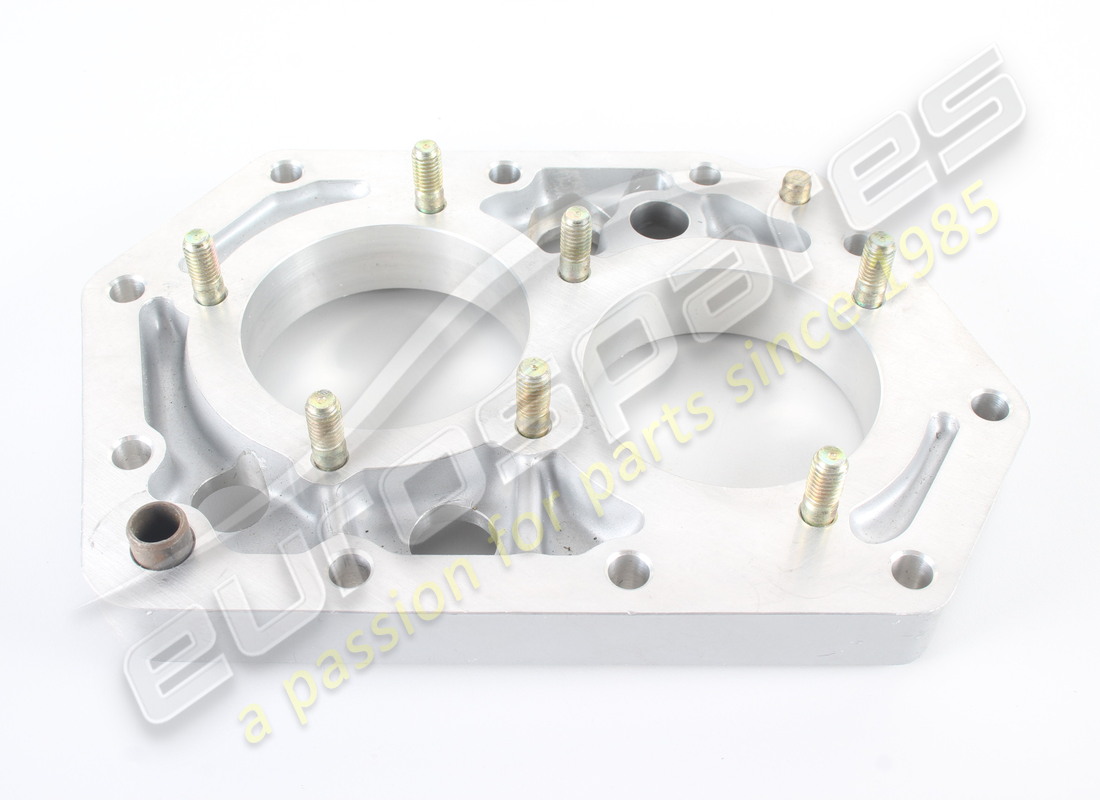

                                                                                              LH Side Cover
                                                                                              - Valid for flange 145272
                                                                                              from £250.60
                                                                                              from £250.60
                                                                                              This part replaces part number 145323 - and 1 more. Click to view details
                                                                                              # 002
                                                                                              MPN: 116987
                                                                                              PULSES DETECTOR
                                                                                              from £98.12
                                                                                              from £98.12
                                                                                              This part replaces part number 113962 - and 2 more. Click to view details
                                                                                              # 003
                                                                                              MPN: 10263460

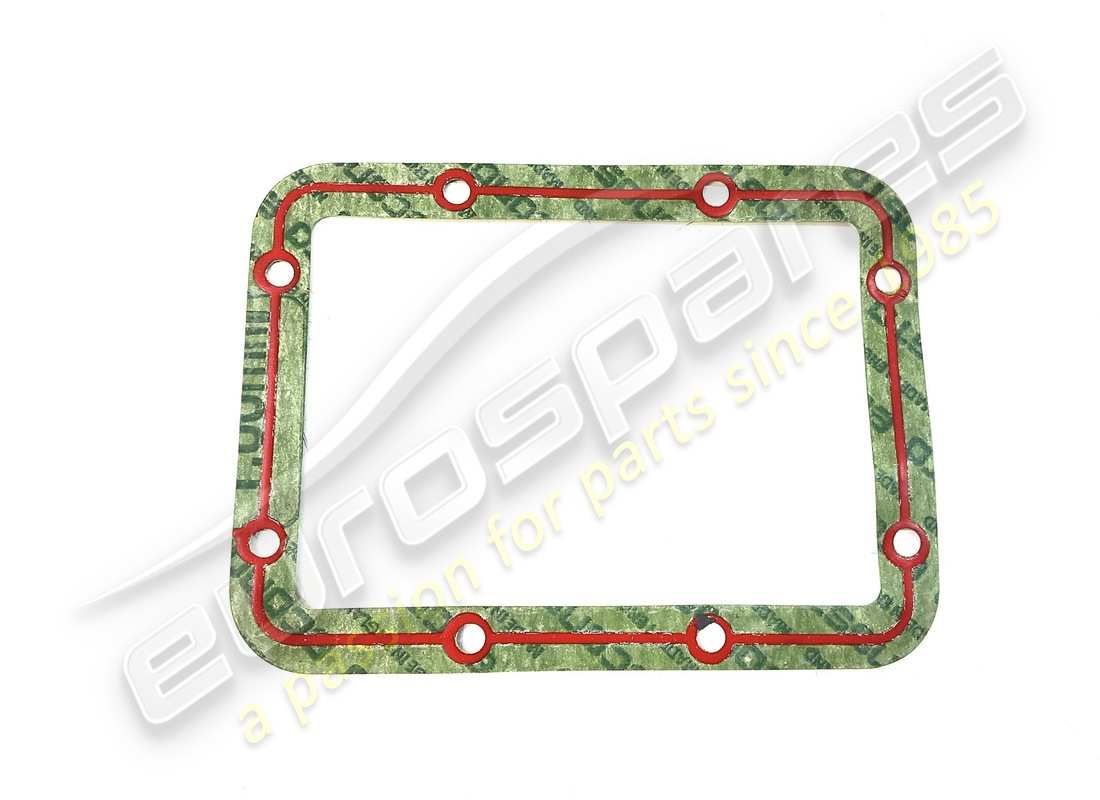

                                                                                              GASKET
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 95119
                                                                                              # 004
                                                                                              MPN: 135740
                                                                                              LH SIDE INTERMEDIATE BODY
                                                                                              - Valid for cover without flange 145272 - Not as spare part
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 004
                                                                                              MPN: 150055
                                                                                              LH SIDE INTERMEDIATE BODY
                                                                                              - Valid for cover with flange 145272
                                                                                              from £761.23
                                                                                              from £761.23
                                                                                              This part replaces part number 146777
                                                                                              # 005
                                                                                              MPN: 115538
                                                                                              FILTER
                                                                                              from £86.85
                                                                                              from £86.85
                                                                                              # 006
                                                                                              MPN: 101034
                                                                                              GASKET
                                                                                              from £1.01
                                                                                              from £1.01
                                                                                              # 007
                                                                                              MPN: 10275550
                                                                                              PLUG
                                                                                              from £0.78
                                                                                              from £0.78
                                                                                              # 008
                                                                                              MPN: 125717
                                                                                              DOWEL
                                                                                              from £1.57
                                                                                              from £1.57
                                                                                              # 009
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.29
                                                                                              from £0.29
                                                                                              This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                              # 010
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 011
                                                                                              MPN: 14326050
                                                                                              PLUG
                                                                                              from £1.01
                                                                                              from £1.01
                                                                                              # 012
                                                                                              MPN: 145272
                                                                                              FLANGE
                                                                                              from £49.78
                                                                                              from £49.78
                                                                                              # 013
                                                                                              MPN: 155073
                                                                                              MOTOR MASS PLAIT
                                                                                              - Valid till stock exhaustion
                                                                                              from £7.67
                                                                                              from £7.67
                                                                                              This part replaces part number 115668
                                                                                              # 013
                                                                                              MPN: 155073
                                                                                              MOTOR MASS PLAIT
                                                                                              - Valid after stock exhaustion of 115668
                                                                                              from £7.67
                                                                                              from £7.67
                                                                                              This part replaces part number 115668
                                                                                              # 014
                                                                                              MPN: 109723
                                                                                              DRIVEN GEAR
                                                                                              from £30.13
                                                                                              from £30.13
                                                                                              # 015
                                                                                              MPN: 109722
                                                                                              LEADER GEAR
                                                                                              from £1,360.03
                                                                                              from £1,360.03
                                                                                              # 016
                                                                                              MPN: 121962
                                                                                              OIL PUMP COVER
                                                                                              from £107.47
                                                                                              from £107.47
                                                                                              # 017
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                              # 018
                                                                                              MPN: 15896211
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 15896210
                                                                                              # 019
                                                                                              MPN: 11500021
                                                                                              STUD BOLT
                                                                                              from £9.50
                                                                                              from £9.50
                                                                                              # 020
                                                                                              MPN: 113088
                                                                                              SEAL RING SEAT
                                                                                              from £73.34
                                                                                              from £73.34
                                                                                              # 021
                                                                                              MPN: 13543921
                                                                                              STUD BOLT
                                                                                              - Valid for flangeless cover 145272
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 021
                                                                                              MPN: 13544224
                                                                                              STUD BOLT
                                                                                              - Valid for cover with flange 145272
                                                                                              from £5.07
                                                                                              from £5.07
                                                                                              This part replaces part number 13517821 - and 1 more. Click to view details
                                                                                              # 022
                                                                                              MPN: 13543221
                                                                                              FLANGE SEAL STUD BOLT 145272
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 022
                                                                                              MPN: 13543521
                                                                                              STUD BOLT
                                                                                              - Valid for flangeless cover 145272
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 023
                                                                                              MPN: 13544024
                                                                                              STUD BOLT
                                                                                              - Valid for flangeless cover 145272
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 13544021
                                                                                              # 024
                                                                                              MPN: 13543721
                                                                                              STUD BOLT
                                                                                              - Valid for flangeless cover 145272
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 024
                                                                                              MPN: 13544324
                                                                                              STUD
                                                                                              from £8.00
                                                                                              from £8.00
                                                                                              This part replaces part number 13544321
                                                                                              # 025
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              - Valid for flangeless cover 145272
                                                                                              from £0.29
                                                                                              from £0.29
                                                                                              This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                              # 025
                                                                                              MPN: 127496
                                                                                              WASHER
                                                                                              - Valid for cover with flange 145272
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                              # 026
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              - Valid for flangeless cover 145272
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 026
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              - Valid for cover with flange 145272
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 027
                                                                                              MPN: 100041
                                                                                              DOWEL
                                                                                              from £4.74
                                                                                              from £4.74
                                                                                              # 028
                                                                                              MPN: 177720
                                                                                              GASKET
                                                                                              from £12.22
                                                                                              from £12.22
                                                                                              This part replaces part number 146186
                                                                                              # 029
                                                                                              MPN: 135736
                                                                                              LOWER COVER
                                                                                              from £9.25
                                                                                              from £9.25
                                                                                              # 030
                                                                                              MPN: 13540821
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 031
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                              # 032
                                                                                              MPN: 15896211
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 15896210
                                                                                              # 033
                                                                                              MPN: 139699
                                                                                              OIL SEAL COVER
                                                                                              from £32.35
                                                                                              from £32.35
                                                                                              # 034
                                                                                              MPN: 131747
                                                                                              SEAL RING
                                                                                              from £1.04
                                                                                              from £1.04
                                                                                              # 035
                                                                                              MPN: 13543221
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 036
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.30
                                                                                              from £0.30
                                                                                              This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                              # 037
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 038
                                                                                              MPN: 135741
                                                                                              RH SIDE COVER
                                                                                              from £116.21
                                                                                              from £116.21
                                                                                              # 039
                                                                                              MPN: 13543621
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 040
                                                                                              MPN: 13543721
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 041
                                                                                              MPN: 100041
                                                                                              DOWEL
                                                                                              from £4.74
                                                                                              from £4.74
                                                                                              # 042
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.29
                                                                                              from £0.29
                                                                                              This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                              # 043
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 044
                                                                                              MPN: 131757
                                                                                              BUSH
                                                                                              from £3.68
                                                                                              from £3.68
                                                                                              # 045
                                                                                              MPN: 14305224
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 046
                                                                                              MPN: 10569273
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 047
                                                                                              MPN: 143448
                                                                                              DIFFERENTIAL SID COVER
                                                                                              from £63.38
                                                                                              from £63.38
                                                                                              This part replaces part number 131497 - and 1 more. Click to view details
                                                                                              # 048
                                                                                              MPN: 133628
                                                                                              OIL SEAL
                                                                                              from £29.85
                                                                                              from £29.85
                                                                                              This part replaces part number 125077 - and 1 more. Click to view details
                                                                                              # 048
                                                                                              MPN: 141509
                                                                                              LH SEAL RING
                                                                                              from £71.99
                                                                                              from £71.99
                                                                                              This part replaces part number 125077
                                                                                              # 049
                                                                                              MPN: 132135
                                                                                              THRUST - THICK. MM. 1,3
                                                                                              from £27.86
                                                                                              from £27.86
                                                                                              # 049
                                                                                              MPN: 132136
                                                                                              THRUST - THICK. MM. 1,4
                                                                                              from £17.87
                                                                                              from £17.87
                                                                                              # 049
                                                                                              MPN: 132137
                                                                                              THRUST - THICK. MM. 1,5
                                                                                              from £14.43
                                                                                              from £14.43
                                                                                              # 049
                                                                                              MPN: 132138
                                                                                              THRUST - THICK. MM. 1,6
                                                                                              from £16.96
                                                                                              from £16.96
                                                                                              # 049
                                                                                              MPN: 132139
                                                                                              THRUST - THICK. MM. 1,7
                                                                                              from £17.87
                                                                                              from £17.87
                                                                                              # 049
                                                                                              MPN: 132140
                                                                                              THRUST - THICK. MM. 1,8
                                                                                              from £17.87
                                                                                              from £17.87
                                                                                              # 049
                                                                                              MPN: 132141
                                                                                              THRUST - THICK. MM. 1,9
                                                                                              from £12.17
                                                                                              from £12.17
                                                                                              # 049
                                                                                              MPN: 145457
                                                                                              THRUST - THICK. MM. 1,45
                                                                                              from £22.08
                                                                                              from £22.08
                                                                                              # 049
                                                                                              MPN: 145458
                                                                                              THRUST - THICK. MM. 1,55
                                                                                              from £14.67
                                                                                              from £14.67
                                                                                              # 049
                                                                                              MPN: 145459
                                                                                              THRUST - THICK. MM. 1,65
                                                                                              from £15.39
                                                                                              from £15.39
                                                                                              # 050
                                                                                              MPN: 13543324
                                                                                              STUD BOLT
                                                                                              from £0.83
                                                                                              from £0.83
                                                                                              This part replaces part number 13543321
                                                                                              # 051
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.29
                                                                                              from £0.29
                                                                                              This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                              # 052
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 053
                                                                                              MPN: 139453
                                                                                              SEAL RING
                                                                                              from £4.15
                                                                                              from £4.15
                                                                                              # 054
                                                                                              MPN: 14326150
                                                                                              PLUG
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12326150
                                                                                              # 055
                                                                                              MPN: 131746
                                                                                              DOWEL
                                                                                              from £2.65
                                                                                              from £2.65
                                                                                              # 056
                                                                                              MPN: 145480
                                                                                              BRACKET
                                                                                              - Not for F.E
                                                                                              from £1.30
                                                                                              from £1.30
                                                                                              # 056
                                                                                              MPN: 145661
                                                                                              BRACKET
                                                                                              - Valid for F.E.
                                                                                              from £3.11
                                                                                              from £3.11
                                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
