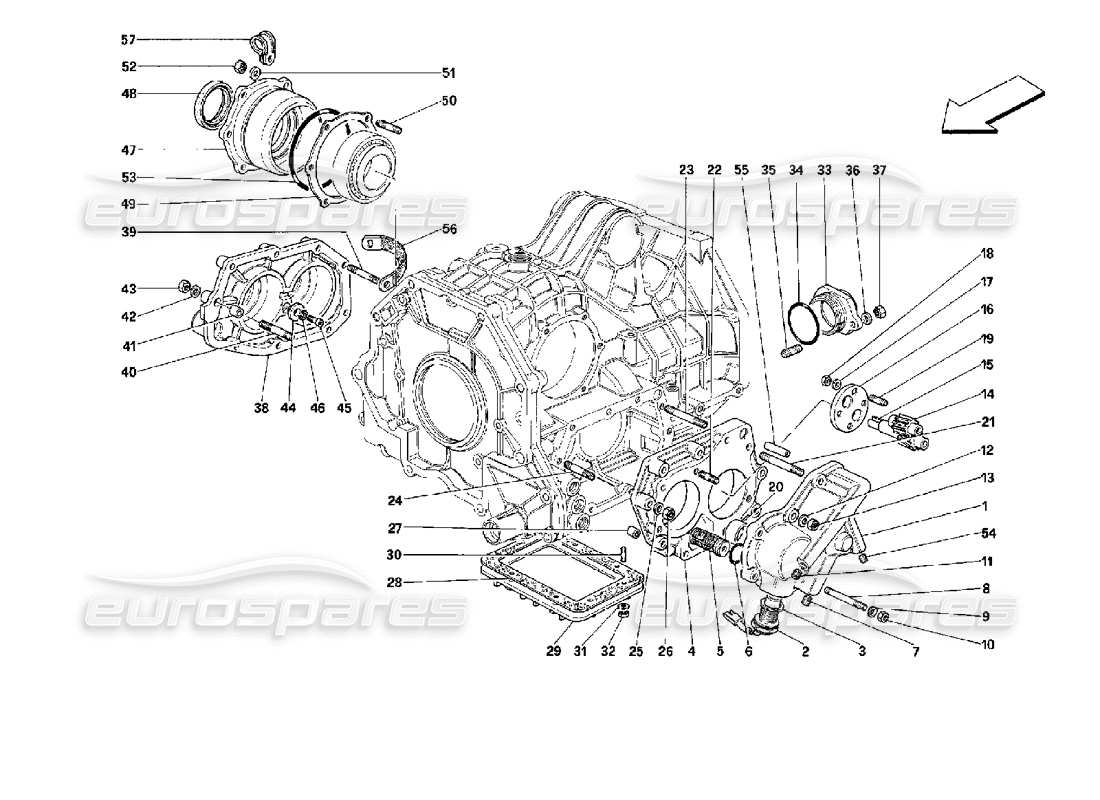

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Price
                                                                                                        # 001
                                                                                                        MPN: 135739
                                                                                                        LH Side Cover
                                                                                                        - Not as spare part - Assembly the cover, the flange, the intermediate body and its studs for 4 points modify
                                                                                                        from £285.24
                                                                                                        from £285.24
                                                                                                        # 002
                                                                                                        MPN: 116987
                                                                                                        PULSES DETECTOR
                                                                                                        from £97.70
                                                                                                        from £97.70
                                                                                                        This part replaces part number 113962 - and 2 more. Click to view details
                                                                                                        # 003
                                                                                                        MPN: 10263460
                                                                                                        GASKET
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 95119

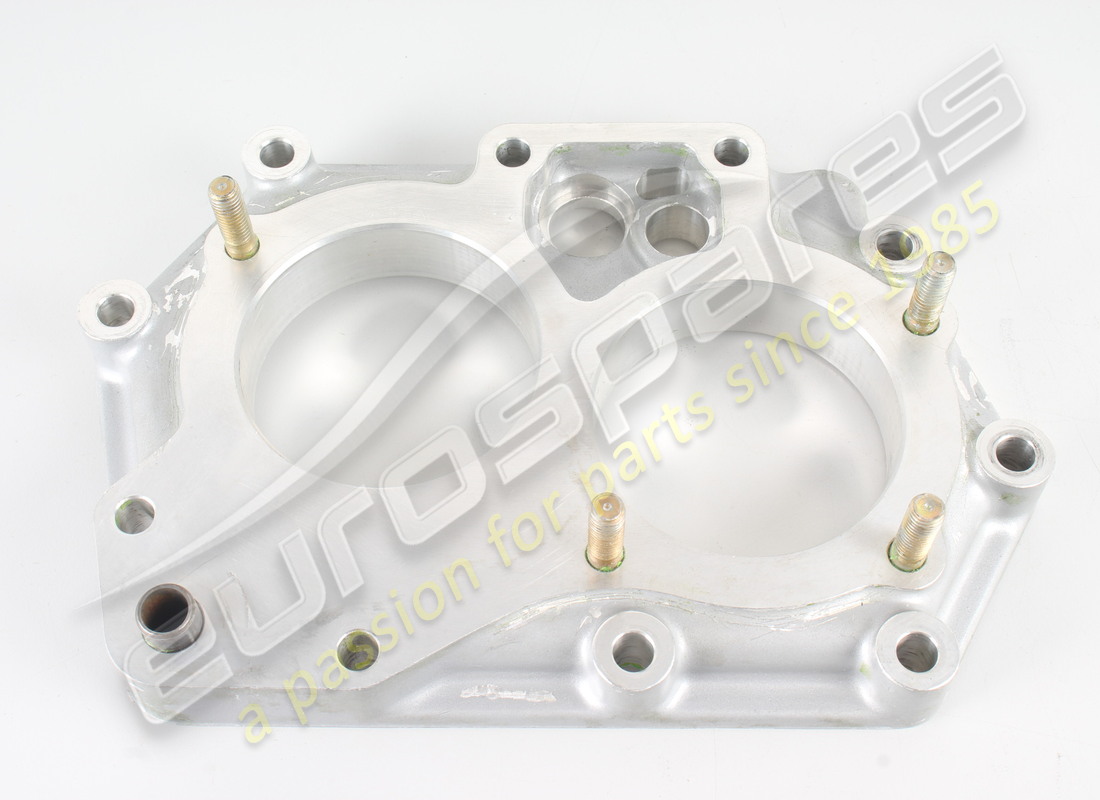

                                                                                                        # 004
                                                                                                        MPN: 139819
                                                                                                        LH SIDE COVER INTERMEDIATE BODY
                                                                                                        - Not as spare part - Assembly the cover, the flange, the intermediate body and its studs for 4 points modify
                                                                                                        from £138.89
                                                                                                        from £138.89
                                                                                                        This part replaces part number 135740 - and 1 more. Click to view details
                                                                                                        # 005
                                                                                                        MPN: 115538
                                                                                                        FILTER
                                                                                                        from £86.85
                                                                                                        from £86.85
                                                                                                        # 006
                                                                                                        MPN: 101034
                                                                                                        GASKET
                                                                                                        from £0.69
                                                                                                        from £0.69
                                                                                                        # 007
                                                                                                        MPN: 10275550
                                                                                                        PLUG
                                                                                                        from £0.78
                                                                                                        from £0.78
                                                                                                        # 008
                                                                                                        MPN: 13544324
                                                                                                        STUD
                                                                                                        from £7.70
                                                                                                        from £7.70
                                                                                                        This part replaces part number 13544321
                                                                                                        # 009
                                                                                                        MPN: 12601374
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                        # 010
                                                                                                        MPN: 133989
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 8 D 4-UNI 207
                                                                                                        # 011
                                                                                                        MPN: 14326050
                                                                                                        PLUG
                                                                                                        from £1.01
                                                                                                        from £1.01
                                                                                                        # 012
                                                                                                        MPN: 12601374
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                        # 013
                                                                                                        MPN: 133989
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 8 D 4-UNI 207
                                                                                                        # 014
                                                                                                        MPN: 109723
                                                                                                        DRIVEN GEAR
                                                                                                        from £30.00
                                                                                                        from £30.00
                                                                                                        # 015
                                                                                                        MPN: 109722
                                                                                                        LEADER GEAR
                                                                                                        from £1,360.03
                                                                                                        from £1,360.03
                                                                                                        # 016
                                                                                                        MPN: 121962
                                                                                                        OIL PUMP COVER
                                                                                                        from £107.47
                                                                                                        from £107.47
                                                                                                        # 017
                                                                                                        MPN: 12601274
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                        # 018
                                                                                                        MPN: 15896211
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 15896210
                                                                                                        # 019
                                                                                                        MPN: 11500021
                                                                                                        STUD BOLT
                                                                                                        from £9.50
                                                                                                        from £9.50
                                                                                                        # 020
                                                                                                        MPN: 113088
                                                                                                        SEAL RING SEAT
                                                                                                        from £73.34
                                                                                                        from £73.34
                                                                                                        # 021
                                                                                                        MPN: 13543921
                                                                                                        STUD BOLT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 022
                                                                                                        MPN: 13543521
                                                                                                        STUD BOLT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 023
                                                                                                        MPN: 13544024
                                                                                                        STUD BOLT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 13544021
                                                                                                        # 024
                                                                                                        MPN: 13543721
                                                                                                        STUD BOLT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 025
                                                                                                        MPN: 12601374
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                        # 026
                                                                                                        MPN: 133989
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 8 D 4-UNI 207
                                                                                                        # 027
                                                                                                        MPN: 100041
                                                                                                        DOWEL
                                                                                                        from £3.76
                                                                                                        from £3.76
                                                                                                        # 028
                                                                                                        MPN: 177720
                                                                                                        GASKET
                                                                                                        from £11.64
                                                                                                        from £11.64
                                                                                                        This part replaces part number 146186
                                                                                                        # 029
                                                                                                        MPN: 135736
                                                                                                        LOWER COVER
                                                                                                        from £9.25
                                                                                                        from £9.25
                                                                                                        # 030
                                                                                                        MPN: 13540821
                                                                                                        STUD BOLT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 031
                                                                                                        MPN: 12601274
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                        # 032
                                                                                                        MPN: 15896211
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 15896210
                                                                                                        # 033
                                                                                                        MPN: 139699
                                                                                                        OIL SEAL COVER
                                                                                                        from £32.35
                                                                                                        from £32.35
                                                                                                        # 034
                                                                                                        MPN: 131747
                                                                                                        SEAL RING
                                                                                                        from £0.75
                                                                                                        from £0.75
                                                                                                        # 035
                                                                                                        MPN: 13543221
                                                                                                        STUD BOLT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 036
                                                                                                        MPN: 12601374
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                        # 037
                                                                                                        MPN: 133989
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 8 D 4-UNI 207
                                                                                                        # 038
                                                                                                        MPN: 135741
                                                                                                        RH SIDE COVER
                                                                                                        from £116.21
                                                                                                        from £116.21
                                                                                                        # 039
                                                                                                        MPN: 13543621
                                                                                                        STUD BOLT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 040
                                                                                                        MPN: 13543721
                                                                                                        STUD BOLT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 041
                                                                                                        MPN: 100041
                                                                                                        DOWEL
                                                                                                        from £3.76
                                                                                                        from £3.76
                                                                                                        # 042
                                                                                                        MPN: 12601374
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                        # 043
                                                                                                        MPN: 133989
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 8 D 4-UNI 207
                                                                                                        # 044
                                                                                                        MPN: 131757
                                                                                                        BUSH
                                                                                                        from £3.67
                                                                                                        from £3.67
                                                                                                        # 045
                                                                                                        MPN: 14305224
                                                                                                        SCREW
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 046
                                                                                                        MPN: 10569273
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 047
                                                                                                        MPN: 131497
                                                                                                        DIFFERENTIAL SID COVER
                                                                                                        - Valid till gearbox No. 468 and for CH till gearbox No. 162 - Valid till stock exhaustion
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 047
                                                                                                        MPN: 143448
                                                                                                        DIFFERENTIAL SID COVER
                                                                                                        - Valid from gearbox No. 469 and for CH from No. 163 and after exhaustion replace with 131497
                                                                                                        from £63.38
                                                                                                        from £63.38
                                                                                                        This part replaces part number 131497 - and 1 more. Click to view details
                                                                                                        # 048
                                                                                                        MPN: 133628
                                                                                                        OIL SEAL
                                                                                                        from £29.85
                                                                                                        from £29.85
                                                                                                        This part replaces part number 125077 - and 1 more. Click to view details
                                                                                                        # 048
                                                                                                        MPN: 141509
                                                                                                        SEAL RING
                                                                                                        - Valid for side cover No. 131497
                                                                                                        from £63.91
                                                                                                        from £63.91
                                                                                                        This part replaces part number 125077
                                                                                                        # 048
                                                                                                        MPN: 141509
                                                                                                        LH SEAL RING
                                                                                                        - Valid for side cover No. 143448
                                                                                                        from £63.91
                                                                                                        from £63.91
                                                                                                        This part replaces part number 125077
                                                                                                        # 049
                                                                                                        MPN: 132135
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,3
                                                                                                        from £27.86
                                                                                                        from £27.86
                                                                                                        # 049
                                                                                                        MPN: 132136
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,4
                                                                                                        from £17.87
                                                                                                        from £17.87
                                                                                                        # 049
                                                                                                        MPN: 132137
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,5
                                                                                                        from £14.43
                                                                                                        from £14.43
                                                                                                        # 049
                                                                                                        MPN: 132138
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,6
                                                                                                        from £16.96
                                                                                                        from £16.96
                                                                                                        # 049
                                                                                                        MPN: 132139
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,7
                                                                                                        from £17.87
                                                                                                        from £17.87
                                                                                                        # 049
                                                                                                        MPN: 132140
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,8
                                                                                                        from £17.87
                                                                                                        from £17.87
                                                                                                        # 049
                                                                                                        MPN: 132141
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,9
                                                                                                        from £12.17
                                                                                                        from £12.17
                                                                                                        # 049
                                                                                                        MPN: 145457
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,45
                                                                                                        from £22.08
                                                                                                        from £22.08
                                                                                                        # 049
                                                                                                        MPN: 145458
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,55
                                                                                                        from £14.67
                                                                                                        from £14.67
                                                                                                        # 049
                                                                                                        MPN: 145459
                                                                                                        THRUST
                                                                                                        - Thick. mm. 1,65
                                                                                                        from £15.39
                                                                                                        from £15.39
                                                                                                        # 050
                                                                                                        MPN: 13543324
                                                                                                        STUD BOLT
                                                                                                        from £0.83
                                                                                                        from £0.83
                                                                                                        This part replaces part number 13543321
                                                                                                        # 051
                                                                                                        MPN: 12601374
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                        # 052
                                                                                                        MPN: 133989
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 8 D 4-UNI 207
                                                                                                        # 053
                                                                                                        MPN: 139453
                                                                                                        SEAL RING
                                                                                                        from £4.15
                                                                                                        from £4.15
                                                                                                        # 054
                                                                                                        MPN: 14326150
                                                                                                        PLUG
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12326150
                                                                                                        # 055
                                                                                                        MPN: 131746
                                                                                                        DOWEL
                                                                                                        from £2.36
                                                                                                        from £2.36
                                                                                                        # 056
                                                                                                        MPN: 155073
                                                                                                        MOTOR MASS PLAIT
                                                                                                        - Valid till stock exhaustion
                                                                                                        from £7.31
                                                                                                        from £7.31
                                                                                                        This part replaces part number 115668
                                                                                                        # 056
                                                                                                        MPN: 155073
                                                                                                        MOTOR MASS PLAIT
                                                                                                        - Valid after stock exhaustion of 115668
                                                                                                        from £7.31
                                                                                                        from £7.31
                                                                                                        This part replaces part number 115668
                                                                                                        # 057
                                                                                                        MPN: 10450290
                                                                                                        BRACKET
                                                                                                        from £2.23
                                                                                                        from £2.23
