Ferrari Mondial 3.4 t Coupe/Cabrio Gearbox Housing and Interm. Casing - Valid for Cars With 3P Parts Diagram

023 - Gearbox Housing and Interm. Casing - Valid for Cars With 3P

Ferrari Mondial 3.4 t Coupe/Cabrio Gearbox Housing and Interm. Casing - Valid for Cars With 3P Parts Diagram

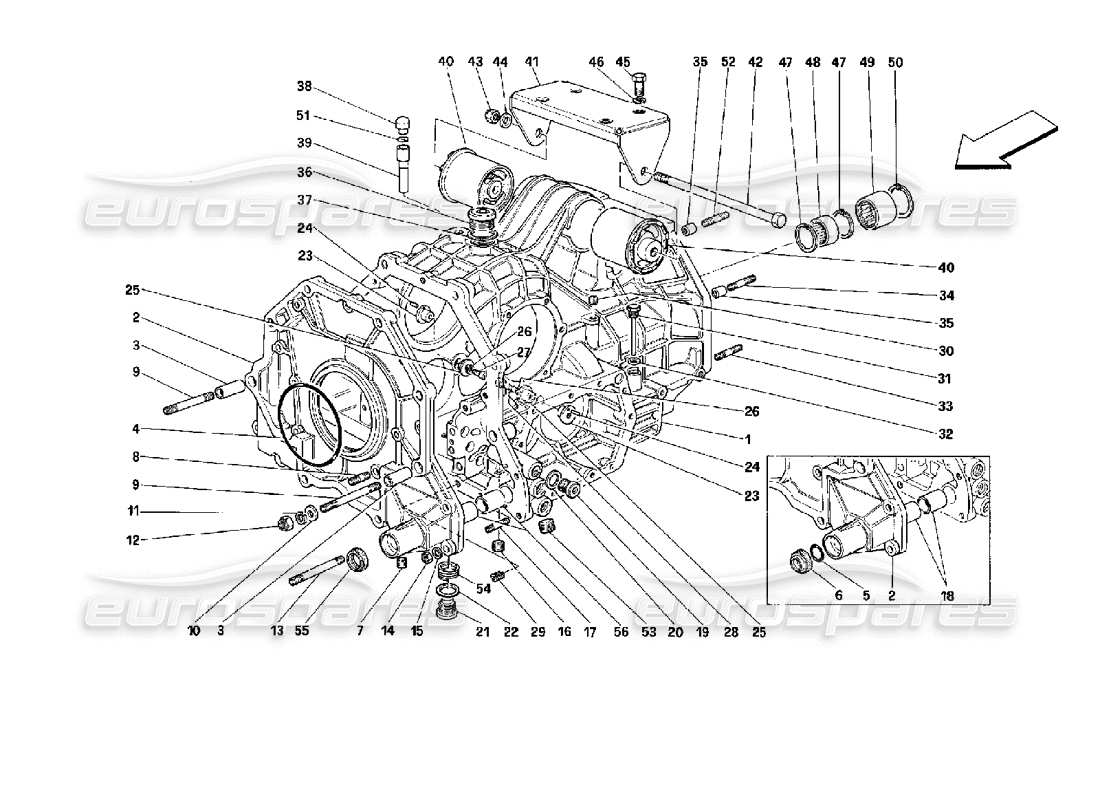

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              -
                                                                                              GEARCHANGE BOX-DIFFERENTIAL GEAR
                                                                                              # 001
                                                                                              MPN: 143278
                                                                                              COMPLETE INTERMEDIATE BODY
                                                                                              - Valid till gearbox No. 568 and for CH till gearbox No. 170 - Valid till stock exhaustion
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 134845 - and 1 more. Click to view details
                                                                                              # 001
                                                                                              MPN: 143280
                                                                                              GEARCHANGE BOX AND DIFFERENTIAL GEAR COMPLETE
                                                                                              - Not for gearbox with flange - Part. 12 Draw. 37 - Not supplied - Replaced with 156299
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 001
                                                                                              MPN: 146950
                                                                                              INTERMEDIATE BODY
                                                                                              - Valid from gearbox No. 569 and for CH No.171 till gearbox No. 694 and for CH till gearbox No. 187 - Not as spare parts - Replaced with 149584
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 001
                                                                                              MPN: 149584
                                                                                              COMPLETE INTERMEDIATE BODY
                                                                                              - Valid from gearbox No. 695 and for CH from gearbox No. 188 and after stock exhaustion of 143278
                                                                                              from £515.80
                                                                                              from £515.80
                                                                                              This part replaces part number 143278 - and 1 more. Click to view details
                                                                                              # 001
                                                                                              MPN: 156299
                                                                                              GEARCHANGE BOX AND DIFFERENTIAL GEAR COMPLETE
                                                                                              - Valid for gearbox with flange - Part. 12 Draw. 37
                                                                                              from £4,103.97
                                                                                              from £4,103.97
                                                                                              This part replaces part number 143280
                                                                                              # 002
                                                                                              -
                                                                                              INTERMEDIATE BODY
                                                                                              # 003
                                                                                              MPN: 131749
                                                                                              DOWEL
                                                                                              from £2.58
                                                                                              from £2.58

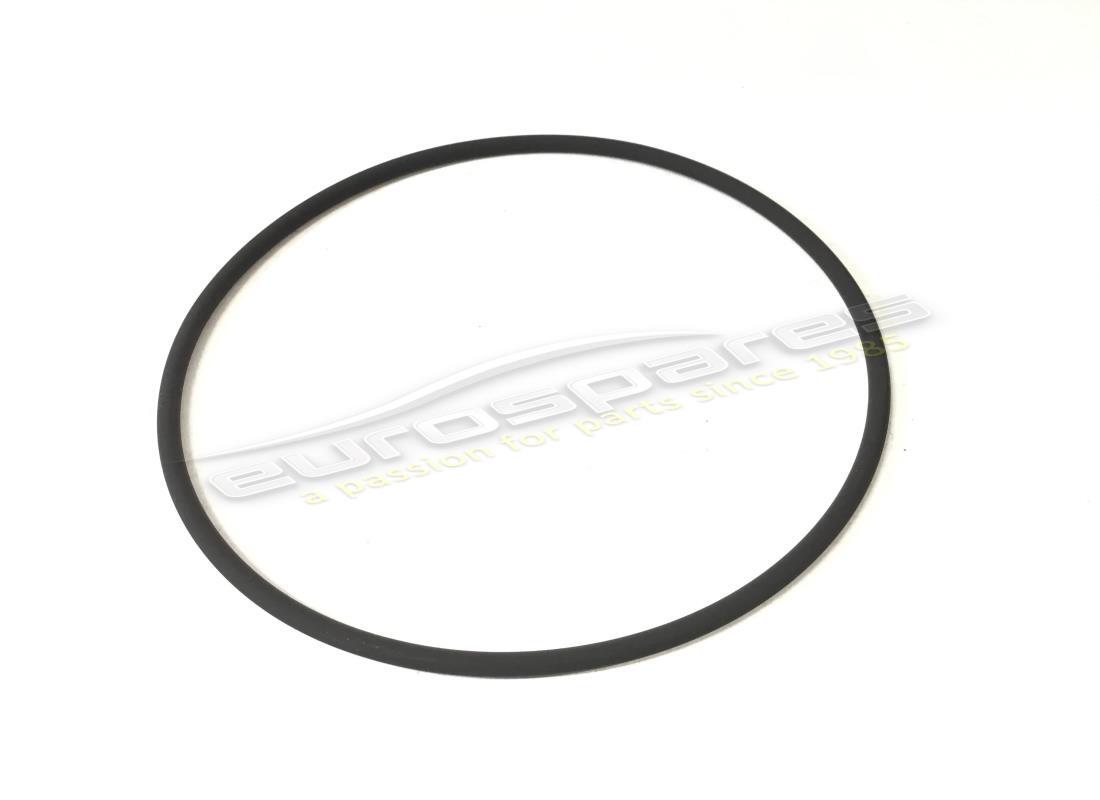

                                                                                              # 004
                                                                                              MPN: 131736
                                                                                              SEAL RING
                                                                                              from £3.23
                                                                                              from £3.23
                                                                                              # 005
                                                                                              MPN: 105140
                                                                                              SEAL RING
                                                                                              - Valid till gearbox No. 694 and for CH till gearbox No.187
                                                                                              from £2.88
                                                                                              from £2.88
                                                                                              # 006
                                                                                              MPN: 131886
                                                                                              GASKET
                                                                                              - Valid till gearbox No. 694 and for CH till gearbox No.187
                                                                                              from £14.94
                                                                                              from £14.94
                                                                                              # 007
                                                                                              MPN: 10269550
                                                                                              PLUG
                                                                                              from £1.57
                                                                                              from £1.57
                                                                                              # 008
                                                                                              MPN: 13543121
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 009
                                                                                              MPN: 13547535
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 010
                                                                                              MPN: 14496621
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 011
                                                                                              MPN: 127497
                                                                                              WASHER
                                                                                              from £0.54
                                                                                              from £0.54
                                                                                              This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                              # 012
                                                                                              MPN: 133988
                                                                                              NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12164711 - and 2 more. Click to view details
                                                                                              # 013
                                                                                              MPN: 13544524
                                                                                              STUD BOLT
                                                                                              from £32.73
                                                                                              from £32.73
                                                                                              This part replaces part number 13544521
                                                                                              # 014
                                                                                              MPN: 133989
                                                                                              NUT
                                                                                              from £0.50
                                                                                              from £0.50
                                                                                              This part replaces part number 8 D 4-UNI 207
                                                                                              # 015
                                                                                              MPN: 12601374
                                                                                              WASHER
                                                                                              from £0.29
                                                                                              from £0.29
                                                                                              This part replaces part number 10615474 - and 13 more. Click to view details
                                                                                              # 016
                                                                                              MPN: 10269550
                                                                                              PLUG
                                                                                              from £1.57
                                                                                              from £1.57
                                                                                              # 017
                                                                                              MPN: 13543521
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 018
                                                                                              MPN: 112153
                                                                                              BUSH
                                                                                              - Valid till gearbox No. 694 and for CH till gearbox No. 187
                                                                                              from £2.60
                                                                                              from £2.60
                                                                                              # 019
                                                                                              MPN: 10273140
                                                                                              PLUG
                                                                                              from £1.44
                                                                                              from £1.44
                                                                                              # 020
                                                                                              MPN: 10259960
                                                                                              GASKET
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              This part replaces part number 95017
                                                                                              # 021
                                                                                              MPN: 104280
                                                                                              PLUG
                                                                                              from £4.95
                                                                                              from £4.95
                                                                                              This part replaces part number 523977
                                                                                              # 022
                                                                                              MPN: 10263460
                                                                                              GASKET
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 95119
                                                                                              # 023
                                                                                              MPN: 131756
                                                                                              THREADED BUSH
                                                                                              from £17.50
                                                                                              from £17.50
                                                                                              # 024
                                                                                              MPN: 14159470
                                                                                              PIN
                                                                                              from £2.77
                                                                                              from £2.77
                                                                                              # 025
                                                                                              MPN: 131757
                                                                                              BUSH
                                                                                              from £3.68
                                                                                              from £3.68
                                                                                              # 026
                                                                                              MPN: 10569273
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 027
                                                                                              MPN: 14305224
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 028
                                                                                              MPN: 14305327
                                                                                              SCREW
                                                                                              from £0.72
                                                                                              from £0.72
                                                                                              # 029
                                                                                              MPN: 13526170
                                                                                              HELI-COIL
                                                                                              from £2.43
                                                                                              from £2.43
                                                                                              This part replaces part number 105197
                                                                                              # 030
                                                                                              MPN: 14326050
                                                                                              PLUG
                                                                                              from £0.95
                                                                                              from £0.95
                                                                                              # 031
                                                                                              MPN: 140201
                                                                                              OIL LEVEL ROD
                                                                                              from £21.00
                                                                                              from £21.00
                                                                                              # 032
                                                                                              MPN: 10261060
                                                                                              GASKET
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 033
                                                                                              MPN: 13543421
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 034
                                                                                              MPN: 13543521
                                                                                              STUD BOLT
                                                                                              - Valid from gearbox No. 24981 - For clutch housing 150463
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 034
                                                                                              MPN: 13543921
                                                                                              STUD BOLT
                                                                                              - Valid till gearbox No. 24980 - For clutch housing 143279
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 035
                                                                                              MPN: 100041
                                                                                              DOWEL
                                                                                              from £4.74
                                                                                              from £4.74
                                                                                              # 036
                                                                                              MPN: 10276140
                                                                                              PLUG
                                                                                              from £19.43
                                                                                              from £19.43
                                                                                              # 037
                                                                                              MPN: 10265060
                                                                                              GASKET
                                                                                              from £1.06
                                                                                              from £1.06
                                                                                              # 038
                                                                                              MPN: 13414691
                                                                                              BREATHER
                                                                                              from £5.64
                                                                                              from £5.64
                                                                                              # 039
                                                                                              MPN: 142873
                                                                                              BRATHER EXTENSION
                                                                                              from £4.29
                                                                                              from £4.29
                                                                                              This part replaces part number 139754
                                                                                              # 040
                                                                                              MPN: 139230
                                                                                              GEARCHANGE SUPPORT PAD
                                                                                              from £415.30
                                                                                              from £415.30
                                                                                              # 041
                                                                                              MPN: 134601
                                                                                              GEARCHANGE SUPPORT BRACKET
                                                                                              from £32.60
                                                                                              from £32.60
                                                                                              # 042
                                                                                              MPN: 134512
                                                                                              SCREW
                                                                                              from £6.65
                                                                                              from £6.65
                                                                                              # 043
                                                                                              MPN: 16105125
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 044
                                                                                              MPN: 14496701
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 045
                                                                                              MPN: 15970631
                                                                                              SCREW
                                                                                              from £2.57
                                                                                              from £2.57
                                                                                              # 046
                                                                                              MPN: 127497
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                              # 047
                                                                                              MPN: 131958
                                                                                              BEARING SEAL RING
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 048
                                                                                              MPN: 131049
                                                                                              BEARING FOR DRIVING SHAFT
                                                                                              from £25.78
                                                                                              from £25.78
                                                                                              This part replaces part number 138341
                                                                                              # 048
                                                                                              MPN: 138341
                                                                                              BEARING
                                                                                              - In alternative to 131049
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 049
                                                                                              MPN: 131050
                                                                                              BEARING FOR CLUTCH SHAFT
                                                                                              from £86.23
                                                                                              from £86.23
                                                                                              This part replaces part number 138340
                                                                                              # 049
                                                                                              MPN: 138340
                                                                                              BEARING
                                                                                              - In alternative to 131050
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 050
                                                                                              MPN: 103096
                                                                                              BEARING SEAL RING
                                                                                              from £1.48
                                                                                              from £1.48
                                                                                              This part replaces part number 104835
                                                                                              # 052
                                                                                              MPN: 13543721
                                                                                              STUD BOLT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 053
                                                                                              MPN: 14326050
                                                                                              PLUG
                                                                                              from £1.01
                                                                                              from £1.01
                                                                                              # 054
                                                                                              MPN: 112254
                                                                                              HELI-COIL
                                                                                              from £2.45
                                                                                              from £2.45
                                                                                              # 055
                                                                                              MPN: 146306
                                                                                              GASKET
                                                                                              - Valid from transmission No. 695 and for CH from gearbox No. 188
                                                                                              from £1.61
                                                                                              from £1.61
                                                                                              # 056
                                                                                              MPN: 149907
                                                                                              BUSH
                                                                                              - Valid from transmission No. 695 and for CH from gearbox No. 188
                                                                                              from £17.97
                                                                                              from £17.97
                                                                                              This part replaces part number 143775 - and 1 more. Click to view details
