Ferrari Mondial 3.4 t Coupe/Cabrio Pedals Case and Support - Valid for Cars With F.E. Parts Diagram

022A - Pedals Case and Support - Valid for Cars With F.E.

Ferrari Mondial 3.4 t Coupe/Cabrio Pedals Case and Support - Valid for Cars With F.E. Parts Diagram

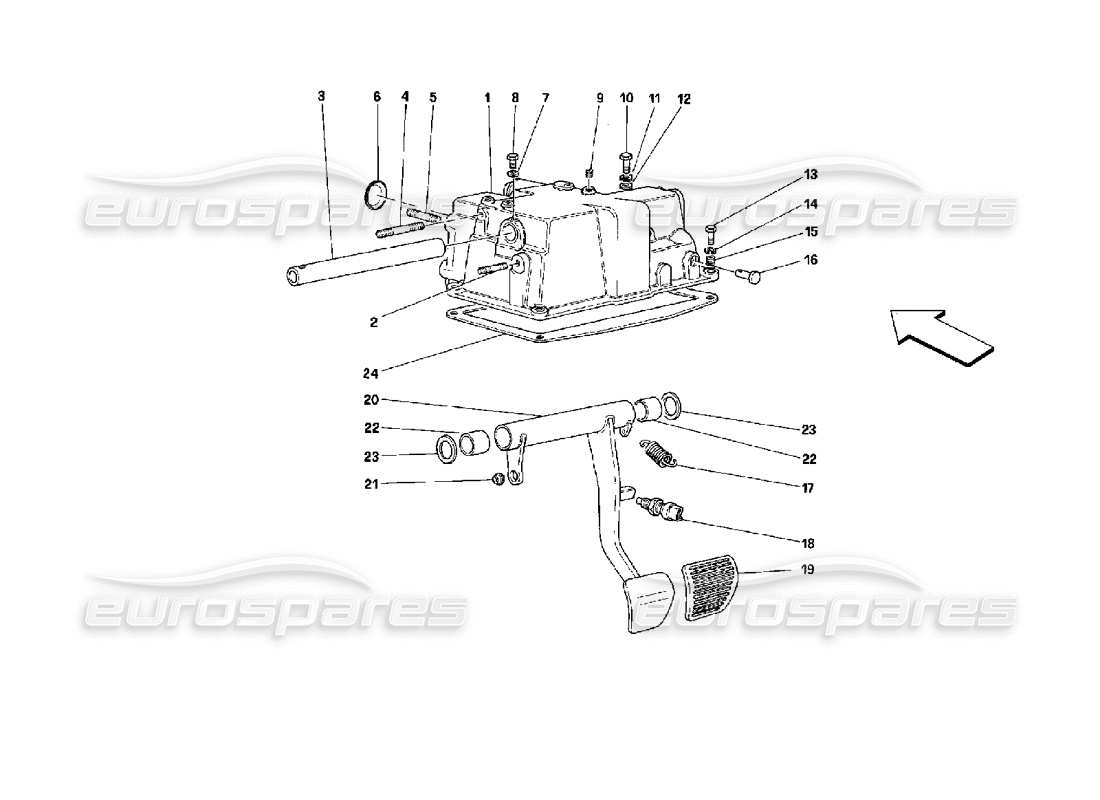

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 144761
                                        PEDAL CASE SUPPORT
                                        - Not for GD
                                        from £841.23
                                        from £841.23
                                        # 001
                                        MPN: 146225
                                        PEDAL CASE SUPPORT
                                        - Valid for GD
                                        from £505.21
                                        from £505.21
                                        # 002
                                        MPN: 13517021
                                        STUD
                                        - Not for GD
                                        from £2.80
                                        from £2.80
                                        # 002
                                        MPN: 13517121
                                        STUD
                                        - Valid for GD
                                        Supersession
                                        Supersession
                                        # 003
                                        MPN: 129954
                                        PEDAL SUPPORT PIN
                                        - Not for GD
                                        from £205.33
                                        from £205.33
                                        # 003
                                        MPN: 131319
                                        PEDAL SUPPORT PIN
                                        - Valid for GD
                                        from £77.00
                                        from £77.00
                                        # 004
                                        MPN: 13517121
                                        STUD
                                        - Valid for GD
                                        Supersession
                                        Supersession
                                        # 004
                                        MPN: 13517521
                                        STUD
                                        - Not for GD
                                        from £6.77
                                        from £6.77
                                        # 005
                                        MPN: 13543421
                                        STUD
                                        Supersession
                                        Supersession
                                        # 006
                                        MPN: 10160401
                                        EXPANSION PLUG
                                        from £0.51
                                        from £0.51
                                        This part replaces part number 10160450
                                        # 007
                                        MPN: 12601274
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                        # 008
                                        MPN: 10902221
                                        SCREW
                                        from £0.59
                                        from £0.59
                                        # 009
                                        MPN: 13525170
                                        HELI-COIL
                                        from £0.48
                                        from £0.48
                                        # 011
                                        MPN: 127496
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                        # 012
                                        MPN: 10519624
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                        # 013
                                        MPN: 16043321
                                        SCREW
                                        from £1.00
                                        from £1.00
                                        # 014
                                        MPN: 127496
                                        WASHER
                                        from £0.54
                                        from £0.54
                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                        # 015
                                        MPN: 13525770
                                        HELI-COIL
                                        from £1.57
                                        from £1.57
                                        This part replaces part number 103830
                                        # 016
                                        MPN: 129612
                                        PIN
                                        from £1.75
                                        from £1.75
                                        # 017
                                        MPN: 101305
                                        PEDAL RETURN SPRING
                                        from £8.24
                                        from £8.24
                                        This part replaces part number 660343
                                        # 018
                                        MPN: 133555
                                        STOP LIGHTS SWITCH
                                        from £18.92
                                        from £18.92
                                        # 019
                                        MPN: 144237
                                        PEDAL PROTECTION
                                        from £56.56
                                        from £56.56
                                        # 020
                                        MPN: 144235
                                        BRAKE PEDAL
                                        - Not for GD
                                        from £310.32
                                        from £310.32
                                        # 020
                                        MPN: 146226
                                        BRAKE PEDAL
                                        - Valid for GD
                                        from £612.46
                                        from £612.46
                                        # 021
                                        MPN: 109407
                                        BALL JOINT
                                        from £22.24
                                        from £22.24
                                        # 022
                                        MPN: 103163
                                        BUSH
                                        from £2.90
                                        from £2.90
                                        # 023
                                        MPN: 106083
                                        WASHER -THICK. MM 1.0
                                        from £0.47
                                        from £0.47
                                        # 023
                                        MPN: 113833
                                        WASHER -THICK. MM 1.1
                                        from £1.56
                                        from £1.56
                                        # 023
                                        MPN: 113834
                                        WASHER -THICK. MM 1.2
                                        from £2.10
                                        from £2.10
                                        # 023
                                        MPN: 113835
                                        WASHER -THICK. MM 1.3
                                        from £1.88
                                        from £1.88
                                        # 023
                                        MPN: 113836
                                        WASHER -THICK. MM 1.4
                                        from £2.35
                                        from £2.35
                                        # 024
                                        MPN: 129615
                                        GASKET
                                        from £9.06
                                        from £9.06
