022 - Clutch Release Control - Valid for GS

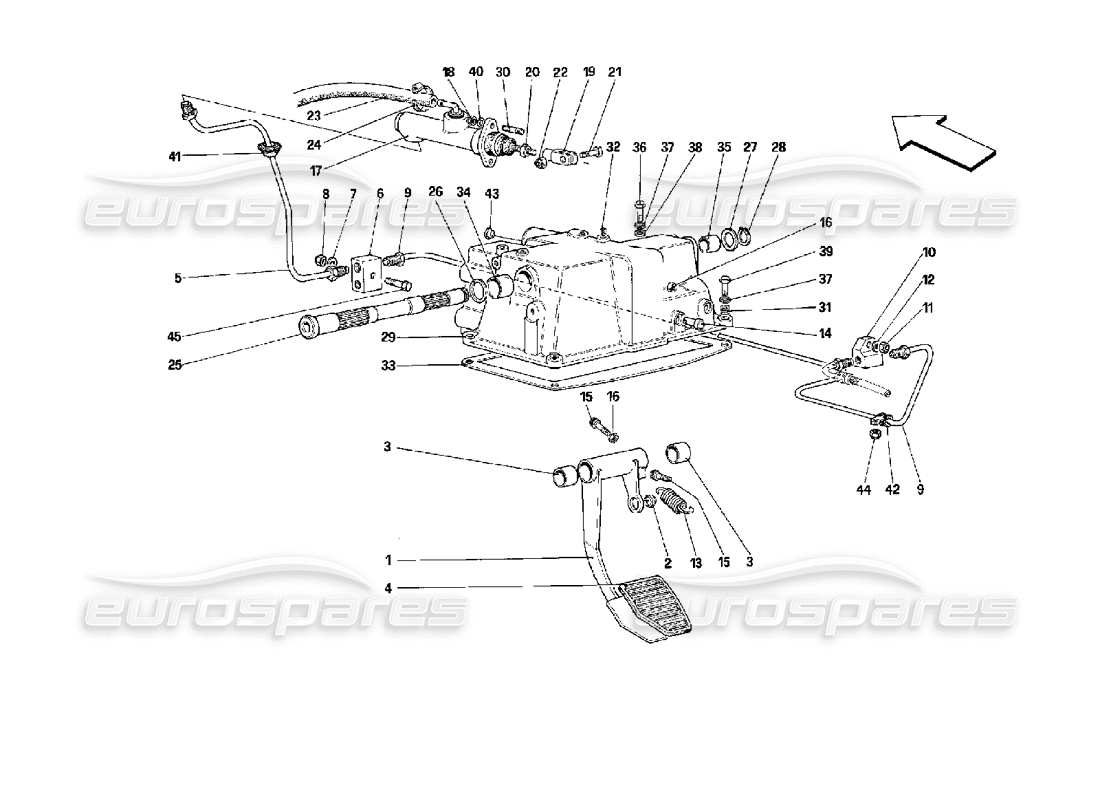

Ferrari Mondial 3.4 t Coupe/Cabrio Clutch Release Control - Valid for GS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 137410
CLUTCH PEDAL
from £205.63
from £205.63
# 002
MPN: 109407
BALL JOINT
from £22.71
from £22.71
# 003
MPN: 103163
BUSH
from £2.96
from £2.96
# 004
MPN: 106949
PEDAL COVER
from £18.42
from £18.42
# 005
MPN: 137411
PIPE
from £29.05
from £29.05
# 006
MPN: 139375
UNION
from £83.52
from £83.52
# 007
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 008
MPN: 12575411
NUT
Supersession
Supersession
# 009
MPN: 137412
PIPE -COUPE'
from £42.11
from £42.11
# 009
MPN: 141057
PIPE -CABRIOLET
from £168.57
from £168.57
# 010
MPN: 139471
UNION
from £12.68
from £12.68
# 011
MPN: 12575411
NUT
Supersession
Supersession
# 012
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 013
MPN: 101305
RETURN SPRING
from £8.42
from £8.42
This part replaces part number 660343
# 014
MPN: 129612
PIN
from £1.26
from £1.26
# 015
MPN: 144011
STOP PUSH ROD
Supersession
Supersession
# 016
MPN: 16102311
NUT
from £0.44
from £0.44
This part replaces part number 16102315
# 017
MPN: 175211
MASTER CYLINDER
from £30.00
from £30.00
This part replaces part number 123416 - and 4 more. Click to view details
# 018
MPN: 133215
SELF LOCKING NUT
Supersession
Supersession
This part replaces part number 64342800
# 019
MPN: 10248271
FORK
from £13.27
from £13.27
# 020
MPN: 16102311
LOCK NUT
from £0.44
from £0.44
This part replaces part number 16102315
# 021
MPN: 130926
SCREW
from £3.70
from £3.70
# 022
MPN: 16104411
SELF LOCKING NUT
from £0.47
from £0.47
# 023
MPN: 151845
PIPE
from £34.21
from £34.21
This part replaces part number 120929 - and 1 more. Click to view details
# 024
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604
# 025
MPN: 129613
PIN
from £1,120.71
from £1,120.71
# 026
MPN: 112125
SHIM
from £1.04
from £1.04
# 027
MPN: 112127
SHIM - THICK 0,9 MM.
from £0.47
from £0.47
# 027
MPN: 112128
SHIM - THICK 1,0 MM.
from £25.20
from £25.20
# 027
MPN: 112129
SHIM - THICK 1,1 MM.
from £0.47
from £0.47
# 027
MPN: 112130
SHIM - THICK 1,2 MM.
from £0.47
from £0.47
# 027
MPN: 112131
SHIM - THICK 1,3 MM.
from £0.47
from £0.47
# 028
MPN: 11066676
SEEGER RING
from £0.51
from £0.51
This part replaces part number 11066675
# 029
MPN: 129614
PEDAL CASE
from £1,083.27
from £1,083.27
# 030
MPN: 16100814
STUD
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 031
MPN: 13525770
HELI-COIL
from £1.60
from £1.60
This part replaces part number 103830
# 032
MPN: 13525170
HELI-COIL
from £0.47
from £0.47
# 033
MPN: 129615
GASKET
from £8.77
from £8.77
# 034
MPN: 101314
BUSH
from £2.18
from £2.18
This part replaces part number 660867
# 035
MPN: 112153
BUSH
from £1.86
from £1.86
# 036
MPN: 16043621
SCREW
from £1.13
from £1.13
# 037
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 038
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 039
MPN: 16043321
SCREW
from £0.47
from £0.47
# 040
MPN: 12638501
WASHER
from £0.53
from £0.53
# 041
MPN: 105369
RING
- Not for F.E.
from £19.10
from £19.10
# 041
MPN: 141457
PLUG
- Valid for F.E.
from £13.88
from £13.88
# 042
MPN: 10440990
BRACKET
from £0.77
from £0.77
# 043
MPN: 139521
PLUG
from £0.47
from £0.47
# 044
MPN: 12575411
NUT
Supersession
Supersession
# 045
MPN: 10902821
SCREW
from £1.13
from £1.13
This part replaces part number 10902801 - and 1 more. Click to view details
