014 - Throttle Housing and Linkage

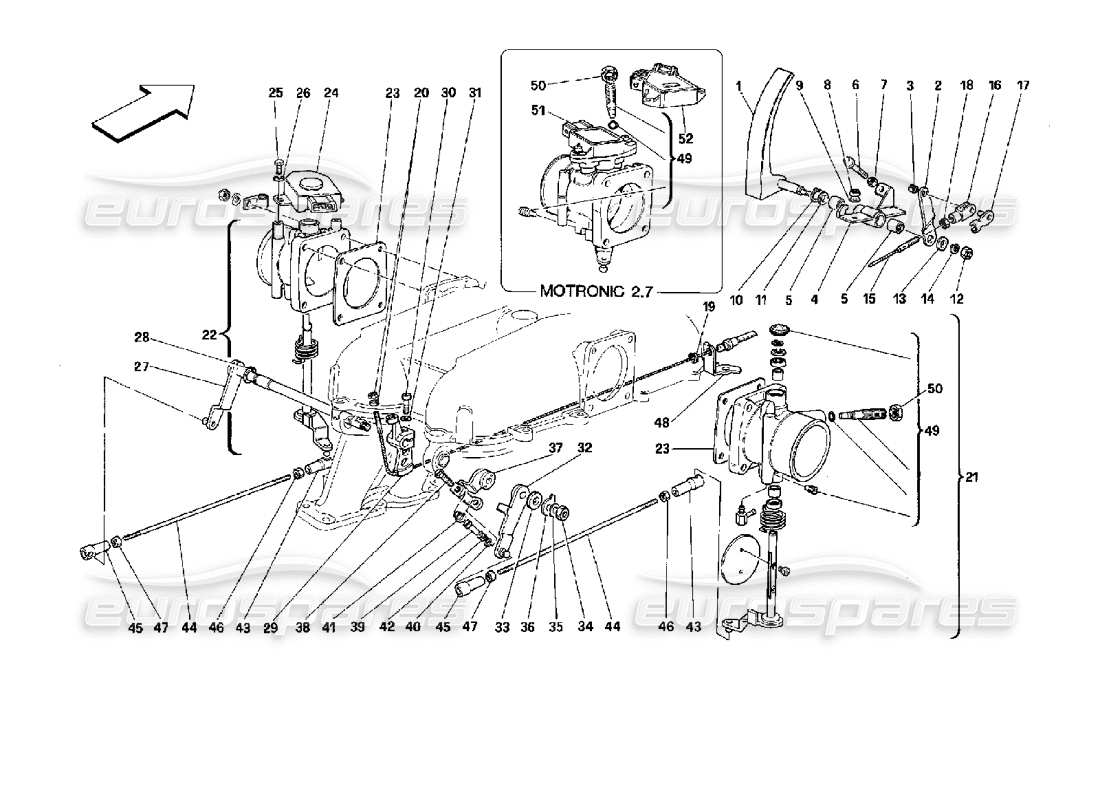

Ferrari Mondial 3.4 t Coupe/Cabrio Throttle Housing and Linkage Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 137203
Accelerator Pedal
from £32.00
from £32.00
# 002
MPN: 133751
ACCELERATOR CONTROL LEVER
from £3.72
from £3.72
# 003
MPN: 132212
BUSHING
from £20.40
from £20.40
# 004
MPN: 115396
ACCELERATOR PEDAL SUPPORT
from £23.85
from £23.85
# 005
MPN: 101677
ROLLER BEARING
from £2.11
from £2.11
# 006
MPN: 105232
CONTROL SCREW
from £3.71
from £3.71
# 007
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 008
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 009
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 010
MPN: 11066076
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11066075
# 011
MPN: 108576
WASHER
from £0.70
from £0.70
# 012
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 013
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 014
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 015
MPN: 138429
ACCELERATOR CONTROL CABLE
from £48.38
from £48.38
# 016
MPN: 132290
FORK
from £13.23
from £13.23
# 017
MPN: 132291
PIN
from £28.90
from £28.90
# 018
MPN: 10725011
NUT
from £0.85
from £0.85
# 019
MPN: 11087974
RING
from £0.53
from £0.53
This part replaces part number 11087976
# 020
MPN: 10725011
NUT
from £0.85
from £0.85
# 021
MPN: 136958
COMPLETE RH THROTTLE BODY
- Not for M. 2.7
from £852.13
from £852.13
# 021
MPN: 142498
COMPLETE RH THROTTLE BODY
- Valid for M. 2.7
from £447.62
from £447.62
This part replaces part number 144228
# 022
MPN: 136959
COMPLETE LH THROTTLE BODY
- Not for M. 2.7
from £450.21
from £450.21
# 022
MPN: 142499
COMPLETE LH THROTTLE BODY
- Valid for M. 2.7 - Not for F.E.
from £447.62
from £447.62
# 022
MPN: 155997
COMPLETE LH THROTTLE BODY
- Valid for M. 2.7 - Valid for F.E.
from £754.21
from £754.21
# 023
MPN: 136919

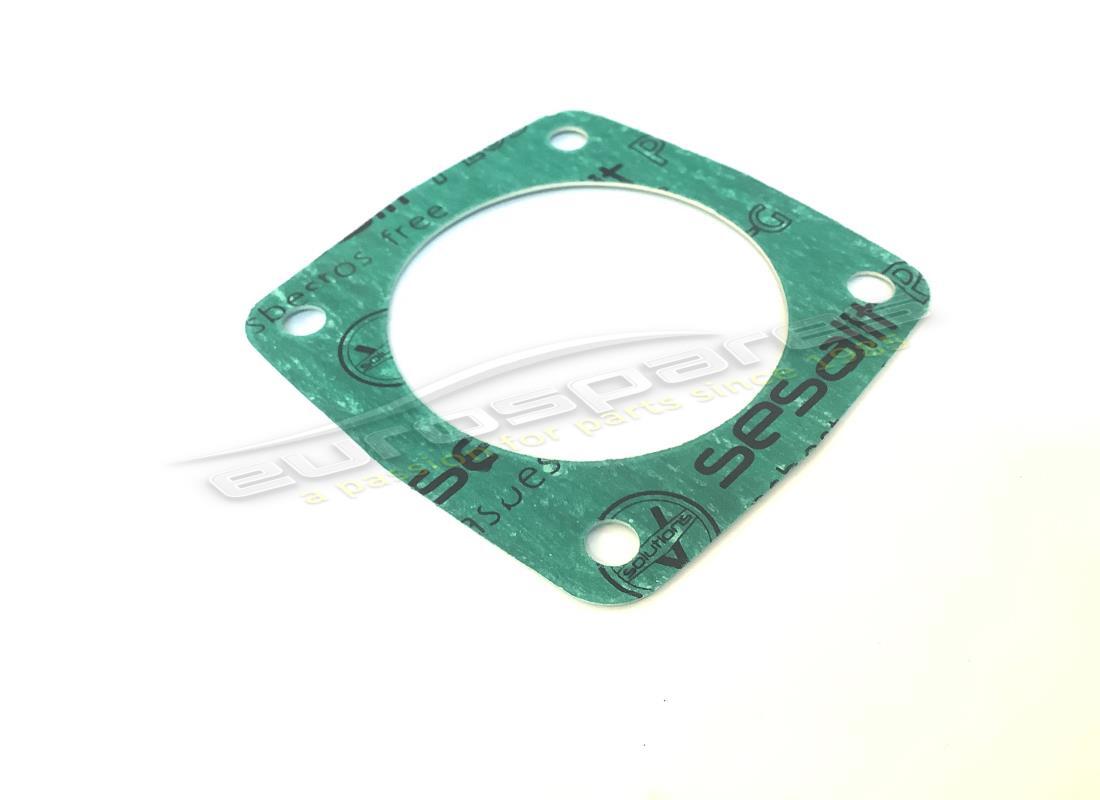

GASKET
from £2.92
from £2.92
# 024
MPN: 130974
MICRO SWITCH
- Not for M. 2.7
from £319.27
from £319.27
# 025
MPN: 10444521
SCREW
- For M. 2.7 Q.ty 4
from £0.71
from £0.71
# 026
MPN: 12601070
WASHER
- For M. 2.7 Q.ty 4
from £0.47
from £0.47
# 027
MPN: 139925
THROTTLE CONTROL SHAFT
from £59.77
from £59.77
# 028
MPN: 11065976
RING
from £0.47
from £0.47
This part replaces part number 11065975
# 029
MPN: 139923
THROTTLE CONTROL ECCENTRIC
from £33.01
from £33.01
# 030
MPN: 14432221
SCREW
from £0.47
from £0.47
# 031
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 032
MPN: 139929
DRIVEN LEVER
from £14.27
from £14.27
# 033
MPN: 137053
SPACER
from £3.85
from £3.85
# 034
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 035
MPN: 13550301
WASHER
from £0.47
from £0.47
# 036
MPN: 113566
SAFETY PLATE
from £1.96
from £1.96
# 037
MPN: 138358
LEADING LEVER
from £25.99
from £25.99
# 038
MPN: 122909
SCREW
from £3.42
from £3.42
# 039
MPN: 122913
PIN
from £10.16
from £10.16
# 040
MPN: 11087571
RING
Supersession
Supersession
# 041
MPN: 122910
CYLINDRIC NUT
from £6.68
from £6.68
# 042
MPN: 122914
SPRING
Supersession
Supersession
# 043
MPN: 173999
RH THREAD THROTTLE BALL JOINT
from £2.48
from £2.48
This part replaces part number 105617 - and 2 more. Click to view details
# 044
MPN: 139551
TIE ROD
from £6.31
from £6.31
# 045
MPN: 105619
LH THREAD BALL JOINT
from £41.48
from £41.48
# 046
MPN: 15896470
RH THREAD NUT
(minimum order quantity = 20)
from £0.79
from £0.79
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 047
MPN: 105586
LH THREAD NUT
from £4.65
from £4.65
# 048
MPN: 138422
BRACKET
from £37.84
from £37.84
# 049
MPN: 70000610
THROTTLE BODY REPAIR KIT
from £81.99
from £81.99
# 050
MPN: 11691311
NUT
from £0.47
from £0.47
# 051
MPN: 158170
POTENTIOMETER FOR THROTTLE VALVE
- Valid for M. 2.7 - For F.E. RH Q.ty 1
from £121.91
from £121.91
This part replaces part number 142434 - and 2 more. Click to view details
# 052
MPN: 155980
LH POTENTIOMETER FOR THROTTLE VALVE
- Valid for M. 2.7 - Valid for F.E.
from £109.21
from £109.21
