012 - Antievaporation Device - Coupe and Cabriolet - fors Cars With Catalyst and SA

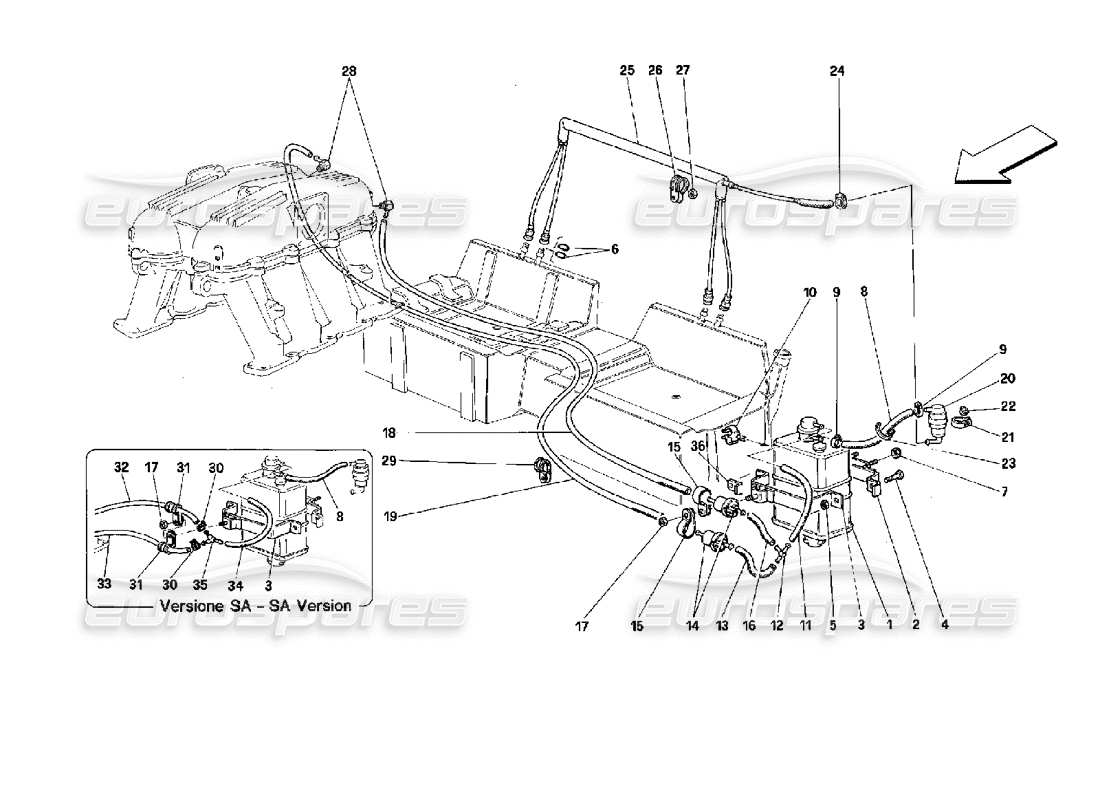

Ferrari Mondial 3.4 t Coupe/Cabrio Antievaporation Device - Coupe and Cabriolet - fors Cars With Catalyst and SA Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 138419
VAPOR FILTER
from £511.85
from £511.85
# 002
MPN: 138494
BRACKET FOR FILTER FASTENING TO FRAME
from £15.98
from £15.98
# 003
MPN: 138496
BRACKET
from £10.79
from £10.79
This part replaces part number 147268 - and 1 more. Click to view details
# 004
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 005
MPN: 12575411
NUT
Supersession
Supersession
# 006
MPN: 133956
O. RING
from £0.93
from £0.93
# 007
MPN: 12575411
NUT
Supersession
Supersession
# 008
MPN: 116758
PIPE FROM FILTER TO ANTI TURNING OVER VALVE
Supersession
Supersession
This part replaces part number 105527 - and 5 more. Click to view details
# 009
MPN: 13000190
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 010
MPN: 142406
SPRING
from £0.47
from £0.47
# 011
MPN: 114874
PIPE FROM FILTER TO UNION
- Not for SA
Supersession
Supersession
This part replaces part number 114873 - and 1 more. Click to view details
# 012
MPN: 105990
UNION
- Not for SA
from £0.65
from £0.65
# 013
MPN: 142408
PIPE FROM UNION TO ANTIEVAPORATION VALVE
- Not for SA
from £2.36
from £2.36
# 014
MPN: 130978
ANTIEVAPORATION VALVE
- Not for SA
from £268.99
from £268.99
# 015
MPN: 142196
CLAMP
- Not for SA
from £0.94
from £0.94
# 016
MPN: 142407
PIPE FROM UNION TO ANTIEVAPORATION VALVE
- Not for SA
from £2.25
from £2.25
# 017
MPN: 14058411
NUT
from £0.54
from £0.54
# 018
MPN: 142409
PIPE FROM VALVE TO LH MANIFOLD
- Not for SA
from £75.86
from £75.86
# 019
MPN: 142410
PIPE FROM VALVE TO RH MANIFOLD
- Not for SA
from £57.70
from £57.70
# 020
MPN: 139568
ANTI TURNING OVER VALVE
from £203.46
from £203.46
# 021
MPN: 139980
BRACKET
from £2.10
from £2.10
# 022
MPN: 12575411
NUT
Supersession
Supersession
# 023
MPN: 145855
RUBBER CLAMP
from £0.54
from £0.54
This part replaces part number 14560287 - and 1 more. Click to view details
# 024
MPN: 13000190
SCREW COLLAR
from £0.54
from £0.54
This part replaces part number 12178990 - and 1 more. Click to view details
# 025
MPN: 133963
VAPOR SEPARATOR
- Valid for Cabriolet
from £625.26
from £625.26
This part replaces part number 140796
# 025
MPN: 141544
VAPOR SEPARATOR
- Valid for Coupe'
from £204.39
from £204.39
# 026
MPN: 10442290
BRACKET WITH SHEATH
from £0.51
from £0.51
# 027
MPN: 12575411
NUT
Supersession
Supersession
# 028
MPN: 142511
UNION
from £1.76
from £1.76
# 029
MPN: 126672
BRACKET WITH SHEATH
from £1.92
from £1.92
# 030
MPN: 13422877
SPRING COLLAR
- Valid for SA
# 031
MPN: 10441290
BRACKET WITH SHEATH
- Valid for SA
from £0.51
from £0.51
# 032
MPN: 113437
PIPE FROM 3 WAY TO LH MANIFOLD
- Valid for SA
Supersession
Supersession
# 033
MPN: 147250
PIPE FROM 3 WAY TO RH MANIFOLD
- Valid for SA
from £58.93
from £58.93
# 034
MPN: 133951
PIPE FROM FILTER TO UNION
- Valid for SA
from £12.46
from £12.46
# 035
MPN: 146651
UNION
- Valid for SA
from £61.27
from £61.27
# 036
MPN: 137716
PLATE
from £12.50
from £12.50
