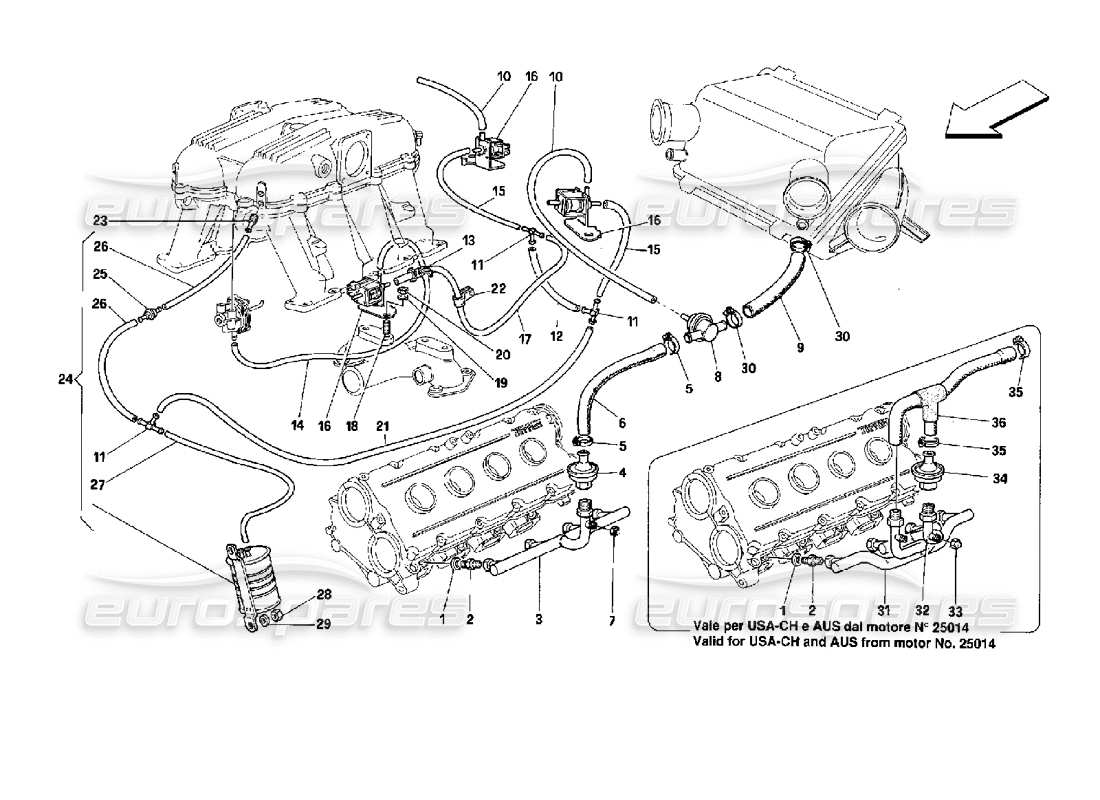

Ferrari Mondial 3.4 t Coupe/Cabrio Air Injection Device - for Cars With Catalyst - Motronic 2.7 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 002
MPN: 121718
UNION
from £32.12
from £32.12
# 003
MPN: 141195
AIR INLET PIPE
from £197.07
from £197.07
# 004
MPN: 148494
CHECK VALVE
from £402.05
from £402.05
This part replaces part number 121769 - and 9 more. Click to view details
# 005
MPN: 13000490
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 10169090 - and 3 more. Click to view details
# 006
MPN: 133962
AIR INLET SLEEVE
from £290.96
from £290.96
# 007
MPN: 150595
NUT ON AIR PIPE UNION
from £0.58
from £0.58
This part replaces part number 16109642
# 008
MPN: 147390
CUT OFF VALVE
from £176.28
from £176.28
This part replaces part number 121751 - and 3 more. Click to view details
# 009
MPN: 116787
PIPE FROM CUT OFF TO AIR INLET
Supersession
Supersession
This part replaces part number 109978
# 010
MPN: 115676
PIPE FROM SOLENOID VALVE TO CUT OFF
from £8.68
from £8.68
This part replaces part number 115229
# 011
MPN: 121793
UNION 3 WAYS
from £0.53
from £0.53
# 012
MPN: 141235
THREE WAY CONNECTION PIPE
from £2.12
from £2.12
This part replaces part number 253376
# 013
MPN: 145702
SPRING
from £0.53
from £0.53
# 014
MPN: 115676
PIPE FROM SOLENOID VALVE TO PNEUMATIC CAPSULE
from £8.68
from £8.68
This part replaces part number 115229
# 015
MPN: 125826
PIPE FROM SOLENOID VALVE TO 3 WAYS
from £6.19
from £6.19
# 016
MPN: 111704
SOLENOID VALVE
from £160.61
from £160.61
This part replaces part number 129059
# 017
MPN: 115147
PIPE FROM 3 WAYS TO SOLENOID VALVE
from £2.95
from £2.95
This part replaces part number 321332
# 018
MPN: 11500021
STUD BOLT
from £9.50
from £9.50
# 019
MPN: 14496401
WASHER
Supersession
Supersession
# 020
MPN: 12575411
NUT
Supersession
Supersession
# 021
MPN: 126342
THREE WAY CONNECTION PIPE
from £1.80
from £1.80
# 022
MPN: 10418301
CLAMP
from £0.54
from £0.54
# 023
MPN: 113652
UNION
from £2.90
from £2.90
# 024
MPN: 62660600
VACCUM TANK WITH PIPES AND VALVE
Supersession
Supersession
# 025
MPN: 62507200
SINGLE ACTING VALVE
from £14.63
from £14.63
This part replaces part number 61653800
# 026
MPN: 62660800
PIPE ON SINGLE ACTING VALVE
from £43.62
from £43.62
# 027
MPN: 62660700
PIPE FROM 3 WAYS TO VACUUM TANK
from £43.62
from £43.62
# 028
MPN: 12574211
NUT
from £0.71
from £0.71
# 029
MPN: 10519401
WASHER
from £0.71
from £0.71
# 030
MPN: 13000490
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 10169090 - and 3 more. Click to view details
# 031
MPN: 147178
RH FRONT/REAR AIR INLET PIPE
from £104.94
from £104.94
# 031
MPN: 147180
LH FRONT/REAR AIR INLET PIPE
from £93.39
from £93.39
# 032
MPN: 147179
RH CENTRAL AIR INLET PIPE
from £179.29
from £179.29
# 032
MPN: 147181
LH CENTRAL AIR INLET PIPE
from £179.29
from £179.29
# 033
MPN: 150595
NUT ON AIR PIPE UNION
from £0.58
from £0.58
This part replaces part number 16109642
# 034
MPN: 148494
CHECK VALVE
from £402.05
from £402.05
This part replaces part number 121769 - and 9 more. Click to view details
# 035
MPN: 13000490
SCREW COLLAR
from £0.50
from £0.50
This part replaces part number 10169090 - and 3 more. Click to view details
# 036
MPN: 147360
AIR INLET SLEEVE
from £79.60
from £79.60
