Ferrari Mondial 3.4 t Coupe/Cabrio LH Cylinder Head Parts Diagram

004 - LH cylinder head

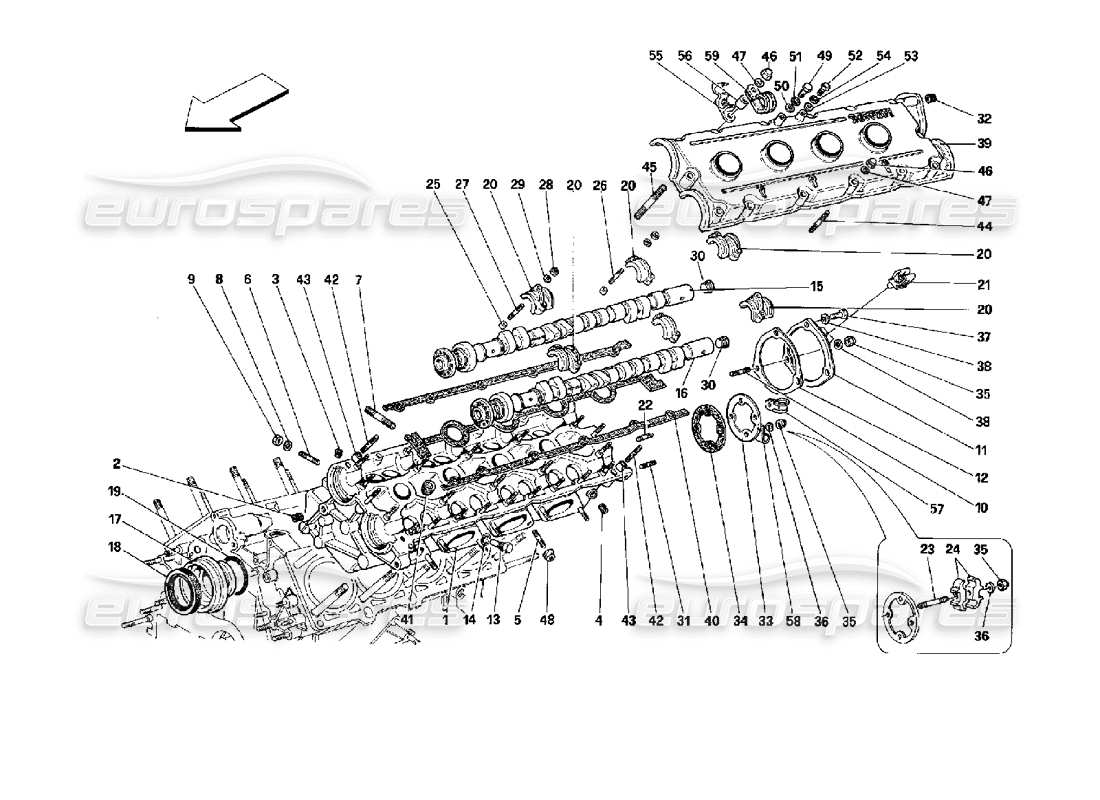

Ferrari Mondial 3.4 t Coupe/Cabrio L.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  -
                                                                                                  left cylinder head
                                                                                                  # 001
                                                                                                  MPN: 143274
                                                                                                  LEFT CYLINDER HEAD, COMPL.
                                                                                                  from £5,808.52
                                                                                                  from £5,808.52
                                                                                                  This part replaces part number 70000586
                                                                                                  # 002
                                                                                                  MPN: 13525870
                                                                                                  HELI-COIL
                                                                                                  from £1.96
                                                                                                  from £1.96
                                                                                                  This part replaces part number 105510
                                                                                                  # 003
                                                                                                  MPN: 13525870
                                                                                                  HELI-COIL
                                                                                                  from £1.96
                                                                                                  from £1.96
                                                                                                  This part replaces part number 105510
                                                                                                  # 004
                                                                                                  MPN: 14326150
                                                                                                  PLUG
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 12326150
                                                                                                  # 005
                                                                                                  MPN: 12354524
                                                                                                  STUD SECURING EXHAUST MANIFOLD
                                                                                                  from £15.22
                                                                                                  from £15.22
                                                                                                  This part replaces part number 12354521
                                                                                                  # 006
                                                                                                  MPN: 13541621
                                                                                                  STUD SECURING WATER MANIFOLD (CYL. 5,8)
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 007
                                                                                                  MPN: 13541721
                                                                                                  STUD SECURING WATER MANIFOLD (CYL. 6,7)
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 008
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                  # 009
                                                                                                  MPN: 15896211
                                                                                                  NUT
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 15896210
                                                                                                  # 010
                                                                                                  MPN: 11500521

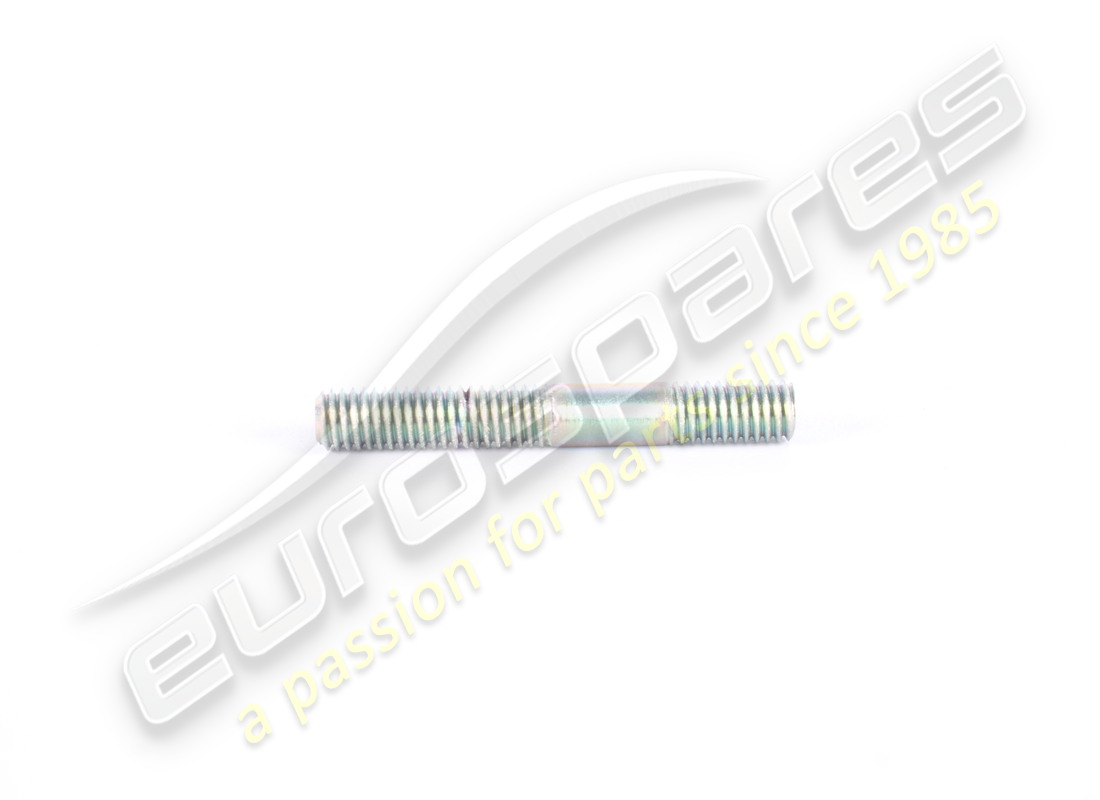

                                                                                                  STUD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 011
                                                                                                  MPN: 133529

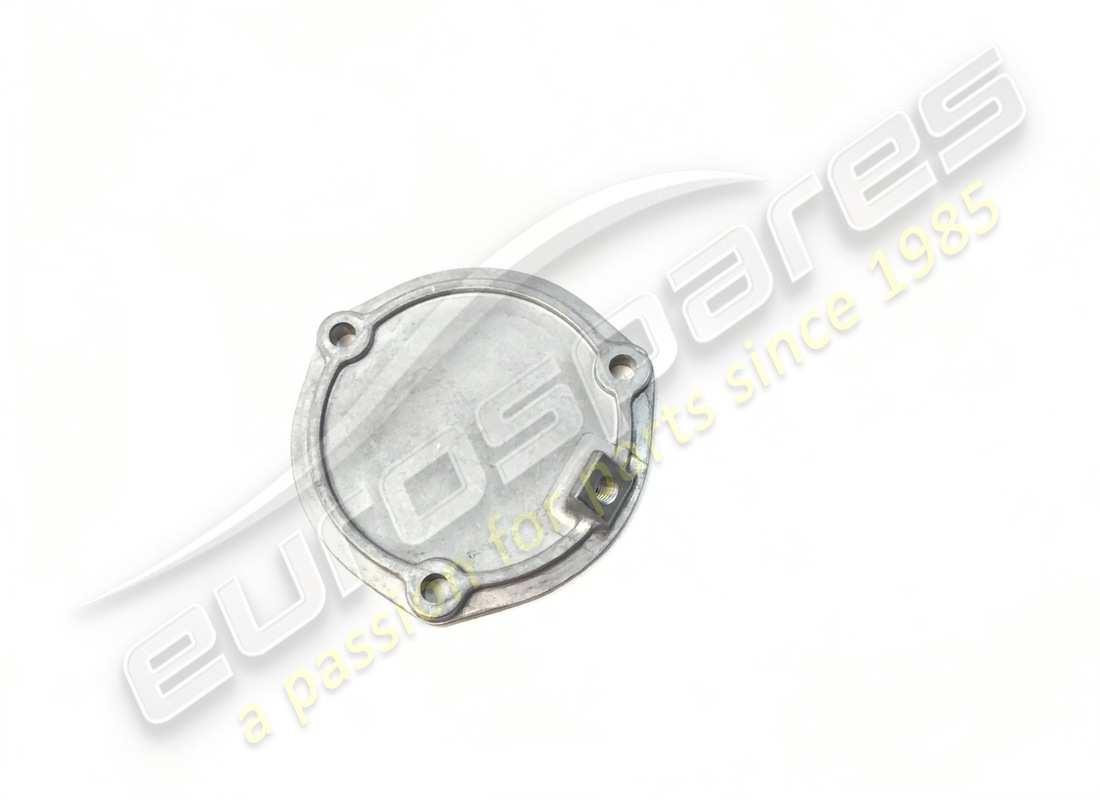

                                                                                                  REAR CAP
                                                                                                  from £14.88
                                                                                                  from £14.88
                                                                                                  # 012
                                                                                                  MPN: 150074

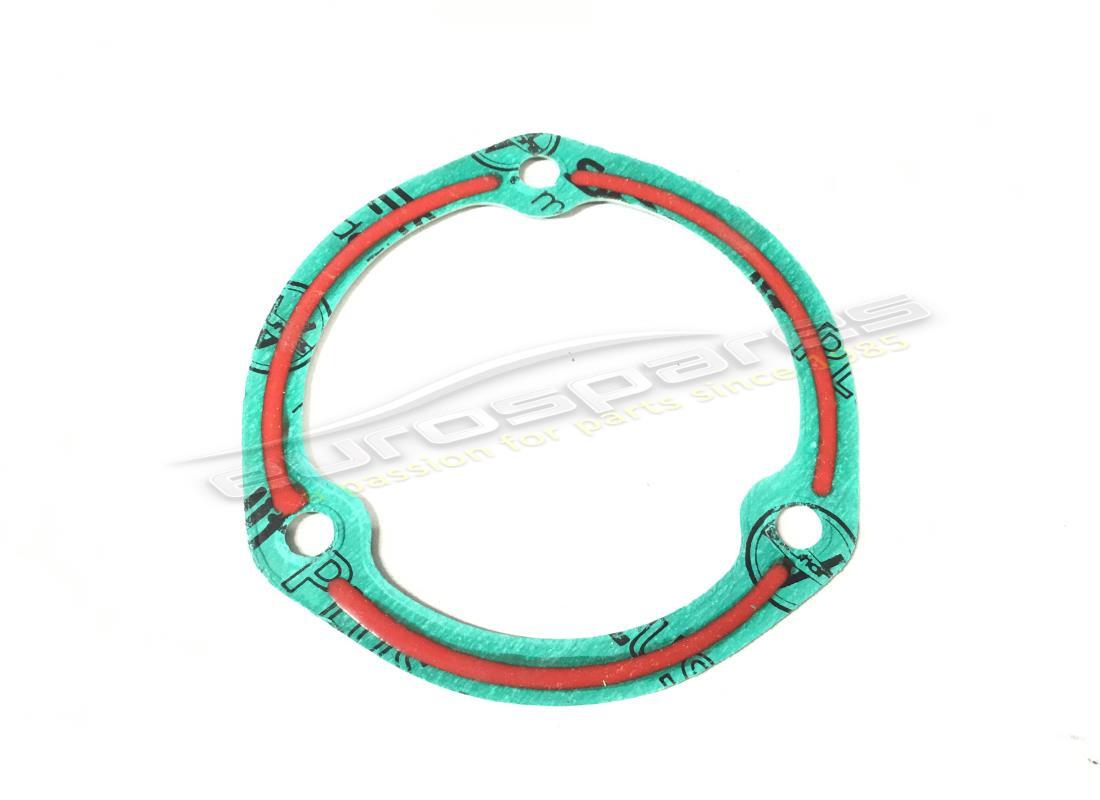

                                                                                                  GASKET
                                                                                                  from £7.10
                                                                                                  from £7.10
                                                                                                  This part replaces part number 133744
                                                                                                  # 013
                                                                                                  MPN: 139489
                                                                                                  PLUG CATALYST
                                                                                                  - Not for cars with
                                                                                                  from £7.93
                                                                                                  from £7.93
                                                                                                  # 014
                                                                                                  MPN: 10257060
                                                                                                  GASKET CATALYST
                                                                                                  - Not for cars with
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                  # 015
                                                                                                  MPN: 139336

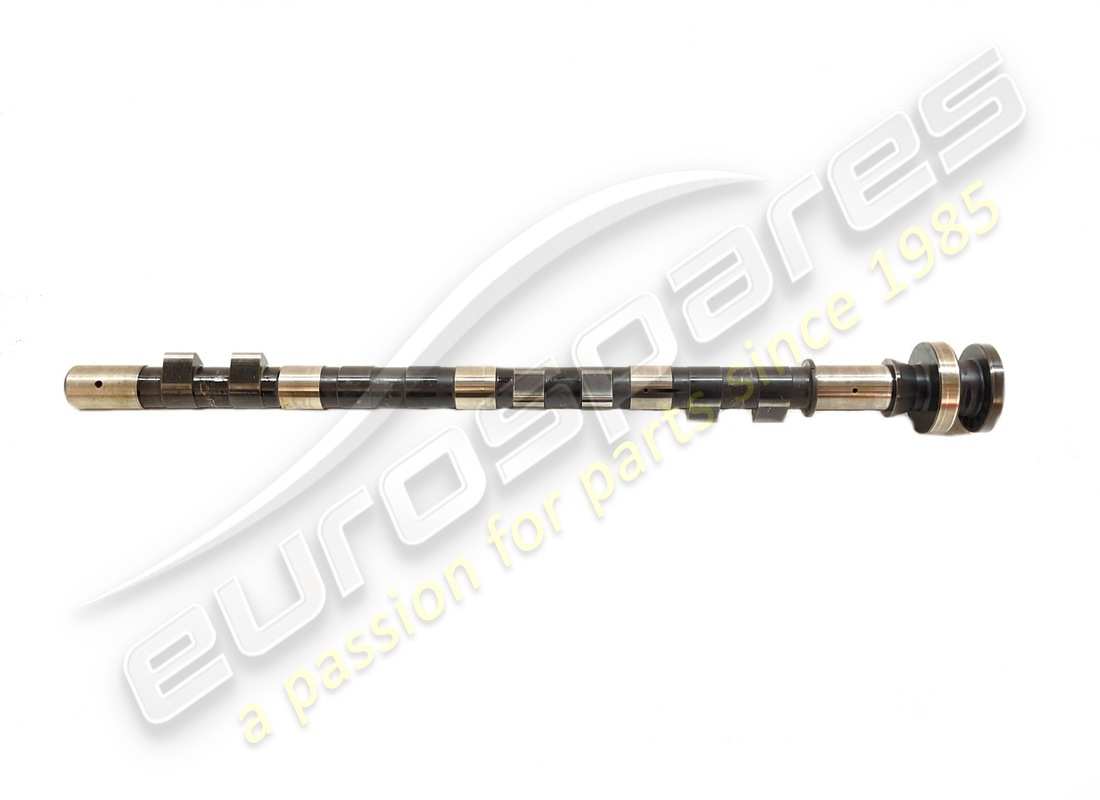

                                                                                                  LEFT INTAKE CAMSHAFT COMPLETE
                                                                                                  from £563.34
                                                                                                  from £563.34
                                                                                                  # 016
                                                                                                  MPN: 139338

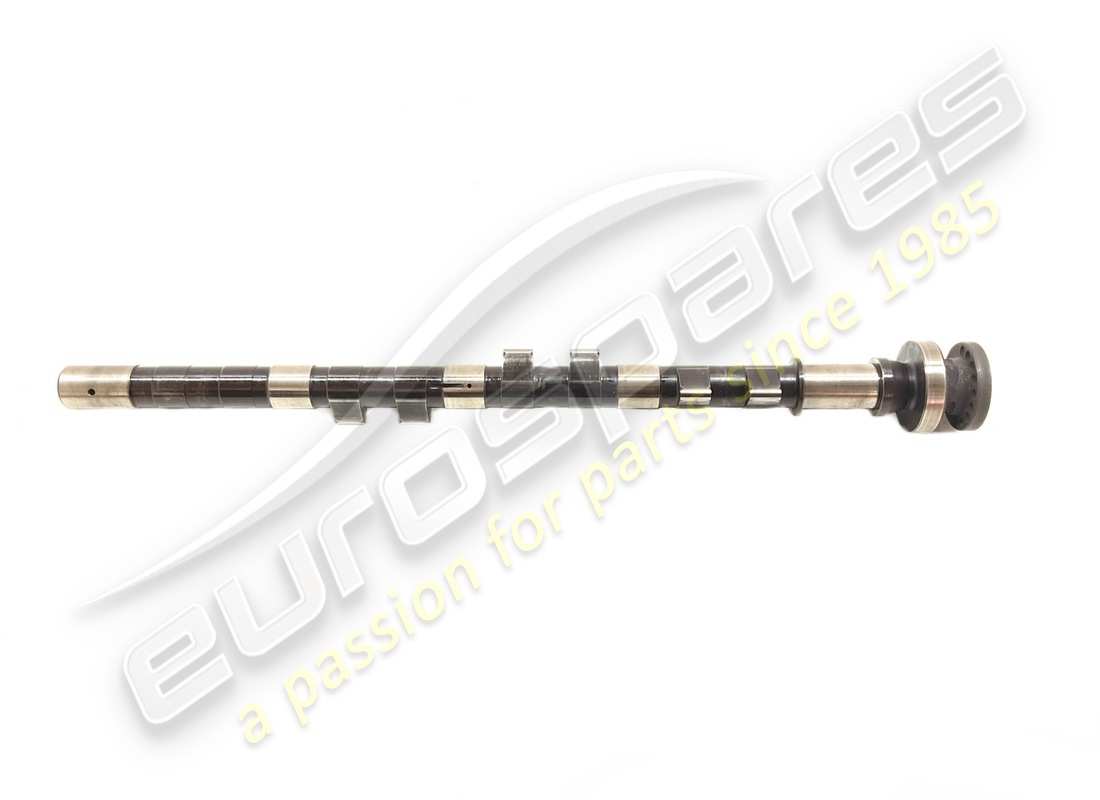

                                                                                                  LEFT EXHAUST CAMSHAFT COMPLETE
                                                                                                  from £1,241.11
                                                                                                  from £1,241.11
                                                                                                  # 017
                                                                                                  MPN: 144973
                                                                                                  FRONT HEAD
                                                                                                  from £370.72
                                                                                                  from £370.72
                                                                                                  This part replaces part number 117257 - and 2 more. Click to view details
                                                                                                  # 018
                                                                                                  MPN: 134714
                                                                                                  SEAL RING
                                                                                                  from £10.35
                                                                                                  from £10.35
                                                                                                  This part replaces part number 110314
                                                                                                  # 019
                                                                                                  MPN: 117275

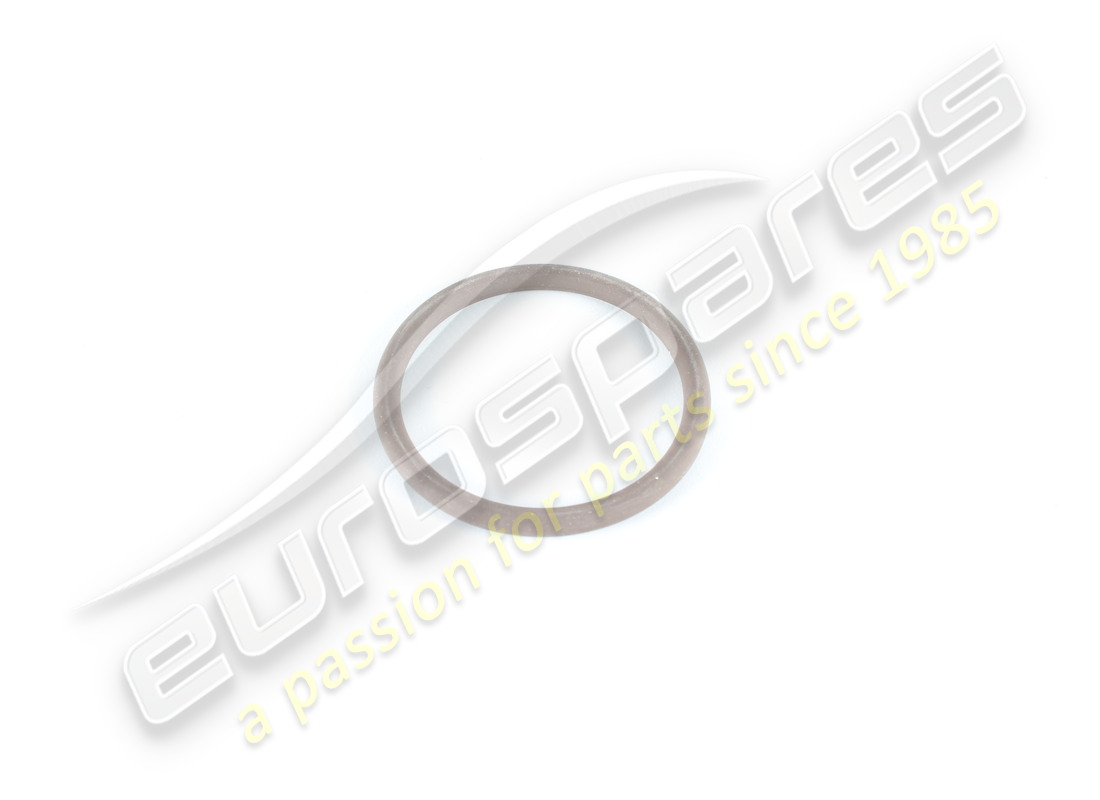

                                                                                                  O.R. RING
                                                                                                  from £2.93
                                                                                                  from £2.93
                                                                                                  # 020
                                                                                                  -

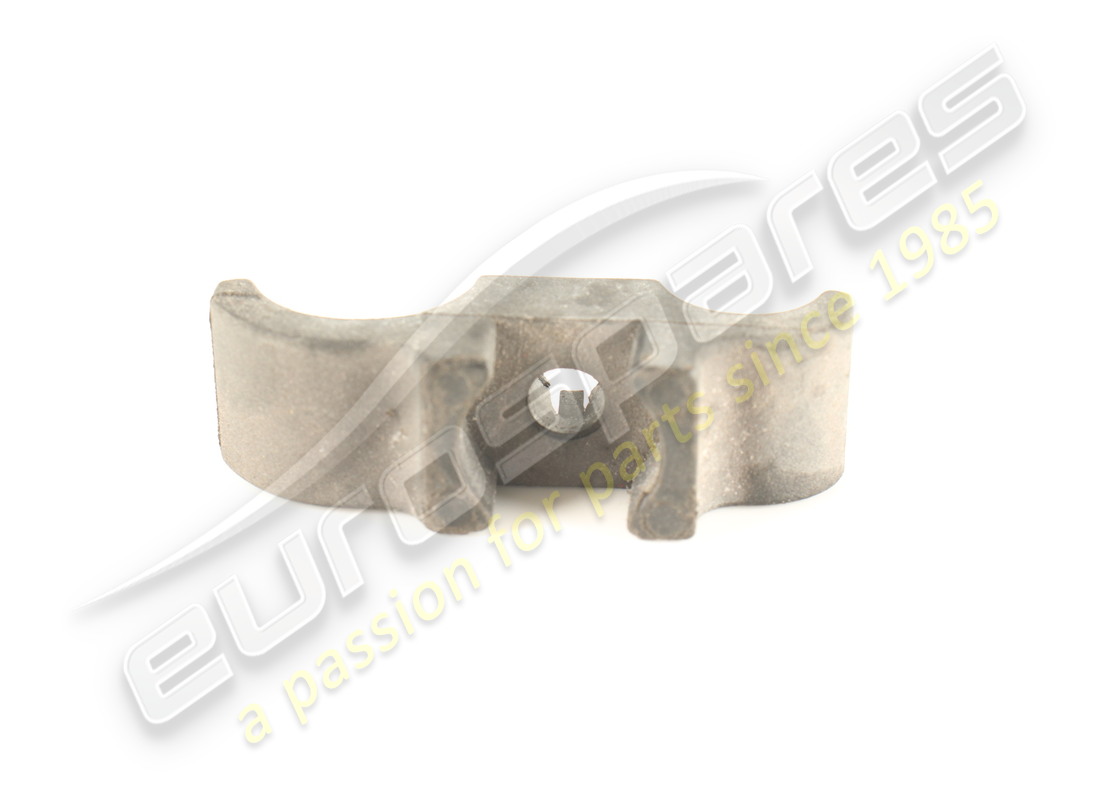

                                                                                                  CAMSHAFT CAPS
                                                                                                  # 021
                                                                                                  MPN: 14573987
                                                                                                  SPRING
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 022
                                                                                                  MPN: 11500521
                                                                                                  STUD
                                                                                                  - Valid for M.2.5
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 023
                                                                                                  MPN: 11501421
                                                                                                  STUD
                                                                                                  - Valid for M. 2.7
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 024
                                                                                                  MPN: 62658700
                                                                                                  SPRING
                                                                                                  - Valid for M. 2.7
                                                                                                  from £23.02
                                                                                                  from £23.02
                                                                                                  # 025
                                                                                                  MPN: 102725
                                                                                                  DOWEL
                                                                                                  from £0.57
                                                                                                  from £0.57
                                                                                                  # 026
                                                                                                  MPN: 102735
                                                                                                  STUD
                                                                                                  from £11.07
                                                                                                  from £11.07
                                                                                                  This part replaces part number 4146561
                                                                                                  # 027
                                                                                                  MPN: 102754
                                                                                                  STUD
                                                                                                  from £5.00
                                                                                                  from £5.00
                                                                                                  # 028
                                                                                                  MPN: 15896211
                                                                                                  NUT
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 15896210
                                                                                                  # 029
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                  # 030
                                                                                                  MPN: 10269750
                                                                                                  PLUG
                                                                                                  from £0.91
                                                                                                  from £0.91
                                                                                                  This part replaces part number 95184
                                                                                                  # 031
                                                                                                  MPN: 11500321
                                                                                                  STUD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 032
                                                                                                  MPN: 13525470
                                                                                                  HELI-COIL
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 107333
                                                                                                  # 033
                                                                                                  MPN: 103796
                                                                                                  REAR PLUG
                                                                                                  from £167.71
                                                                                                  from £167.71
                                                                                                  # 034
                                                                                                  MPN: 150075
                                                                                                  GASKET
                                                                                                  from £16.34
                                                                                                  from £16.34
                                                                                                  This part replaces part number 104694 - and 3 more. Click to view details
                                                                                                  # 036
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                  # 037
                                                                                                  MPN: 10902324
                                                                                                  SCREW
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                  # 038
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                  # 039
                                                                                                  -
                                                                                                  LEFT HEAD COVER
                                                                                                  # 040
                                                                                                  MPN: 150084

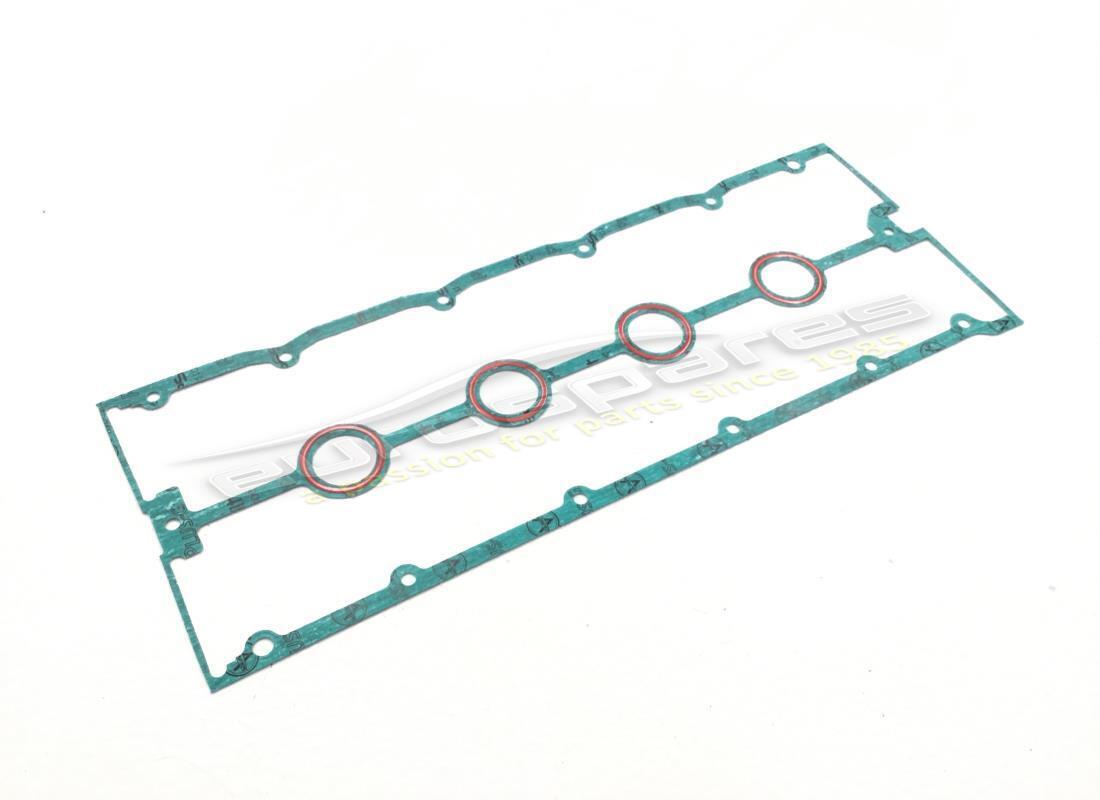

                                                                                                  LH GASKET
                                                                                                  Alternative use - FCCG001 Cam cover set
                                                                                                  from £28.12
                                                                                                  from £28.12
                                                                                                  This part replaces part number 117264 - and 1 more. Click to view details
                                                                                                  # 040
                                                                                                  MPN: FCCG001/B
                                                                                                  CAM COVER GASKET SET & SEAL KIT
                                                                                                  Includes FCCG001 & seals - x4 134714 / x4 117275.
                                                                                                  # 041
                                                                                                  MPN: 127635
                                                                                                  PLUG
                                                                                                  from £1.50
                                                                                                  from £1.50
                                                                                                  This part replaces part number 183447
                                                                                                  # 042
                                                                                                  MPN: 13541721
                                                                                                  STUD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 043
                                                                                                  MPN: 102725
                                                                                                  DOWEL
                                                                                                  from £0.57
                                                                                                  from £0.57
                                                                                                  # 044
                                                                                                  MPN: 13541621
                                                                                                  STUD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 045
                                                                                                  MPN: 13541921
                                                                                                  STUD
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 046
                                                                                                  MPN: 100044
                                                                                                  NUT
                                                                                                  from £0.26
                                                                                                  from £0.26
                                                                                                  This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                  # 047
                                                                                                  MPN: 11197774
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                  # 048
                                                                                                  MPN: 138392
                                                                                                  NUT
                                                                                                  (minimum order quantity = 25)
                                                                                                  from £0.57
                                                                                                  from £0.57
                                                                                                  # 049
                                                                                                  MPN: 10977524
                                                                                                  SCREW
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 050
                                                                                                  MPN: 12648201
                                                                                                  WASHER
                                                                                                  from £1.40
                                                                                                  from £1.40
                                                                                                  # 052
                                                                                                  MPN: 10977624
                                                                                                  SCREW
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                  # 053
                                                                                                  MPN: 10519377
                                                                                                  WASHER
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                  # 054
                                                                                                  MPN: 149951
                                                                                                  WASHER
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                                  # 055
                                                                                                  MPN: 129544
                                                                                                  SPRING
                                                                                                  from £0.94
                                                                                                  from £0.94
                                                                                                  # 056
                                                                                                  MPN: 140085
                                                                                                  SPACER
                                                                                                  from £19.61
                                                                                                  from £19.61
                                                                                                  # 057
                                                                                                  MPN: 10440990
                                                                                                  BRACKET
                                                                                                  - Not for cars catalyst
                                                                                                  from £0.76
                                                                                                  from £0.76
                                                                                                  # 058
                                                                                                  MPN: 10418401
                                                                                                  BRACKET
                                                                                                  from £1.57
                                                                                                  from £1.57
                                                                                                  # 059
                                                                                                  MPN: 10441290
                                                                                                  BRACKET
                                                                                                  from £0.47
                                                                                                  from £0.47
