ferrari mondial 3.2 qv (1987) hand - brake control parts diagram

041 - Hand - Brake Control

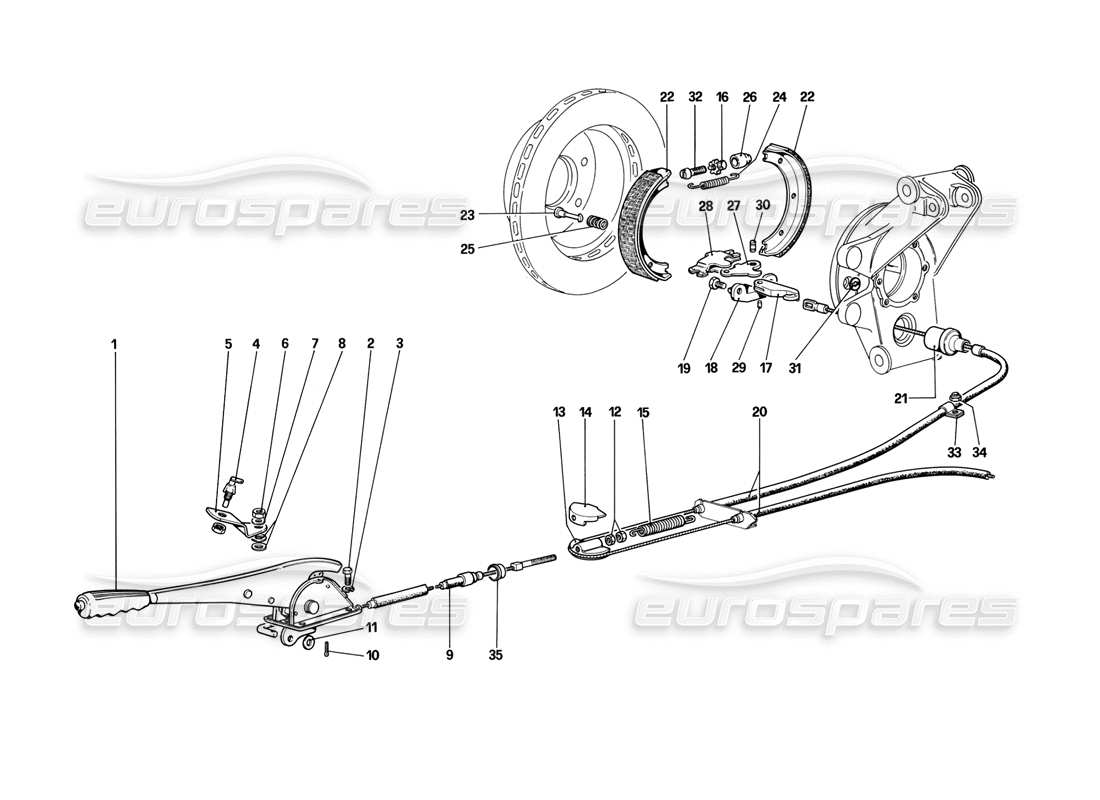

Ferrari Mondial 3.2 QV (1987) Hand - Brake Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 198375
                                                                    HAND BRAKE LEVER
                                                                    from £374.73
                                                                    from £374.73
                                                                    This part replaces part number 118548 - and 3 more. Click to view details
                                                                    # 002
                                                                    MPN: 10902121
                                                                    SCREW
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 20146601
                                                                    # 003
                                                                    MPN: 106850
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 10516473 - and 1 more. Click to view details
                                                                    # 004
                                                                    MPN: 114318
                                                                    SWITCH
                                                                    from £9.29
                                                                    from £9.29
                                                                    This part replaces part number 114319
                                                                    # 005
                                                                    MPN: 114320
                                                                    SWITCH BRACKET
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 114320 N/L/A
                                                                    # 006
                                                                    MPN: 15896411
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 15896401
                                                                    # 007
                                                                    MPN: 12605270
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 008
                                                                    MPN: 10519301
                                                                    WASHER - POSSIBLE FITTING
                                                                    from £12.62
                                                                    from £12.62
                                                                    This part replaces part number 10517377 - and 2 more. Click to view details
                                                                    # 009
                                                                    MPN: 118551
                                                                    FRONT CABLE
                                                                    from £19.00
                                                                    from £19.00
                                                                    # 010
                                                                    MPN: 10796440
                                                                    SPIT PIN
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 264555
                                                                    # 012
                                                                    MPN: 16102311
                                                                    LOCKNUT, RIGHT THREAD
                                                                    from £0.42
                                                                    from £0.42
                                                                    This part replaces part number 16102315
                                                                    # 013
                                                                    MPN: 118552
                                                                    ANCHORAGE FOR REAR CABLE
                                                                    from £1.10
                                                                    from £1.10
                                                                    # 014
                                                                    MPN: 118553
                                                                    PLATE
                                                                    from £15.15
                                                                    from £15.15
                                                                    # 016
                                                                    MPN: 101286
                                                                    NUT
                                                                    from £21.71
                                                                    from £21.71
                                                                    This part replaces part number 680544 - and 6 more. Click to view details
                                                                    # 017
                                                                    MPN: 105270
                                                                    CONTROL FORK FOR INNER LEVER
                                                                    from £14.77
                                                                    from £14.77
                                                                    # 018
                                                                    MPN: 106243
                                                                    SMALL BLOCK
                                                                    from £108.85
                                                                    from £108.85
                                                                    # 019
                                                                    MPN: 106242
                                                                    SCREW
                                                                    from £3.48
                                                                    from £3.48
                                                                    # 020
                                                                    MPN: 118550
                                                                    REAR HANDBRAKE CABLE (LHD)
                                                                    from £65.41
                                                                    from £65.41
                                                                    # 020
                                                                    MPN: 119619
                                                                    REAR HANDBRAKE CABLE (RHD)
                                                                    from £139.71
                                                                    from £139.71
                                                                    # 021
                                                                    MPN: 105735
                                                                    FORK PROTECTION CAP
                                                                    After exhaustion use no. 132129
                                                                    # 022
                                                                    MPN: 134847
                                                                    HAND BRAKE SHOES
                                                                    Set of 4 (25 mm)
                                                                    from £36.25
                                                                    from £36.25
                                                                    This part replaces part number 101270 - and 2 more. Click to view details
                                                                    # 023
                                                                    MPN: 101275
                                                                    PIN FOR SPRING
                                                                    from £8.07
                                                                    from £8.07
                                                                    This part replaces part number 680515 - and 2 more. Click to view details
                                                                    # 024
                                                                    MPN: 101276
                                                                    RETURN SPRING FOR SHOES
                                                                    from £2.28
                                                                    from £2.28
                                                                    This part replaces part number 680516 - and 6 more. Click to view details
                                                                    # 025
                                                                    MPN: 101277
                                                                    SPRING
                                                                    from £1.31
                                                                    from £1.31
                                                                    This part replaces part number 680517 - and 2 more. Click to view details
                                                                    # 026
                                                                    MPN: 101279
                                                                    SEAT FOR ADJUST SCREW
                                                                    from £31.50
                                                                    from £31.50
                                                                    # 027
                                                                    MPN: 101280
                                                                    INNER CONTROL LEVER
                                                                    from £26.20
                                                                    from £26.20
                                                                    This part replaces part number 680538 - and 6 more. Click to view details
                                                                    # 028
                                                                    MPN: 101281
                                                                    OUTER CONTROL LEVER
                                                                    from £34.27
                                                                    from £34.27
                                                                    This part replaces part number 680539 - and 7 more. Click to view details
                                                                    # 029
                                                                    MPN: 101282
                                                                    PIN FIXING FORK TO INNER LEVER
                                                                    from £4.42
                                                                    from £4.42
                                                                    This part replaces part number 680540 - and 1 more. Click to view details
                                                                    # 030
                                                                    MPN: 101283
                                                                    PINFORJOINT
                                                                    from £8.70
                                                                    from £8.70
                                                                    This part replaces part number 680541 - and 3 more. Click to view details
                                                                    # 031
                                                                    MPN: 101284
                                                                    PLATE FOR SPRING
                                                                    from £2.89
                                                                    from £2.89
                                                                    This part replaces part number 680542
                                                                    # 032
                                                                    MPN: 101285
                                                                    SCREW
                                                                    from £17.78
                                                                    from £17.78
                                                                    This part replaces part number 680543 - and 8 more. Click to view details
                                                                    # 033
                                                                    MPN: 10115701
                                                                    CLAMP
                                                                    from £0.47
                                                                    from £0.47
                                                                    # 033
                                                                    MPN: 10418501
                                                                    CLAMP
                                                                    from £1.07
                                                                    from £1.07

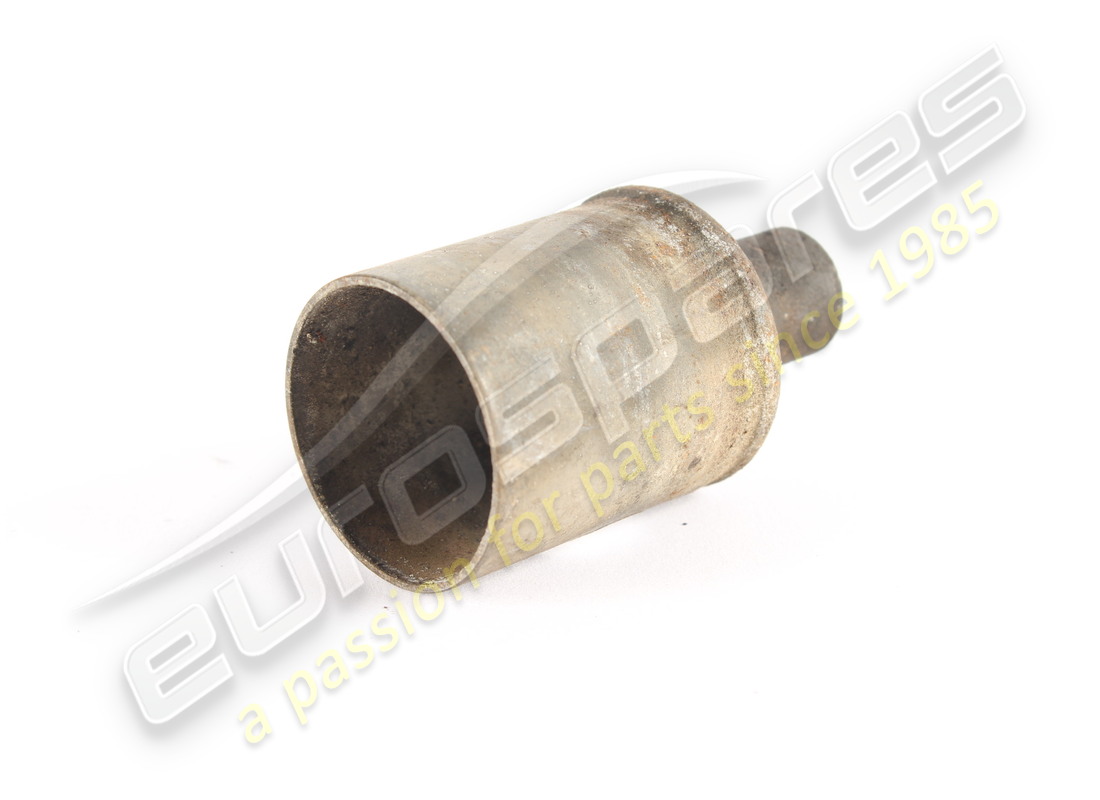

                                                                    # 035
                                                                    MPN: 118554
                                                                    BUSH - RHD ONLY
                                                                    from £9.17
                                                                    from £9.17
