ferrari mondial 3.2 qv (1987) brake system (for car without antiskid system) parts diagram

038 - Brake System (for Car Without Antiskid System)

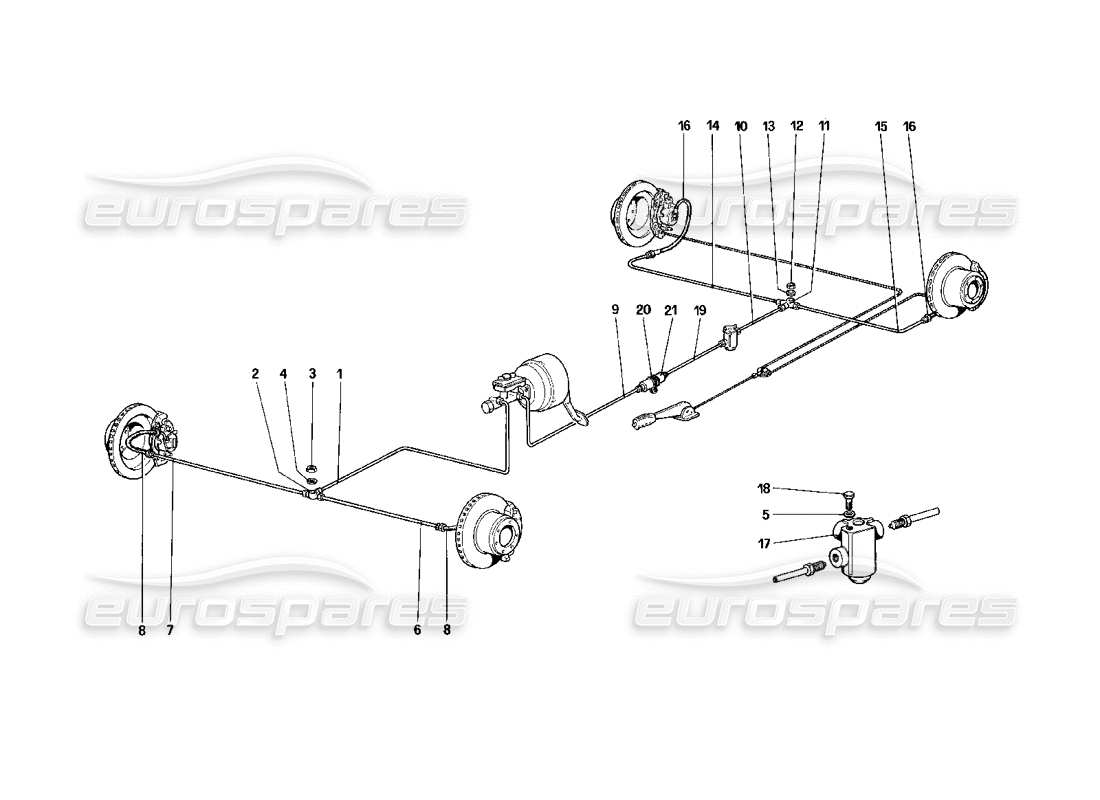

Ferrari Mondial 3.2 QV (1987) Brake System (For Car Without Antiskid System) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Price
                                  # 001
                                  MPN: 105855
                                  PIPE FROM PUMP TO FRONT 3 WAY UNION
                                  from £15.15
                                  from £15.15
                                  # 002
                                  MPN: 101394
                                  3 WAY UNION
                                  from £26.90
                                  from £26.90
                                  This part replaces part number 680980 - and 7 more. Click to view details
                                  # 003
                                  MPN: 12574211
                                  NUT
                                  from £0.71
                                  from £0.71
                                  # 004
                                  MPN: 12639701
                                  WASHER
                                  Supersession
                                  Supersession
                                  This part replaces part number 12639704
                                  # 005
                                  MPN: 106852
                                  WASHER
                                  Supersession
                                  Supersession
                                  This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                  # 006
                                  MPN: 106670
                                  PIPE FROM 3 WAY TO LEFT FRONT HOSE
                                  For RHD use no. 101407
                                  Supersession
                                  Supersession
                                  # 007
                                  MPN: 116397
                                  PIPE FROM 3 WAY TO RIGHT FRONT HOSE
                                  For RHD use no. 101407
                                  from £9.78
                                  from £9.78
                                  # 008
                                  MPN: 118101
                                  FRONT BRAKE HOSE
                                  from £135.00
                                  from £135.00
                                  # 009
                                  MPN: 116397
                                  PIPE FROM PUMP TO 2 WAY UNION
                                  from £9.78
                                  from £9.78
                                  # 010
                                  MPN: 101407
                                  PIPE FROM PRESSURE REGULATOR TO 3 WAY FITTING
                                  from £26.03
                                  from £26.03
                                  This part replaces part number 680683
                                  # 011
                                  MPN: 101394
                                  3 WAY FITTING
                                  from £26.90
                                  from £26.90
                                  This part replaces part number 680980 - and 7 more. Click to view details
                                  # 012
                                  MPN: 12574211
                                  NUT
                                  from £0.71
                                  from £0.71
                                  # 013
                                  MPN: 12639701
                                  WASHER
                                  Supersession
                                  Supersession
                                  This part replaces part number 12639704
                                  # 014
                                  MPN: 104470
                                  PIPE FROM 3 WAY UNION TO RIGHT HOSE
                                  For US use no. 106969
                                  Supersession
                                  Supersession
                                  # 015
                                  MPN: 105851
                                  PIPE FROM 3 WAY UNION TO LEFT HOSE
                                  from £9.63
                                  from £9.63
                                  # 016
                                  MPN: 271712
                                  REAR BRAKE HOSE
                                  from £14.76
                                  from £14.76
                                  This part replaces part number 118100
                                  # 017
                                  MPN: 118103
                                  PRESSURE REGULATOR - FOR US
                                  from £51.73
                                  from £51.73
                                  # 017
                                  MPN: 119366
                                  PRESSURE REGULATOR
                                  Not for US - Also valid for AUS
                                  from £64.20
                                  from £64.20
                                  # 018
                                  MPN: 16043021
                                  SCREW
                                  from £0.53
                                  from £0.53
                                  # 019
                                  MPN: 117331
                                  PIPE FROM 2 WAY TO PRESSURE REGULATOR
                                  For RHD use no. 101408
                                  from £26.98
                                  from £26.98
                                  This part replaces part number 116999
                                  # 020
                                  MPN: 10441490
                                  CLAMP
                                  from £0.47
                                  from £0.47
                                  # 021
                                  MPN: 127505
                                  2 WAY UNION
                                  from £8.38
                                  from £8.38
