ferrari mondial 3.2 qv (1987) exhaust system (for us and sa version) parts diagram

020 - ExhaUSt System (For US and SA Version)

Ferrari Mondial 3.2 QV (1987) ExhaUSt System (For US and SA Version) Parts Diagram

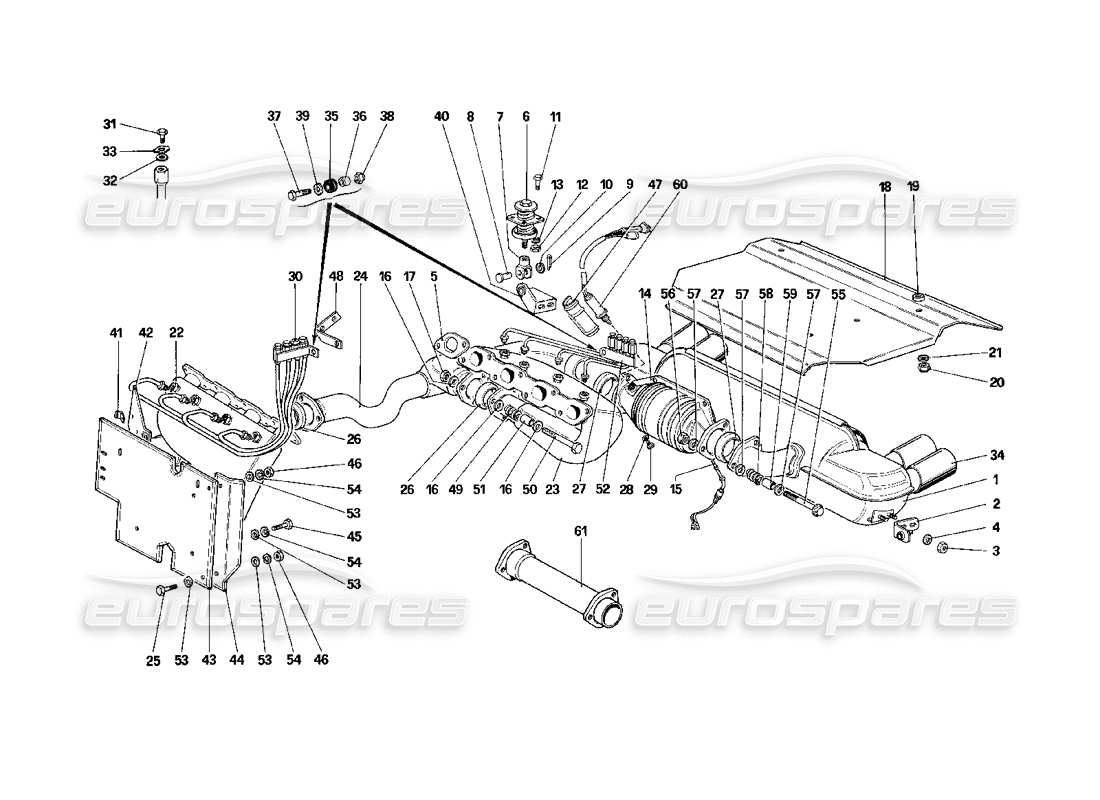

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Price
                                                                                                        # 001
                                                                                                        MPN: 128206
                                                                                                        EXHAUST SILENCE
                                                                                                        Not for AUS - SA - C7 and C8
                                                                                                        from £2,385.33
                                                                                                        from £2,385.33
                                                                                                        # 001
                                                                                                        MPN: 131195
                                                                                                        EXHAUST SILENCE
                                                                                                        For USA, AUS and SA
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 001
                                                                                                        MPN: 131955
                                                                                                        EXHAUST SILENCE
                                                                                                        For C7 and C8
                                                                                                        from £2,127.41
                                                                                                        from £2,127.41
                                                                                                        This part replaces part number 131195
                                                                                                        # 002
                                                                                                        MPN: 115803
                                                                                                        BRACKET
                                                                                                        from £61.94
                                                                                                        from £61.94
                                                                                                        # 003
                                                                                                        MPN: 114748
                                                                                                        NUT
                                                                                                        from £9.07
                                                                                                        from £9.07
                                                                                                        # 004
                                                                                                        MPN: 10519624
                                                                                                        WASHER
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                        # 005
                                                                                                        MPN: 147705
                                                                                                        GASKET
                                                                                                        from £10.24
                                                                                                        from £10.24
                                                                                                        This part replaces part number 111532
                                                                                                        # 006
                                                                                                        MPN: 106052
                                                                                                        EXHAUST MOUNT
                                                                                                        from £57.78
                                                                                                        from £57.78
                                                                                                        # 007
                                                                                                        MPN: 108257
                                                                                                        FORK ON BUFFER
                                                                                                        from £100.31
                                                                                                        from £100.31
                                                                                                        # 008
                                                                                                        MPN: 10033411
                                                                                                        PIN
                                                                                                        from £42.00
                                                                                                        from £42.00
                                                                                                        This part replaces part number 10033441 - and 3 more. Click to view details
                                                                                                        # 009
                                                                                                        MPN: 10796440
                                                                                                        SPLIT PIN
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 264555
                                                                                                        # 010
                                                                                                        MPN: 103167
                                                                                                        WASHER
                                                                                                        from £1.98
                                                                                                        from £1.98
                                                                                                        # 011
                                                                                                        MPN: 10977621
                                                                                                        SCREW FIXING BUFFER TO CHASSIS
                                                                                                        from £1.08
                                                                                                        from £1.08
                                                                                                        # 012
                                                                                                        MPN: 15896411
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 15896401
                                                                                                        # 013
                                                                                                        MPN: 106849
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 11195473
                                                                                                        # 014
                                                                                                        MPN: 121385
                                                                                                        Catalytic Converters
                                                                                                        Not for SA
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 015
                                                                                                        MPN: 61402400
                                                                                                        THERMOCOUPLE
                                                                                                        for USA
                                                                                                        from £513.43
                                                                                                        from £513.43
                                                                                                        # 015
                                                                                                        MPN: 62691800
                                                                                                        THERMOCOUPLE
                                                                                                        For C7 and C8
                                                                                                        from £277.30
                                                                                                        from £277.30
                                                                                                        This part replaces part number 62347100
                                                                                                        # 016
                                                                                                        MPN: 128010
                                                                                                        WASHER
                                                                                                        from £2.16
                                                                                                        from £2.16
                                                                                                        # 017
                                                                                                        MPN: 114748
                                                                                                        SELF LOCKING NUT
                                                                                                        from £9.02
                                                                                                        from £9.02
                                                                                                        # 018
                                                                                                        MPN: 128330
                                                                                                        PROTECTION PLATE
                                                                                                        from £225.79
                                                                                                        from £225.79
                                                                                                        # 019
                                                                                                        MPN: 146712
                                                                                                        SPACER
                                                                                                        from £1.68
                                                                                                        from £1.68
                                                                                                        This part replaces part number 105924
                                                                                                        # 020
                                                                                                        MPN: 116416
                                                                                                        NUT
                                                                                                        from £9.27
                                                                                                        from £9.27
                                                                                                        # 021
                                                                                                        MPN: 106744
                                                                                                        WASHER
                                                                                                        from £5.34
                                                                                                        from £5.34

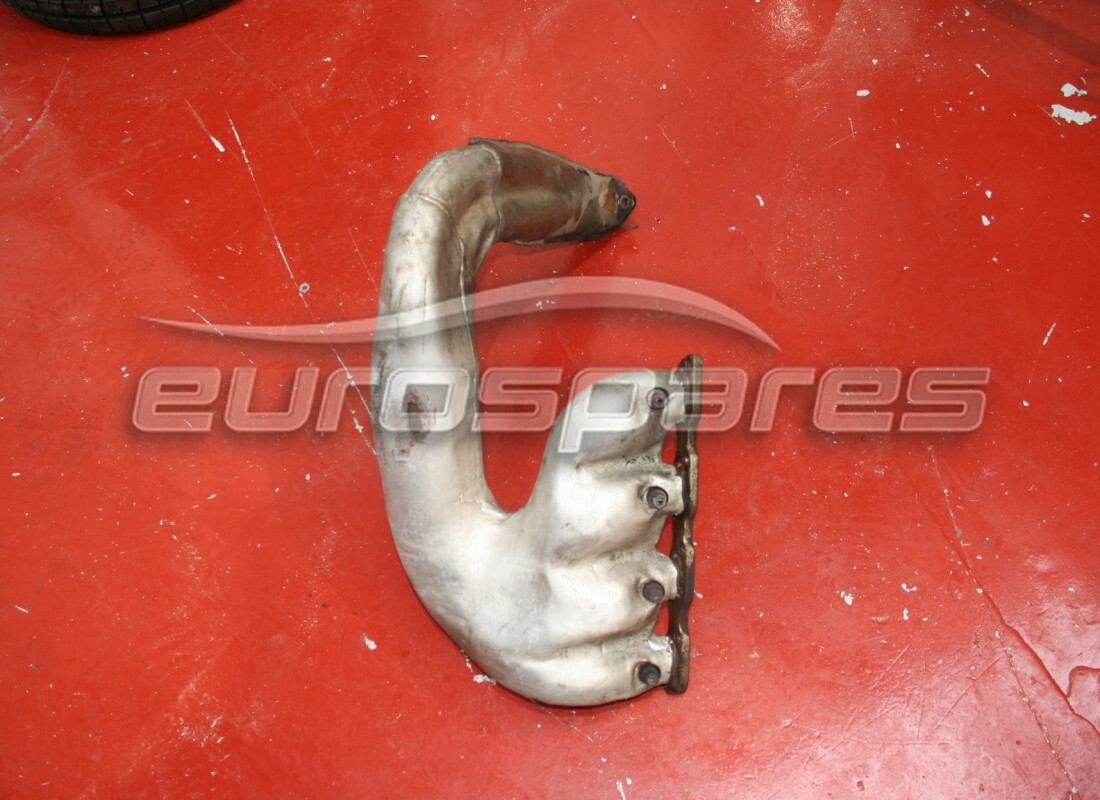

                                                                                                        # 022
                                                                                                        MPN: 118821
                                                                                                        FRONT EXHAUST MAINFOLD
                                                                                                        from £701.86
                                                                                                        from £701.86
                                                                                                        # 023
                                                                                                        MPN: 129003
                                                                                                        REAR EXHAUST MANIFOLD
                                                                                                        from £820.74
                                                                                                        from £820.74
                                                                                                        # 024
                                                                                                        MPN: 128189
                                                                                                        EXTENSION PIPE FROM MAINFOLD TO CONVERTER
                                                                                                        from £617.24
                                                                                                        from £617.24
                                                                                                        # 025
                                                                                                        MPN: 10902221
                                                                                                        SCREW
                                                                                                        from £0.52
                                                                                                        from £0.52
                                                                                                        # 026
                                                                                                        MPN: 146698
                                                                                                        GASKET
                                                                                                        Alternative use :154984
                                                                                                        from £10.17
                                                                                                        from £10.17
                                                                                                        This part replaces part number 103377 which we have in stock - and 1 more. Click to view details
                                                                                                        # 027
                                                                                                        MPN: 154985
                                                                                                        GASKET
                                                                                                        from £11.92
                                                                                                        from £11.92
                                                                                                        This part replaces part number 121426 - and 1 more. Click to view details
                                                                                                        # 028
                                                                                                        MPN: 10298460
                                                                                                        GASKET
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 93353
                                                                                                        # 029
                                                                                                        MPN: 110860
                                                                                                        PLUG
                                                                                                        from £8.68
                                                                                                        from £8.68
                                                                                                        This part replaces part number 11903240
                                                                                                        # 030
                                                                                                        MPN: 118886
                                                                                                        ANALYZING PIPES, FRONT
                                                                                                        from £217.96
                                                                                                        from £217.96
                                                                                                        # 030
                                                                                                        MPN: 136253
                                                                                                        ANALYZING PIPE
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 031
                                                                                                        MPN: 103748
                                                                                                        PLUG
                                                                                                        from £21.30
                                                                                                        from £21.30
                                                                                                        This part replaces part number 20429
                                                                                                        # 032
                                                                                                        MPN: 103749
                                                                                                        GASKET
                                                                                                        from £0.45
                                                                                                        from £0.45
                                                                                                        This part replaces part number 20430 - and 1 more. Click to view details
                                                                                                        # 033
                                                                                                        MPN: 103587
                                                                                                        PLATE
                                                                                                        from £5.85
                                                                                                        from £5.85
                                                                                                        This part replaces part number 92692 - and 1 more. Click to view details
                                                                                                        # 034
                                                                                                        MPN: 115801
                                                                                                        TERMINAL
                                                                                                        Not for C7 and C8
                                                                                                        from £32.64
                                                                                                        from £32.64
                                                                                                        # 034
                                                                                                        MPN: 132577
                                                                                                        TERMINAL
                                                                                                        For C7 and C8
                                                                                                        from £47.68
                                                                                                        from £47.68
                                                                                                        # 035
                                                                                                        MPN: 103549
                                                                                                        RUBBER BUSH
                                                                                                        from £0.70
                                                                                                        from £0.70
                                                                                                        # 036
                                                                                                        MPN: 103550
                                                                                                        BUSH FOR RUBBER
                                                                                                        from £1.94
                                                                                                        from £1.94
                                                                                                        This part replaces part number 4130913
                                                                                                        # 037
                                                                                                        MPN: 10902621
                                                                                                        SCREW FOR PIPES
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 10902611
                                                                                                        # 038
                                                                                                        MPN: 12574211
                                                                                                        SELF LOCKING NUT
                                                                                                        from £0.71
                                                                                                        from £0.71
                                                                                                        # 039
                                                                                                        MPN: 106744
                                                                                                        WASHER
                                                                                                        from £5.48
                                                                                                        from £5.48
                                                                                                        # 040
                                                                                                        MPN: 136252
                                                                                                        BRACKET
                                                                                                        from £283.19
                                                                                                        from £283.19
                                                                                                        # 041
                                                                                                        MPN: 120473
                                                                                                        BRACKET
                                                                                                        from £9.06
                                                                                                        from £9.06
                                                                                                        # 042
                                                                                                        MPN: 123829
                                                                                                        PROTECTION PLATE
                                                                                                        For Cabriolet use no. 122019
                                                                                                        from £160.74
                                                                                                        from £160.74
                                                                                                        # 043
                                                                                                        MPN: 124345
                                                                                                        PROTECTION PLATE
                                                                                                        After exhaustion use no. 131908
                                                                                                        from £335.88
                                                                                                        from £335.88
                                                                                                        # 044
                                                                                                        MPN: 120904
                                                                                                        PROTECTION PLATE
                                                                                                        from £100.07
                                                                                                        from £100.07
                                                                                                        This part replaces part number 120474 which we have in stock - and 1 more. Click to view details
                                                                                                        # 045
                                                                                                        MPN: 10902421
                                                                                                        SCREW
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 046
                                                                                                        MPN: 15896214
                                                                                                        NUT
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 15896211
                                                                                                        # 047
                                                                                                        MPN: 121833
                                                                                                        PROTECTION FOR OXIGEN SENSOR
                                                                                                        Not for C7 - SA
                                                                                                        from £39.97
                                                                                                        from £39.97
                                                                                                        # 048
                                                                                                        MPN: 118999
                                                                                                        BRACKET
                                                                                                        from £8.58
                                                                                                        from £8.58
                                                                                                        # 048
                                                                                                        MPN: 132358
                                                                                                        BRACKET - ONLY FOR SA
                                                                                                        from £28.33
                                                                                                        from £28.33
                                                                                                        # 049
                                                                                                        MPN: 111743
                                                                                                        SPRING, FIXING FLANGES
                                                                                                        from £6.91
                                                                                                        from £6.91
                                                                                                        # 050
                                                                                                        MPN: 16044534
                                                                                                        SCREW
                                                                                                        from £0.80
                                                                                                        from £0.80
                                                                                                        # 051
                                                                                                        MPN: 114749
                                                                                                        SPACER FOR SPRING
                                                                                                        from £1.24
                                                                                                        from £1.24
                                                                                                        # 052
                                                                                                        MPN: 121780
                                                                                                        ANALYZING PIPES, REAR
                                                                                                        from £454.10
                                                                                                        from £454.10
                                                                                                        # 053
                                                                                                        MPN: 12643701
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                        # 054
                                                                                                        MPN: 106850
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                        # 055
                                                                                                        MPN: 15971324
                                                                                                        SCREW
                                                                                                        from £0.82
                                                                                                        from £0.82
                                                                                                        This part replaces part number 123198 - and 1 more. Click to view details
                                                                                                        # 056
                                                                                                        MPN: 121677
                                                                                                        NUT
                                                                                                        from £3.82
                                                                                                        from £3.82
                                                                                                        # 057
                                                                                                        MPN: 121678
                                                                                                        WASHER
                                                                                                        from £6.73
                                                                                                        from £6.73
                                                                                                        # 058
                                                                                                        MPN: 121674
                                                                                                        SPRING
                                                                                                        from £12.27
                                                                                                        from £12.27
                                                                                                        # 059
                                                                                                        MPN: 121675
                                                                                                        SPACE
                                                                                                        from £23.19
                                                                                                        from £23.19
                                                                                                        # 060
                                                                                                        MPN: 10300811
                                                                                                        PLUG
                                                                                                        for C7
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 060
                                                                                                        MPN: 121515
                                                                                                        OXIGEN SENSOR
                                                                                                        For US and C8
                                                                                                        from £190.51
                                                                                                        from £190.51
                                                                                                        This part replaces part number 125881
                                                                                                        # 061
                                                                                                        MPN: 126534
                                                                                                        PIPE TO EXTENSION PIPE FROM SILENCER
                                                                                                        For SA
                                                                                                        from £616.26
                                                                                                        from £616.26
