ferrari mondial 3.2 qv (1987) flywheel and clutch housing spacer parts diagram

004 - flywheel and clutch housing spacer

Ferrari Mondial 3.2 QV (1987) Flywheel and Clutch HoUSing Spacer Parts Diagram

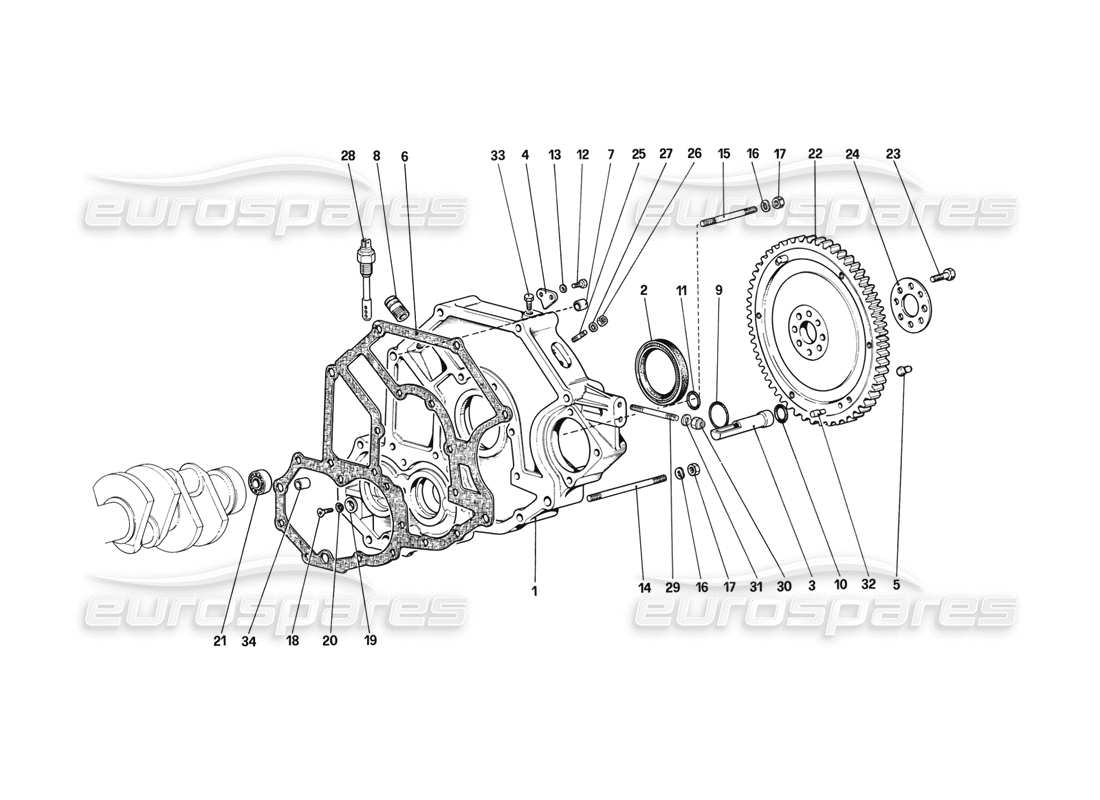

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 127452
                                                                  INTERMEDIATE BODY
                                                                  With assembly no. 130526
                                                                  Supersession
                                                                  Supersession
                                                                  # 001
                                                                  MPN: 130526

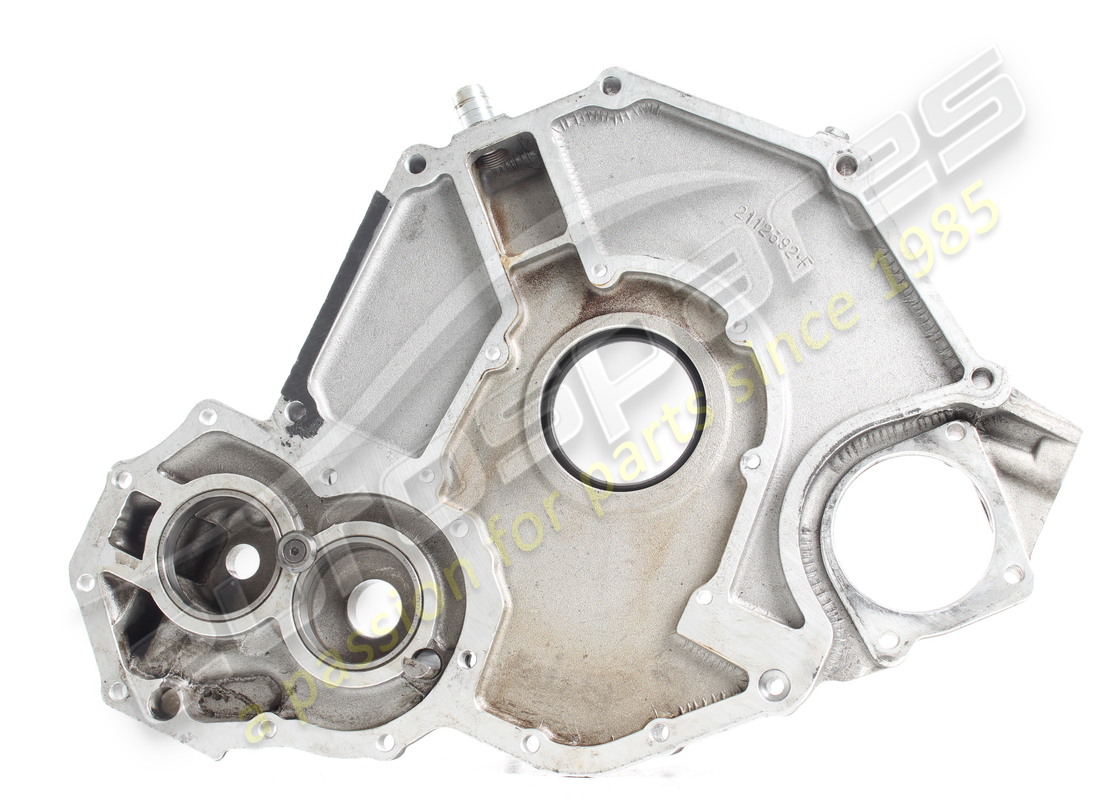

                                                                  (B) INTERMEDIATE BODY COMPLETE
                                                                  from £1,134.36
                                                                  from £1,134.36
                                                                  This part replaces part number 127452
                                                                  # 001
                                                                  MPN: 133816
                                                                  INTERMEDIATE BODY
                                                                  With assembly no. 134497
                                                                  Supersession
                                                                  Supersession
                                                                  # 001
                                                                  MPN: 134497
                                                                  (A) INTEMEDIATE BODY COMPLETE
                                                                  from £733.01
                                                                  from £733.01
                                                                  This part replaces part number 133816 - and 1 more. Click to view details
                                                                  # 002
                                                                  MPN: 200323
                                                                  REAR MAIN OIL SEAL
                                                                  from £20.59
                                                                  from £20.59
                                                                  This part replaces part number 163989 - and 1 more. Click to view details
                                                                  # 003
                                                                  MPN: 104035
                                                                  OIL TRANSFER TUBE
                                                                  from £33.04
                                                                  from £33.04
                                                                  # 004
                                                                  MPN: 114603
                                                                  PLATE
                                                                  from £5.92
                                                                  from £5.92
                                                                  This part replaces part number 104034 - and 1 more. Click to view details
                                                                  # 005
                                                                  MPN: 101535
                                                                  DOWEL
                                                                  from £22.69
                                                                  from £22.69
                                                                  This part replaces part number 94892 - and 1 more. Click to view details
                                                                  # 006
                                                                  MPN: 147677

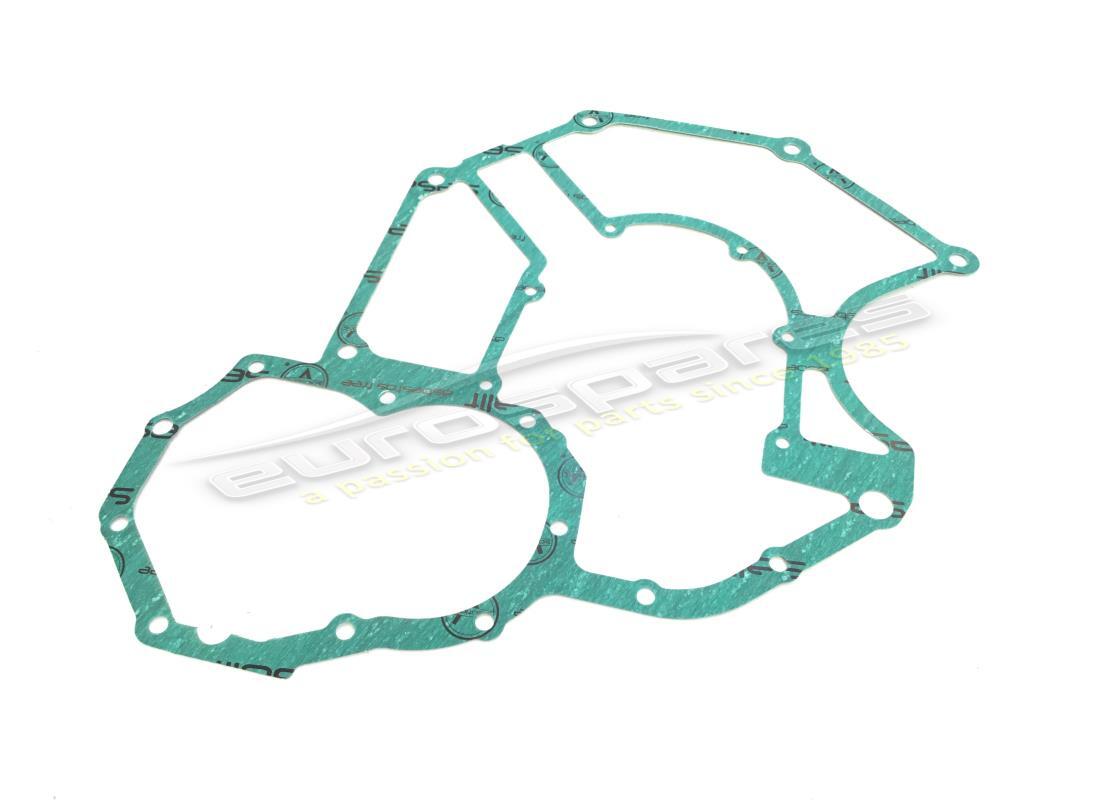

                                                                  GASKET
                                                                  from £51.79
                                                                  from £51.79
                                                                  This part replaces part number 104202
                                                                  # 007
                                                                  MPN: 102692
                                                                  DOWEL
                                                                  from £4.94
                                                                  from £4.94
                                                                  # 008
                                                                  MPN: 102705
                                                                  UNION
                                                                  from £79.26
                                                                  from £79.26
                                                                  # 009
                                                                  MPN: 114947

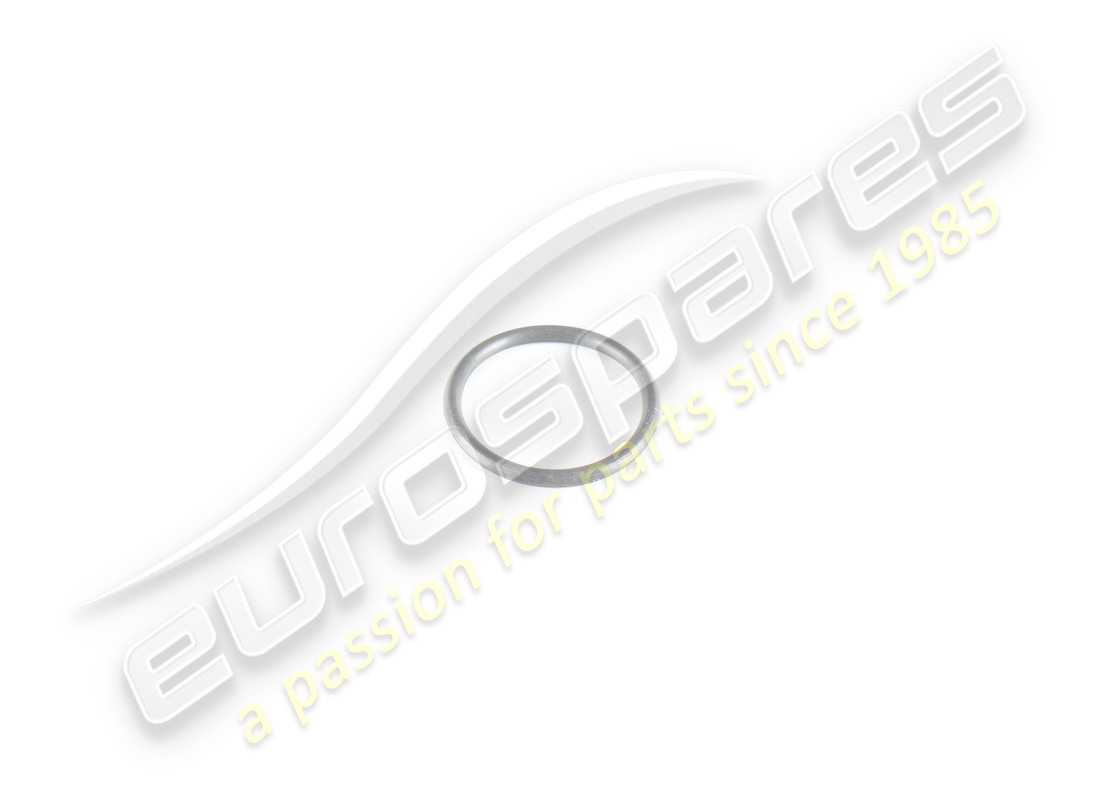

                                                                  SEALING RING
                                                                  from £2.16
                                                                  from £2.16
                                                                  # 010
                                                                  MPN: 103775

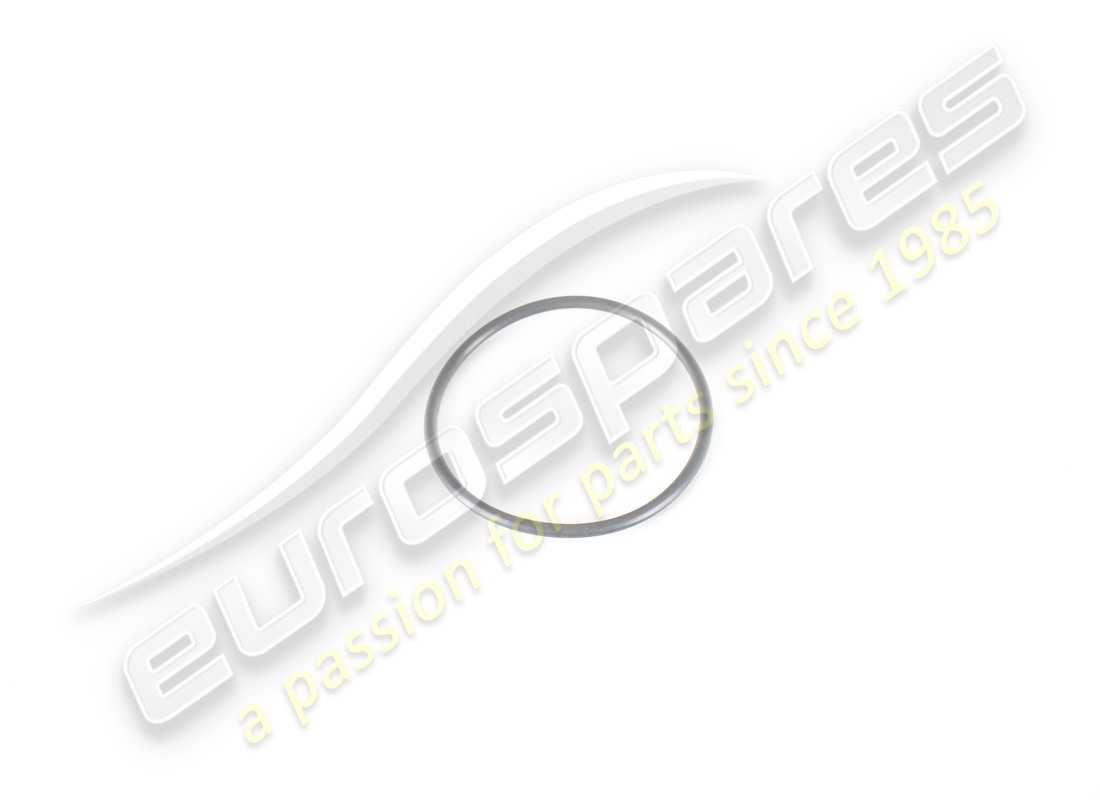

                                                                  SEALING RING
                                                                  from £1.63
                                                                  from £1.63
                                                                  # 011
                                                                  MPN: 104214
                                                                  SEALING RING
                                                                  from £2.35
                                                                  from £2.35
                                                                  # 012
                                                                  MPN: 10977621
                                                                  SCREW
                                                                  from £1.07
                                                                  from £1.07
                                                                  # 013
                                                                  MPN: 106849
                                                                  SPING WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 11195473
                                                                  # 014
                                                                  MPN: 104217
                                                                  LONG STUD
                                                                  from £15.39
                                                                  from £15.39
                                                                  # 015
                                                                  MPN: 13952421
                                                                  SHORT STUD
                                                                  from £0.90
                                                                  from £0.90
                                                                  # 016
                                                                  MPN: 11194071
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 017
                                                                  MPN: 16100824
                                                                  NUT
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 16100814 - and 1 more. Click to view details
                                                                  # 018
                                                                  MPN: 111213
                                                                  SCREW
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 108040
                                                                  # 019
                                                                  MPN: 108039
                                                                  WASHER
                                                                  from £2.99
                                                                  from £2.99
                                                                  # 020
                                                                  MPN: 108041
                                                                  WASHER
                                                                  from £0.49
                                                                  from £0.49
                                                                  # 021
                                                                  MPN: 103877
                                                                  PILOT BEARING
                                                                  from £15.20
                                                                  from £15.20
                                                                  This part replaces part number 24940440
                                                                  # 022
                                                                  MPN: 124751
                                                                  ENGINE FLYWHELL
                                                                  Not for US and CH
                                                                  from £1,321.65
                                                                  from £1,321.65
                                                                  # 022
                                                                  MPN: 127506
                                                                  ENGINE FLYWHELL
                                                                  For US and C8
                                                                  from £1,053.66
                                                                  from £1,053.66
                                                                  # 022
                                                                  MPN: 129648
                                                                  ENGINE FLYWHELL
                                                                  For C6 and C7
                                                                  # 023
                                                                  MPN: 201755
                                                                  BOLT
                                                                  from £1.16
                                                                  from £1.16
                                                                  This part replaces part number 103875
                                                                  # 024
                                                                  MPN: 103876
                                                                  WASHER
                                                                  from £2.75
                                                                  from £2.75
                                                                  This part replaces part number 12833 - and 1 more. Click to view details
                                                                  # 025
                                                                  MPN: 13539024
                                                                  STUD FIXING SENSOR
                                                                  from £0.75
                                                                  from £0.75
                                                                  This part replaces part number 13539021
                                                                  # 026
                                                                  MPN: 15896411
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 15896401
                                                                  # 027
                                                                  MPN: 106849
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 11195473
                                                                  # 028
                                                                  MPN: 116053
                                                                  (B) SENSOR FOR GEARBOX OIL LEVEL
                                                                  from £28.24
                                                                  from £28.24
                                                                  # 029
                                                                  MPN: 13544324
                                                                  STUD
                                                                  from £8.37
                                                                  from £8.37
                                                                  This part replaces part number 13544321
                                                                  # 030
                                                                  MPN: 104030
                                                                  SELF LOCKING NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 16104125
                                                                  # 031
                                                                  MPN: 12601371
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 032
                                                                  MPN: 114769
                                                                  DOWEL
                                                                  from £14.36
                                                                  from £14.36
                                                                  # 033
                                                                  MPN: 13825821
                                                                  SCREW
                                                                  Supersession
                                                                  Supersession
                                                                  # 034
                                                                  MPN: 102692
                                                                  DOWEL - FROM CAR NO. 71799
                                                                  from £4.94
                                                                  from £4.94
