ferrari mondial 3.0 qv (1984) cylinder head (right) parts diagram

005 - cylinder head (right)

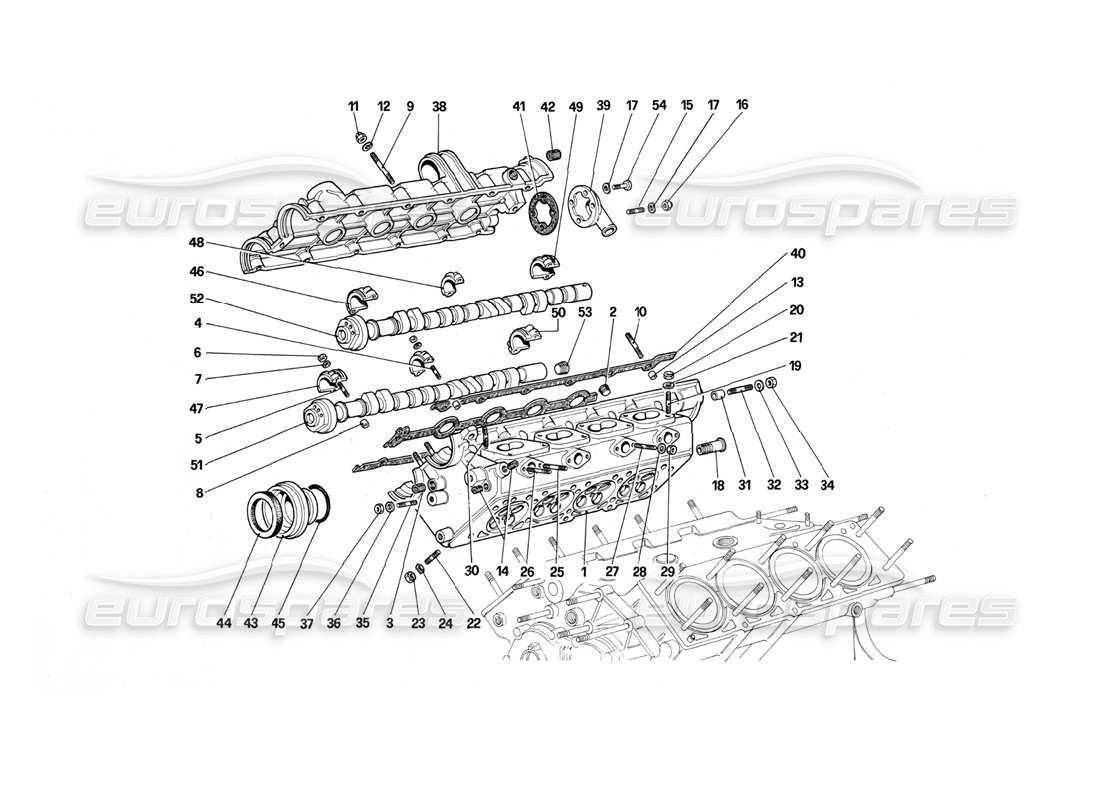

Ferrari Mondial 3.0 QV (1984) Cylinder Head (Right) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 117749
                                                                                      right cylinder head
                                                                                      With assembly no. 111917
                                                                                      from £7,091.60
                                                                                      from £7,091.60
                                                                                      # 002
                                                                                      MPN: 10269750
                                                                                      PLUG
                                                                                      from £0.86
                                                                                      from £0.86
                                                                                      This part replaces part number 95184
                                                                                      # 003
                                                                                      MPN: 13526070
                                                                                      HELI -COIL
                                                                                      from £1.92
                                                                                      from £1.92
                                                                                      This part replaces part number 104657
                                                                                      # 004
                                                                                      MPN: 102735
                                                                                      STUD FOR INTERMEDIATE CAPS
                                                                                      from £11.07
                                                                                      from £11.07
                                                                                      This part replaces part number 4146561
                                                                                      # 005
                                                                                      MPN: 102754
                                                                                      STUD FOR OUTER CAPS
                                                                                      from £5.00
                                                                                      from £5.00
                                                                                      # 006
                                                                                      MPN: 15896211
                                                                                      NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 15896210 which we have in stock
                                                                                      # 007
                                                                                      MPN: 11197773
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 008
                                                                                      MPN: 102725
                                                                                      DOWEL
                                                                                      from £0.56
                                                                                      from £0.56
                                                                                      # 009
                                                                                      MPN: 13541621
                                                                                      STUD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 010
                                                                                      MPN: 13541721
                                                                                      STUD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 011
                                                                                      MPN: 100044
                                                                                      SELF LOCKING NUT
                                                                                      from £0.29
                                                                                      from £0.29
                                                                                      This part replaces part number 151230 - and 1 more. Click to view details
                                                                                      # 012
                                                                                      MPN: 11197774
                                                                                      WASHER
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                      # 013
                                                                                      MPN: 102725
                                                                                      DOWEL
                                                                                      from £0.64
                                                                                      from £0.64
                                                                                      # 014
                                                                                      MPN: 14326150
                                                                                      PLUG
                                                                                      from £0.50
                                                                                      from £0.50
                                                                                      This part replaces part number 12326150
                                                                                      # 015
                                                                                      MPN: 11500521
                                                                                      STUD
                                                                                      from £1.85
                                                                                      from £1.85
                                                                                      # 017
                                                                                      MPN: 12601279
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                      # 018
                                                                                      MPN: 106227
                                                                                      NIPPLE FOR HEATER
                                                                                      from £4.06
                                                                                      from £4.06
                                                                                      # 019
                                                                                      MPN: 13543324
                                                                                      STUD
                                                                                      from £0.81
                                                                                      from £0.81
                                                                                      This part replaces part number 13543321
                                                                                      # 020
                                                                                      MPN: 16100824
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                      # 021
                                                                                      MPN: 11198074
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                      # 022
                                                                                      MPN: 12354524
                                                                                      STUD SECURING EXHAUST MANIFOLD
                                                                                      from £16.49
                                                                                      from £16.49
                                                                                      This part replaces part number 12354521
                                                                                      # 023
                                                                                      MPN: 114748
                                                                                      NUT
                                                                                      from £8.76
                                                                                      from £8.76
                                                                                      # 024
                                                                                      MPN: 127496
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                      # 025
                                                                                      MPN: 13541621
                                                                                      SHORT STUD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 026
                                                                                      MPN: 13541721
                                                                                      LONG STUD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 027
                                                                                      MPN: 13541821
                                                                                      STUD FOR WATER MANIFOLD (CYLINDER NO. 3)
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 028
                                                                                      MPN: 11197773
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 029
                                                                                      MPN: 15896211
                                                                                      NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 15896210 which we have in stock
                                                                                      # 030
                                                                                      MPN: 13543521
                                                                                      STUD FOR FIXING SUCTION MANIFOLD (FRONT PART)
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 031
                                                                                      MPN: 102725
                                                                                      DOWEL
                                                                                      from £0.64
                                                                                      from £0.64
                                                                                      # 032
                                                                                      MPN: 11500521
                                                                                      STUD FOR FIXING CALOTTE SUPPORT
                                                                                      from £1.85
                                                                                      from £1.85
                                                                                      # 033

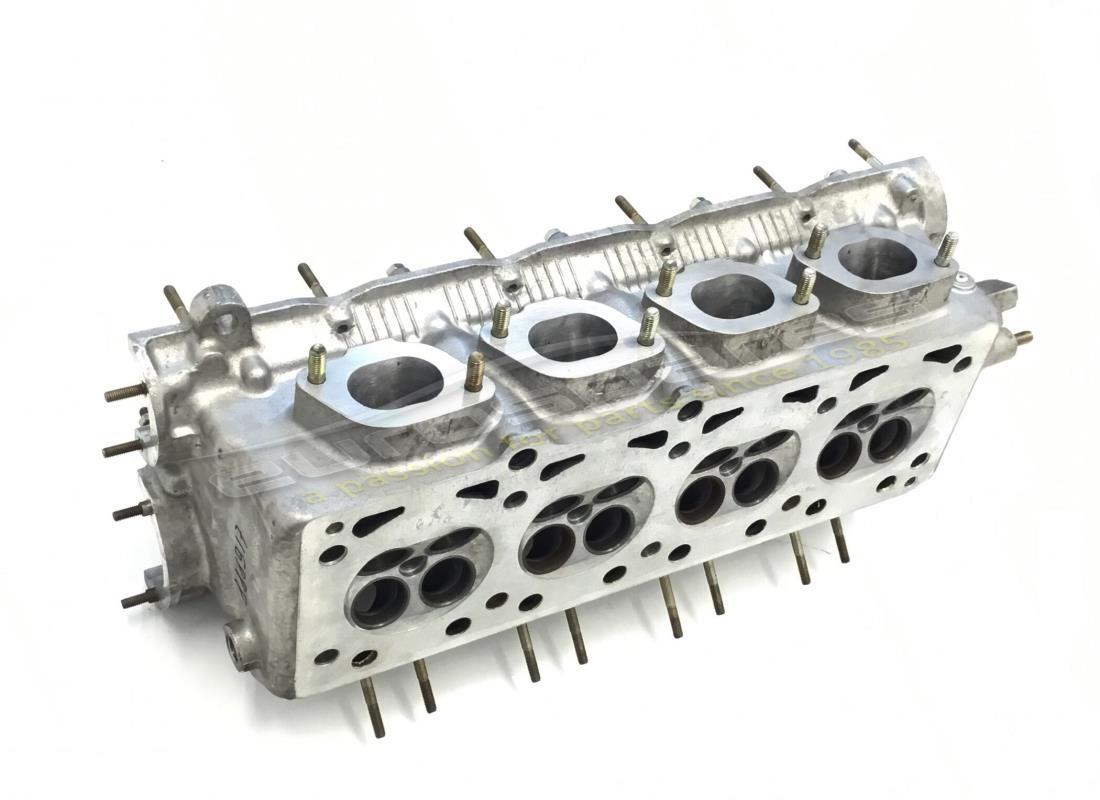

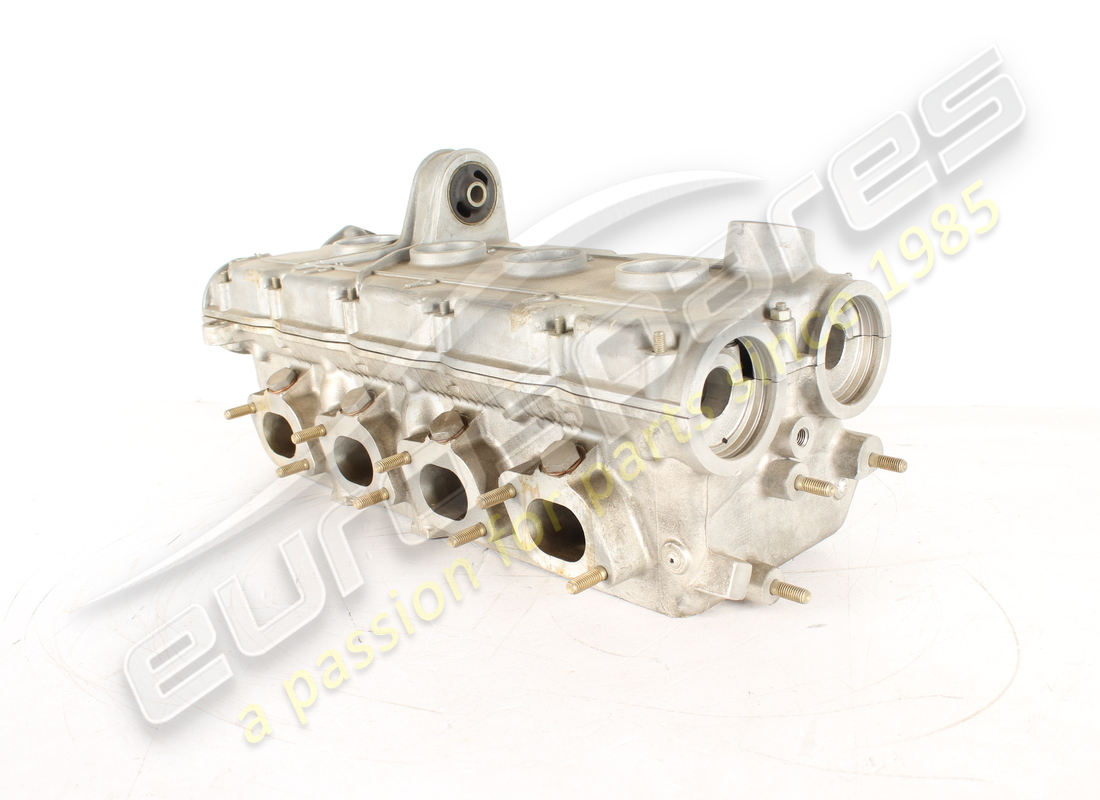

                                                                                      MPN: 111917
                                                                                      RIGHT CYLINDER HEAD, COMPLETE
                                                                                      from £3,760.31
                                                                                      from £3,760.31
                                                                                      This part replaces part number 117749 which we have in stock
                                                                                      # 033
                                                                                      MPN: 11197773
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 034
                                                                                      MPN: 15896211
                                                                                      NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 15896210 which we have in stock
                                                                                      # 035
                                                                                      MPN: 13543324
                                                                                      STUD
                                                                                      from £0.81
                                                                                      from £0.81
                                                                                      This part replaces part number 13543321
                                                                                      # 036
                                                                                      MPN: 12601371
                                                                                      WASHER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 037
                                                                                      MPN: 111564
                                                                                      HEAD COVER, COMPLETE
                                                                                      With complete cylinder
                                                                                      # 037
                                                                                      MPN: 16104411
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 038
                                                                                      MPN: 117220
                                                                                      RIGHT HEAD COVER
                                                                                      With complete cover
                                                                                      # 039
                                                                                      MPN: 10-38-08
                                                                                      END COVER WITH BOLW-BY INLET
                                                                                      from £143.06
                                                                                      from £143.06
                                                                                      # 040
                                                                                      MPN: 150078
                                                                                      RH GASKET
                                                                                      Alternative use - FCCG001 Cam cover set
                                                                                      from £28.48
                                                                                      from £28.48
                                                                                      This part replaces part number 117263 - and 1 more. Click to view details
                                                                                      # 040
                                                                                      MPN: FCCG001/A
                                                                                      Cam Cover Gasket Set & Seal kit
                                                                                      Includes FCCG001 & seals - x4 163987 / x4 117275.
                                                                                      # 041
                                                                                      MPN: 151342
                                                                                      GASKET
                                                                                      On exhaustion use no. 119067
                                                                                      from £2.20
                                                                                      from £2.20
                                                                                      This part replaces part number 103809 - and 5 more. Click to view details
                                                                                      # 042
                                                                                      MPN: 13525470
                                                                                      HELI - COIL
                                                                                      from £0.50
                                                                                      from £0.50
                                                                                      This part replaces part number 107333
                                                                                      # 043
                                                                                      MPN: 144973
                                                                                      FRONT COVER
                                                                                      from £370.72
                                                                                      from £370.72
                                                                                      This part replaces part number 117257 - and 2 more. Click to view details
                                                                                      # 044
                                                                                      MPN: 163987
                                                                                      SEALING RING
                                                                                      from £9.95
                                                                                      from £9.95
                                                                                      This part replaces part number 136526
                                                                                      # 045
                                                                                      MPN: 117275
                                                                                      SEALING RING
                                                                                      from £2.93
                                                                                      from £2.93
                                                                                      # 046
                                                                                      MPN: 117039
                                                                                      FRONT CAP INLET SIDE
                                                                                      With complete cylinder head
                                                                                      # 047
                                                                                      MPN: 117040
                                                                                      FRONT CAP EXHAUSTION SIDE
                                                                                      With complete cylinder head
                                                                                      # 048
                                                                                      MPN: 117043
                                                                                      INTERMEDIATE CAP
                                                                                      With complete cylinder head
                                                                                      # 049
                                                                                      MPN: 117044
                                                                                      REAR CAP INLET SIDE
                                                                                      With complete cylinder head
                                                                                      from £70.25
                                                                                      from £70.25
                                                                                      # 050
                                                                                      MPN: 117045
                                                                                      REAR CAP EXHAUST SIDE
                                                                                      With complete cylinder head
                                                                                      from £109.12
                                                                                      from £109.12
                                                                                      # 050

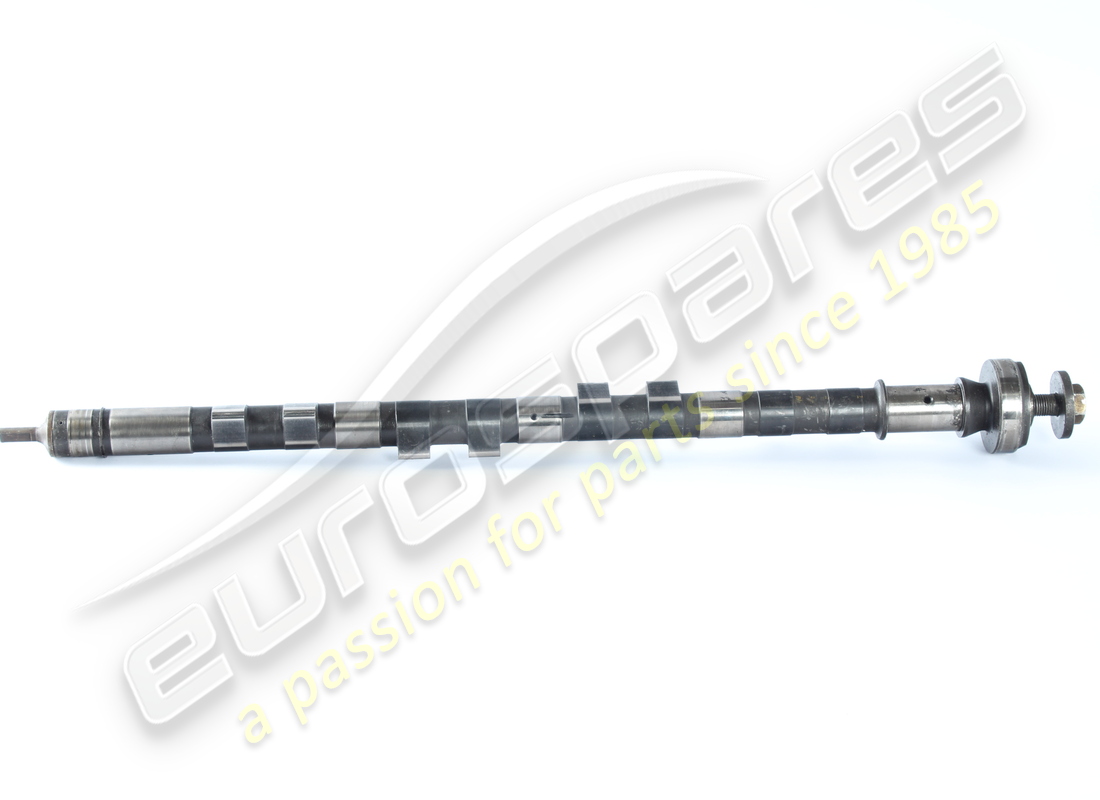

                                                                                      MPN: 117235
                                                                                      RIGHT EXHAUST CAMSHAFT COMPLETE
                                                                                      from £1,245.46
                                                                                      from £1,245.46
                                                                                      This part replaces part number 117125
                                                                                      # 051
                                                                                      MPN: 117125
                                                                                      RLIGHT EXHAUST CAMSHAFT
                                                                                      With assembly no. 117235
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 051
                                                                                      MPN: 117933
                                                                                      RIGHT INTAKE CAMSHAFT COMPLETE
                                                                                      from £1,173.86
                                                                                      from £1,173.86
                                                                                      This part replaces part number 117932 which we have in stock
                                                                                      # 052
                                                                                      MPN: 117932
                                                                                      RIGHT INTAKE CAMSHAFT
                                                                                      With assembly no. 117933
                                                                                      from £519.75
                                                                                      from £519.75
                                                                                      # 053
                                                                                      MPN: 10269750
                                                                                      PLUG
                                                                                      from £0.91
                                                                                      from £0.91
                                                                                      This part replaces part number 95184
                                                                                      # 054
                                                                                      MPN: 10902221
                                                                                      SCREW
                                                                                      from £0.57
                                                                                      from £0.57
