Ferrari FF (RHD) Rear Suspension - Shock Absorber and Brake Disc Parts Diagram

0038 - Rear Suspension - Shock Absorber and Brake Disc

Ferrari FF (RHD) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC Parts Diagram

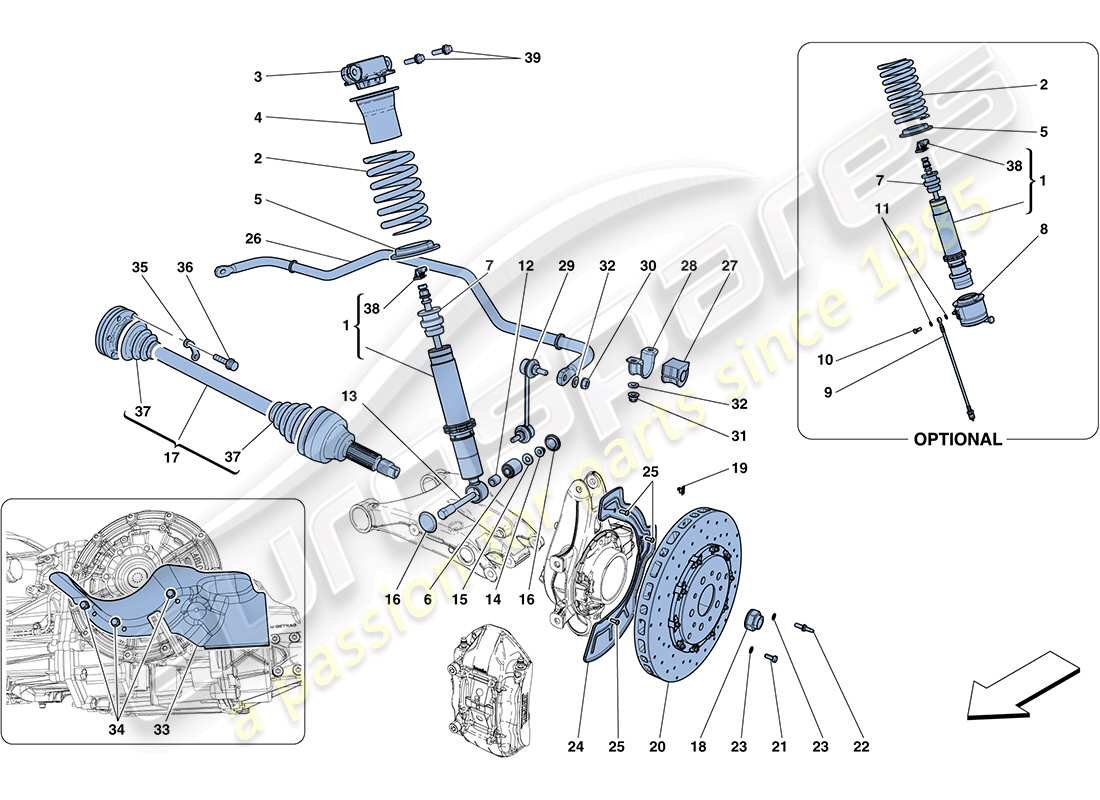

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 264734
                                                      REAR SHOCK ABSORBER
                                                      from £901.82
                                                      from £901.82
                                                      # 001
                                                      MPN: 264736
                                                      REAR SHOCK ABSORBER
                                                      -Version with lifter-
                                                      from £1,594.92
                                                      from £1,594.92
                                                      # 002
                                                      MPN: 257757
                                                      SPRING
                                                      from £66.02
                                                      from £66.02
                                                      # 002
                                                      MPN: 269637
                                                      SPRING
                                                      -Version with lifter-
                                                      from £42.45
                                                      from £42.45
                                                      # 003
                                                      MPN: 274308
                                                      STOP CAP
                                                      from £69.11
                                                      from £69.11
                                                      # 006
                                                      MPN: 157630
                                                      BALL JOINT
                                                      from £48.50
                                                      from £48.50
                                                      This part replaces part number 159262
                                                      # 007
                                                      MPN: 267936
                                                      ENDSTOP BUSH
                                                      from £12.00
                                                      from £12.00
                                                      This part replaces part number 246490 which we have in stock - and 5 more. Click to view details
                                                      # 008
                                                      MPN: 262384
                                                      COMPL. ACTUATOR
                                                      -Version with lifter-
                                                      from £452.12
                                                      from £452.12
                                                      # 009
                                                      MPN: 260408
                                                      RUBBER PIPE
                                                      -Version with lifter-
                                                      from £17.89
                                                      from £17.89
                                                      # 010
                                                      MPN: 261587
                                                      CONNECTION FOR UNION
                                                      -Version with lifter-
                                                      from £16.86
                                                      from £16.86
                                                      # 011
                                                      MPN: 259638
                                                      GASKET
                                                      -Version with lifter-
                                                      from £7.84
                                                      from £7.84
                                                      # 012
                                                      MPN: 237821
                                                      BUSHING
                                                      from £2.56
                                                      from £2.56
                                                      # 013
                                                      MPN: 246962
                                                      SPECIAL SCREW
                                                      from £16.10
                                                      from £16.10
                                                      # 014
                                                      MPN: 255271
                                                      NUT
                                                      from £0.39
                                                      from £0.39
                                                      This part replaces part number 14058721 - and 1 more. Click to view details
                                                      # 015
                                                      MPN: 12646921
                                                      WASHER
                                                      from £0.26
                                                      from £0.26
                                                      This part replaces part number 12646901 - and 1 more. Click to view details
                                                      # 016
                                                      MPN: 14507987
                                                      CAP
                                                      from £0.89
                                                      from £0.89
                                                      # 017
                                                      MPN: 274635
                                                      AXLE SHAFT
                                                      from £368.31
                                                      from £368.31
                                                      # 018
                                                      MPN: 203780
                                                      NUT
                                                      from £11.51
                                                      from £11.51
                                                      This part replaces part number 187814
                                                      # 019
                                                      MPN: 204781
                                                      CLIP
                                                      -Fastening wear indicator cable-
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12486580 - and 1 more. Click to view details
                                                      # 020
                                                      MPN: 274335
                                                      BRAKE DISC
                                                      -Applicable until depletion-
                                                      Supersession
                                                      Supersession
                                                      # 020
                                                      MPN: 296894
                                                      BRAKE DISC
                                                      -Applicable after depletion of 274335-
                                                      from £2,706.50
                                                      from £2,706.50
                                                      This part replaces part number 274335
                                                      # 021
                                                      MPN: 228131
                                                      SCREW
                                                      -M8 X 20-
                                                      from £0.47
                                                      from £0.47
                                                      # 022
                                                      MPN: 104370
                                                      SCREW
                                                      from £5.03
                                                      from £5.03
                                                      This part replaces part number 139981
                                                      # 023
                                                      MPN: 228132
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      # 024
                                                      MPN: 257423
                                                      LH REAR DISC SHIELD
                                                      from £18.01
                                                      from £18.01
                                                      This part replaces part number 240968 which we have in stock - and 4 more. Click to view details
                                                      # 024
                                                      MPN: 257424
                                                      RH REAR DISC SHIELD
                                                      from £18.01
                                                      from £18.01
                                                      This part replaces part number 240969 which we have in stock - and 3 more. Click to view details
                                                      # 025
                                                      MPN: 250657
                                                      SCREW
                                                      -M6 X 14-
                                                      from £4.45
                                                      from £4.45
                                                      # 026
                                                      MPN: 262790
                                                      STABILISER BAR
                                                      from £121.02
                                                      from £121.02
                                                      # 027
                                                      MPN: 236242
                                                      PLUG
                                                      from £16.86
                                                      from £16.86
                                                      # 028
                                                      MPN: 244778
                                                      RETAINER BRACKET
                                                      from £6.71
                                                      from £6.71
                                                      # 029
                                                      MPN: 242391
                                                      SPHERICAL TIE-ROD
                                                      -On lower RH arm-
                                                      from £35.67
                                                      from £35.67
                                                      # 029
                                                      MPN: 242392
                                                      SPHERICAL TIE-ROD
                                                      -On lower LH arm-
                                                      from £35.72
                                                      from £35.72
                                                      # 030
                                                      MPN: 12164714
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      # 031
                                                      MPN: 12578321
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      # 032
                                                      MPN: 12601474
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                      # 033
                                                      MPN: 248707
                                                      LH AXLE SHAFT HEAT SHIELD
                                                      from £21.54
                                                      from £21.54
                                                      # 033
                                                      MPN: 259461
                                                      RH AXLE SHAFT HEAT SHIELD
                                                      from £40.76
                                                      from £40.76
                                                      # 034
                                                      MPN: 16296924
                                                      SCREW
                                                      -M6 X 14-
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 289834
                                                      # 035
                                                      MPN: 220325
                                                      SHIM PLATE
                                                      from £1.94
                                                      from £1.94
                                                      # 036
                                                      MPN: 237590
                                                      SCREW
                                                      from £2.39
                                                      from £2.39
                                                      # 037
                                                      MPN: 70006023
                                                      GAITER REPLACEMENT KIT
                                                      -Wheel/gearbox side-
                                                      from £81.03
                                                      from £81.03
                                                      # 038
                                                      MPN: 234671
                                                      UPPER CONNECTOR
                                                      from £42.15
                                                      from £42.15
                                                      This part replaces part number 245841
                                                      # 039
                                                      MPN: 248790
                                                      SCREW
                                                      from £2.17
                                                      from £2.17
