Ferrari F50 Doors - Hinges and Opening Control Parts Diagram

112 - Doors - Hinges and Opening Control

Ferrari F50 Doors - Hinges and Opening Control Parts Diagram

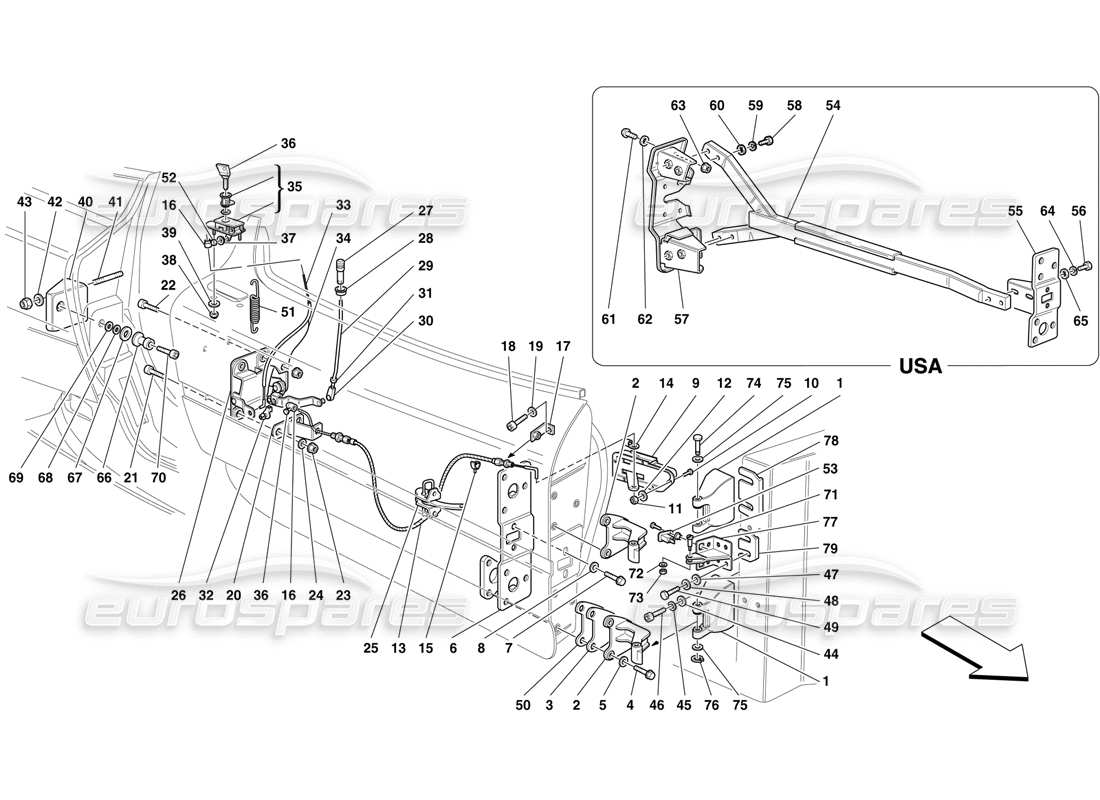

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                      #
                                                                                                                                      Part number
                                                                                                                                      Description
                                                                                                                                      Price
                                                                                                                                      # 001
                                                                                                                                      MPN: 63532900
                                                                                                                                      FIXED HINGE
                                                                                                                                      from £106.49
                                                                                                                                      from £106.49
                                                                                                                                      # 002
                                                                                                                                      MPN: 63533100
                                                                                                                                      MOBILE HINGE
                                                                                                                                      from £84.17
                                                                                                                                      from £84.17
                                                                                                                                      # 003
                                                                                                                                      MPN: 64151100
                                                                                                                                      THICKNESS
                                                                                                                                      from £48.63
                                                                                                                                      from £48.63

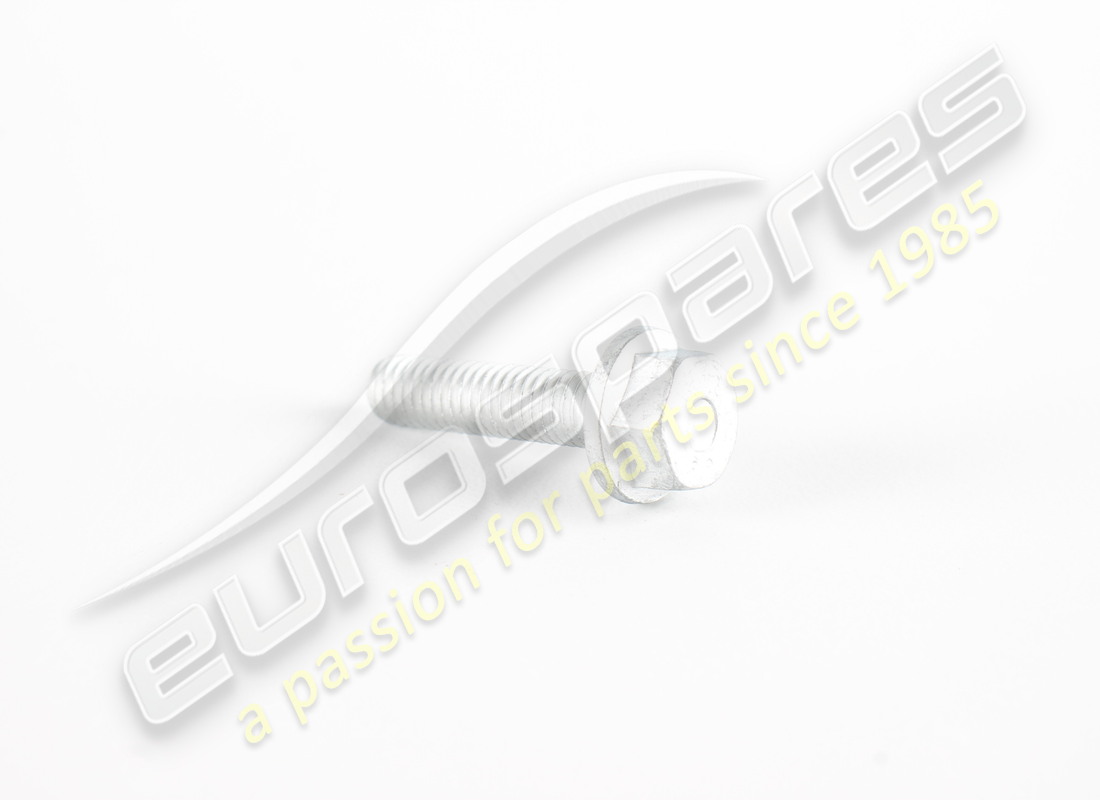

                                                                                                                                      # 004
                                                                                                                                      MPN: 16286224
                                                                                                                                      SCREW
                                                                                                                                      - Not as spare part now - Replaced by 16286324
                                                                                                                                      from £1.57
                                                                                                                                      from £1.57
                                                                                                                                      # 004
                                                                                                                                      MPN: 16286324
                                                                                                                                      SCREW
                                                                                                                                      from £0.50
                                                                                                                                      from £0.50
                                                                                                                                      This part replaces part number 16286321
                                                                                                                                      # 005
                                                                                                                                      MPN: 12644424
                                                                                                                                      WASHER
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                                                      # 006
                                                                                                                                      MPN: 64198100
                                                                                                                                      REINFORCEMENT RH PLATE
                                                                                                                                      - Not for USA
                                                                                                                                      from £202.17
                                                                                                                                      from £202.17
                                                                                                                                      # 006
                                                                                                                                      MPN: 64198200
                                                                                                                                      REINFORCEMENT LH PLATE
                                                                                                                                      - Not for USA
                                                                                                                                      from £202.17
                                                                                                                                      from £202.17
                                                                                                                                      # 007
                                                                                                                                      MPN: 16286224
                                                                                                                                      SCREW
                                                                                                                                      from £1.57
                                                                                                                                      from £1.57
                                                                                                                                      # 008
                                                                                                                                      MPN: 12644424
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                                                      # 009
                                                                                                                                      MPN: 63530800
                                                                                                                                      RH INNER HANDLE FOR DOOR OPENING
                                                                                                                                      from £96.39
                                                                                                                                      from £96.39
                                                                                                                                      # 009
                                                                                                                                      MPN: 63530900
                                                                                                                                      LH INNER HANDLE FOR DOOR OPENING
                                                                                                                                      from £96.39
                                                                                                                                      from £96.39
                                                                                                                                      # 010
                                                                                                                                      MPN: 13272270
                                                                                                                                      SCREW
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 011
                                                                                                                                      MPN: 62790300
                                                                                                                                      NUT
                                                                                                                                      from £0.51
                                                                                                                                      from £0.51
                                                                                                                                      This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                                                                      # 012
                                                                                                                                      MPN: 12601074
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 12601070 which we have in stock
                                                                                                                                      # 013
                                                                                                                                      MPN: 64153000
                                                                                                                                      HANDLE BOWDEN CABLE
                                                                                                                                      from £13.73
                                                                                                                                      from £13.73
                                                                                                                                      # 014
                                                                                                                                      MPN: 63291200
                                                                                                                                      CLIP
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      # 015
                                                                                                                                      MPN: 14573480
                                                                                                                                      CLIP
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 016
                                                                                                                                      MPN: 62780800
                                                                                                                                      CONNECTION
                                                                                                                                      from £0.54
                                                                                                                                      from £0.54
                                                                                                                                      # 017
                                                                                                                                      MPN: 64892000
                                                                                                                                      BRACKET
                                                                                                                                      from £19.31
                                                                                                                                      from £19.31
                                                                                                                                      # 018
                                                                                                                                      MPN: 169611
                                                                                                                                      SCREW
                                                                                                                                      from £0.71
                                                                                                                                      from £0.71
                                                                                                                                      This part replaces part number 64047400
                                                                                                                                      # 018
                                                                                                                                      MPN: 64047400
                                                                                                                                      SCREW
                                                                                                                                      - Not as spare part now - Replaced by 169611
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 019
                                                                                                                                      MPN: 12638178
                                                                                                                                      WASHER
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                                      # 020
                                                                                                                                      MPN: 64619000
                                                                                                                                      LH BRACKET
                                                                                                                                      from £32.60
                                                                                                                                      from £32.60
                                                                                                                                      # 020
                                                                                                                                      MPN: 64638400
                                                                                                                                      RH BRACKET
                                                                                                                                      from £32.60
                                                                                                                                      from £32.60
                                                                                                                                      # 021
                                                                                                                                      MPN: 64684700
                                                                                                                                      SCREW
                                                                                                                                      from £1.01
                                                                                                                                      from £1.01
                                                                                                                                      # 022
                                                                                                                                      MPN: 64727900
                                                                                                                                      SCREW
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 023
                                                                                                                                      MPN: 102741
                                                                                                                                      NUT
                                                                                                                                      from £0.50
                                                                                                                                      from £0.50
                                                                                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                      # 024
                                                                                                                                      MPN: 14496401
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 025
                                                                                                                                      MPN: 64549700
                                                                                                                                      TIE ROD ASSEMBLY
                                                                                                                                      from £35.01
                                                                                                                                      from £35.01
                                                                                                                                      # 026
                                                                                                                                      MPN: 64178300
                                                                                                                                      RH DOOR LOCK
                                                                                                                                      from £550.25
                                                                                                                                      from £550.25
                                                                                                                                      # 026
                                                                                                                                      MPN: 64178400
                                                                                                                                      LH DOOR LOCK
                                                                                                                                      from £550.25
                                                                                                                                      from £550.25
                                                                                                                                      # 027
                                                                                                                                      MPN: 62800900
                                                                                                                                      KNOB FOR SAFETY ROD
                                                                                                                                      from £1.31
                                                                                                                                      from £1.31

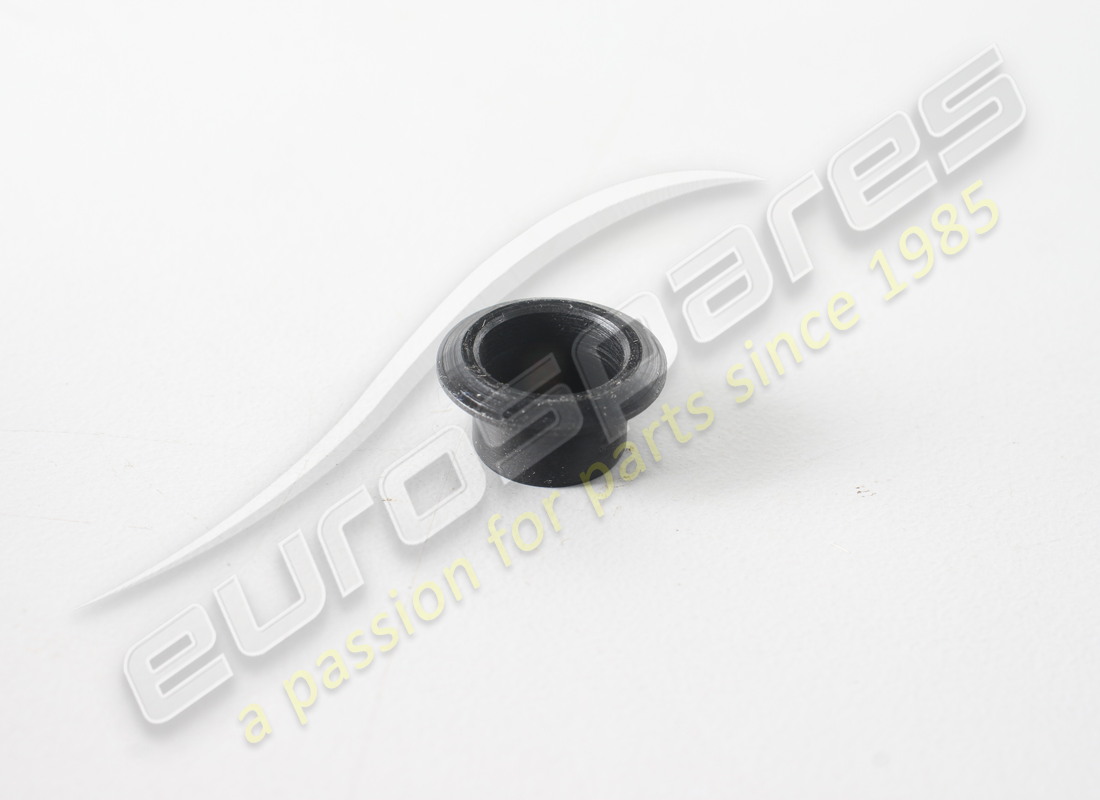

                                                                                                                                      # 028
                                                                                                                                      MPN: 61617500
                                                                                                                                      BUSHING
                                                                                                                                      from £1.68
                                                                                                                                      from £1.68
                                                                                                                                      # 029
                                                                                                                                      MPN: 64153400
                                                                                                                                      TIE ROD
                                                                                                                                      from £9.79
                                                                                                                                      from £9.79
                                                                                                                                      # 030
                                                                                                                                      MPN: 62794000
                                                                                                                                      FLEXIBLE JOINT
                                                                                                                                      from £0.74
                                                                                                                                      from £0.74
                                                                                                                                      # 031
                                                                                                                                      MPN: 10794011
                                                                                                                                      NUT
                                                                                                                                      from £0.30
                                                                                                                                      from £0.30
                                                                                                                                      # 032
                                                                                                                                      MPN: 40063208
                                                                                                                                      CLIP
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 033
                                                                                                                                      MPN: 64725200
                                                                                                                                      DOOR OPENING CABLE
                                                                                                                                      from £4.41
                                                                                                                                      from £4.41
                                                                                                                                      # 034
                                                                                                                                      MPN: 64725700
                                                                                                                                      RH BRACKET
                                                                                                                                      from £69.15
                                                                                                                                      from £69.15
                                                                                                                                      # 034
                                                                                                                                      MPN: 64727100
                                                                                                                                      LH BRACKET
                                                                                                                                      from £69.15
                                                                                                                                      from £69.15
                                                                                                                                      # 035
                                                                                                                                      MPN: 65058310
                                                                                                                                      COMPLETE HANDLE SET
                                                                                                                                      from £553.20
                                                                                                                                      from £553.20

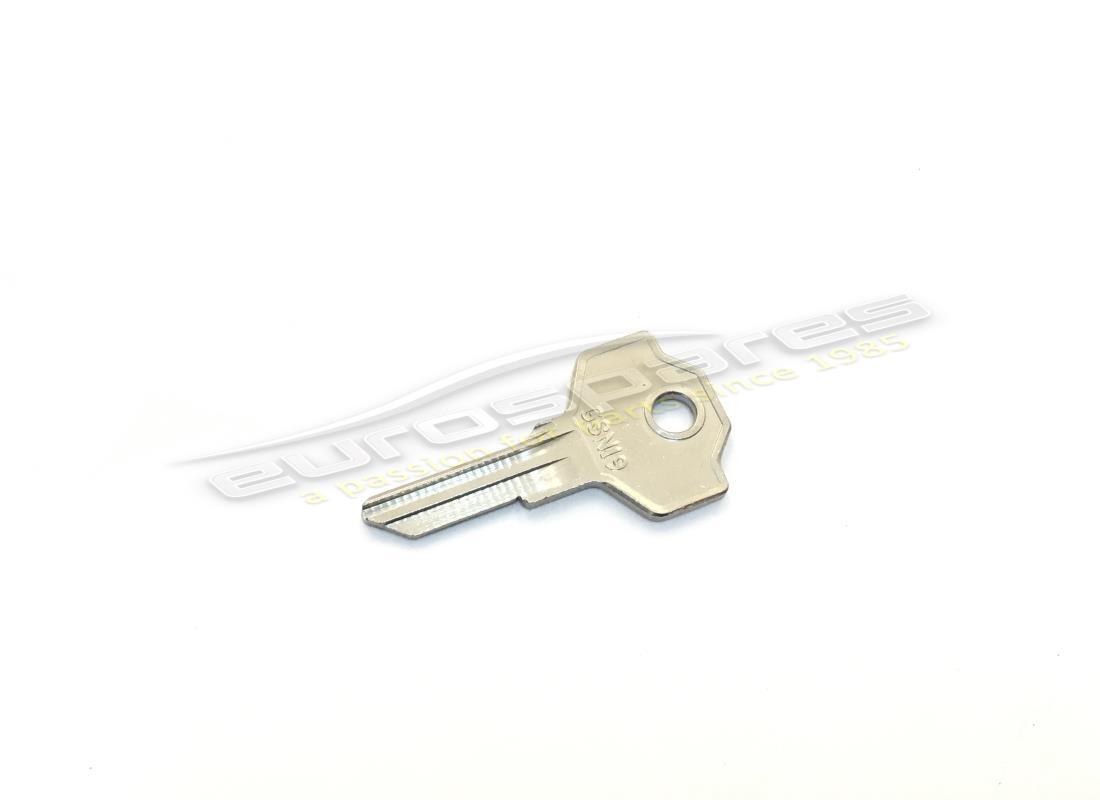

                                                                                                                                      # 036
                                                                                                                                      MPN: 95401165
                                                                                                                                      BLANK KEY
                                                                                                                                      from £236.25
                                                                                                                                      from £236.25

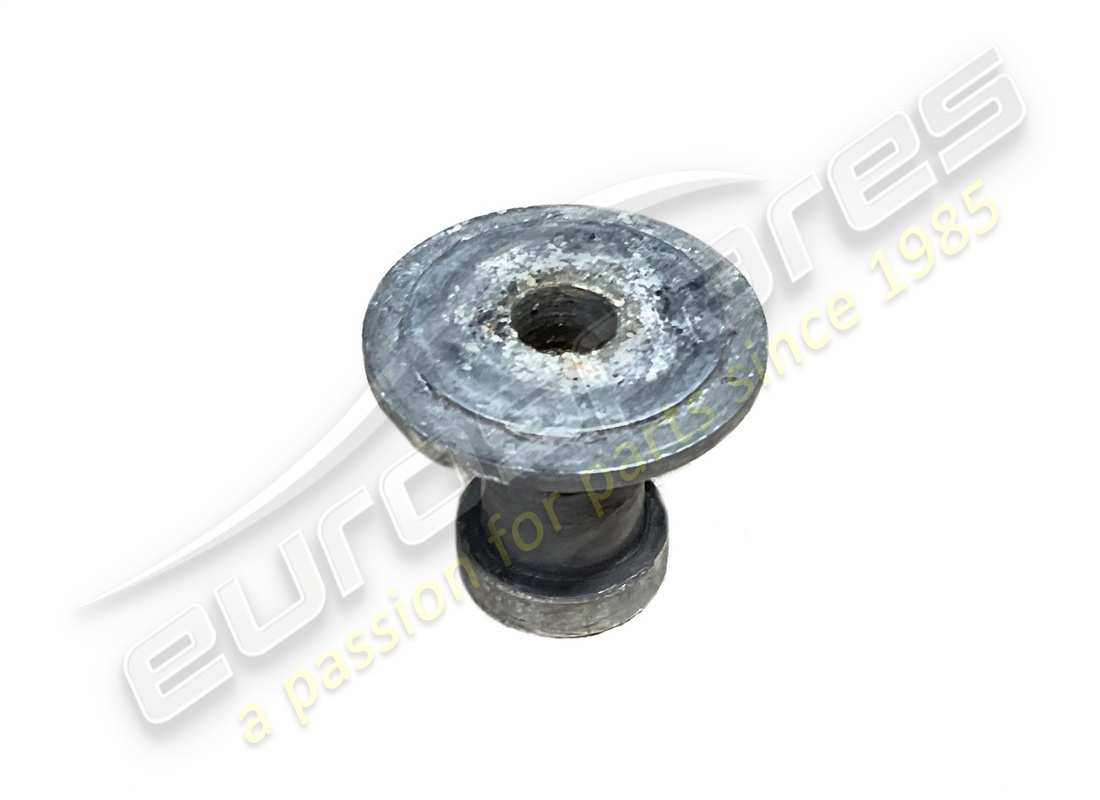

                                                                                                                                      # 037
                                                                                                                                      MPN: 64929700
                                                                                                                                      BUSHING
                                                                                                                                      from £0.88
                                                                                                                                      from £0.88
                                                                                                                                      # 038
                                                                                                                                      MPN: 113647
                                                                                                                                      NUT
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      # 039
                                                                                                                                      MPN: 12638178
                                                                                                                                      WASHER
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      This part replaces part number 10519578 - and 3 more. Click to view details

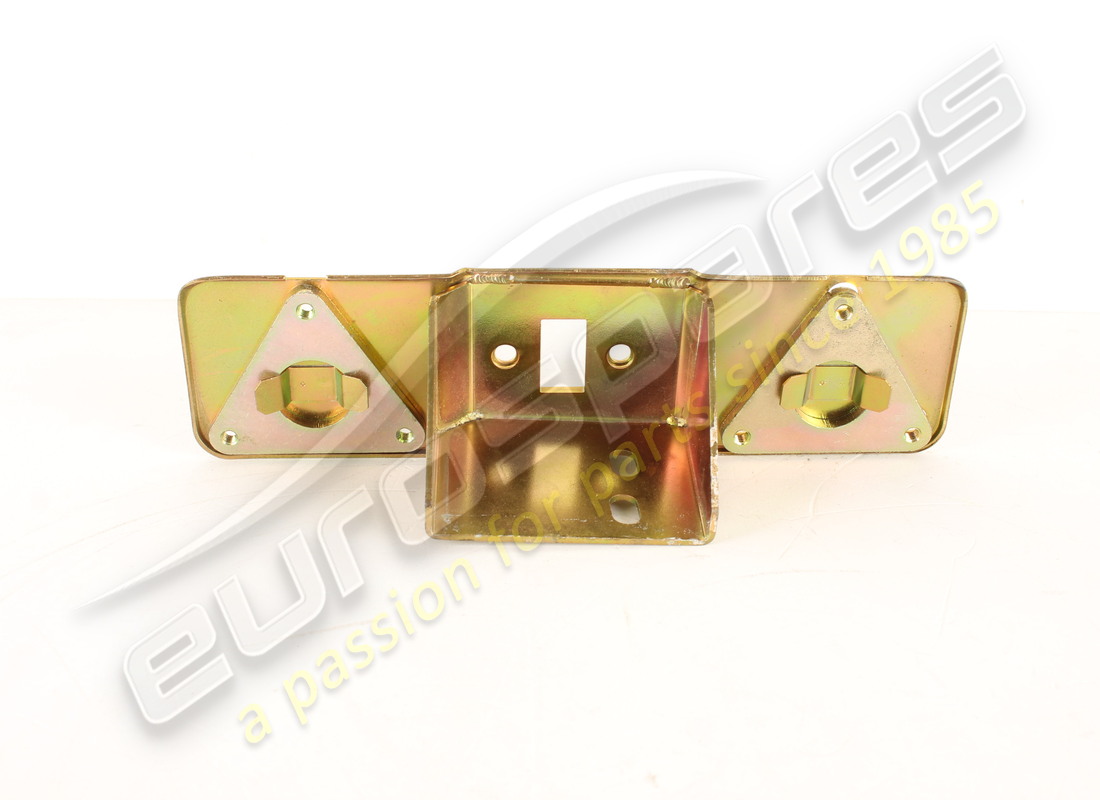

                                                                                                                                      # 040
                                                                                                                                      MPN: 64609700
                                                                                                                                      RH DOOR STRIKER SUPPORT
                                                                                                                                      from £197.73
                                                                                                                                      from £197.73
                                                                                                                                      # 040
                                                                                                                                      MPN: 64609800
                                                                                                                                      LH DOOR STRIKER SUPPORT
                                                                                                                                      from £197.73
                                                                                                                                      from £197.73
                                                                                                                                      # 041
                                                                                                                                      MPN: 12354524
                                                                                                                                      STUD
                                                                                                                                      from £16.77
                                                                                                                                      from £16.77
                                                                                                                                      This part replaces part number 12354521
                                                                                                                                      # 042
                                                                                                                                      MPN: 13550301
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      # 043
                                                                                                                                      MPN: 104030
                                                                                                                                      SELF LOCKING NUT
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 16104125
                                                                                                                                      # 044
                                                                                                                                      MPN: 10519624
                                                                                                                                      WASHER
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                                      # 044
                                                                                                                                      MPN: 12638578
                                                                                                                                      WASHER
                                                                                                                                      - Not as spare part now - Replaced by 10519624
                                                                                                                                      from £0.48
                                                                                                                                      from £0.48
                                                                                                                                      This part replaces part number 14499478
                                                                                                                                      # 045
                                                                                                                                      MPN: 127496
                                                                                                                                      WASHER
                                                                                                                                      - Not as spare part now - Replaced by 127496
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                      # 045
                                                                                                                                      MPN: 127496
                                                                                                                                      WASHER
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                      # 046
                                                                                                                                      MPN: 14359274
                                                                                                                                      SCREW
                                                                                                                                      from £1.10
                                                                                                                                      from £1.10
                                                                                                                                      This part replaces part number 168691
                                                                                                                                      # 046
                                                                                                                                      MPN: 168691
                                                                                                                                      SCREW
                                                                                                                                      - Not as spare part now - Replaced by 14359274
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 047
                                                                                                                                      MPN: 12638178
                                                                                                                                      WASHER
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                                      # 048
                                                                                                                                      MPN: 166467
                                                                                                                                      WASHER
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      # 049
                                                                                                                                      MPN: 10977687
                                                                                                                                      SCREW
                                                                                                                                      from £0.48
                                                                                                                                      from £0.48
                                                                                                                                      # 050
                                                                                                                                      MPN: 64971200
                                                                                                                                      THICKNESS
                                                                                                                                      from £20.47
                                                                                                                                      from £20.47
                                                                                                                                      # 051
                                                                                                                                      MPN: 62537000
                                                                                                                                      SPRING FOR HANDLE
                                                                                                                                      from £4.73
                                                                                                                                      from £4.73
                                                                                                                                      # 052
                                                                                                                                      MPN: 10444521
                                                                                                                                      SCREW
                                                                                                                                      from £0.71
                                                                                                                                      from £0.71
                                                                                                                                      # 053
                                                                                                                                      MPN: 153069
                                                                                                                                      MICRO SWITCH
                                                                                                                                      - Q.ty 4 for USA
                                                                                                                                      from £2.07
                                                                                                                                      from £2.07
                                                                                                                                      # 054
                                                                                                                                      MPN: 64198300
                                                                                                                                      RH DOOR REINFORCEMENT
                                                                                                                                      - Valid for USA
                                                                                                                                      from £732.36
                                                                                                                                      from £732.36
                                                                                                                                      # 054
                                                                                                                                      MPN: 64198400
                                                                                                                                      LH DOOR REINFORCEMENT
                                                                                                                                      - Valid for USA
                                                                                                                                      from £732.36
                                                                                                                                      from £732.36
                                                                                                                                      # 055
                                                                                                                                      MPN: 64640400
                                                                                                                                      RH FRONT SUPPORT
                                                                                                                                      - Valid for USA
                                                                                                                                      from £1,044.75
                                                                                                                                      from £1,044.75
                                                                                                                                      # 055
                                                                                                                                      MPN: 64640500
                                                                                                                                      LH FRONT SUPPORT
                                                                                                                                      - Valid for USA
                                                                                                                                      from £258.68
                                                                                                                                      from £258.68
                                                                                                                                      # 056
                                                                                                                                      MPN: 16043424
                                                                                                                                      SCREW
                                                                                                                                      from £0.51
                                                                                                                                      from £0.51
                                                                                                                                      This part replaces part number 16043421
                                                                                                                                      # 057
                                                                                                                                      MPN: 64640600
                                                                                                                                      RH REAR SUPPORT
                                                                                                                                      - Valid for USA
                                                                                                                                      from £657.20
                                                                                                                                      from £657.20
                                                                                                                                      # 057
                                                                                                                                      MPN: 64640700
                                                                                                                                      LH REAR SUPPORT
                                                                                                                                      - Valid for USA
                                                                                                                                      from £657.20
                                                                                                                                      from £657.20
                                                                                                                                      # 058
                                                                                                                                      MPN: 16043924
                                                                                                                                      SCREW
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 059
                                                                                                                                      MPN: 10571779
                                                                                                                                      WASHER
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 060
                                                                                                                                      MPN: 12646724
                                                                                                                                      WASHER
                                                                                                                                      from £0.52
                                                                                                                                      from £0.52
                                                                                                                                      This part replaces part number 12601571 - and 3 more. Click to view details
                                                                                                                                      # 061
                                                                                                                                      MPN: 64674300
                                                                                                                                      SCREW
                                                                                                                                      from £1.98
                                                                                                                                      from £1.98
                                                                                                                                      # 062
                                                                                                                                      MPN: 12638524
                                                                                                                                      WASHER
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      This part replaces part number 12638501 - and 2 more. Click to view details
                                                                                                                                      # 063
                                                                                                                                      MPN: 12578211
                                                                                                                                      NUT
                                                                                                                                      from £0.51
                                                                                                                                      from £0.51
                                                                                                                                      # 064
                                                                                                                                      MPN: 10571779
                                                                                                                                      WASHER
                                                                                                                                      from £0.47
                                                                                                                                      from £0.47
                                                                                                                                      # 065
                                                                                                                                      MPN: 12646724
                                                                                                                                      WASHER
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 12601571 - and 3 more. Click to view details
                                                                                                                                      # 066
                                                                                                                                      MPN: 60670100
                                                                                                                                      DOOR CLOSING STRIKER
                                                                                                                                      - Not for USA
                                                                                                                                      from £4.18
                                                                                                                                      from £4.18
                                                                                                                                      # 066
                                                                                                                                      MPN: 65013700
                                                                                                                                      DOOR CLOSING STRIKER
                                                                                                                                      - Valid for USA
                                                                                                                                      from £56.89
                                                                                                                                      from £56.89
                                                                                                                                      # 067
                                                                                                                                      MPN: 60775900
                                                                                                                                      GASKET
                                                                                                                                      from £6.07
                                                                                                                                      from £6.07
                                                                                                                                      # 068
                                                                                                                                      MPN: 12642001
                                                                                                                                      WASHER
                                                                                                                                      from £0.54
                                                                                                                                      from £0.54
                                                                                                                                      # 069
                                                                                                                                      MPN: 65080800
                                                                                                                                      WASHER
                                                                                                                                      from £1.66
                                                                                                                                      from £1.66
                                                                                                                                      # 070
                                                                                                                                      MPN: 60673700
                                                                                                                                      SCREW
                                                                                                                                      - Not for USA
                                                                                                                                      from £46.95
                                                                                                                                      from £46.95
                                                                                                                                      # 070
                                                                                                                                      MPN: 64991500
                                                                                                                                      SCREW
                                                                                                                                      - Valid for USA
                                                                                                                                      from £27.50
                                                                                                                                      from £27.50
                                                                                                                                      # 071
                                                                                                                                      MPN: 64629100
                                                                                                                                      PIN
                                                                                                                                      from £7.40
                                                                                                                                      from £7.40
                                                                                                                                      # 072
                                                                                                                                      MPN: 14496405
                                                                                                                                      WASHER
                                                                                                                                      Supersession
                                                                                                                                      Supersession
                                                                                                                                      # 073
                                                                                                                                      MPN: 102741
                                                                                                                                      NUT
                                                                                                                                      from £0.53
                                                                                                                                      from £0.53
                                                                                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                                      # 074
                                                                                                                                      MPN: 64199900
                                                                                                                                      PIN
                                                                                                                                      from £9.87
                                                                                                                                      from £9.87
                                                                                                                                      # 075
                                                                                                                                      MPN: 64199800
                                                                                                                                      WASHER
                                                                                                                                      from £6.51
                                                                                                                                      from £6.51
                                                                                                                                      # 076
                                                                                                                                      MPN: 16160976
                                                                                                                                      SEEGER RING
                                                                                                                                      from £0.48
                                                                                                                                      from £0.48
                                                                                                                                      # 077
                                                                                                                                      MPN: 63670000
                                                                                                                                      BRACKET
                                                                                                                                      from £15.84
                                                                                                                                      from £15.84
                                                                                                                                      # 078
                                                                                                                                      MPN: 64151200
                                                                                                                                      THICKNESS
                                                                                                                                      from £5.76
                                                                                                                                      from £5.76
                                                                                                                                      # 079
                                                                                                                                      MPN: 64151500
                                                                                                                                      THICKNESS
                                                                                                                                      - Not as spare part now
                                                                                                                                      from £6.70
                                                                                                                                      from £6.70
                                                                                                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
