Ferrari F50 Rear Hood and Opening Control Parts Diagram

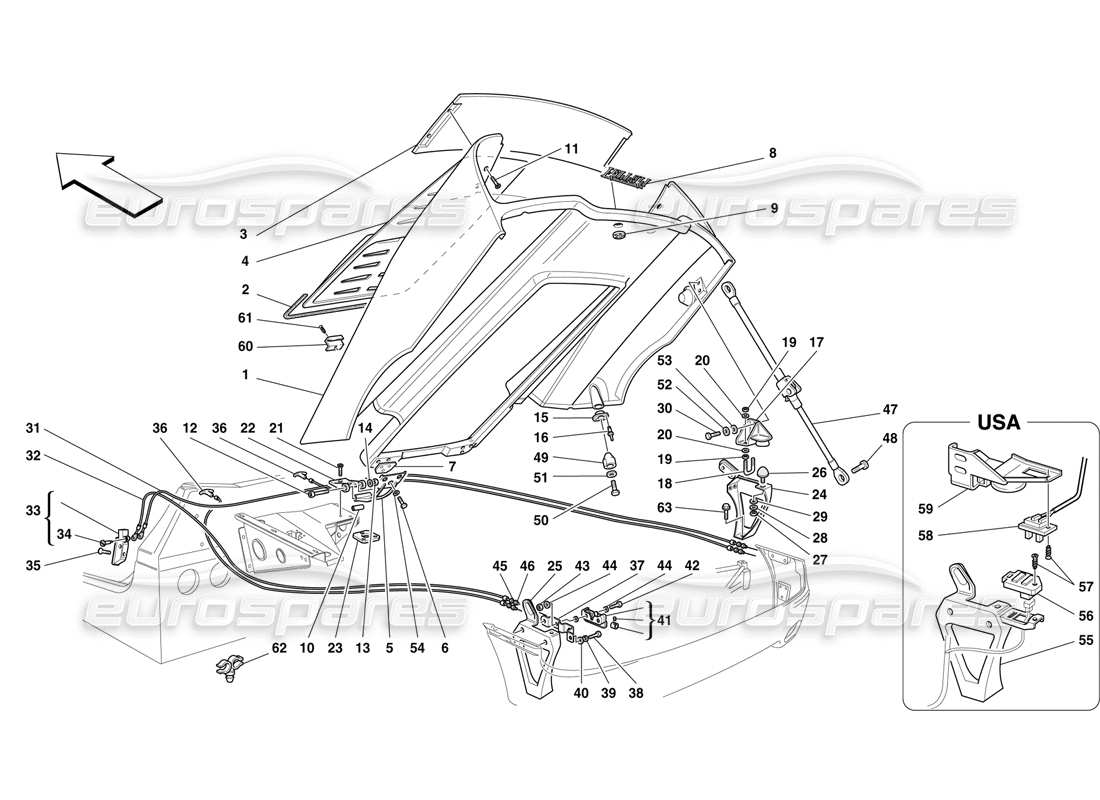

109 - Rear Hood and Opening Control

Ferrari F50 Rear Hood and Opening Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 63662810
                                                                                                          ENGINE HOOD BONNET
                                                                                                          - Not for USA
                                                                                                          from £18,537.78
                                                                                                          from £18,537.78
                                                                                                          This part replaces part number 63662800
                                                                                                          # 001
                                                                                                          MPN: 64640110
                                                                                                          ENGINE HOOD BONNET
                                                                                                          - Valid for USA
                                                                                                          from £18,137.37
                                                                                                          from £18,137.37
                                                                                                          This part replaces part number 64640100
                                                                                                          # 002
                                                                                                          MPN: 64172400
                                                                                                          GASKET
                                                                                                          from £60.65
                                                                                                          from £60.65
                                                                                                          # 003
                                                                                                          MPN: 63535510
                                                                                                          SPOILER FOR ENGINE HOOD
                                                                                                          from £2,276.08
                                                                                                          from £2,276.08
                                                                                                          # 004
                                                                                                          MPN: 63530500
                                                                                                          TRANSPARENT FOR HOOD
                                                                                                          from £9,437.24
                                                                                                          from £9,437.24
                                                                                                          # 005
                                                                                                          MPN: 63662900
                                                                                                          ENGINE HOOD BONNET HINGE
                                                                                                          from £20.20
                                                                                                          from £20.20
                                                                                                          # 006
                                                                                                          MPN: 13836414
                                                                                                          SCREW
                                                                                                          from £1.47
                                                                                                          from £1.47
                                                                                                          # 007
                                                                                                          MPN: 64896100
                                                                                                          THICKNESS
                                                                                                          from £26.78
                                                                                                          from £26.78
                                                                                                          # 008
                                                                                                          MPN: 61025000
                                                                                                          Ferrari MARK
                                                                                                          (2 Pin)
                                                                                                          from £57.89
                                                                                                          from £57.89
                                                                                                          This part replaces part number 30028500 - and 1 more. Click to view details
                                                                                                          # 009
                                                                                                          MPN: 60324506
                                                                                                          SAFETY CLIP
                                                                                                          from £1.57
                                                                                                          from £1.57
                                                                                                          This part replaces part number 62773000
                                                                                                          # 010
                                                                                                          MPN: 62059400
                                                                                                          HINGE BUSHING
                                                                                                          from £32.76
                                                                                                          from £32.76
                                                                                                          # 011
                                                                                                          MPN: 14441582
                                                                                                          SCREW
                                                                                                          from £2.02
                                                                                                          from £2.02
                                                                                                          This part replaces part number 13310811
                                                                                                          # 012
                                                                                                          MPN: 64680500
                                                                                                          PIN FOR HINGE
                                                                                                          from £11.09
                                                                                                          from £11.09
                                                                                                          # 013
                                                                                                          MPN: 15896211
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 15896210
                                                                                                          # 014
                                                                                                          MPN: 14496478
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 015
                                                                                                          MPN: 62505200
                                                                                                          BUSHING
                                                                                                          from £1.03
                                                                                                          from £1.03
                                                                                                          # 016
                                                                                                          MPN: 15914670
                                                                                                          SCREW
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 017
                                                                                                          MPN: 64135200
                                                                                                          RH BRACKET
                                                                                                          from £424.24
                                                                                                          from £424.24
                                                                                                          # 017
                                                                                                          MPN: 64135300
                                                                                                          LH BRACKET
                                                                                                          - Not for USA
                                                                                                          from £424.24
                                                                                                          from £424.24
                                                                                                          # 018
                                                                                                          MPN: 64135400
                                                                                                          PIN
                                                                                                          from £7.32
                                                                                                          from £7.32
                                                                                                          # 019
                                                                                                          MPN: 15896211
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 15896210
                                                                                                          # 020
                                                                                                          MPN: 12605374
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          This part replaces part number 12605370 which we have in stock - and 1 more. Click to view details
                                                                                                          # 021
                                                                                                          MPN: 111213
                                                                                                          SCREW
                                                                                                          from £0.52
                                                                                                          from £0.52
                                                                                                          This part replaces part number 108040
                                                                                                          # 022
                                                                                                          MPN: 63663000
                                                                                                          FRAME HINGE
                                                                                                          from £17.66
                                                                                                          from £17.66
                                                                                                          # 023
                                                                                                          MPN: 64136600
                                                                                                          PLATE
                                                                                                          from £35.91
                                                                                                          from £35.91
                                                                                                          # 024
                                                                                                          MPN: 64794600
                                                                                                          RH BRACKET
                                                                                                          from £265.85
                                                                                                          from £265.85
                                                                                                          # 025
                                                                                                          MPN: 64794700
                                                                                                          LH BRACKET
                                                                                                          - Not for USA
                                                                                                          from £263.87
                                                                                                          from £263.87

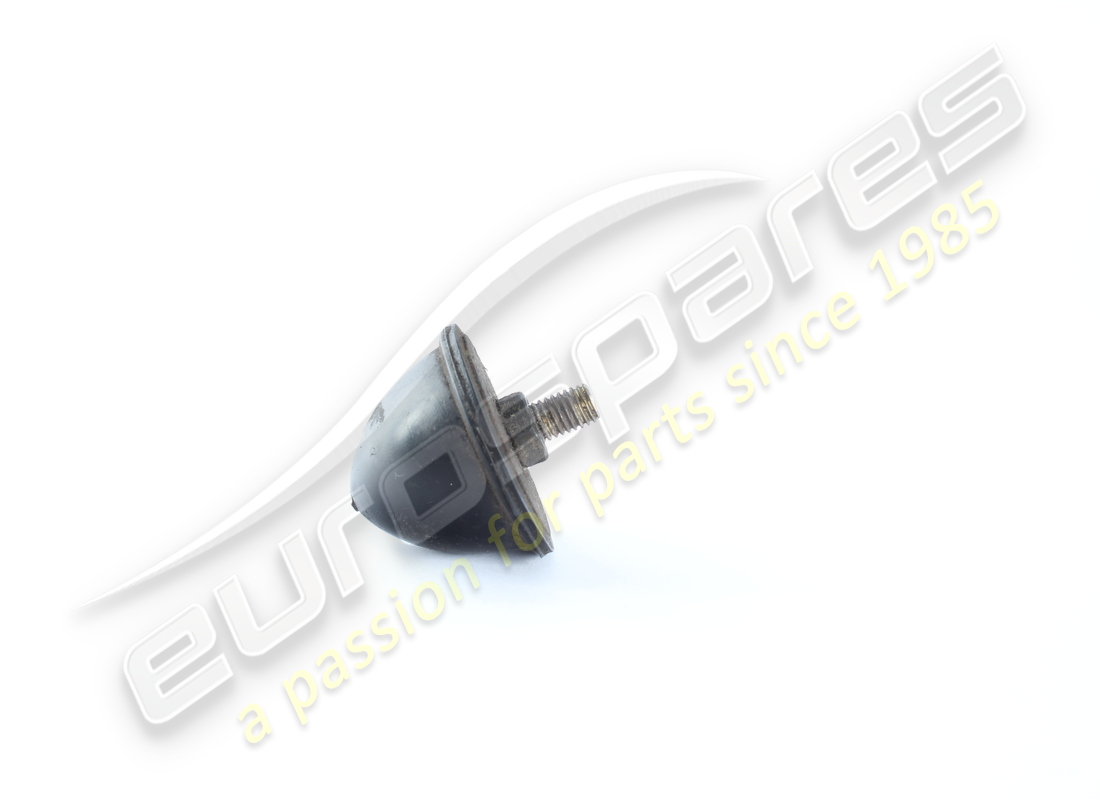

                                                                                                          # 026
                                                                                                          MPN: 50051606
                                                                                                          HOOD CENTERING PAD
                                                                                                          from £4.80
                                                                                                          from £4.80
                                                                                                          This part replaces part number 61499500 - and 2 more. Click to view details
                                                                                                          # 027
                                                                                                          MPN: 16100814
                                                                                                          NUT
                                                                                                          from £0.49
                                                                                                          from £0.49
                                                                                                          This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                          # 028
                                                                                                          MPN: 127496
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                          # 029
                                                                                                          MPN: 62167200
                                                                                                          WASHER
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 030
                                                                                                          MPN: 16296924
                                                                                                          SCREW
                                                                                                          from £0.51
                                                                                                          from £0.51
                                                                                                          This part replaces part number 289834
                                                                                                          # 031
                                                                                                          MPN: 64474800
                                                                                                          RH SIDE CABLE FOR MOTOR BONNET OPENING
                                                                                                          from £29.31
                                                                                                          from £29.31
                                                                                                          # 032
                                                                                                          MPN: 64474700
                                                                                                          LH SIDE CABLE FOR MOTOR BONNET OPENING
                                                                                                          from £15.69
                                                                                                          from £15.69
                                                                                                          # 033
                                                                                                          MPN: 62551900
                                                                                                          HANDLE FOR REAR HOOD OPENING
                                                                                                          from £203.24
                                                                                                          from £203.24
                                                                                                          # 034
                                                                                                          MPN: 62552200
                                                                                                          PIN
                                                                                                          from £12.93
                                                                                                          from £12.93
                                                                                                          # 035
                                                                                                          MPN: 13299477
                                                                                                          SCREW
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 15937618
                                                                                                          # 036
                                                                                                          MPN: 64696700
                                                                                                          EMERGENCY CABLE FOR MOTOR BONNET OPENING
                                                                                                          from £31.24
                                                                                                          from £31.24
                                                                                                          # 037
                                                                                                          MPN: 64134400
                                                                                                          BRACKET FOR LOCK
                                                                                                          from £21.54
                                                                                                          from £21.54
                                                                                                          # 038
                                                                                                          MPN: 10902324
                                                                                                          SCREW
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                          # 039
                                                                                                          MPN: 127494
                                                                                                          WASHER
                                                                                                          (minimum order quantity = 20)
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                          # 040
                                                                                                          MPN: 12643724
                                                                                                          WASHER
                                                                                                          from £0.51
                                                                                                          from £0.51
                                                                                                          This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                          # 041
                                                                                                          MPN: 60277407
                                                                                                          ENGINE BONNET LOCK
                                                                                                          from £287.51
                                                                                                          from £287.51
                                                                                                          This part replaces part number 60023405 - and 11 more. Click to view details
                                                                                                          # 042
                                                                                                          MPN: 10903021
                                                                                                          SCREW
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 043
                                                                                                          MPN: 102741
                                                                                                          NUT
                                                                                                          from £0.51
                                                                                                          from £0.51
                                                                                                          This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                          # 044
                                                                                                          MPN: 14496401
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 045
                                                                                                          MPN: 64896000
                                                                                                          REGISTER FOR LOCK CABLES
                                                                                                          from £2.31
                                                                                                          from £2.31
                                                                                                          # 046
                                                                                                          MPN: 15896211
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 15896210
                                                                                                          # 047
                                                                                                          MPN: 64795100
                                                                                                          HOOD SUPPORT ROD
                                                                                                          from £406.30
                                                                                                          from £406.30
                                                                                                          # 048
                                                                                                          MPN: 64795200
                                                                                                          PIN
                                                                                                          from £42.49
                                                                                                          from £42.49
                                                                                                          # 049
                                                                                                          MPN: 62401500
                                                                                                          PIN
                                                                                                          from £9.66
                                                                                                          from £9.66
                                                                                                          # 050
                                                                                                          MPN: 16285921
                                                                                                          SCREW
                                                                                                          from £1.25
                                                                                                          from £1.25
                                                                                                          # 051
                                                                                                          MPN: 62954500
                                                                                                          SPACER
                                                                                                          from £6.70
                                                                                                          from £6.70
                                                                                                          # 052
                                                                                                          MPN: 127494
                                                                                                          WASHER
                                                                                                          (minimum order quantity = 20)
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                          # 053
                                                                                                          MPN: 12643701
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                          # 054
                                                                                                          MPN: 12643724
                                                                                                          WASHER
                                                                                                          from £0.50
                                                                                                          from £0.50
                                                                                                          This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                          # 055
                                                                                                          MPN: 64870600
                                                                                                          LH BRACKET
                                                                                                          - Valid for USA
                                                                                                          from £203.01
                                                                                                          from £203.01
                                                                                                          # 056
                                                                                                          MPN: 168217
                                                                                                          FIXED CONTACT
                                                                                                          - Valid for USA
                                                                                                          from £1.76
                                                                                                          from £1.76
                                                                                                          # 057
                                                                                                          MPN: 15687375
                                                                                                          SCREW
                                                                                                          - Valid for USA
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          This part replaces part number 15687370 - and 1 more. Click to view details
                                                                                                          # 058
                                                                                                          MPN: 168218
                                                                                                          ADDITIONAL STOP LIGHT MOBILE CONTACT
                                                                                                          - Valid for USA
                                                                                                          from £7.01
                                                                                                          from £7.01
                                                                                                          # 059
                                                                                                          MPN: 64870900
                                                                                                          LH BRACKET
                                                                                                          - Valid for USA
                                                                                                          from £285.32
                                                                                                          from £285.32
                                                                                                          # 060
                                                                                                          MPN: 65090900
                                                                                                          BRACKET
                                                                                                          from £84.00
                                                                                                          from £84.00
                                                                                                          # 061
                                                                                                          MPN: 15688875
                                                                                                          SCREW
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 15688814
                                                                                                          # 062
                                                                                                          MPN: 64978700
                                                                                                          CLIP
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 063
                                                                                                          MPN: 16043324
                                                                                                          SCREW
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 16043321
