104 - Body - Outer Elements - Front Part

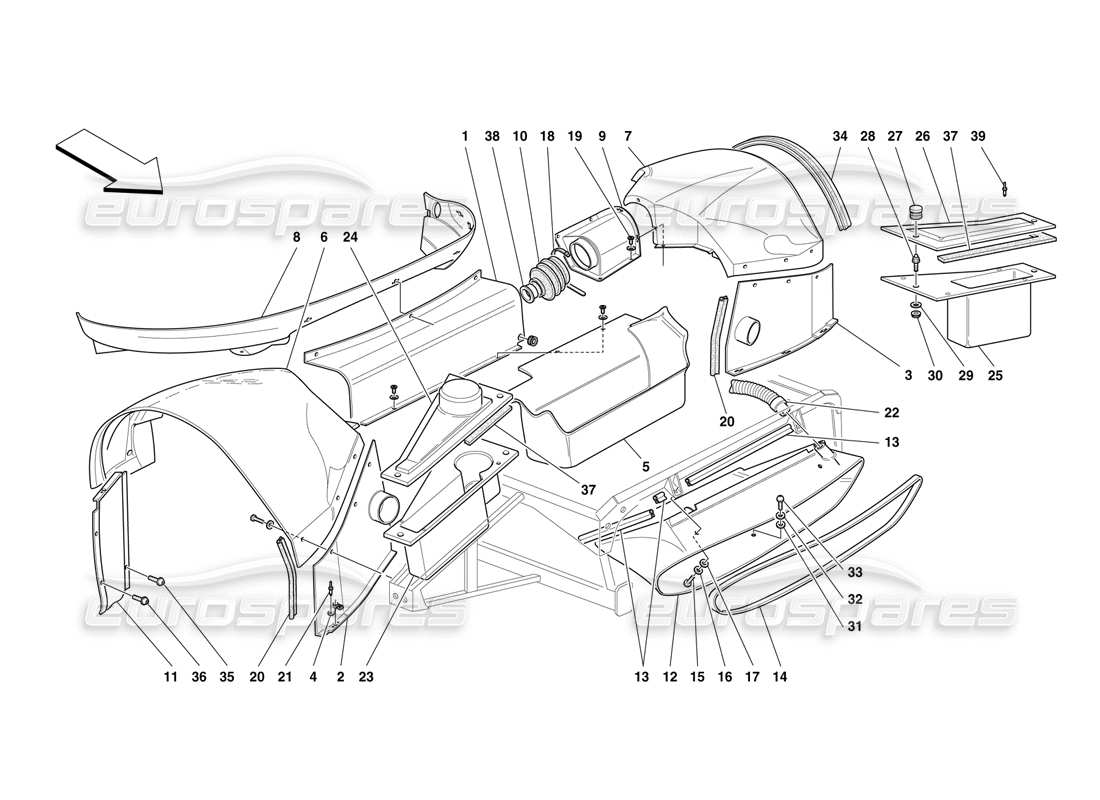

Ferrari F50 Body - Outer Elements - Front Part Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 64762500
CENTRAL FRONT SHIELD
from £664.14
from £664.14
# 002
MPN: 64130500
RH SIDE LOWER GRAVEL GUARD COVER
from £1,241.75
from £1,241.75
# 003
MPN: 64130600
LH SIDE LOWER GRAVEL GUARD COVER
from £1,278.12
from £1,278.12
# 004
MPN: 62471100
BRACKET
from £16.25
from £16.25
# 005
MPN: 64975800
BAG CASE
from £1,638.36
from £1,638.36
# 006
MPN: 63535000
RH FRONT GRAVEL GUARD
from £3,773.73
from £3,773.73
# 007
MPN: 63535100
LH FRONT GRAVEL GUARD
from £2,638.44
from £2,638.44
# 008
MPN: 64762600
SEAL BETWEEN GRAVEL GUARD AND CURVED ELEMENT
from £917.45
from £917.45
# 009
MPN: 156339
LH PROTECTION CUP
from £269.95
from £269.95
# 009
MPN: 156340
RH PROTECTION CUP
from £308.27
from £308.27
# 010
MPN: 156416
PROTECTION RUBBER BOOT
from £21.38
from £21.38
# 011
MPN: 63673000
RH FRONT SEAL
from £477.20
from £477.20
This part replaces part number 64168800
# 011
MPN: 63673100
LH FRONT SEAL
from £582.75
from £582.75
This part replaces part number 64168900
# 011
MPN: 64168800
RH FRONT SEAL
- Not as spare part now - Replaced by 63673000
Supersession
Supersession
# 011
MPN: 64168900
LH FRONT SEAL
- Not as spare part now - Replaced by 63673100
Supersession
Supersession
# 012
MPN: 63654200
AIR CONVEYOR
from £2,148.71
from £2,148.71
# 013
MPN: 64131300
GASKET
from £23.72
from £23.72
# 014
MPN: 64131200
GASKET
from £6.54
from £6.54
# 015
MPN: 10977524
SCREW
from £0.53
from £0.53
# 016
MPN: 11181874
WASHER
from £0.51
from £0.51
# 017
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 018
MPN: 157409
CLAMP
from £0.75
from £0.75
# 019
MPN: 169611
SCREW
from £0.65
from £0.65
This part replaces part number 64047400
# 019
MPN: 64047400
SCREW
- Not as spare part now - Replaced by 169611
Supersession
Supersession
# 020
MPN: 64130900
GASKET
from £42.53
from £42.53
# 021
MPN: 64722000
RIVET
from £1.11
from £1.11
# 022
MPN: 64991700
TUNNEL REFRIGERATING PIPE
from £375.92
from £375.92
# 023
MPN: 64991600
RH CONTAINER
from £1,649.09
from £1,649.09
# 024
MPN: 65020500
RH CONTAINER COVER
from £3,282.81
from £3,282.81
# 025
MPN: 64995100
LH CONTAINER
from £4,132.82
from £4,132.82
# 026
MPN: 65020600
LH CONTAINER COVER
from £3,077.63
from £3,077.63
# 027
MPN: 60727200
button
from £17.55
from £17.55
This part replaces part number 60084506
# 028
MPN: 63992200
SCREW TAP
from £11.94
from £11.94
# 029
MPN: 14496377
WASHER
from £1.07
from £1.07
This part replaces part number 14496309
# 030
MPN: 113647
NUT
from £0.52
from £0.52
# 031
MPN: 12643777
WASHER
Supersession
Supersession
This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
# 032
MPN: 166467
WASHER
from £0.54
from £0.54
# 033
MPN: 13274277
SCREW
from £0.47
from £0.47
# 034
MPN: 64131000
GASKET
from £47.87
from £47.87
# 035
MPN: 169814
SCREW
from £0.71
from £0.71
This part replaces part number 13288119 - and 1 more. Click to view details
# 036
MPN: 168133
SCREW
from £0.51
from £0.51
# 037
MPN: 65020900
GASKET
- Not as spare part now - Replaced by 65193700 and 65193800
# 037
MPN: 65193700
RH GASKET
from £9.86
from £9.86
# 037
MPN: 65193800
LH GASKET
from £9.86
from £9.86
# 038
MPN: 156417
RING NUT
from £22.80
from £22.80
# 039
MPN: 60888500
RIVET
from £0.47
from £0.47
