Ferrari F50 Oil-Water Pump - Controls Parts Diagram

022 - Oil-Water Pump - Controls

Ferrari F50 Oil-Water Pump - Controls Parts Diagram

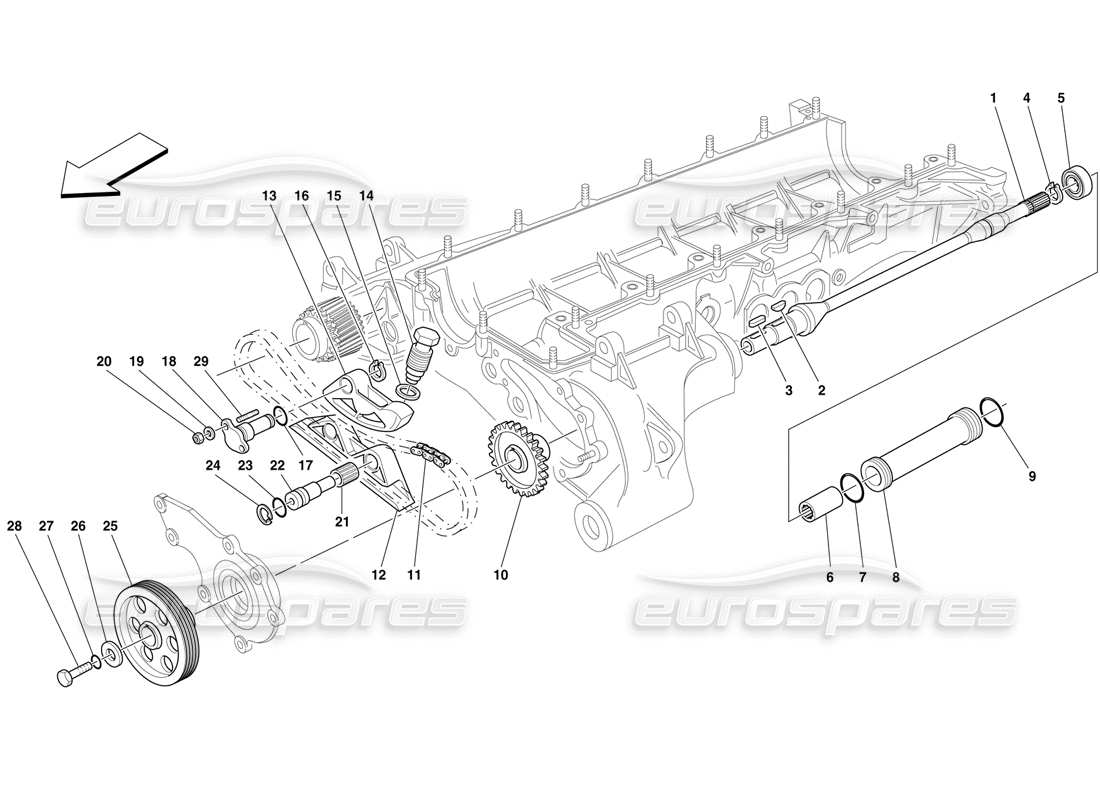

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 154388
                                                          PUMP CONTROL SHAFT
                                                          from £253.04
                                                          from £253.04
                                                          # 002
                                                          MPN: 10205820
                                                          DISC KEY
                                                          from £1.09
                                                          from £1.09
                                                          # 003
                                                          MPN: 10617120
                                                          Key
                                                          from £1.57
                                                          from £1.57
                                                          This part replaces part number 92
                                                          # 004
                                                          MPN: 11066576
                                                          SEEGER RING
                                                          from £0.53
                                                          from £0.53
                                                          # 005
                                                          MPN: 122057
                                                          BEARING
                                                          from £5.07
                                                          from £5.07
                                                          # 006
                                                          MPN: 149587
                                                          COUPLING
                                                          from £91.96
                                                          from £91.96
                                                          # 007
                                                          MPN: 148225
                                                          GASKET
                                                          from £0.53
                                                          from £0.53
                                                          # 008
                                                          MPN: 149697
                                                          BUSHING
                                                          from £62.25
                                                          from £62.25

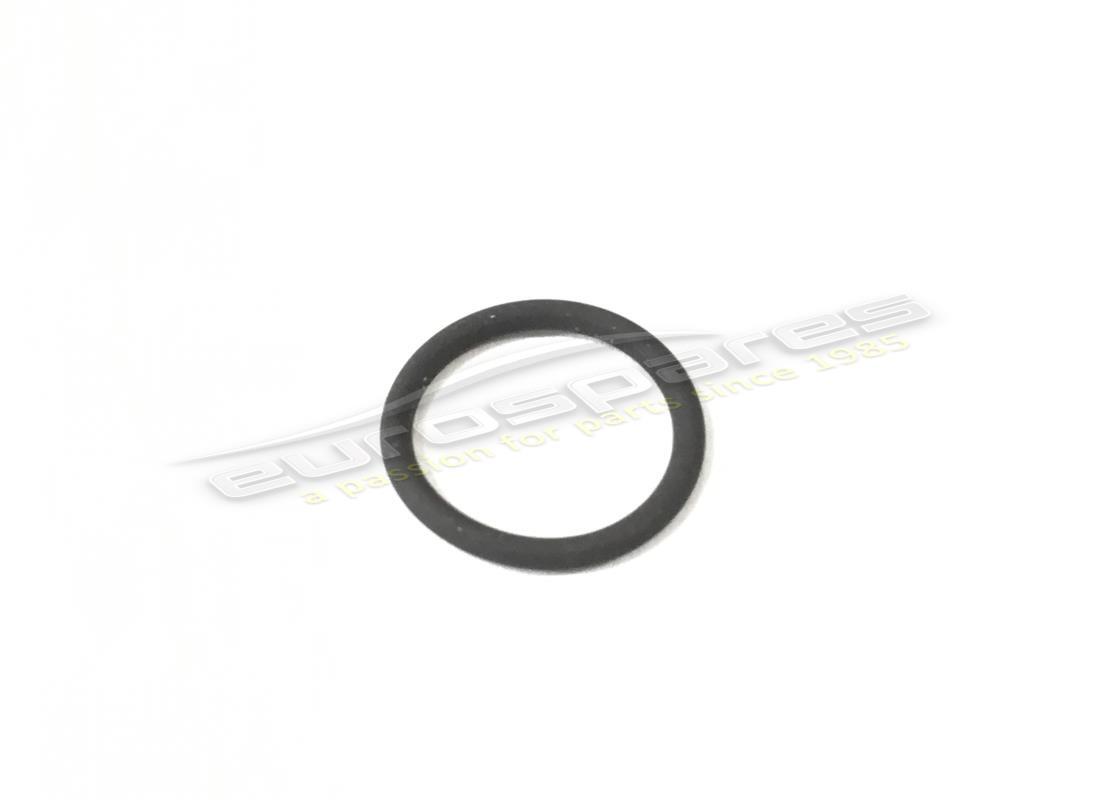

                                                          # 009
                                                          MPN: 141251
                                                          SEAL RING
                                                          from £4.02
                                                          from £4.02
                                                          # 010
                                                          MPN: 154389
                                                          PUMPS CONTROL GEAR
                                                          from £98.28
                                                          from £98.28
                                                          # 011
                                                          MPN: 154173
                                                          PUMPS CONTROL CHAIN
                                                          from £18.62
                                                          from £18.62
                                                          # 012
                                                          MPN: 158178
                                                          FIXED TENSION
                                                          from £28.25
                                                          from £28.25
                                                          # 013
                                                          MPN: 159494
                                                          MOBILE GUIDE SHOE
                                                          from £58.89
                                                          from £58.89
                                                          # 014
                                                          MPN: 152502
                                                          CHAIN TIGHTENER
                                                          from £393.86
                                                          from £393.86
                                                          # 015
                                                          MPN: 10261860
                                                          GASKET
                                                          from £0.54
                                                          from £0.54
                                                          This part replaces part number 10279550 - and 1 more. Click to view details
                                                          # 016
                                                          MPN: 11065976
                                                          SEEGER RING
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 11065975
                                                          # 017
                                                          MPN: 137192
                                                          GASKET
                                                          from £0.54
                                                          from £0.54
                                                          # 018
                                                          MPN: 154033
                                                          PIN
                                                          from £72.78
                                                          from £72.78
                                                          # 019
                                                          MPN: 12604179
                                                          WASHER
                                                          from £0.86
                                                          from £0.86
                                                          # 020
                                                          MPN: 15896470
                                                          NUT
                                                          (minimum order quantity = 20)
                                                          from £0.78
                                                          from £0.78
                                                          This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                          # 021
                                                          MPN: 154172
                                                          COMPENSATOR RING
                                                          from £3.23
                                                          from £3.23
                                                          # 022
                                                          MPN: 152640
                                                          PIN
                                                          from £31.70
                                                          from £31.70
                                                          # 023
                                                          MPN: 137192
                                                          GASKET
                                                          from £0.53
                                                          from £0.53
                                                          # 024
                                                          MPN: 11057576
                                                          SEEGER RING
                                                          from £0.51
                                                          from £0.51
                                                          # 025
                                                          MPN: 152311
                                                          AC COMPRESSOR CONTROL PULLEY
                                                          from £220.10
                                                          from £220.10
                                                          # 026
                                                          MPN: 154395
                                                          WASHER
                                                          from £4.38
                                                          from £4.38
                                                          # 027
                                                          MPN: 143856
                                                          GASKET
                                                          from £0.53
                                                          from £0.53
                                                          # 028
                                                          MPN: 16321021
                                                          SCREW
                                                          from £13.69
                                                          from £13.69
                                                          # 029
                                                          MPN: 11499924
                                                          STUD
                                                          from £7.84
                                                          from £7.84
                                                          This part replaces part number 11499921 which we have in stock
