018 - Exhaust System
Ferrari F50 Exhaust System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 162953
LH FRONT EXHAUST MANIFOLD
from £4,747.10
from £4,747.10
# 002
MPN: 162854
RH FRONT EXHAUST MANIFOLD
from £4,747.10
from £4,747.10
# 003
MPN: 163083
LH REAR EXHAUST MANIFOLD
from £4,593.14
from £4,593.14
# 004
MPN: 163080
RH REAR EXHAUST MANIFOLD
from £4,593.14
from £4,593.14
# 005
MPN: 159243
LH GASKET
from £24.40
from £24.40
# 006
MPN: 138392

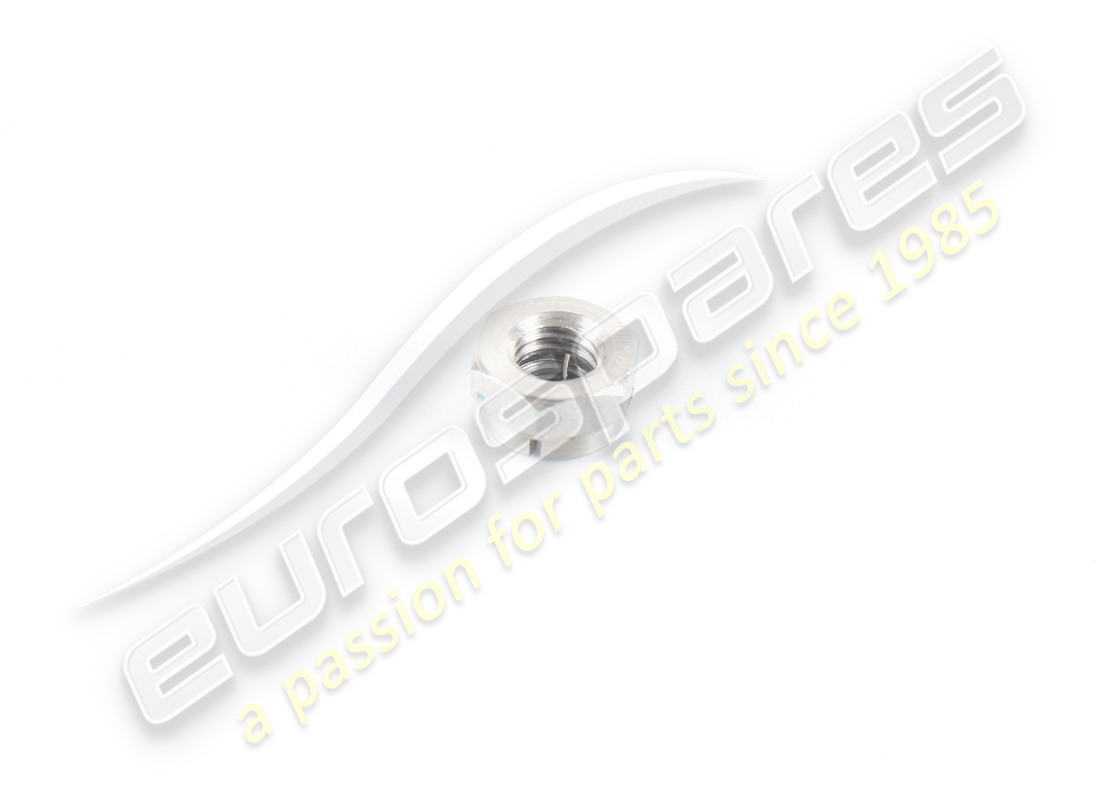

NUT
(minimum order quantity = 25)
from £0.58
from £0.58
# 007
MPN: 159242
RH GASKET
from £27.45
from £27.45
# 008
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 009
MPN: 110860
THREADED PLUG
from £8.11
from £8.11
This part replaces part number 11903240

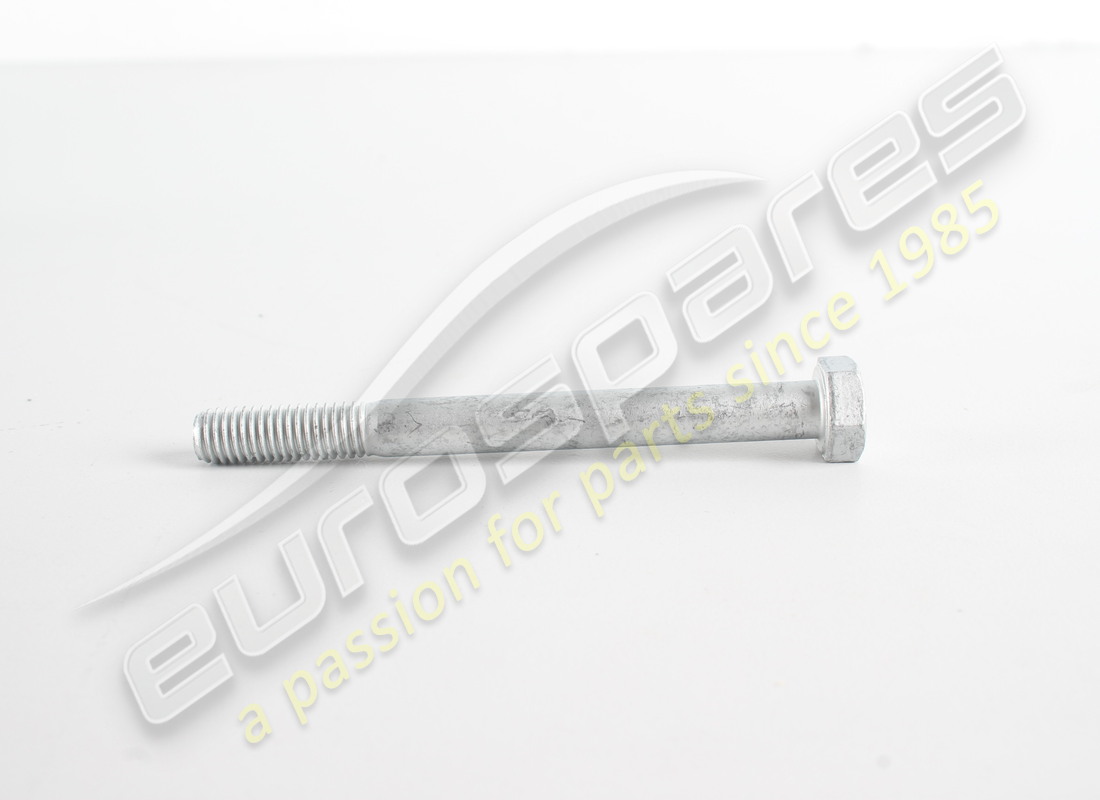

# 010
MPN: 137431
SCREW
from £27.27
from £27.27
# 011
MPN: 114749
SPACER
from £1.24
from £1.24
# 012
MPN: 111743
SPRING
from £6.97
from £6.97
# 013
MPN: 128010
WASHER
from £2.16
from £2.16
# 014
MPN: 154984
GASKET
from £9.95
from £9.95
This part replaces part number 118338 - and 2 more. Click to view details
# 015
MPN: 118251
NUT
from £10.66
from £10.66
# 016
MPN: 165812
HOSE FROM RH REAR EXHAUST MANIFOLD TO RH CATALYST
- Not for USA
from £1,714.85
from £1,714.85
# 016
MPN: 165814
HOSE FROM LH REAR EXHAUST MANIFOLD TO LH CATALYST
- Not for USA
from £1,714.85
from £1,714.85
# 016
MPN: 166826
HOSE FROM RH REAR EXHAUST MANIFOLD TO RH CATALYST
- Valid for USA
from £1,835.73
from £1,835.73
# 016
MPN: 166828
HOSE FROM LH REAR EXHAUST MANIFOLD TO LH CATALYST
- Valid for USA
from £2,266.88
from £2,266.88
# 017
MPN: 165811
HOSE FROM RH FRONT EXHAUST MANIFOLD TO RH CATALYST
- Not for USA
from £1,818.78
from £1,818.78
# 017
MPN: 165813
HOSE FROM LH FRONT EXHAUST MANIFOLD TO LH CATALYST
- Not for USA
from £1,818.78
from £1,818.78
# 017
MPN: 166825
HOSE FROM RH FRONT EXHAUST MANIFOLD TO RH CATALYST
- Valid for USA
from £1,393.72
from £1,393.72
# 017
MPN: 166827
HOSE FROM LH FRONT EXHAUST MANIFOLD TO LH CATALYST
- Valid for USA
from £1,393.72
from £1,393.72
# 018
MPN: 166442
SUPPORT PLATE
from £16.27
from £16.27

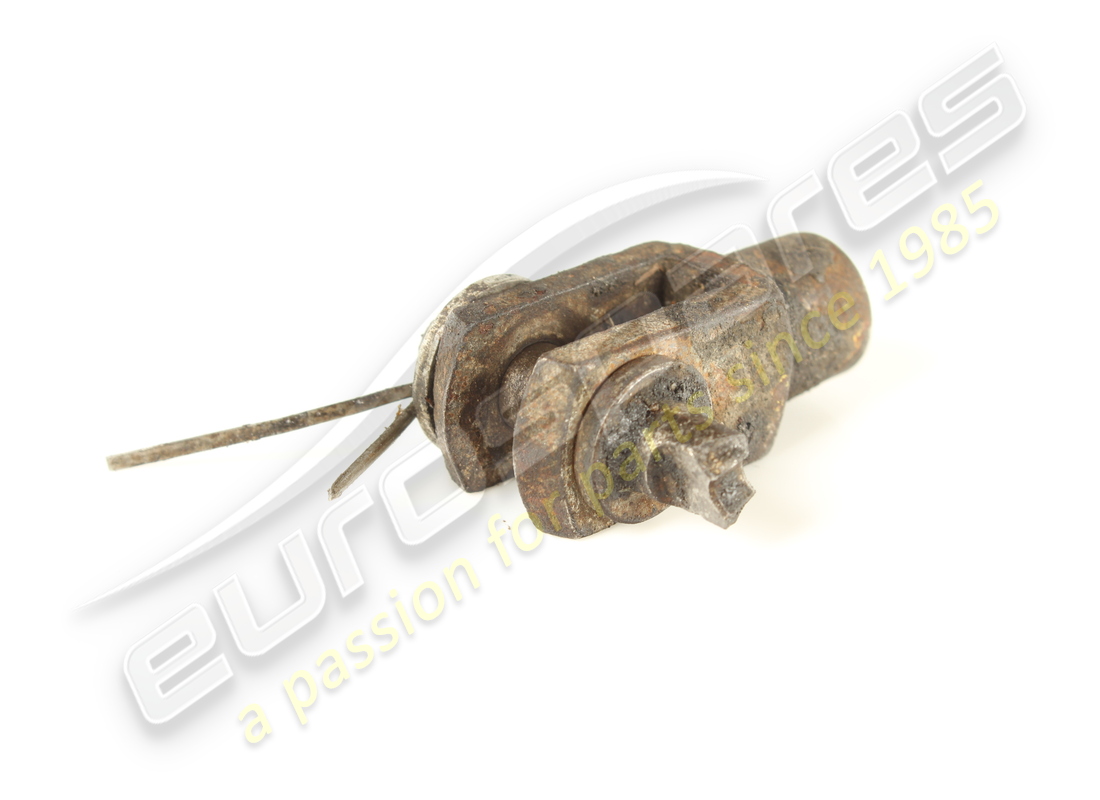

# 019
MPN: 10007871
FORK
from £5.83
from £5.83
# 020
MPN: 10050814
PIN
from £1.29
from £1.29
This part replaces part number 10050811
# 021
MPN: 10732214
WASHER
from £0.47
from £0.47
# 022
MPN: 10734301
SPLIT PIN
from £0.47
from £0.47
# 023
MPN: 16102314
NUT
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 024
MPN: 13543724
STUD
from £0.87
from £0.87
This part replaces part number 13543721
# 025
MPN: 166464
SUPPORT ROD
from £119.56
from £119.56
# 026
MPN: 140755
BALL JOINT
from £84.99
from £84.99
# 027
MPN: 166451
FORK
from £14.63
from £14.63
# 028
MPN: 168691
SCREW
Supersession
Supersession
# 029
MPN: 163026
catalyst
from £5,846.87
from £5,846.87
# 030
MPN: 158730

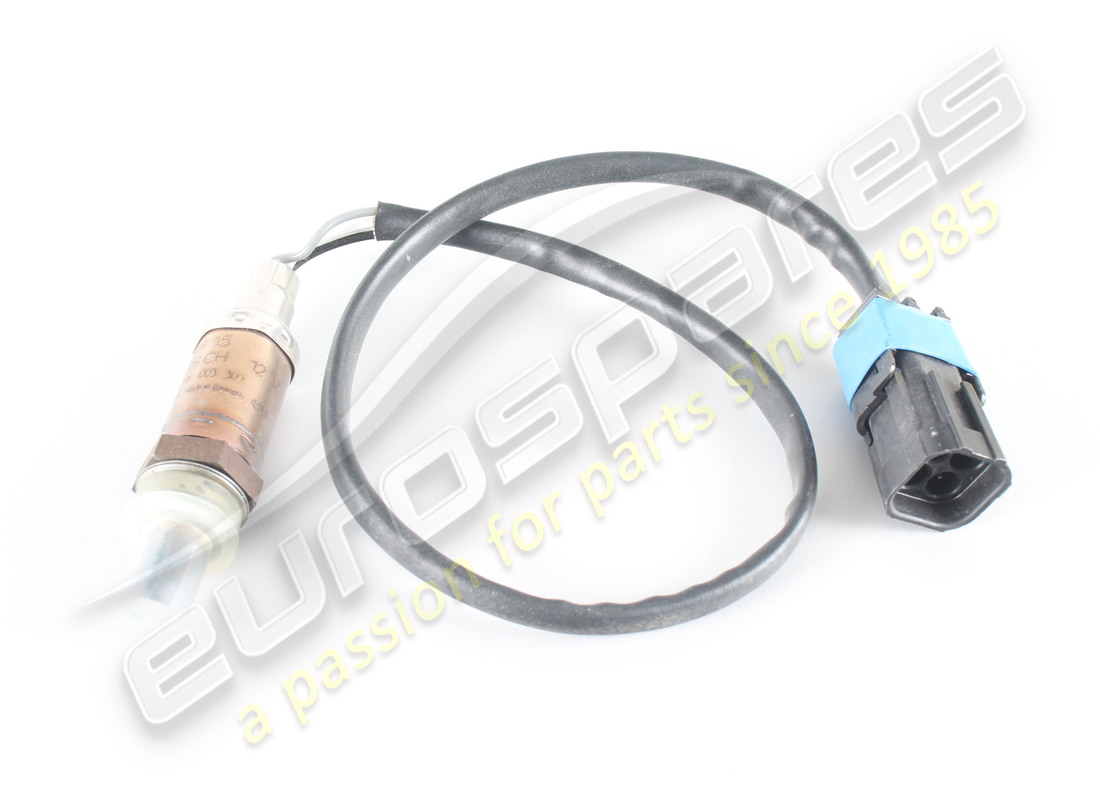

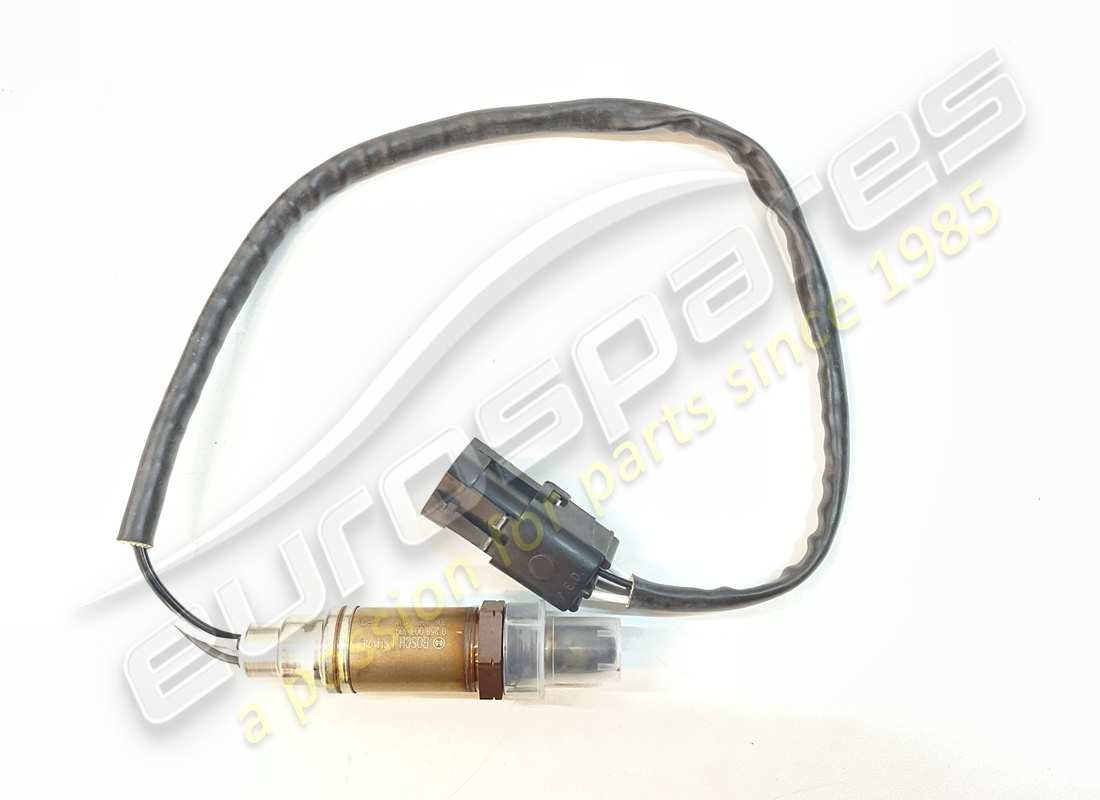

LAMBDA FEELER
from £87.85
from £87.85
This part replaces part number 155010 - and 3 more. Click to view details
# 031
MPN: 157501

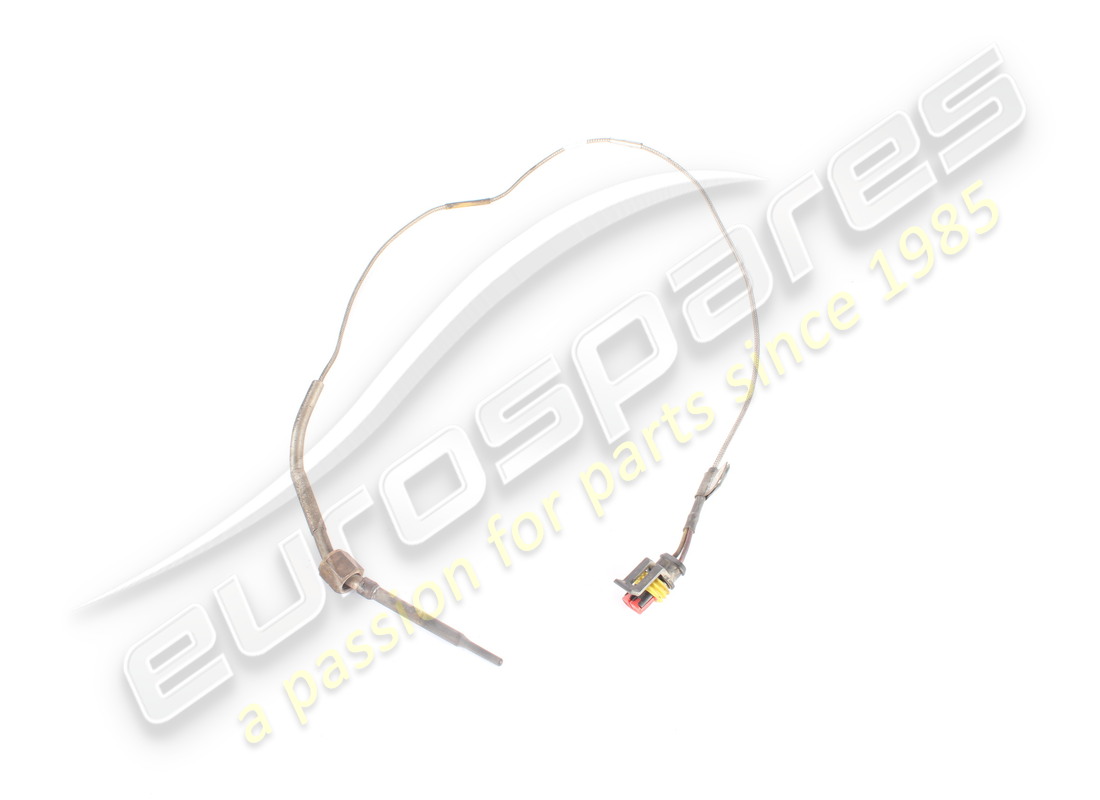

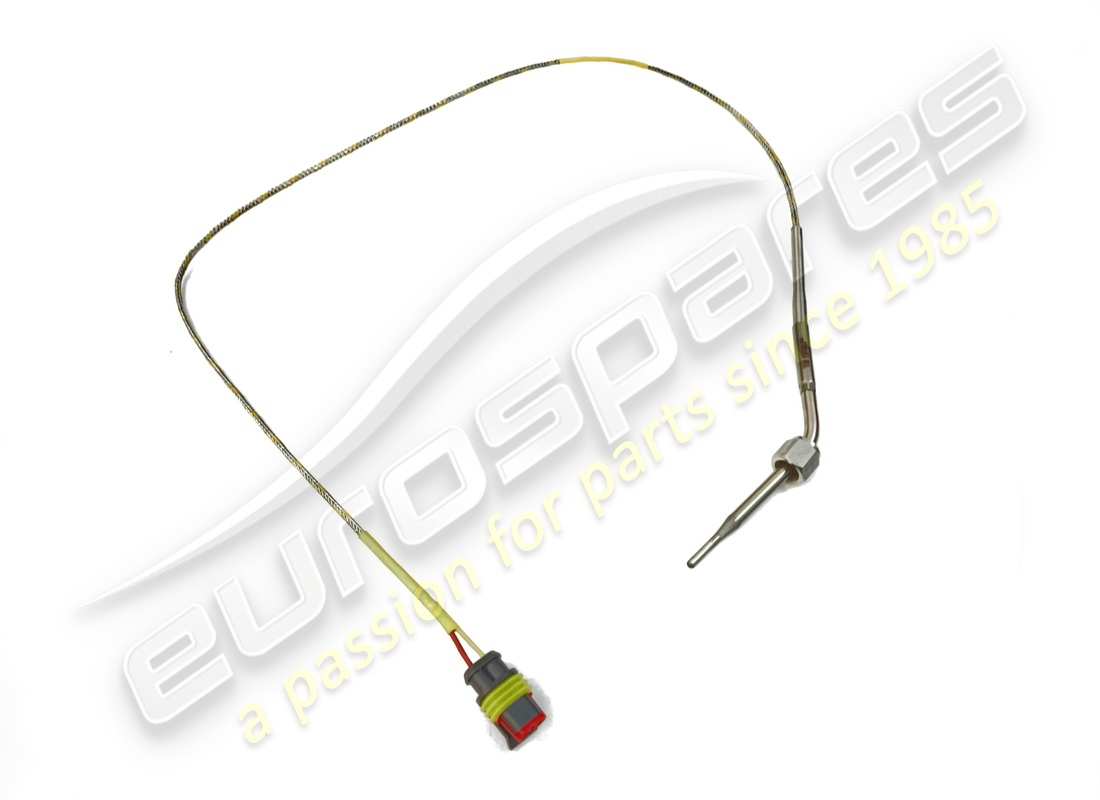

THERMOCOUPLE
from £80.63
from £80.63
# 032
MPN: 159906

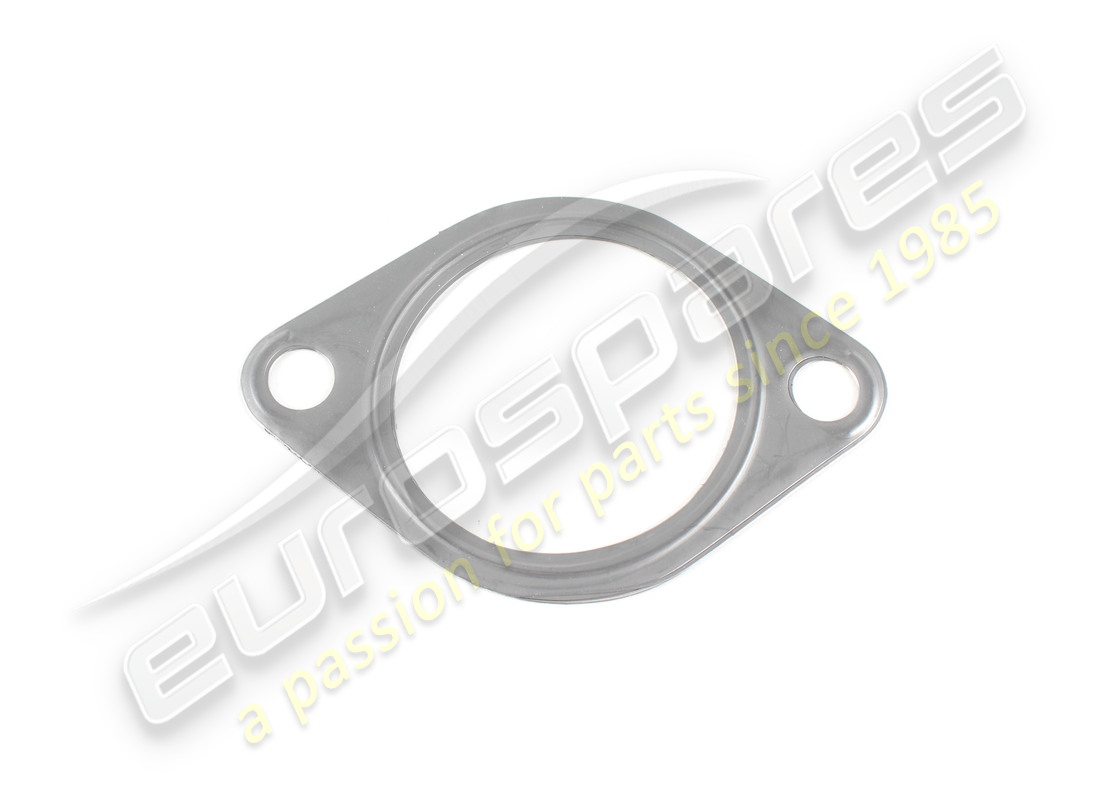

GASKET
from £12.08
from £12.08
# 033
MPN: 162950
RH EXHAUST EXTENSION
from £1,558.95
from £1,558.95
# 033
MPN: 162954
LH EXHAUST EXTENSION
from £1,558.95
from £1,558.95

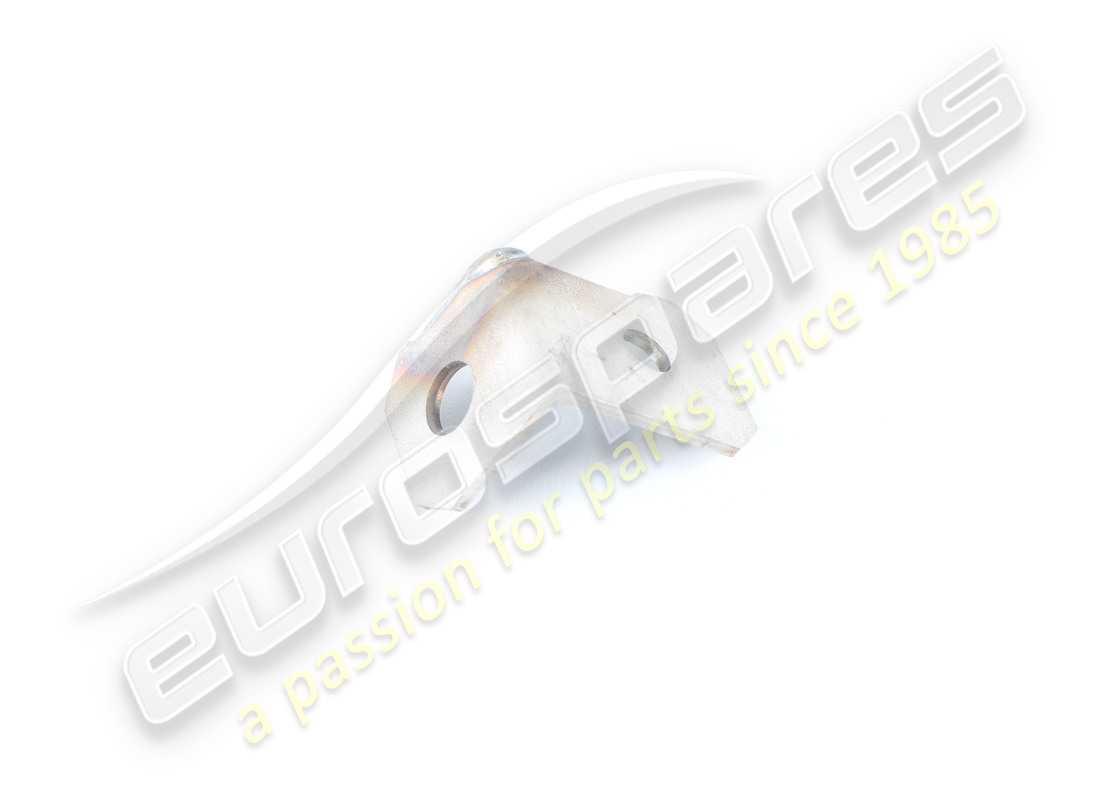

# 034
MPN: 167006
LH BRACKET FOR SILENCER FIXING
from £20.84
from £20.84
# 035
MPN: 149247
RH BRACKET FOR SILENCER FIXING
from £4.39
from £4.39
# 036
MPN: 10902224
SCREW
from £0.51
from £0.51
# 037
MPN: 14488624
WASHER
from £0.47
from £0.47
# 038
MPN: 14048115
NUT
from £1.09
from £1.09
This part replaces part number 14048611 - and 1 more. Click to view details
# 039
MPN: 140754
BALL JOINT
from £83.05
from £83.05
# 040
MPN: 16102314
NUT
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 041
MPN: 159369
SILENCER SUPPORT PIN
from £12.72
from £12.72
# 042
MPN: 167178
WASHER
from £1.19
from £1.19
# 043
MPN: 154084
ANTIVIBRATION PAD
from £5.49
from £5.49
# 044
MPN: 108294
SPACER
from £45.53
from £45.53
This part replaces part number 107336 - and 1 more. Click to view details
# 044
MPN: 154085
SPACER
- Not as spare part now - Replaced by 108294
Supersession
Supersession
# 045
MPN: 133215
NUT
from £3.05
from £3.05
This part replaces part number 64342800
# 046
MPN: 159369
PIN
from £12.72
from £12.72
# 047
MPN: 159233
BRACKET
from £154.07
from £154.07
# 048
MPN: 16100825
NUT
from £0.78
from £0.78
# 049
MPN: 14496524
WASHER
from £0.47
from £0.47
This part replaces part number 14496525 - and 1 more. Click to view details
# 050
MPN: 163023
RH REAR SILENCER
from £9,981.42
from £9,981.42
# 050
MPN: 163024
LH REAR SILENCER
from £9,981.42
from £9,981.42
# 051
MPN: 162952
RH EXHAUST TERMINAL
from £223.25
from £223.25
# 051
MPN: 162956
LH EXHAUST TERMINAL
from £223.25
from £223.25
# 052
MPN: 145181
SCREW
from £16.48
from £16.48
# 053
MPN: 12646778
WASHER
from £0.52
from £0.52
This part replaces part number 156093
# 054
MPN: 111743
SPRING
from £6.97
from £6.97
# 055
MPN: 114749
SPACER
from £1.24
from £1.24
# 056
MPN: 118251
NUT
from £10.66
from £10.66
# 057
MPN: 155006

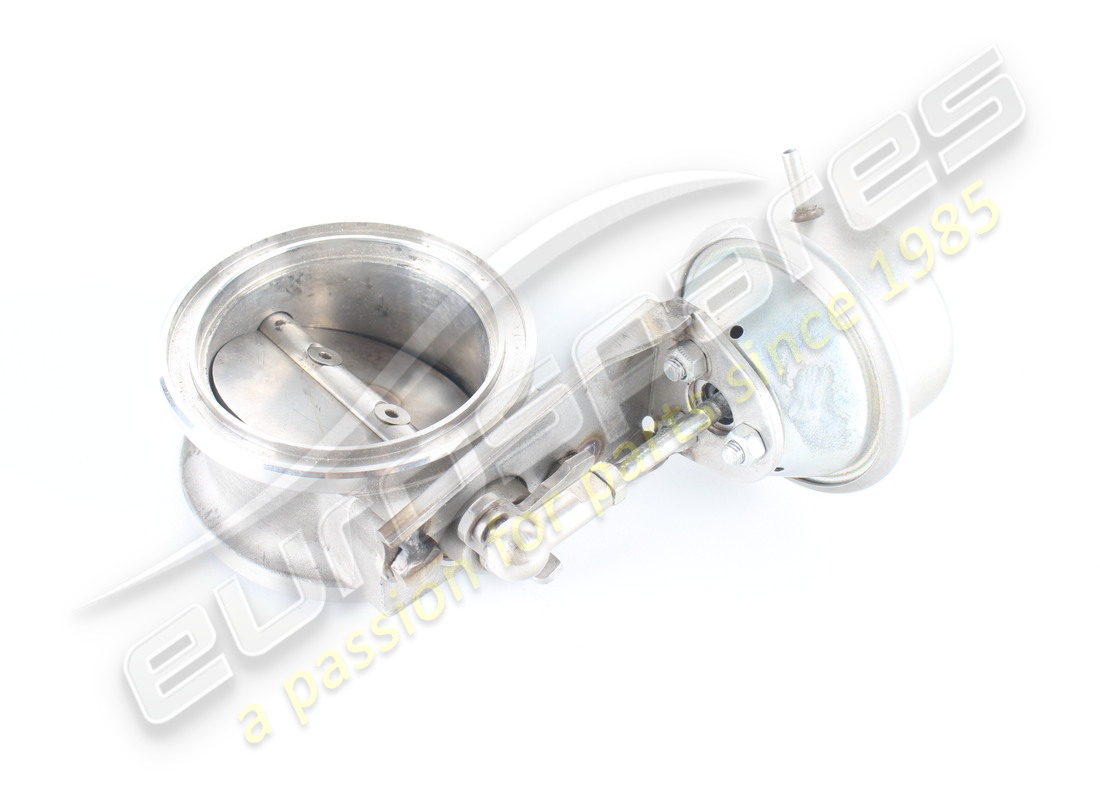

BY PASS VALVE
from £1,632.22
from £1,632.22
This part replaces part number 155006/A - and 5 more. Click to view details
# 058
MPN: 119368
GASKET
from £158.50
from £158.50
# 059
MPN: 16043221
SCREW
from £0.47
from £0.47
This part replaces part number 13842414 - and 1 more. Click to view details
# 060
MPN: 14496524
WASHER
from £0.47
from £0.47
This part replaces part number 14496525 - and 1 more. Click to view details
# 061
MPN: 118251
NUT
from £10.66
from £10.66
# 062
MPN: 179278
CATALYST TEMPERATURE CONTROL STATION
from £175.58
from £175.58
This part replaces part number 160454 which we have in stock - and 3 more. Click to view details
# 063
MPN: 168108
CONTROL UNIT FIXING BRACKET
from £51.30
from £51.30
# 064
MPN: 62790300
NUT
from £0.47
from £0.47
This part replaces part number 12574011 - and 1 more. Click to view details
# 065
MPN: 10519224
WASHER
from £0.47
from £0.47
This part replaces part number 10519201 which we have in stock
# 066
MPN: 162732
SHIELD FOR HEAT PROTECTION
from £85.60
from £85.60
# 067
MPN: 128010
WASHER
from £2.16
from £2.16
# 068
MPN: 168043
PIN
from £11.76
from £11.76
# 069
MPN: 16102924
NUT
from £5.15
from £5.15
# 070
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 071
MPN: 12646778
WASHER
from £0.54
from £0.54
This part replaces part number 156093
# 072
MPN: 12625224
SPACER WASHER
from £0.47
from £0.47
This part replaces part number 12625201 - and 2 more. Click to view details
# 073
MPN: 16043824
SCREW
Supersession
Supersession
This part replaces part number 16043821
# 074
MPN: 133215
NUT
from £3.05
from £3.05
This part replaces part number 64342800
# 075
MPN: 14496524
WASHER
from £0.47
from £0.47
This part replaces part number 14496525 - and 1 more. Click to view details
