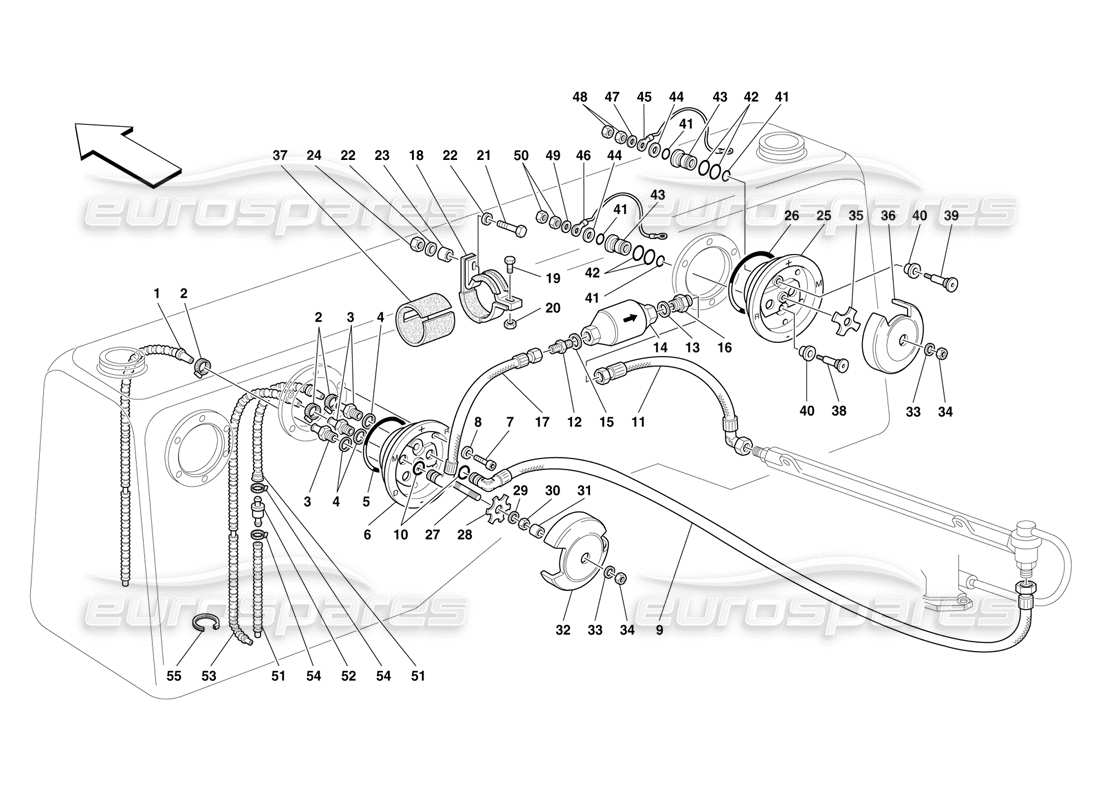

011 - Fuel Injection System
Ferrari F50 Fuel Injection System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 170067
FUEL FLOWING BACK PIPE
from £65.55
from £65.55
# 002
MPN: 13431570
SCREW COLLAR
- Not as spare part now - Replaced by 171406
from £0.67
from £0.67
# 002
MPN: 171406
SCREW COLLAR
from £0.47
from £0.47
# 003
MPN: 164331
UNION
from £25.68
from £25.68
# 004
MPN: 11270150
GASKET
from £4.13
from £4.13
# 005
MPN: 164330
GASKET
from £1.65
from £1.65
# 006
MPN: 165775
LH FLANGE
from £842.97
from £842.97
# 007
MPN: 164329
SCREW
from £0.74
from £0.74

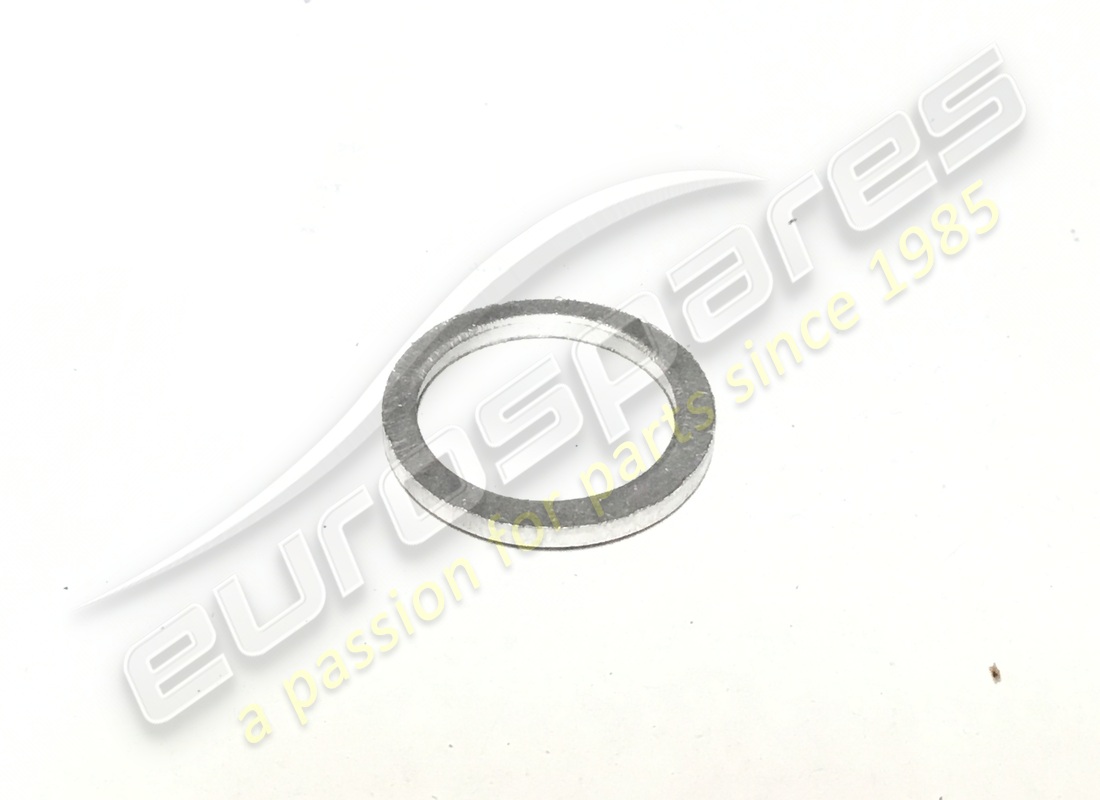

# 008
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 009
MPN: 162862
LH FUEL FLOWING BACK PIPE
Supersession
Supersession
# 009
MPN: 162863
RH FUEL FLOWING BACK PIPE
Supersession
Supersession
# 010
MPN: 127816
GASKET
from £1.41
from £1.41
# 011
MPN: 162860
PIPE FROM FILTER TO FLAUTE
- Valid till stock exhaustion
Supersession
Supersession
# 011
MPN: 170681
PIPE FROM FILTER TO FLAUTE
- Valid after stock exhaustion of 162860
Supersession
Supersession
This part replaces part number 162860
# 012
MPN: 109889
UNION
from £3.74
from £3.74
# 013
MPN: 10280060
GASKET
from £0.47
from £0.47
This part replaces part number 100501 - and 3 more. Click to view details
# 014
MPN: 152212
FUEL FILTER
from £15.70
from £15.70
# 015
MPN: 11270160
GASKET
from £0.87
from £0.87
# 016
MPN: 109797
UNION
from £10.16
from £10.16
# 017
MPN: 162856
PIPE FROM TANK TO FILTER
Supersession
Supersession
# 018
MPN: 152885
BRACKET WITH SHEATH
from £4.38
from £4.38
# 019
MPN: 10902524
SCREW
from £0.47
from £0.47
# 020
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 021
MPN: 115200
SCREW
from £3.64
from £3.64
# 022
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 023
MPN: 166730
SPACER
from £3.29
from £3.29
# 024
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 025
MPN: 164334
RH FLANGE
from £842.97
from £842.97
# 026
MPN: 154102
GASKET
from £3.81
from £3.81
# 027
MPN: 165928
STUD
from £5.82
from £5.82
# 028
MPN: 165776
LH SAFETY PLATE
from £27.81
from £27.81
# 029
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 030
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 031
MPN: 165929
SPACER
from £3.25
from £3.25
# 032
MPN: 165999
LH HEAT SHIELD SMALL SUMP
from £43.29
from £43.29
# 033
MPN: 14496204
WASHER
from £0.47
from £0.47
This part replaces part number 14496201
# 034
MPN: 14084015
NUT
from £0.71
from £0.71
# 035
MPN: 129316
RH SAFETY PLATE
from £3.02
from £3.02
# 036
MPN: 168348
RH HEAT SHIELD SMALL SUMP
from £45.58
from £45.58
# 037
MPN: 164206
FILTER INSULATION
from £85.74
from £85.74
# 038
MPN: 169933
GROUND PIN
from £13.87
from £13.87
# 039
MPN: 169934
GROUND PIN
from £13.87
from £13.87
# 040
MPN: 170072
BUSHING FOR FLANGE
from £10.01
from £10.01
# 041
MPN: 14452681
GASKET
from £0.47
from £0.47
# 042
MPN: 134705
GASKET
from £0.47
from £0.47
# 043
MPN: 170017
BUSHING
from £93.82
from £93.82
# 044
MPN: 10519401
WASHER
from £0.71
from £0.71
# 045
MPN: 170069
POSITIVE ELECTRIC CABLE
from £118.77
from £118.77
# 046
MPN: 170070
NEGATIVE ELECTRIC CABLE
from £17.10
from £17.10
# 047
MPN: 10615470
WASHER
Supersession
Supersession
# 048
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 049
MPN: 149951
WASHER
from £0.47
from £0.47
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 050
MPN: 15896414
NUT
from £0.51
from £0.51
This part replaces part number 15896411
# 051
MPN: 170698
FUEL FLOWING BACK PIPE
# 052
MPN: 166540
NONRETURN VALVE
from £17.11
from £17.11
This part replaces part number 170503
# 053
MPN: 170067
FUEL DELIVERY TUBE
from £65.55
from £65.55
# 054
MPN: 13431570
SCREW COLLAR
- Not as spare part now - Replaced by 171406
from £0.68
from £0.68
# 054
MPN: 171406
SCREW COLLAR
from £0.47
from £0.47
# 055
MPN: 14560180
CLAMP
