Ferrari F40 Dashboard and Tunnel Parts Diagram

118 - Dashboard and Tunnel

Ferrari F40 Dashboard and Tunnel Parts Diagram

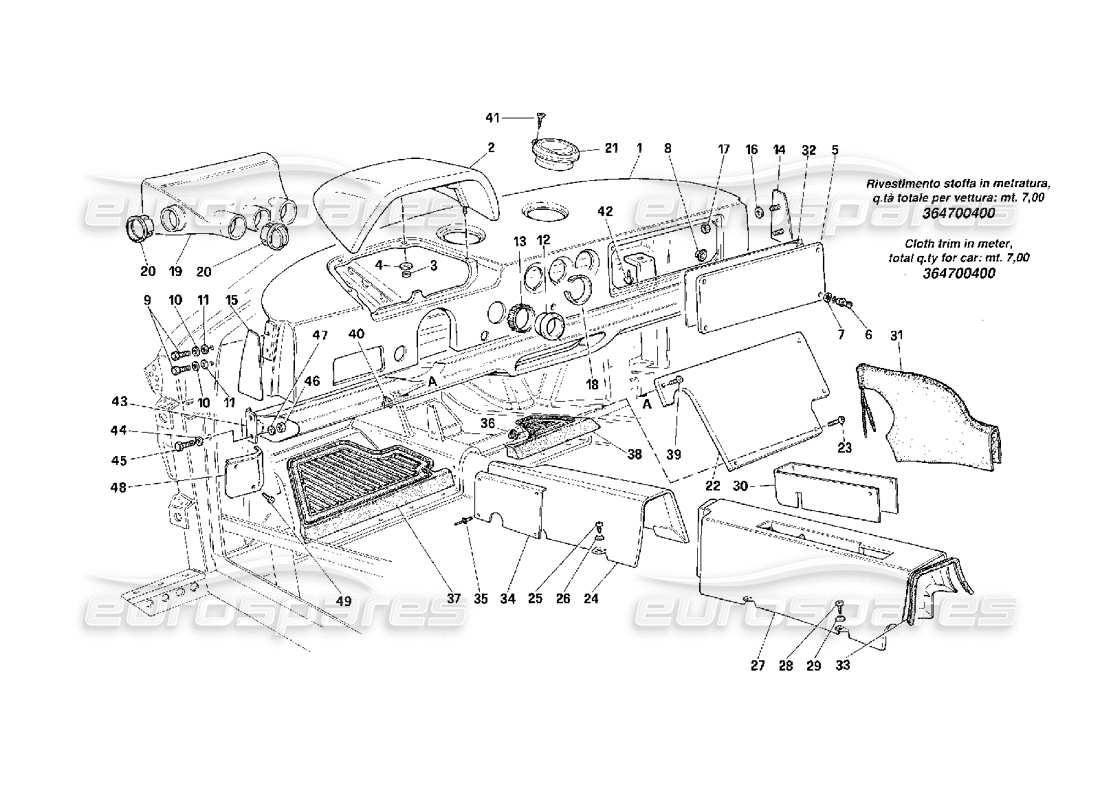

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 62502500
                                                                                          COVERING
                                                                                          from £539.72
                                                                                          from £539.72
                                                                                          # 001
                                                                                          MPN: 62565400
                                                                                          PANEL WITH COVERING
                                                                                          - Not for USA with A.C.
                                                                                          from £2,450.87
                                                                                          from £2,450.87
                                                                                          # 001
                                                                                          MPN: 62743100
                                                                                          PANEL WITH COVERING
                                                                                          - Valid for USA with A.C.
                                                                                          from £2,075.97
                                                                                          from £2,075.97
                                                                                          # 002
                                                                                          MPN: 62590000
                                                                                          DASH BOARD
                                                                                          from £1,152.51
                                                                                          from £1,152.51
                                                                                          This part replaces part number 70000556
                                                                                          # 002
                                                                                          MPN: 62641000
                                                                                          COVERING
                                                                                          from £34.87
                                                                                          from £34.87
                                                                                          This part replaces part number 70000561
                                                                                          # 003
                                                                                          MPN: 10721911

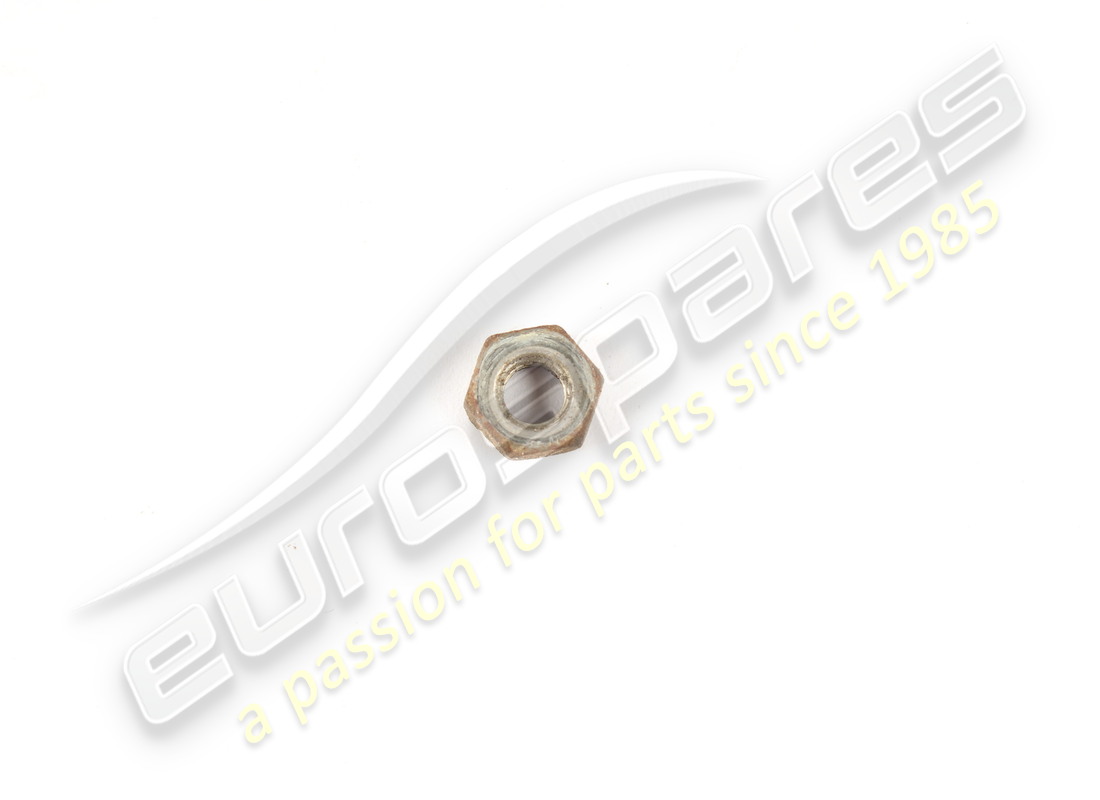

                                                                                          NUT
                                                                                          from £0.53
                                                                                          from £0.53
                                                                                          # 004
                                                                                          MPN: 12642801
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12642824
                                                                                          # 005
                                                                                          MPN: 62503000
                                                                                          COVERING
                                                                                          from £8.83
                                                                                          from £8.83
                                                                                          # 005
                                                                                          MPN: 62565500
                                                                                          LID WITH COVERING
                                                                                          from £505.27
                                                                                          from £505.27
                                                                                          # 006
                                                                                          MPN: 62468200
                                                                                          PIN
                                                                                          from £9.78
                                                                                          from £9.78
                                                                                          This part replaces part number 62547200
                                                                                          # 006
                                                                                          MPN: 62547200
                                                                                          PIN (62468200 ALTERNATIVES)
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 007
                                                                                          MPN: 62468000
                                                                                          STOP RING
                                                                                          from £8.01
                                                                                          from £8.01
                                                                                          # 008
                                                                                          MPN: 62467900
                                                                                          PIN CLIP
                                                                                          from £6.34
                                                                                          from £6.34
                                                                                          # 009
                                                                                          MPN: 10902387
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10902327 which we have in stock
                                                                                          # 010
                                                                                          MPN: 12640606
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 011
                                                                                          MPN: 12643777
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
                                                                                          # 012
                                                                                          MPN: 62451600
                                                                                          RING NUT
                                                                                          from £4.14
                                                                                          from £4.14
                                                                                          # 013
                                                                                          MPN: 62451700
                                                                                          RING
                                                                                          from £6.97
                                                                                          from £6.97
                                                                                          # 014
                                                                                          MPN: 62590100
                                                                                          RH MOULDING WITH COVERING
                                                                                          from £51.08
                                                                                          from £51.08
                                                                                          This part replaces part number 70000557
                                                                                          # 015
                                                                                          MPN: 62590200
                                                                                          LH MOULDING WITH COVERING
                                                                                          from £129.63
                                                                                          from £129.63
                                                                                          This part replaces part number 70000558
                                                                                          # 016
                                                                                          MPN: 12624101
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 017
                                                                                          MPN: 10794011
                                                                                          NUT
                                                                                          from £0.26
                                                                                          from £0.26
                                                                                          # 018
                                                                                          MPN: 70000562
                                                                                          MOULDING WITH COVERING
                                                                                          from £66.89
                                                                                          from £66.89
                                                                                          # 019
                                                                                          MPN: 62420200

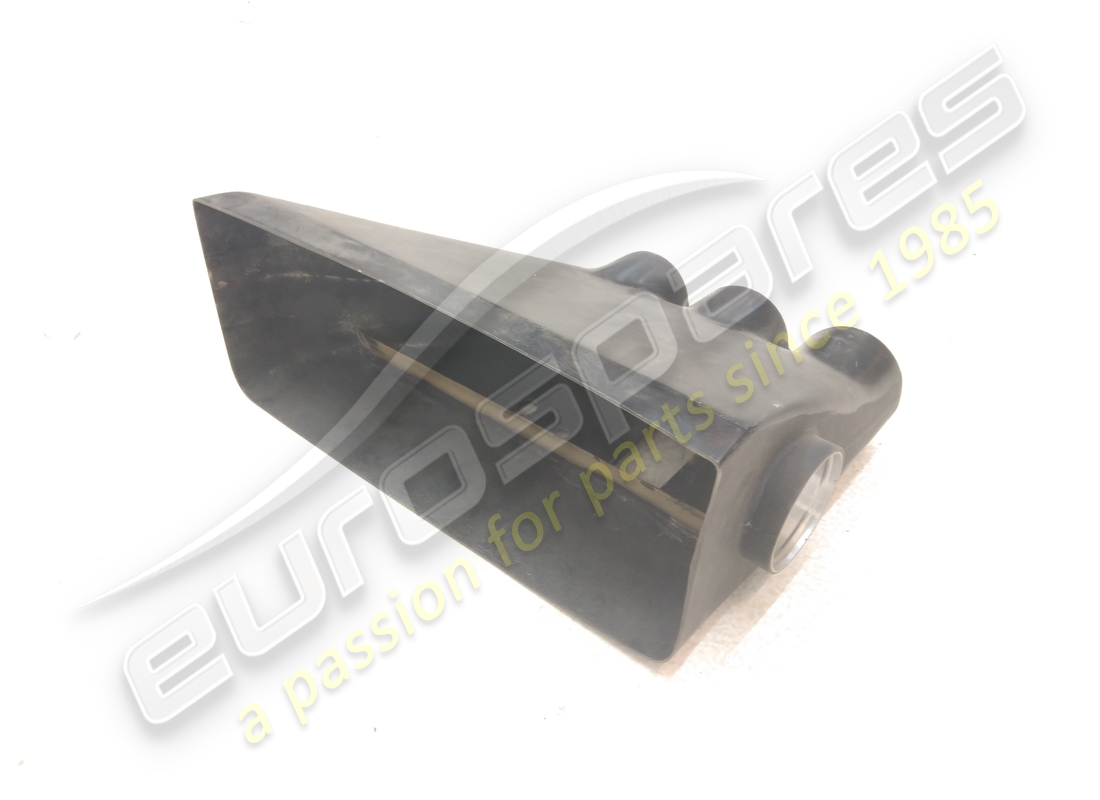

                                                                                          CONVEYOR
                                                                                          from £1,575.22
                                                                                          from £1,575.22
                                                                                          # 020
                                                                                          MPN: 60656500
                                                                                          AIR OUTLET
                                                                                          from £25.22
                                                                                          from £25.22
                                                                                          # 021
                                                                                          MPN: 62509800
                                                                                          AIR OUTLET
                                                                                          from £84.32
                                                                                          from £84.32
                                                                                          # 022
                                                                                          MPN: 62385200
                                                                                          PLATE
                                                                                          from £1,805.60
                                                                                          from £1,805.60
                                                                                          # 023
                                                                                          MPN: 13274672
                                                                                          SCREW
                                                                                          from £0.55
                                                                                          from £0.55
                                                                                          This part replaces part number 13274617
                                                                                          # 024
                                                                                          MPN: 62497400
                                                                                          COVERING
                                                                                          from £162.61
                                                                                          from £162.61
                                                                                          # 024
                                                                                          MPN: 62553500
                                                                                          FRONT TUNNEL WITH COVERING
                                                                                          from £265.42
                                                                                          from £265.42
                                                                                          # 025
                                                                                          MPN: 15908806
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 026
                                                                                          MPN: 12611607
                                                                                          WASHER
                                                                                          from £1.28
                                                                                          from £1.28
                                                                                          # 027
                                                                                          MPN: 62497300
                                                                                          COVERING
                                                                                          from £739.19
                                                                                          from £739.19
                                                                                          # 027
                                                                                          MPN: 62540100
                                                                                          COVERING
                                                                                          from £724.40
                                                                                          from £724.40
                                                                                          # 027
                                                                                          MPN: 62553400
                                                                                          REAR TUNNEL WITH COVERING
                                                                                          - Not for USA
                                                                                          from £485.10
                                                                                          from £485.10
                                                                                          # 027
                                                                                          MPN: 62730600
                                                                                          REAR TUNNEL WITH COVERING
                                                                                          - Valid for USA
                                                                                          from £1,566.72
                                                                                          from £1,566.72
                                                                                          # 028
                                                                                          MPN: 15908478
                                                                                          SCREW
                                                                                          from £0.49
                                                                                          from £0.49
                                                                                          # 029
                                                                                          MPN: 12611607
                                                                                          WASHER
                                                                                          from £1.27
                                                                                          from £1.27
                                                                                          # 030
                                                                                          MPN: 62540200
                                                                                          COVERING
                                                                                          from £7.52
                                                                                          from £7.52
                                                                                          # 030
                                                                                          MPN: 62568500
                                                                                          MOULDING WITH COVERING
                                                                                          from £1,254.75
                                                                                          from £1,254.75
                                                                                          This part replaces part number 70000560
                                                                                          # 031
                                                                                          MPN: 62526900
                                                                                          BOOT
                                                                                          from £295.68
                                                                                          from £295.68
                                                                                          # 032
                                                                                          MPN: 62426000
                                                                                          RELAYS PLATE
                                                                                          - For control unit 62425800
                                                                                          from £33.67
                                                                                          from £33.67
                                                                                          # 033
                                                                                          MPN: 62568600
                                                                                          REAR SEALING CORD
                                                                                          from £39.35
                                                                                          from £39.35
                                                                                          # 034
                                                                                          MPN: 62566700
                                                                                          SHIELD
                                                                                          from £32.59
                                                                                          from £32.59
                                                                                          # 035
                                                                                          MPN: 61741600
                                                                                          RIVET
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 036
                                                                                          MPN: 62471100
                                                                                          CLIP
                                                                                          from £11.37
                                                                                          from £11.37
                                                                                          # 037
                                                                                          MPN: 62549900
                                                                                          CARPET
                                                                                          from £511.74
                                                                                          from £511.74
                                                                                          # 038
                                                                                          MPN: 62576400
                                                                                          CARPET

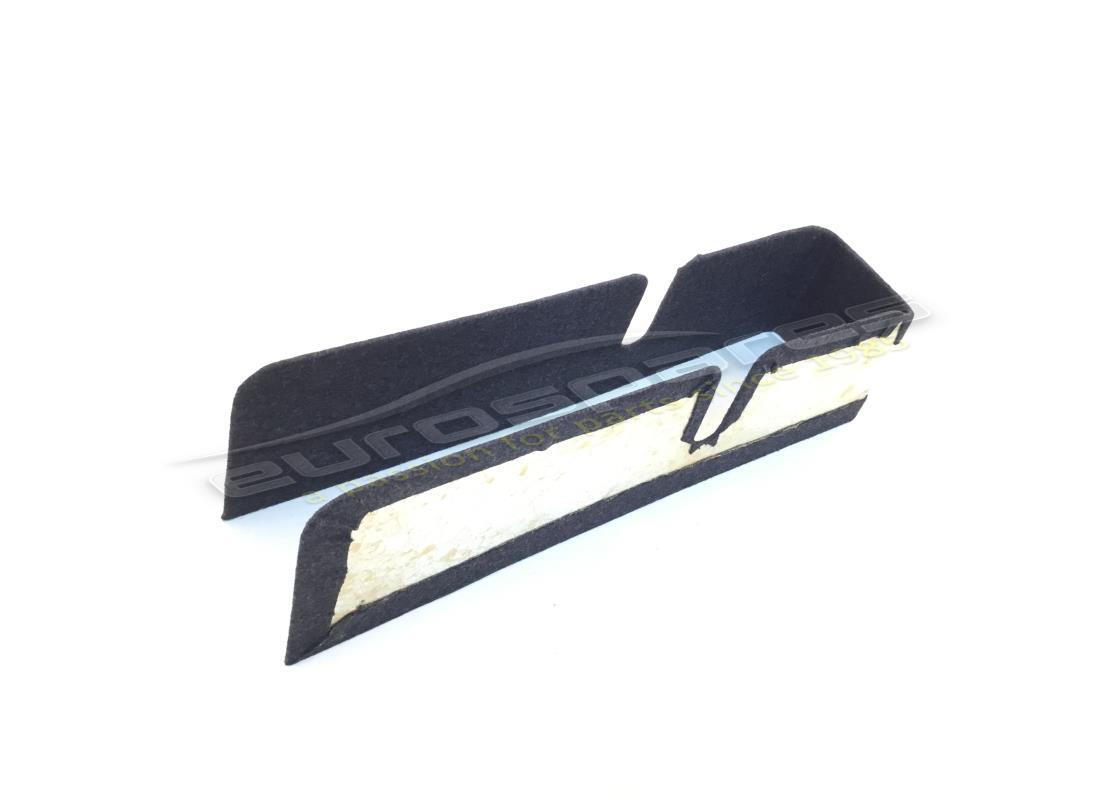

                                                                                          from £334.44
                                                                                          from £334.44
                                                                                          # 040
                                                                                          MPN: 62471200
                                                                                          BALL TO FIX. LIFTING SYSTEM
                                                                                          from £5.45
                                                                                          from £5.45
                                                                                          # 041
                                                                                          MPN: 15692178
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 042
                                                                                          MPN: 15925901
                                                                                          SCREW
                                                                                          # 043
                                                                                          MPN: 62759000
                                                                                          KNEE GUARD WITH COVERING
                                                                                          - Valid for USA
                                                                                          from £2,170.93
                                                                                          from £2,170.93
                                                                                          # 043
                                                                                          MPN: 62759100
                                                                                          COVERING
                                                                                          # 044
                                                                                          MPN: 12639721
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 12639711
                                                                                          # 045
                                                                                          MPN: 10902611
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 047
                                                                                          MPN: 12640606
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 048
                                                                                          MPN: 62758400
                                                                                          RH ELECTRICAL BOARD COVER
                                                                                          - Valid for USA
                                                                                          from £76.83
                                                                                          from £76.83
                                                                                          # 048
                                                                                          MPN: 62760800
                                                                                          LH ELECTRICAL BOARD COVER
                                                                                          - Valid for USA
                                                                                          from £88.19
                                                                                          from £88.19
                                                                                          # 049
                                                                                          MPN: 13273916
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
