042 - Hand-Brake Control and Caliper

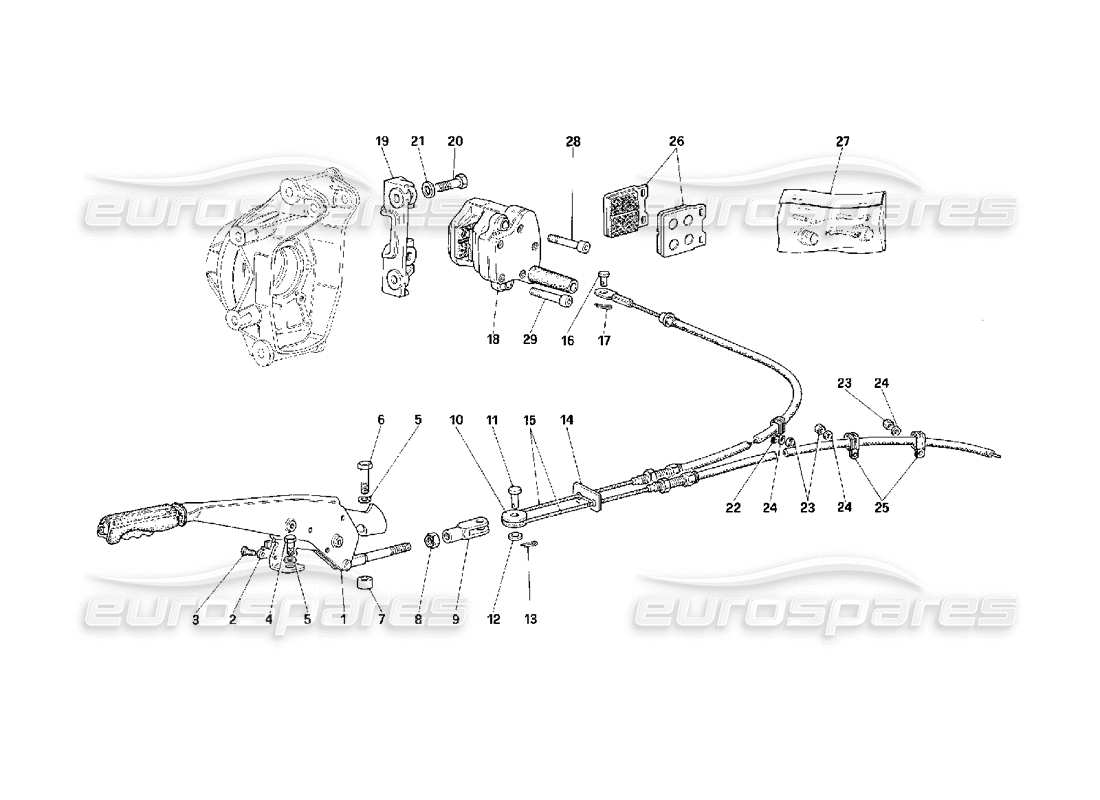

Ferrari F40 Hand-Brake Control and Caliper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 125462
HAND BRAKE LEVER
from £176.28
from £176.28
# 002
MPN: 122043
SWITCH
from £71.83
from £71.83
# 003
MPN: 13271911
SCREW
from £0.71
from £0.71
# 004
MPN: 16043221
SCREW
from £0.47
from £0.47
This part replaces part number 13842414 - and 1 more. Click to view details
# 005
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 - and 2 more. Click to view details
# 006
MPN: 16043721
SCREW
from £1.11
from £1.11
# 007
MPN: 136670
SPACER
from £2.35
from £2.35
# 008
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 009
MPN: 10248271
FORK
from £13.21
from £13.21
# 010
MPN: 122091
RULLEY
from £4.30
from £4.30
# 011
MPN: 10050811
PIN
from £5.22
from £5.22
This part replaces part number 10050810
# 012
MPN: 13550301
WASHER
from £0.47
from £0.47
# 013
MPN: 10734201
COTTER
Supersession
Supersession
# 014
MPN: 122092
PLATE
from £1.05
from £1.05
# 015
MPN: 135005
CABLE
from £184.63
from £184.63
# 016
MPN: 142531
PIN
from £6.32
from £6.32
# 017
MPN: 10794801
COTTER
from £0.47
from £0.47
# 018
MPN: 149248
RH CALIPER WITH PADS
from £1,451.01
from £1,451.01
This part replaces part number 133128
# 018
MPN: 149249
LH CALIPER WITH PADS
from £2,218.37
from £2,218.37
This part replaces part number 133129
# 019
MPN: 135142
BRACKET
from £802.59
from £802.59
# 020
MPN: 15540521
SCREW
from £0.49
from £0.49
# 021
MPN: 11198679
WASHER
from £0.47
from £0.47
# 022
MPN: 10441790
BRACKET
from £0.47
from £0.47
# 022
MPN: 10442090
BRACKET (ONLY FOR CAR WITH LIFTING SYSTEM)
from £0.47
from £0.47
# 023
MPN: 15896221
NUT
from £0.71
from £0.71
This part replaces part number 15896225
# 024
MPN: 11197773
WASHER
Supersession
Supersession
# 025
MPN: 10441290
BRACKET
from £0.47
from £0.47
# 025
MPN: 10441790
BRACKET (ONLY FOR CAR WITH LIFTING SYSTEM)
from £0.47
from £0.47
# 026
MPN: 149250
HAND BRAKE PADS SET
from £497.88
from £497.88
This part replaces part number 138966
# 027
MPN: 138969
OVERHAUL KIT CALIPER (COMPOSED WITH PINS AND RUBBER BOOTS)
from £239.79
from £239.79
# 028
MPN: 14308421
SCREW
from £0.94
from £0.94
# 029
MPN: 139759
SCREW
from £58.59
from £58.59
