025 - Lubrication - Pumps

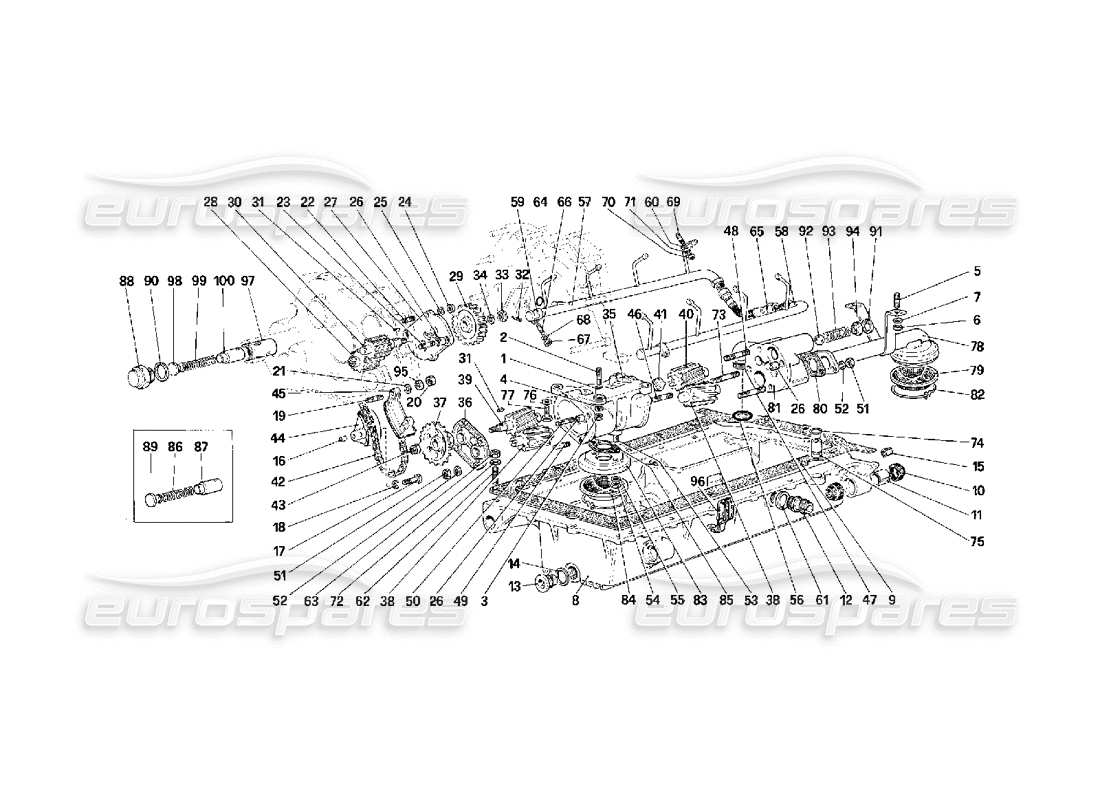

Ferrari F40 Lubrication - Pumps Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 122051
SCAVENGE PUMP BODY COMPLETE
from £818.13
from £818.13
This part replaces part number 121960
# 000
MPN: 134999
OIL SUMP COMPLETE
- Cars with A.C.
from £2,723.61
from £2,723.61
This part replaces part number 134936 - and 2 more. Click to view details
# 000
MPN: 136132
OIL SUMP COMPLETE
- Cars without A.C.
Supersession
Supersession
# 001
MPN: 121906
DOWEL
from £2.36
from £2.36
# 002
MPN: 13543621
STUD
Supersession
Supersession
# 003
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 004
MPN: 12601379
WASHER
from £0.96
from £0.96
This part replaces part number 12601370
# 005
MPN: 13516421
STUD
from £3.35
from £3.35
# 006
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 007
MPN: 106852
WASHER
Supersession
Supersession
This part replaces part number 10516670 - and 2 more. Click to view details
# 008
MPN: 134936
oil sump
- With assembly 13499
Supersession
Supersession
# 008
MPN: 134998
oil sump
- With assembly 136132
Supersession
Supersession
# 009
MPN: 144254
GASKET
from £14.51
from £14.51
This part replaces part number 121961
# 010
MPN: 121929
RING
from £13.17
from £13.17
# 011
MPN: 124467
BUSH
from £5.57
from £5.57
# 012
MPN: 134930
FITTING
from £98.54
from £98.54
# 013
MPN: 104280
PLUG
from £4.95
from £4.95
This part replaces part number 523977
# 014
MPN: 10263460

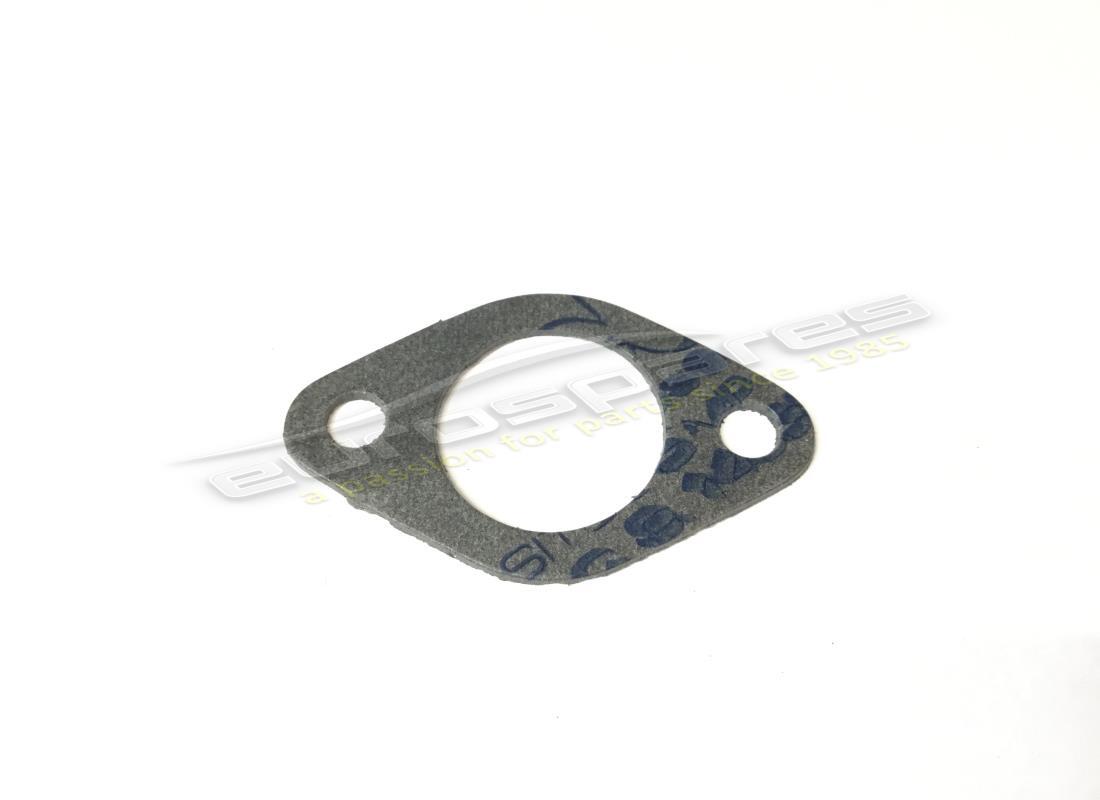

GASKET
from £0.47
from £0.47
This part replaces part number 95119
# 015
MPN: 122976
HELI COIL
from £10.34
from £10.34
# 016
MPN: 125716
DOWEL
from £1.50
from £1.50
# 017
MPN: 10902421
SCREW
from £0.47
from £0.47
# 018
MPN: 11197779
WASHER
Supersession
Supersession
# 019
MPN: 11500321
STUD
Supersession
Supersession
# 020
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 021
MPN: 11197779
WASHER
Supersession
Supersession
# 022
MPN: 13540821
SHORT STUD
Supersession
Supersession
# 023
MPN: 13541124
LONG STUD
from £11.60
from £11.60
This part replaces part number 13541121
# 024
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 025
MPN: 11197779
WASHER
Supersession
Supersession
# 026
MPN: 102725
DOWEL
from £0.58
from £0.58
# 027
MPN: 124111
COVER FOR OIL PUMP
from £41.09
from £41.09
# 028
MPN: 134766
DRIVEN GEAR
from £36.23
from £36.23
# 029
MPN: 124924
CONTROL GEAR
from £377.43
from £377.43
# 030
MPN: 134767
DRIVING GEAR
from £473.06
from £473.06
# 031
MPN: 10205620
Key
from £0.50
from £0.50
# 032
MPN: 10734301
SPLIT PIN
from £0.47
from £0.47
# 033
MPN: 102900
NUT
from £7.66
from £7.66
This part replaces part number 4146931
# 034
MPN: 11198570
WASHER
from £0.47
from £0.47
# 035
MPN: 121960
SCAVENGE PUMP BODY
- With assembly 122051
Supersession
Supersession
# 036
MPN: 109301
FRONT COVER FOR PUMP
from £164.06
from £164.06
This part replaces part number 109575
# 037
MPN: 125075
EXTERNAL GEAR
from £483.00
from £483.00
# 038
MPN: 134744
DRIVEN GEAR
from £593.22
from £593.22
# 039
MPN: 134745
FRONT DRIVING GEAR
from £262.26
from £262.26
# 040
MPN: 134746
REAR DRIVING GEAR
from £522.60
from £522.60
# 041
MPN: 109309
COUPLING
from £8.99
from £8.99
# 042
MPN: 109326
CHAIN
from £58.56
from £58.56
# 043
MPN: 104011

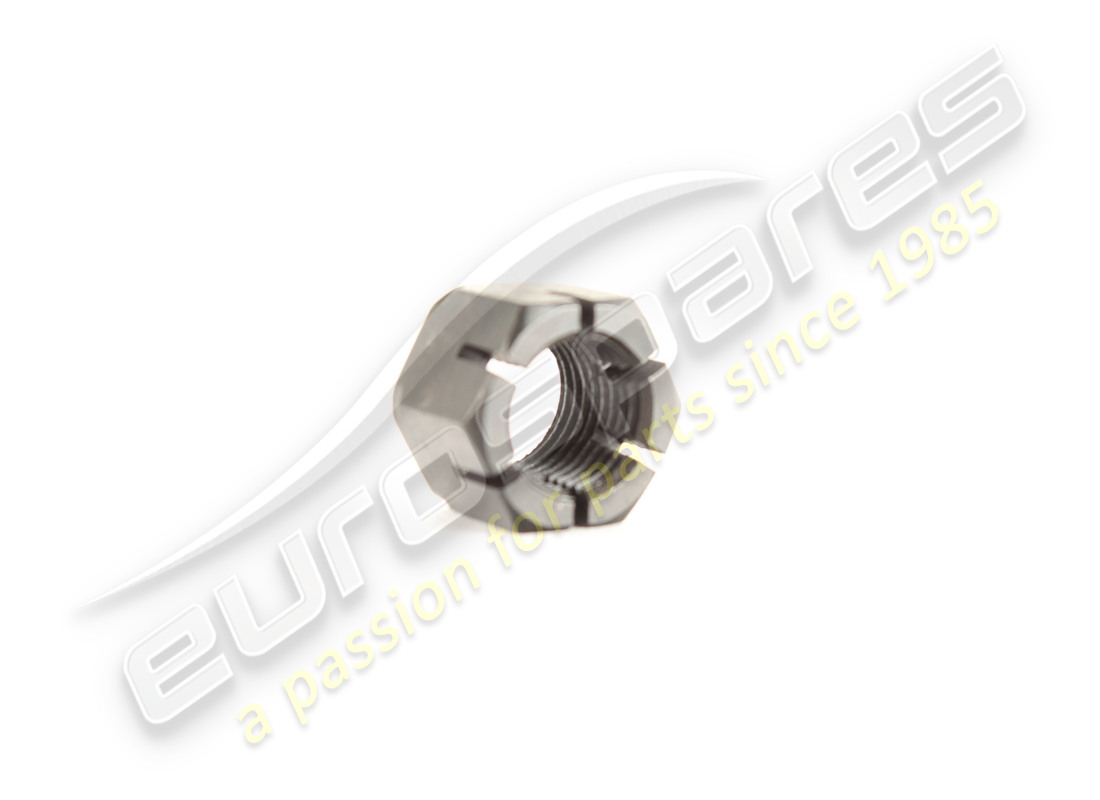

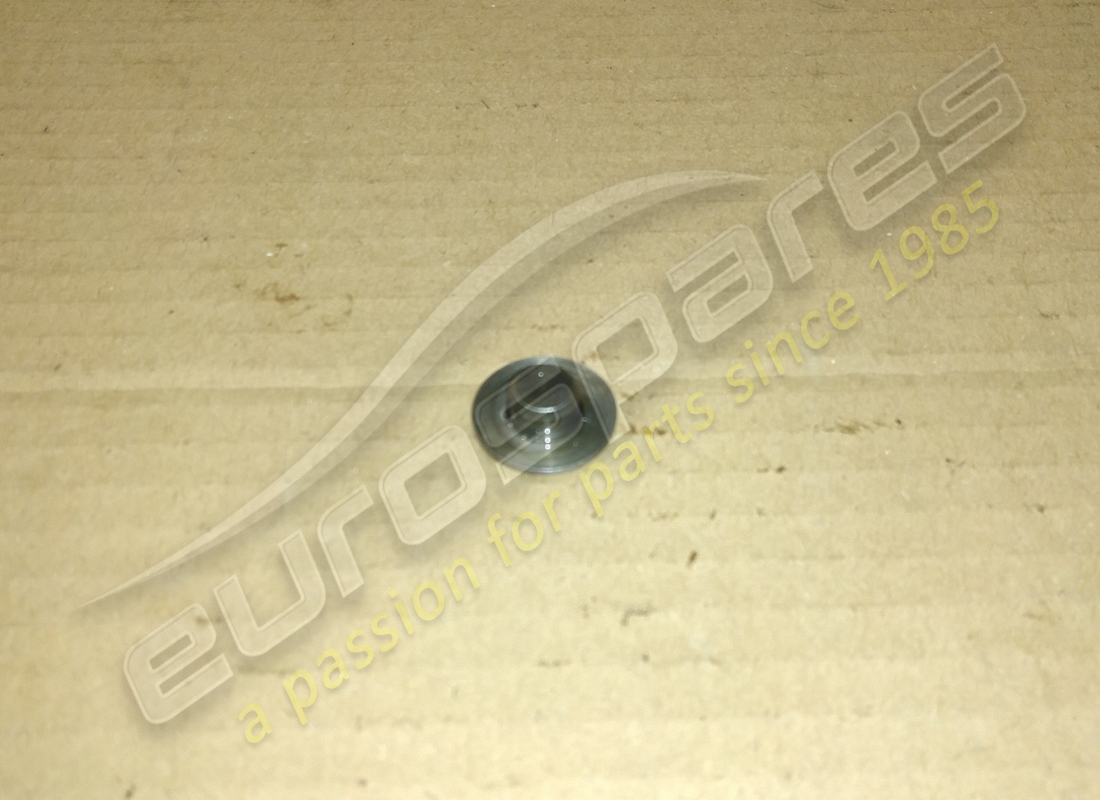

SELF LOCKING NUT
from £9.62
from £9.62
This part replaces part number 14511 - and 1 more. Click to view details
# 044
MPN: 136196
RIGHT TENSION PAD
from £91.01
from £91.01
This part replaces part number 109454
# 045
MPN: 136195
LEFT TENSION PAD
from £161.48
from £161.48
# 046
MPN: 11501421

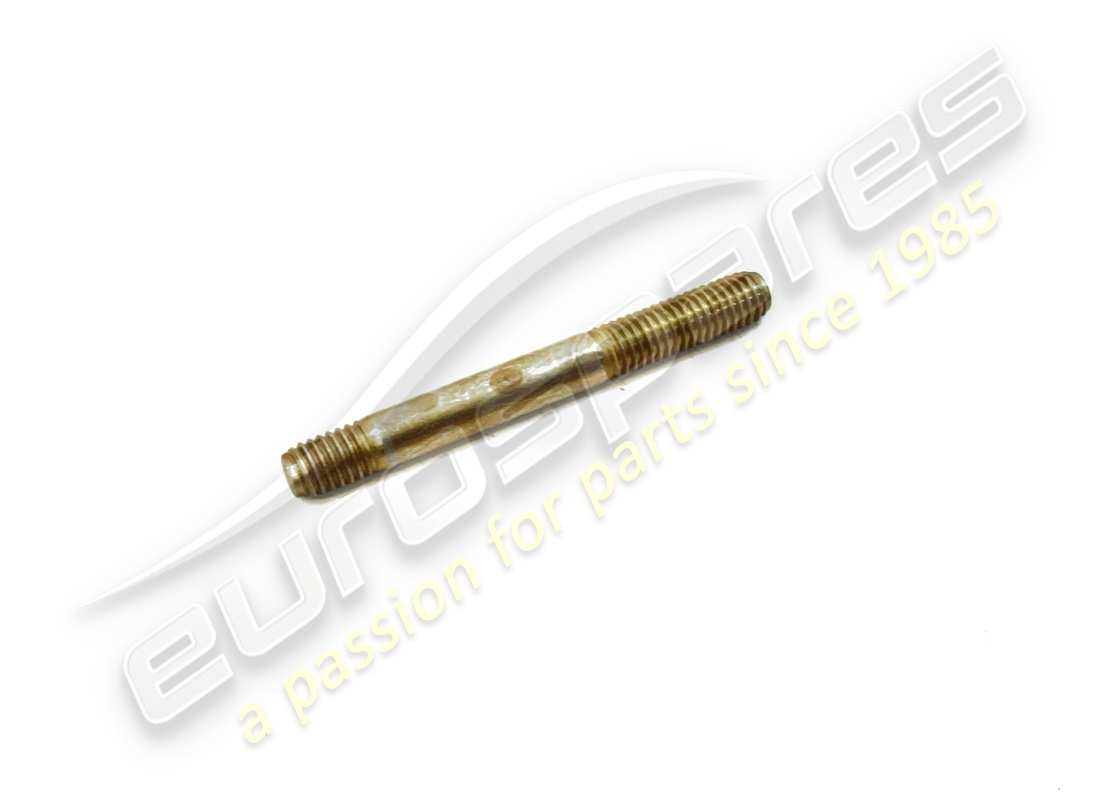

STUD
from £0.47
from £0.47
# 047
MPN: 11501821
STUD
from £3.37
from £3.37
# 048
MPN: 11501721
STUD
from £0.71
from £0.71
# 049
MPN: 11500321
STUD
Supersession
Supersession
# 050
MPN: 11500521
STUD
Supersession
Supersession
# 051
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 052
MPN: 11197779
WASHER
Supersession
Supersession
# 053
MPN: 11500021
STUD
from £9.50
from £9.50
# 054
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 055
MPN: 12601279
WASHER
from £0.47
from £0.47
This part replaces part number 12601271 - and 2 more. Click to view details
# 056
MPN: 104213

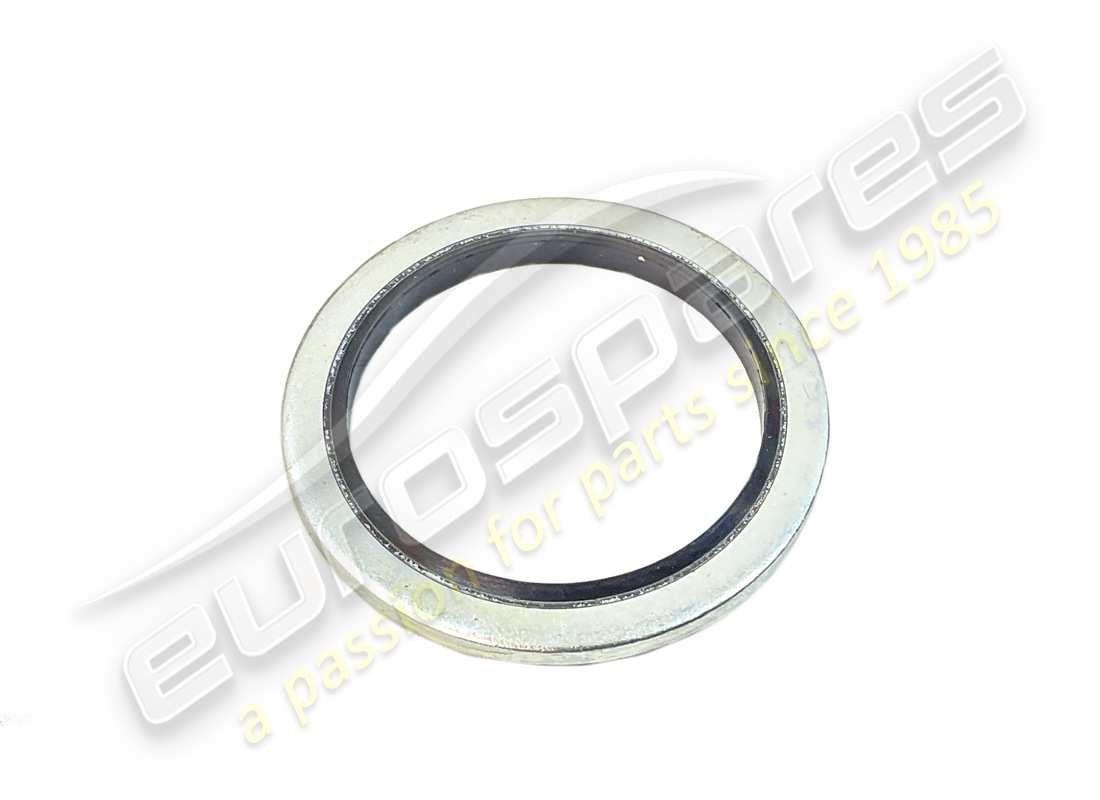

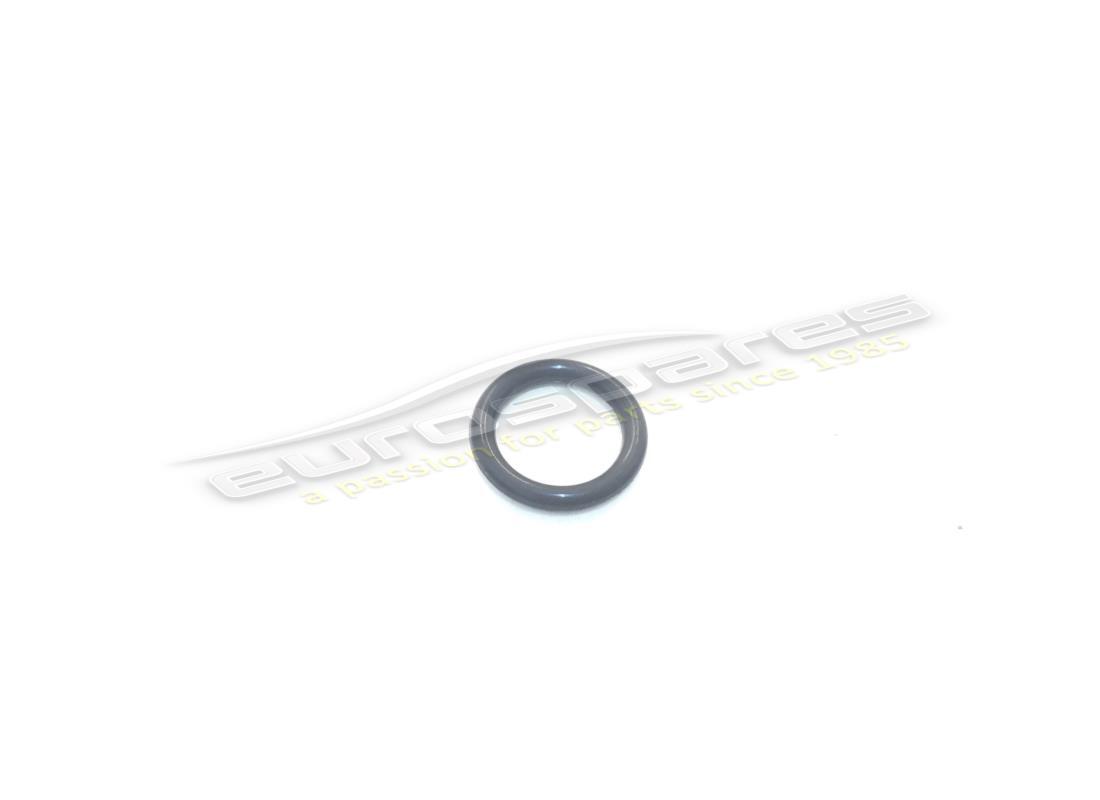

SEALING RING
from £0.91
from £0.91
# 057
MPN: 137265
OIL DELIVERY PIPE RIGHT
from £97.88
from £97.88
# 058
MPN: 137264
OIL DELIVERY PIPE LEFT
from £95.94
from £95.94
# 059
MPN: 123171
CLAMP
from £3.47
from £3.47
# 060
MPN: 123170
CLAMP
from £50.73
from £50.73
# 061
MPN: 10263460
GASKET
from £0.47
from £0.47
This part replaces part number 95119
# 062
MPN: 12354524
STUD
from £15.48
from £15.48
This part replaces part number 12354521
# 063
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 064
MPN: 123622

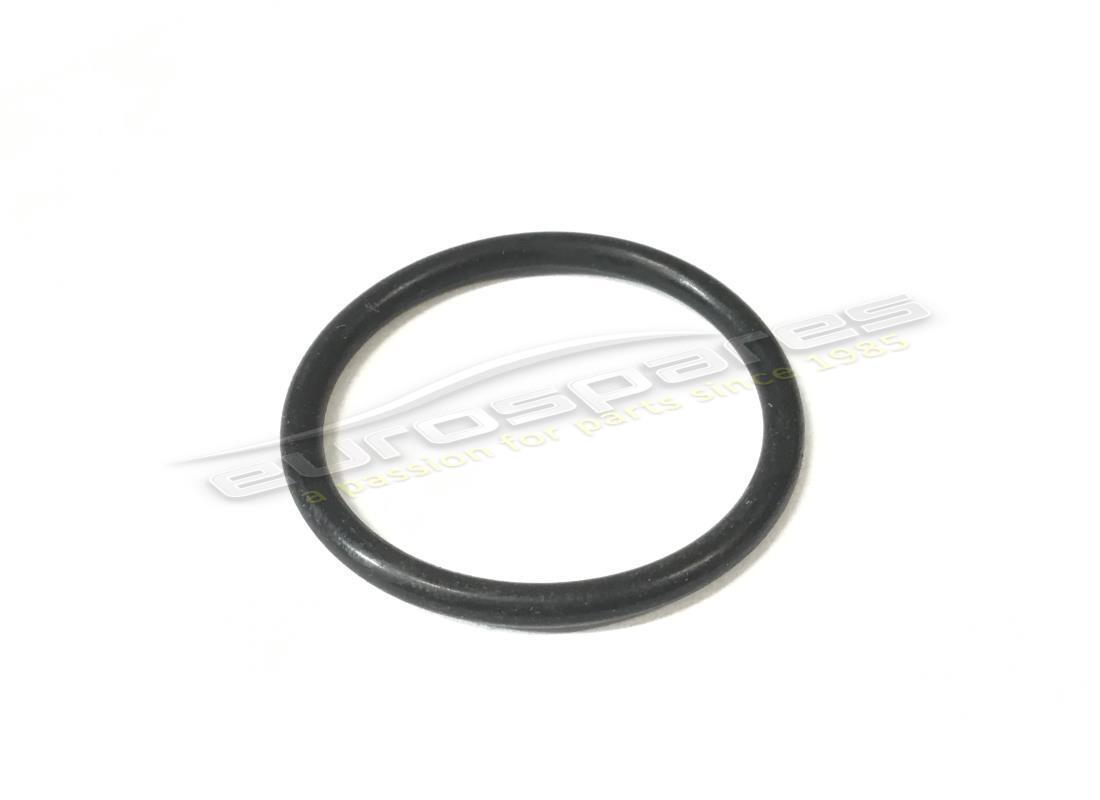

SEALING RING
from £0.79
from £0.79
# 065
MPN: 123192
PIPE
from £44.10
from £44.10
# 066
MPN: 11500021
NUT
from £9.50
from £9.50
# 067
MPN: 13679811
WASHER
from £0.47
from £0.47
# 068
MPN: 14496421
WASHER
Supersession
Supersession
# 069
MPN: 13539024
NUT
from £0.77
from £0.77
This part replaces part number 13539021
# 070
MPN: 14058319
NUT
from £0.51
from £0.51
This part replaces part number 139951 - and 1 more. Click to view details
# 071
MPN: 14496324
WASHER
from £1.44
from £1.44
This part replaces part number 14496301
# 072
MPN: 12601379
WASHER
from £0.99
from £0.99
This part replaces part number 12601370
# 073
MPN: 11501921
STUD
from £2.61
from £2.61
# 074
MPN: 103839
RING
from £6.90
from £6.90
This part replaces part number 100589 - and 1 more. Click to view details
# 075
MPN: 103838
DOWEL
from £2.24
from £2.24
This part replaces part number 9100588
# 076
MPN: 11198079
WASHER
from £1.20
from £1.20
This part replaces part number 11198070
# 077
MPN: 16043821
SCREW
from £0.71
from £0.71
# 078
MPN: 121947

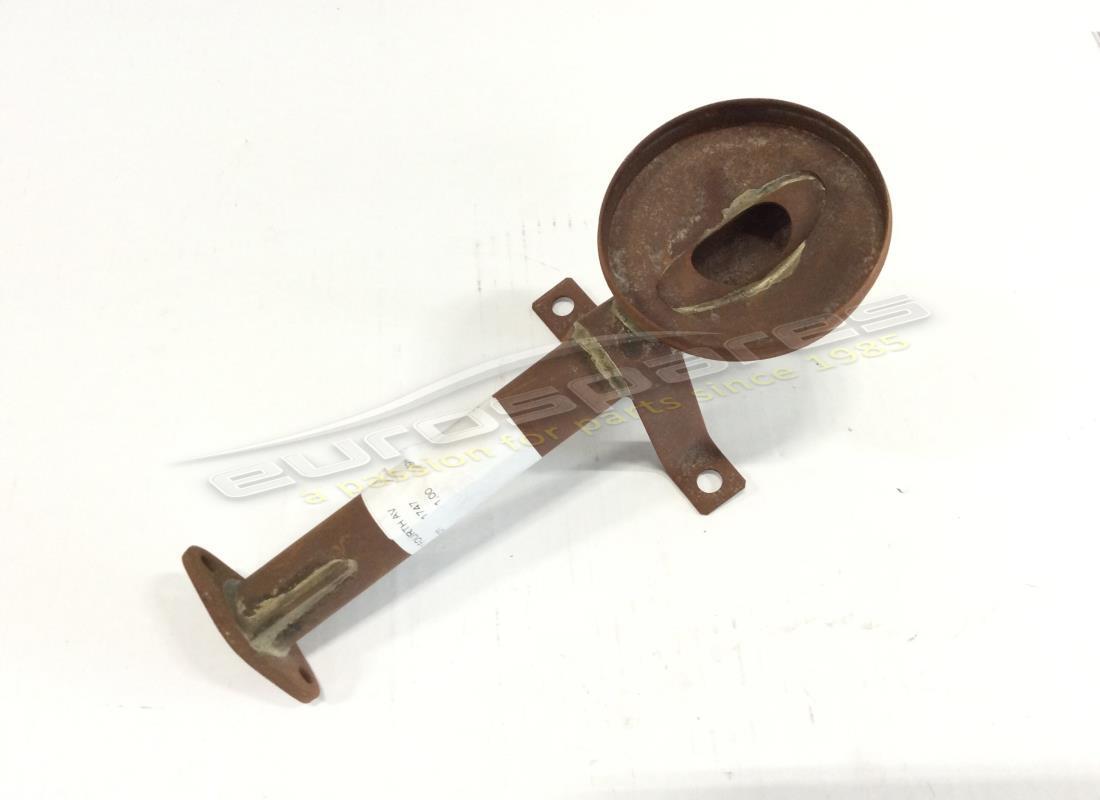

SUCTION PIPE REAR
from £292.03
from £292.03
# 079
MPN: 100332

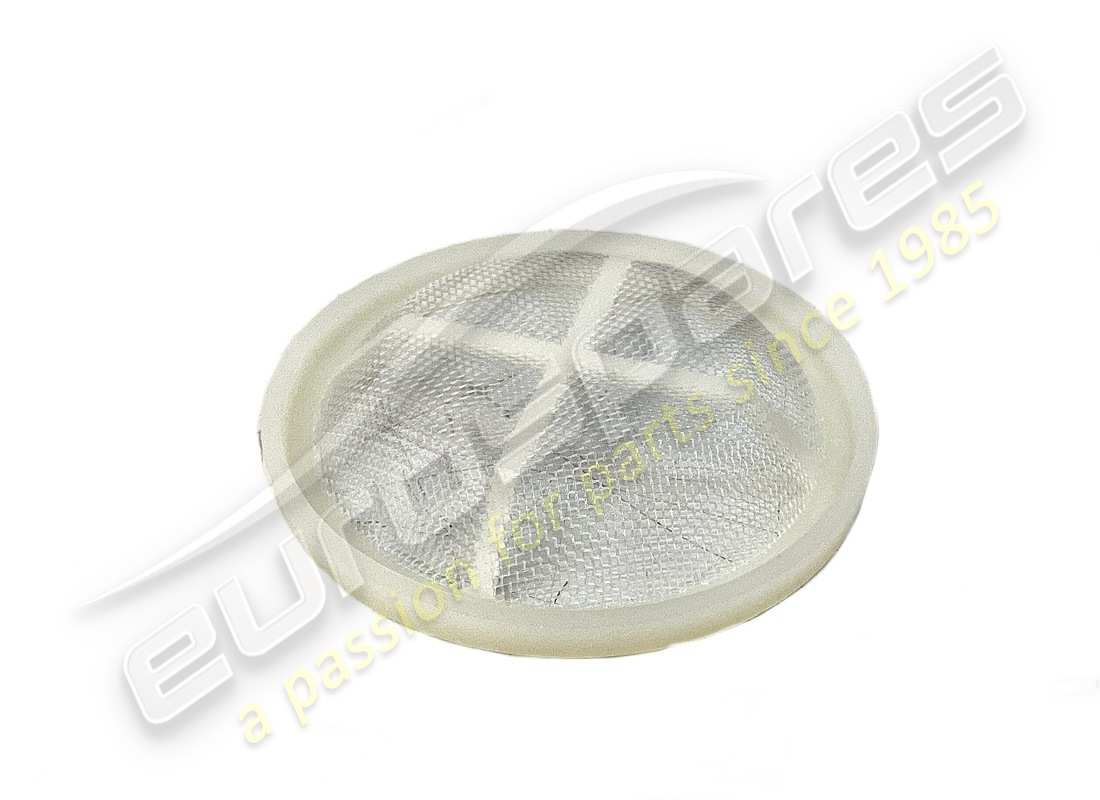

SUMP FILTER
from £9.39
from £9.39
This part replaces part number 240387 - and 9 more. Click to view details
# 080
MPN: 144251
GASKET
from £0.68
from £0.68
This part replaces part number 109363 - and 1 more. Click to view details
# 081
MPN: 121953
REAR COVER PUMP
from £632.08
from £632.08
# 082
MPN: 103944
FILTER SEAL RING
from £37.06
from £37.06
This part replaces part number 24124 - and 3 more. Click to view details
# 083
MPN: 122428
SUCTION PIPE FRONT
from £28.16
from £28.16
# 084
MPN: 122429
FILTER
from £3.27
from £3.27
# 085
MPN: 144251
GASKET
from £0.68
from £0.68
This part replaces part number 109363 - and 1 more. Click to view details
# 086
MPN: 106900
SPRING
- Valid till engine Nr. 13507 - Not for engine Nr. 13493
from £2.04
from £2.04
# 087
MPN: 125885
PISTON
from £69.55
from £69.55
This part replaces part number 106236 - and 3 more. Click to view details
# 088
MPN: 106237
PLUG
from £25.24
from £25.24
# 089
MPN: 106238
SPACER
- Valid till engine Nr. 13507 - Not for engine Nr. 13493
from £0.84
from £0.84
# 090
MPN: 144487
GASKET
from £6.05
from £6.05
# 091
MPN: 11058076
SEEGER RING
from £0.47
from £0.47
# 092
MPN: 121306
BALL
from £1.83
from £1.83
# 093
MPN: 121981
SPRING
from £3.10
from £3.10
# 094
MPN: 121972
WASHER
from £2.84
from £2.84
# 095
MPN: 12644401
WASHER
from £0.47
from £0.47
# 096
MPN: 137233
BRACKET
- For cars with catalyst Q.ty 2 - Valid from engine Nr. 13508 and for engine Nr. 13493
from £2.30
from £2.30
# 097
MPN: 125321
BUSHING
from £41.02
from £41.02
# 098
MPN: 135679
SPACER
- Valid from engine Nr. 13508 and for engine Nr. 13493
from £1.07
from £1.07
# 099
MPN: 133550
SPRING
- Valid from engine Nr. 13508 and for engine Nr. 13493
from £23.19
from £23.19
# 100
MPN: 125885
PISTON
from £69.55
from £69.55
This part replaces part number 106236 - and 3 more. Click to view details
