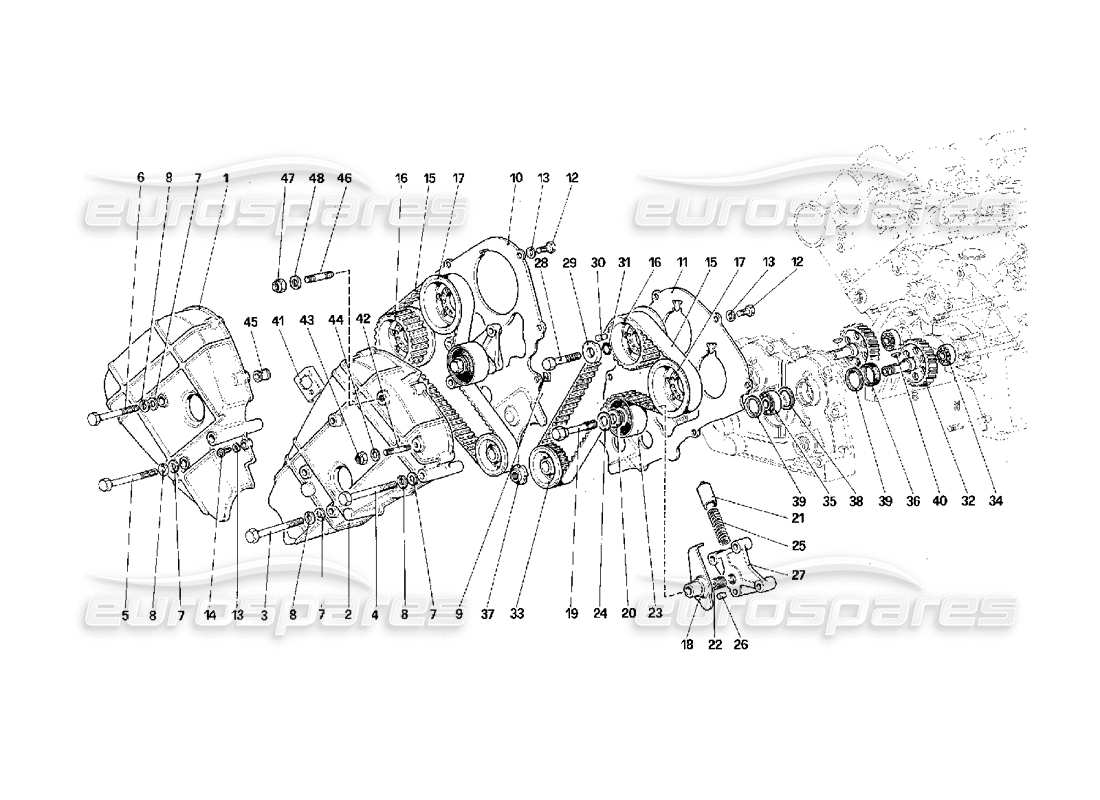

Ferrari F40 Timing - Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 000
                                                                                              MPN: 122174
                                                                                              LEFT COVER, COMPLETE
                                                                                              - With assembly 122174
                                                                                              from £199.92
                                                                                              from £199.92
                                                                                              This part replaces part number 121958
                                                                                              # 001
                                                                                              MPN: 121957
                                                                                              RIGHT COVER
                                                                                              from £319.23
                                                                                              from £319.23
                                                                                              # 002
                                                                                              MPN: 121958
                                                                                              LEFT COVER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 003
                                                                                              MPN: 114818
                                                                                              SCREW
                                                                                              from £25.11
                                                                                              from £25.11
                                                                                              # 004
                                                                                              MPN: 15972021
                                                                                              SCREW
                                                                                              from £0.64
                                                                                              from £0.64
                                                                                              # 005
                                                                                              MPN: 15972021
                                                                                              SCREW
                                                                                              from £0.64
                                                                                              from £0.64
                                                                                              # 006
                                                                                              MPN: 109013
                                                                                              SCREW
                                                                                              from £17.41
                                                                                              from £17.41
                                                                                              # 007
                                                                                              MPN: 12638601
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 20232104
                                                                                              # 008
                                                                                              MPN: 127497
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                              # 009
                                                                                              MPN: 60793500
                                                                                              SPRING CLIP
                                                                                              from £0.73
                                                                                              from £0.73
                                                                                              # 010
                                                                                              MPN: 117628
                                                                                              PROTECTION RIGHT BELT
                                                                                              from £727.93
                                                                                              from £727.93
                                                                                              # 011
                                                                                              MPN: 117627
                                                                                              PROTECTION LEFT BELT
                                                                                              from £764.33
                                                                                              from £764.33
                                                                                              # 012
                                                                                              MPN: 10977711
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10977721
                                                                                              # 013
                                                                                              MPN: 12601179
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 12601171 - and 1 more. Click to view details
                                                                                              # 014
                                                                                              MPN: 15688502
                                                                                              SCREW
                                                                                              from £1.05
                                                                                              from £1.05

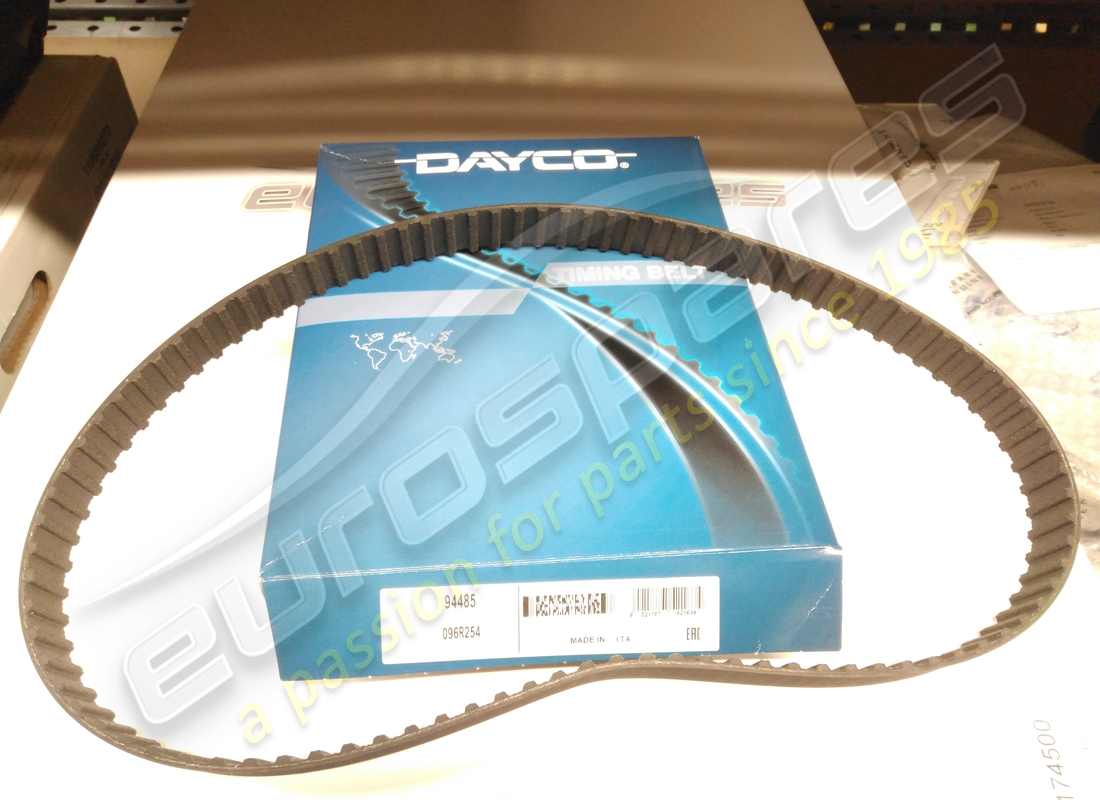

                                                                                              # 015
                                                                                              MPN: 111334

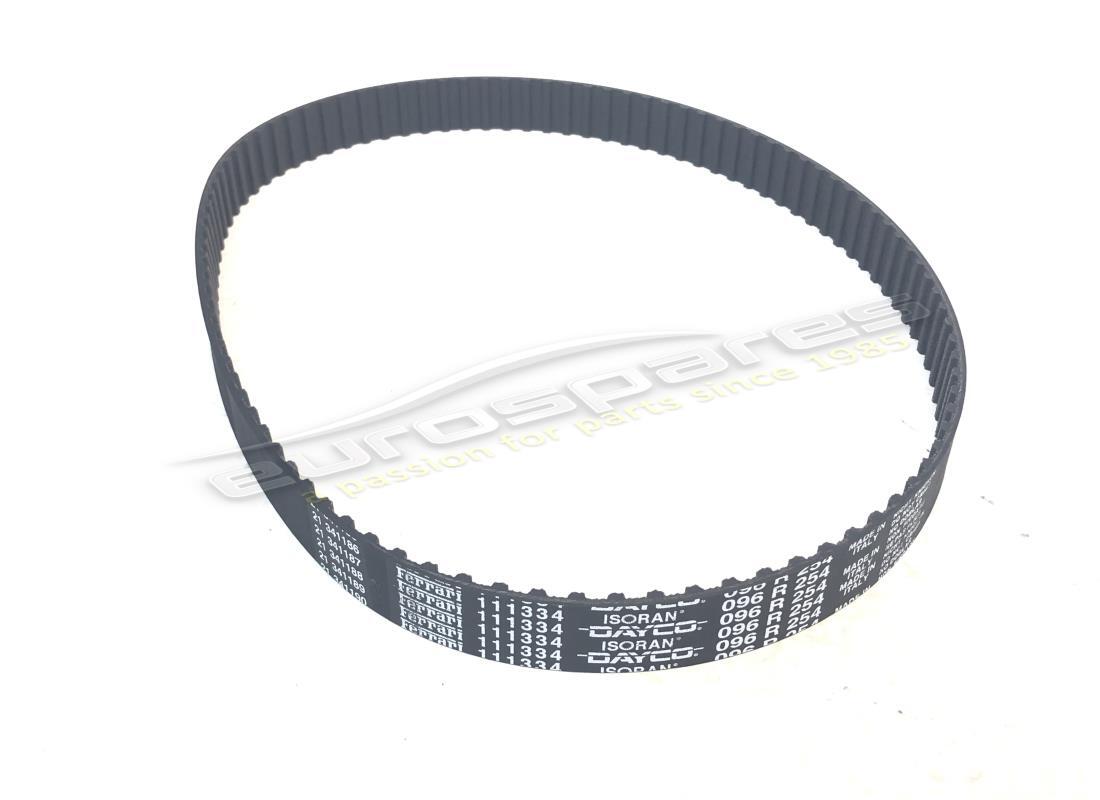

                                                                                              TIMING BELT
                                                                                              from £9.68
                                                                                              from £9.68
                                                                                              # 015
                                                                                              MPN: FTBK013

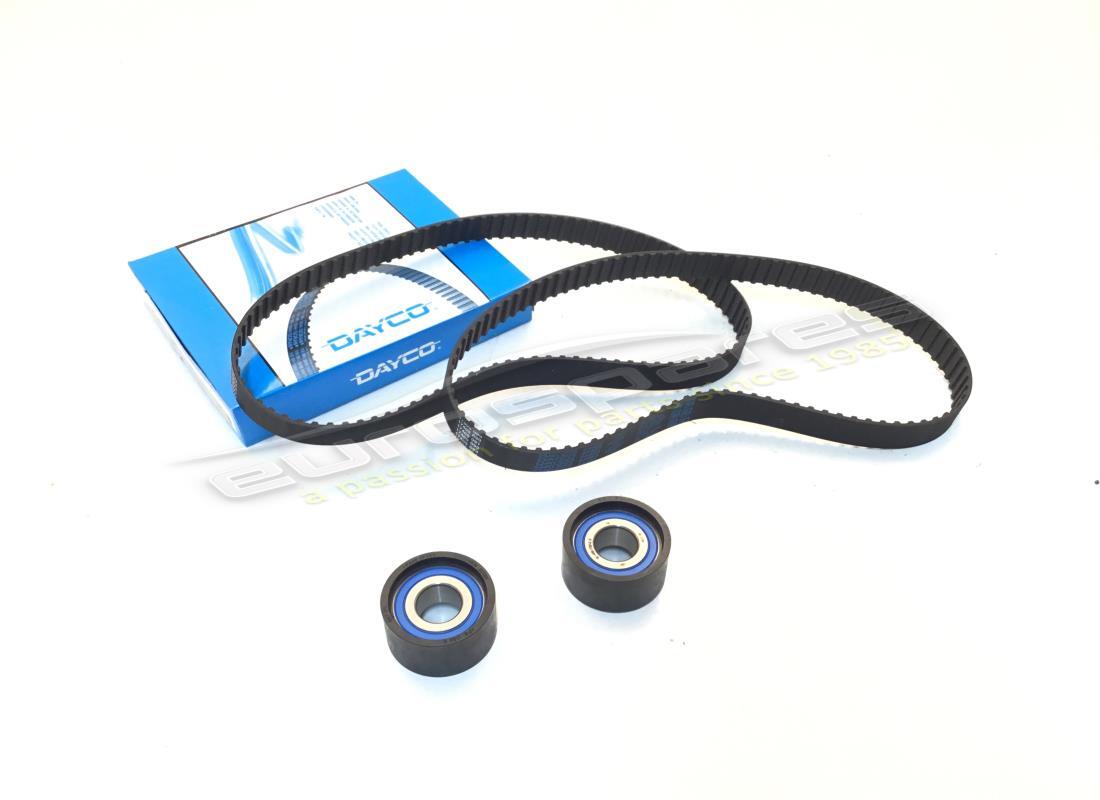

                                                                                              TIMING BELT KIT
                                                                                              Includes 2x Timing Belt (111334) & 2x Tensioner bearing (105206)
                                                                                              # 016
                                                                                              MPN: 134097
                                                                                              DRIVER GEAR
                                                                                              from £48.33
                                                                                              from £48.33
                                                                                              # 017
                                                                                              MPN: 134064
                                                                                              DRIVER GEAR
                                                                                              from £48.33
                                                                                              from £48.33
                                                                                              # 018
                                                                                              MPN: 117256
                                                                                              BELT STRETCHER PLATE
                                                                                              from £161.99
                                                                                              from £161.99
                                                                                              # 019
                                                                                              MPN: 111458
                                                                                              SCREW
                                                                                              from £40.19
                                                                                              from £40.19
                                                                                              # 020
                                                                                              MPN: 111460
                                                                                              SPACER
                                                                                              from £12.77
                                                                                              from £12.77

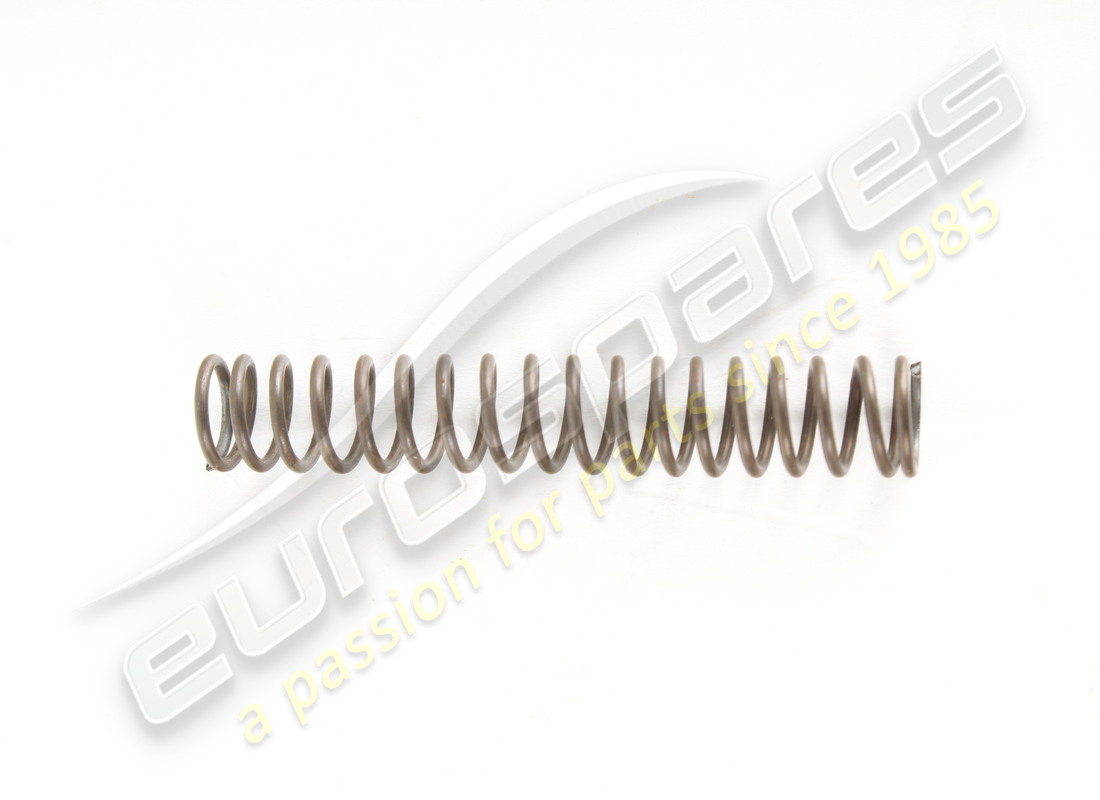

                                                                                              # 021
                                                                                              MPN: 102819
                                                                                              PLUNGER
                                                                                              from £230.35
                                                                                              from £230.35
                                                                                              # 022
                                                                                              MPN: 13524670
                                                                                              HELI COIL
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 023
                                                                                              MPN: 105206

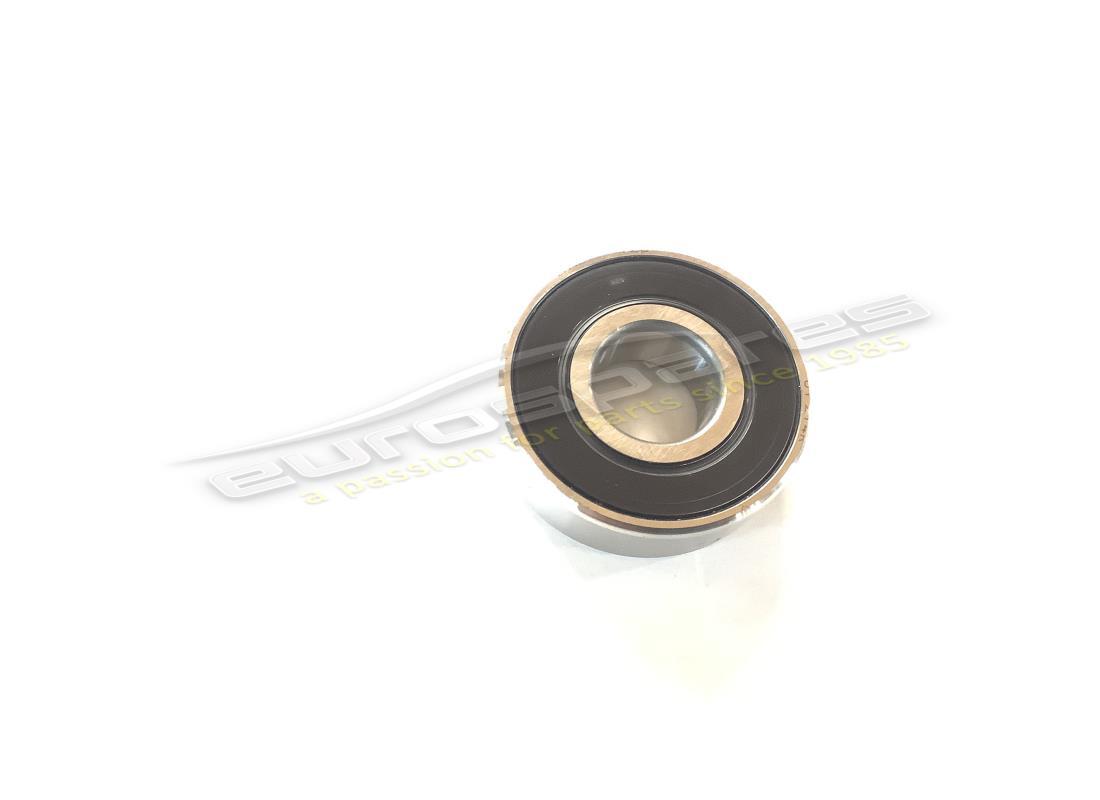

                                                                                              TIMING BEARING
                                                                                              from £28.15
                                                                                              from £28.15
                                                                                              This part replaces part number 126720
                                                                                              # 024
                                                                                              MPN: 102824
                                                                                              WASHER
                                                                                              from £14.96
                                                                                              from £14.96
                                                                                              # 026
                                                                                              MPN: 125717
                                                                                              DOWEL
                                                                                              from £1.57
                                                                                              from £1.57
                                                                                              # 027
                                                                                              MPN: 118152
                                                                                              SUPPORT FOR RIGHT BELT STRETCHER
                                                                                              from £227.55
                                                                                              from £227.55
                                                                                              # 027
                                                                                              MPN: 118153
                                                                                              SUPPORT FOR LEFT BELT STRETCHER
                                                                                              from £125.15
                                                                                              from £125.15
                                                                                              # 028
                                                                                              MPN: 146540
                                                                                              SCREW
                                                                                              from £9.06
                                                                                              from £9.06
                                                                                              This part replaces part number 16326431 - and 3 more. Click to view details
                                                                                              # 029
                                                                                              MPN: 117274
                                                                                              WASHER
                                                                                              from £1.71
                                                                                              from £1.71
                                                                                              # 030
                                                                                              MPN: 106203
                                                                                              DOWEL
                                                                                              from £3.47
                                                                                              from £3.47
                                                                                              # 031
                                                                                              MPN: 114808
                                                                                              SEAL RING
                                                                                              from £2.21
                                                                                              from £2.21

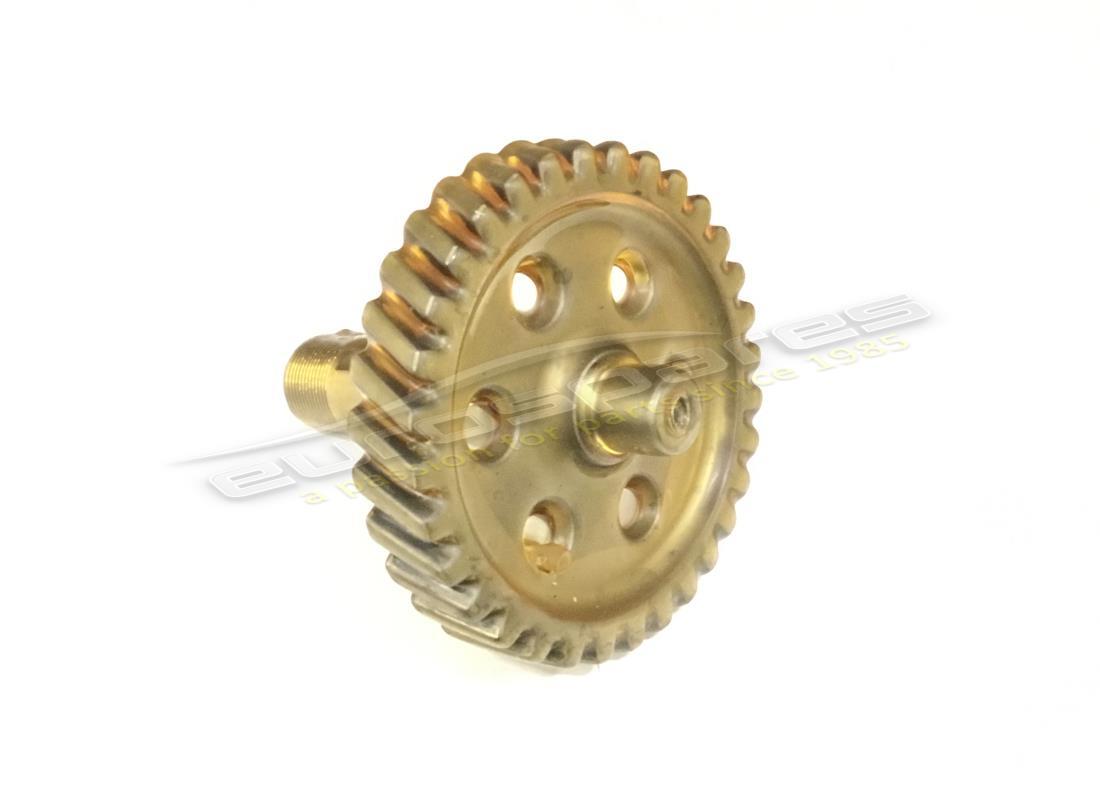

                                                                                              # 032
                                                                                              MPN: 124921
                                                                                              DRIVE GEAR FOR DISTRIBUT. SHAFTS
                                                                                              from £322.85
                                                                                              from £322.85

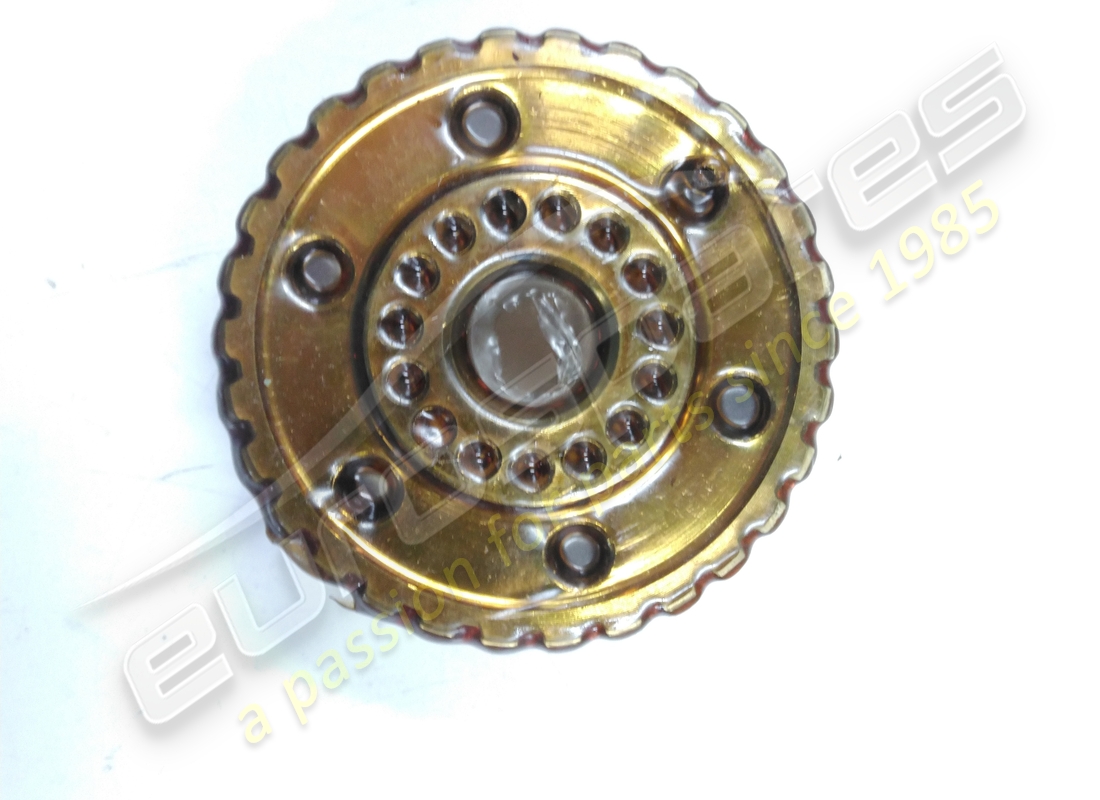

                                                                                              # 033
                                                                                              MPN: 124922
                                                                                              DRIVING PULLEY
                                                                                              from £225.56
                                                                                              from £225.56
                                                                                              # 034
                                                                                              MPN: 121275
                                                                                              BEARING OF CRANKCASE
                                                                                              from £16.00
                                                                                              from £16.00
                                                                                              # 035
                                                                                              MPN: 121274
                                                                                              BEARING ON FRONT COVER
                                                                                              from £111.85
                                                                                              from £111.85

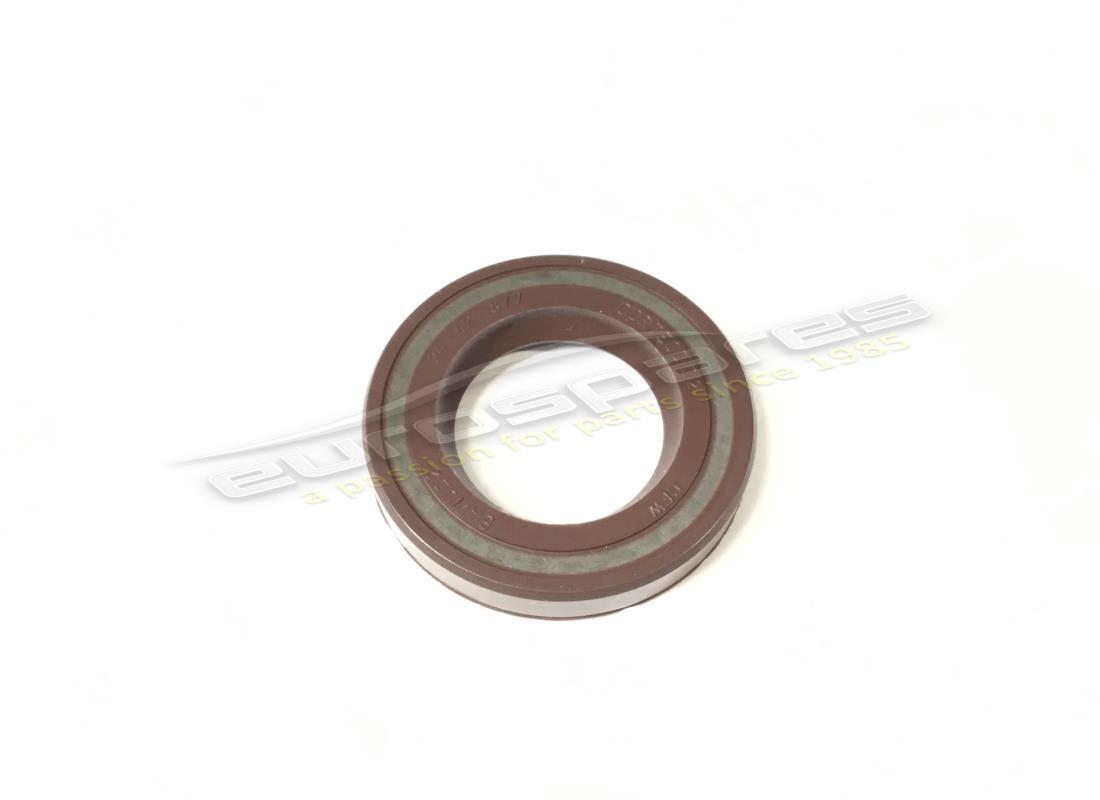

                                                                                              # 036
                                                                                              MPN: 121276
                                                                                              OIL RETAINING
                                                                                              from £9.74
                                                                                              from £9.74
                                                                                              # 037
                                                                                              MPN: 104919

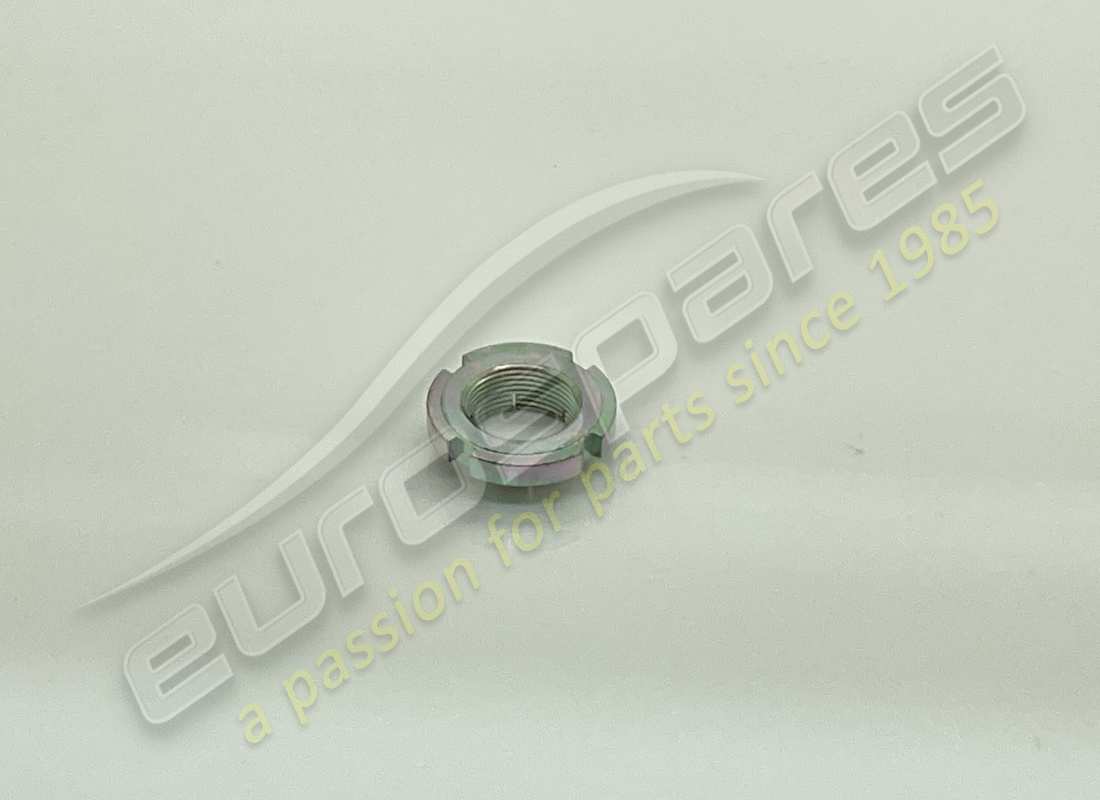

                                                                                              LOCK NUT
                                                                                              from £2.78
                                                                                              from £2.78
                                                                                              # 038
                                                                                              MPN: 121279
                                                                                              WASHER
                                                                                              from £17.37
                                                                                              from £17.37
                                                                                              # 039
                                                                                              MPN: 121277
                                                                                              SEEGER RING
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 040
                                                                                              MPN: 10206320
                                                                                              TONGUE
                                                                                              from £0.76
                                                                                              from £0.76
                                                                                              # 041
                                                                                              MPN: 124643
                                                                                              BRACKET
                                                                                              from £21.95
                                                                                              from £21.95
                                                                                              # 042
                                                                                              MPN: 13516521
                                                                                              STUD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 102682 - and 1 more. Click to view details
                                                                                              # 043
                                                                                              MPN: 104030
                                                                                              SELF LOCKING NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 16104125
                                                                                              # 045
                                                                                              MPN: 123925
                                                                                              SPACER
                                                                                              - Cars without A.C.
                                                                                              # 046
                                                                                              MPN: 13540721
                                                                                              STUD
                                                                                              Supersession
                                                                                              Supersession
