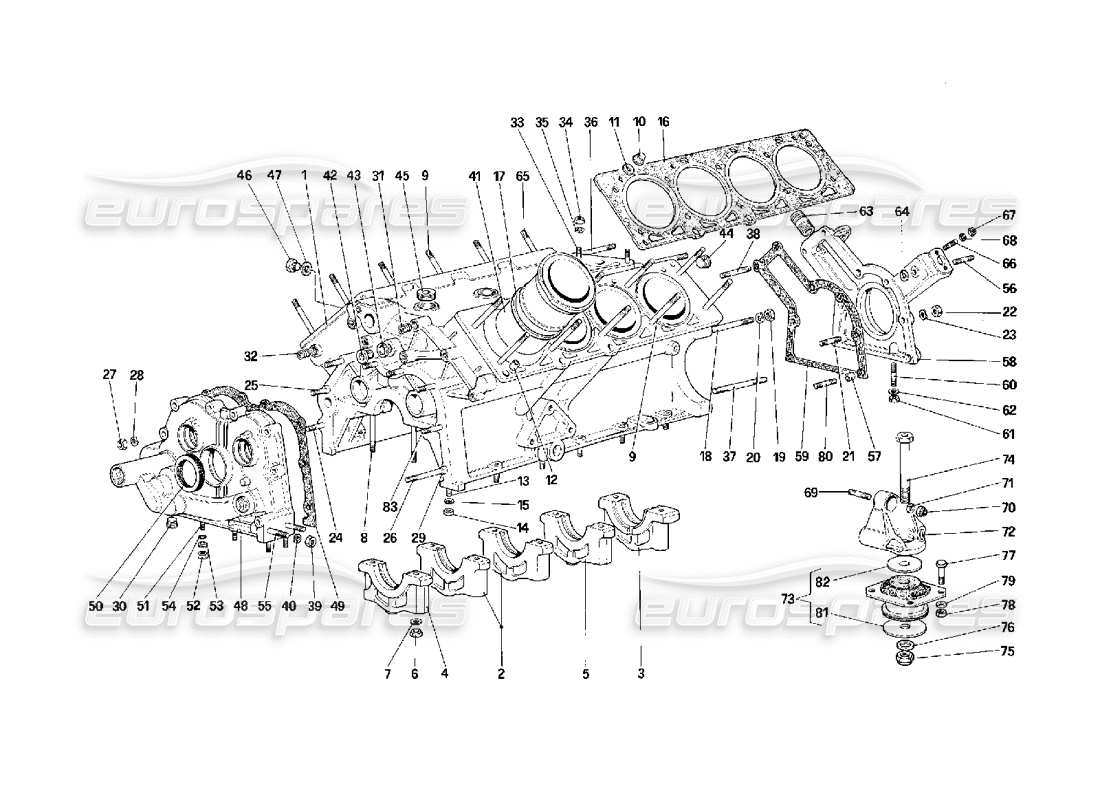

001 - Engine Block

                                                                                                                                                      Key

                                                                                                                                                      STPart in stock.PSAvailable in a part set.
                                                                                                                                                      SSPart supersession in stock.PSAvailable in a part set to order (subject to availability).
                                                                                                                                                      SOPart available to order (subject to availability).PKAvailable in a part kit.
                                                                                                                                                      #
                                                                                                                                                      Part number
                                                                                                                                                      Description
                                                                                                                                                      Price
                                                                                                                                                      # 000
                                                                                                                                                      PN: 120782
                                                                                                                                                      Front cover assy
                                                                                                                                                      - Valid till engine n° 13507 - Not for engine n° 13493 - With crankase complete 132368
                                                                                                                                                      # 000
                                                                                                                                                      PN: 132368
                                                                                                                                                      Complete Engine
                                                                                                                                                      (Exchange)
                                                                                                                                                      from £11,999.09
                                                                                                                                                      COMPLETE ENGINE Genuine Ferrari Part - Used in stock
                                                                                                                                                      600 MILES (EXCHANGE)
                                                                                                                                                      # 000
                                                                                                                                                      PN: 139885
                                                                                                                                                      OEM GASKET SET
                                                                                                                                                      from £2,468.50
                                                                                                                                                      # 000
                                                                                                                                                      PN: 149076
                                                                                                                                                      Front cover assy
                                                                                                                                                      - Valid from engine n° 13508 and for engine n° 13493 - With crankase complete 132368 - For complete cover 149076
                                                                                                                                                      # 000
                                                                                                                                                      PN: 95971393
                                                                                                                                                      Cylinder head tool
                                                                                                                                                      AV1393
                                                                                                                                                      from £128.59
                                                                                                                                                      # 001
                                                                                                                                                      PN: 132369
                                                                                                                                                      Crankase
                                                                                                                                                      - With assembly 132368
                                                                                                                                                      Supersession
                                                                                                                                                      # 002
                                                                                                                                                      PN: 103764
                                                                                                                                                      Main Bearing Cap
                                                                                                                                                      Supersession
                                                                                                                                                      # 003
                                                                                                                                                      PN: 103765
                                                                                                                                                      Main Bearing Cap
                                                                                                                                                      Supersession
                                                                                                                                                      # 004
                                                                                                                                                      PN: 109293
                                                                                                                                                      Main Bearing Cap
                                                                                                                                                      Supplied with crankcase complete
                                                                                                                                                      # 005
                                                                                                                                                      PN: 122739
                                                                                                                                                      Cap for rear interm. suppport
                                                                                                                                                      - With crankase complete
                                                                                                                                                      Supersession
                                                                                                                                                      # 007
                                                                                                                                                      PN: 103842
                                                                                                                                                      Washer
                                                                                                                                                      Supersession
                                                                                                                                                      # 008
                                                                                                                                                      PN: 104075
                                                                                                                                                      STUD
                                                                                                                                                      from £5.38
                                                                                                                                                      # 009
                                                                                                                                                      PN: 137507
                                                                                                                                                      Stud
                                                                                                                                                      from £32.18
                                                                                                                                                      # 010
                                                                                                                                                      PN: 136269
                                                                                                                                                      Cap nut
                                                                                                                                                      from £6.64
                                                                                                                                                      # 011
                                                                                                                                                      PN: 136270
                                                                                                                                                      Washer
                                                                                                                                                      from £2.73
                                                                                                                                                      # 012
                                                                                                                                                      PN: 121978
                                                                                                                                                      Dowel
                                                                                                                                                      from £4.92
                                                                                                                                                      # 013
                                                                                                                                                      PN: 12354524
                                                                                                                                                      Stud
                                                                                                                                                      from £13.92
                                                                                                                                                      # 014
                                                                                                                                                      PN: 16100824
                                                                                                                                                      Nut
                                                                                                                                                      from £0.47
                                                                                                                                                      # 015
                                                                                                                                                      PN: 12601379
                                                                                                                                                      Washer
                                                                                                                                                      from £0.67
                                                                                                                                                      # 016
                                                                                                                                                      PN: 136795
                                                                                                                                                      Gasket
                                                                                                                                                      from £342.96
                                                                                                                                                      # 017
                                                                                                                                                      PN: 136902
                                                                                                                                                      Gasket
                                                                                                                                                      from £14.04
                                                                                                                                                      # 018
                                                                                                                                                      PN: 13546821
                                                                                                                                                      Stud
                                                                                                                                                      from £7.90
                                                                                                                                                      # 020
                                                                                                                                                      PN: 12601479
                                                                                                                                                      Washer
                                                                                                                                                      from £0.69
                                                                                                                                                      CRINKLE RUB.WASHER D.10.50-2 (12601479) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 021
                                                                                                                                                      PN: 13541324
                                                                                                                                                      Stud
                                                                                                                                                      from £0.81
                                                                                                                                                      # 023
                                                                                                                                                      PN: 12601279
                                                                                                                                                      Washer
                                                                                                                                                      from £0.47
                                                                                                                                                      # 024
                                                                                                                                                      PN: 13517321
                                                                                                                                                      Stud
                                                                                                                                                      from £15.03
                                                                                                                                                      # 026
                                                                                                                                                      PN: 13518221
                                                                                                                                                      Stud
                                                                                                                                                      from £0.58
                                                                                                                                                      # 027
                                                                                                                                                      PN: 16104411
                                                                                                                                                      Nut
                                                                                                                                                      from £0.47
                                                                                                                                                      NYLON STOP HEX. NUT M8X8.5 (16104411) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 028
                                                                                                                                                      PN: 12601379
                                                                                                                                                      Washer
                                                                                                                                                      from £0.67
                                                                                                                                                      # 029
                                                                                                                                                      PN: 100041
                                                                                                                                                      Dowel
                                                                                                                                                      from £3.48
                                                                                                                                                      # 030
                                                                                                                                                      PN: 14326150
                                                                                                                                                      Plug
                                                                                                                                                      from £0.50
                                                                                                                                                      TAPERED THREADED PLUG D.8X1.2 (14326150) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 031
                                                                                                                                                      PN: 13525770
                                                                                                                                                      Heli coil securing water pump
                                                                                                                                                      from £0.48
                                                                                                                                                      THREADED FITTING M8X12 (13525770) Genuine Maserati Part - New in stock
                                                                                                                                                      # 032
                                                                                                                                                      PN: 13526070
                                                                                                                                                      Heli coil securing cover
                                                                                                                                                      from £1.66
                                                                                                                                                      # 033
                                                                                                                                                      PN: 13517121
                                                                                                                                                      Stud
                                                                                                                                                      Supersession
                                                                                                                                                      # 034
                                                                                                                                                      PN: 16104411
                                                                                                                                                      SELF LOCKING NUT
                                                                                                                                                      from £0.47
                                                                                                                                                      NYLON STOP HEX. NUT M8X8.5 (16104411) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 035
                                                                                                                                                      PN: 12601379
                                                                                                                                                      Washer
                                                                                                                                                      from £0.69
                                                                                                                                                      # 036
                                                                                                                                                      PN: 13547021
                                                                                                                                                      Stud
                                                                                                                                                      from £16.52
                                                                                                                                                      # 037
                                                                                                                                                      PN: 13547721
                                                                                                                                                      Stud
                                                                                                                                                      from £2.10
                                                                                                                                                      # 038
                                                                                                                                                      PN: 13541621
                                                                                                                                                      Stud
                                                                                                                                                      Supersession
                                                                                                                                                      # 040
                                                                                                                                                      PN: 12601479
                                                                                                                                                      Washer
                                                                                                                                                      from £0.71
                                                                                                                                                      CRINKLE RUB.WASHER D.10.50-2 (12601479) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 041
                                                                                                                                                      PN: 132347
                                                                                                                                                      Cylinder barrel
                                                                                                                                                      from £744.96
                                                                                                                                                      # 042
                                                                                                                                                      PN: 10275011
                                                                                                                                                      Plug
                                                                                                                                                      from £0.90
                                                                                                                                                      CYLINDER THREADED PLUG M 22X (10275011) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 043
                                                                                                                                                      PN: 10263460
                                                                                                                                                      Gasket
                                                                                                                                                      from £0.47
                                                                                                                                                      GASKET 22- 28X 1.5 (10263460) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 044
                                                                                                                                                      PN: 10269850
                                                                                                                                                      Threaded Plug
                                                                                                                                                      from £0.93
                                                                                                                                                      CONICAL THREADED PLUG D. 22X 11 (10269850) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 045
                                                                                                                                                      PN: 14325540
                                                                                                                                                      Upper plug
                                                                                                                                                      from £3.71
                                                                                                                                                      # 046
                                                                                                                                                      PN: 10300640
                                                                                                                                                      Plug
                                                                                                                                                      Supersession
                                                                                                                                                      # 048
                                                                                                                                                      PN: 124110
                                                                                                                                                      Front cover
                                                                                                                                                      - For complete cover 120782
                                                                                                                                                      from £5,244.75
                                                                                                                                                      # 049
                                                                                                                                                      PN: 135089
                                                                                                                                                      Gasket
                                                                                                                                                      - Valid till depletion
                                                                                                                                                      from £15.57
                                                                                                                                                      # 049
                                                                                                                                                      PN: 135089
                                                                                                                                                      Gasket
                                                                                                                                                      - Valid after depletion of 103791
                                                                                                                                                      from £15.57
                                                                                                                                                      # 050
                                                                                                                                                      PN: 136525

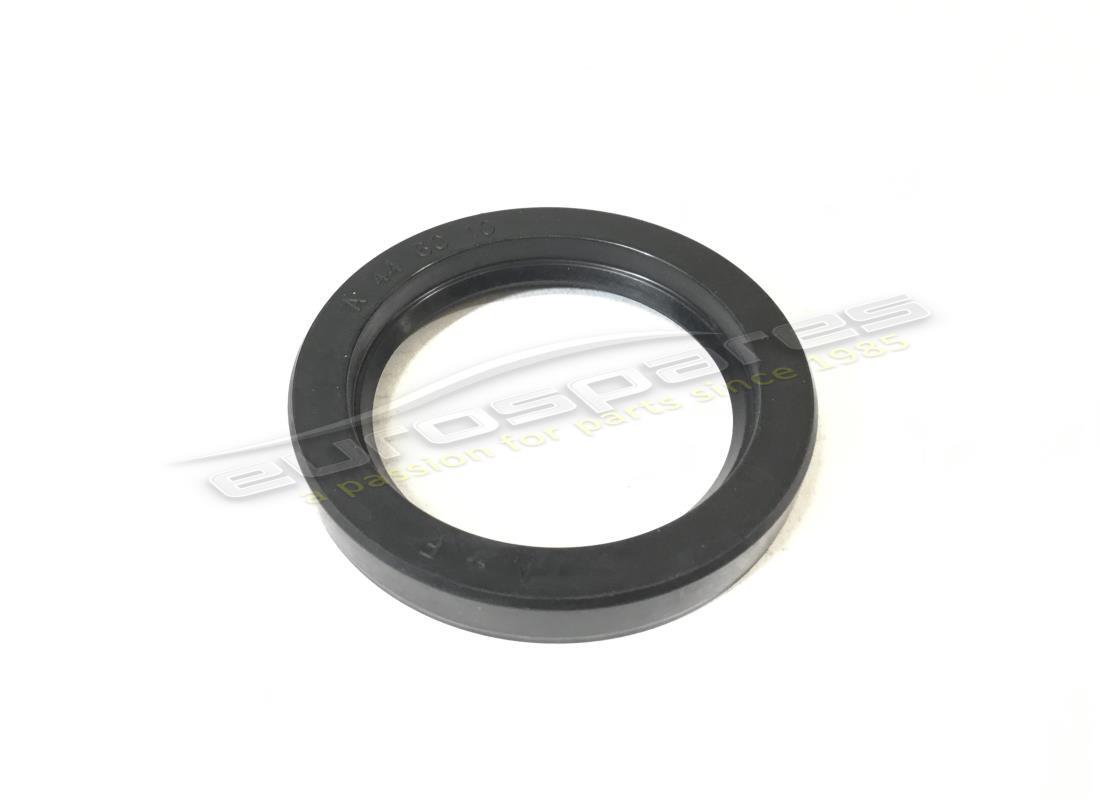

                                                                                                                                                      Sealing ring
                                                                                                                                                      from £23.24
                                                                                                                                                      # 051
                                                                                                                                                      PN: 12354524
                                                                                                                                                      Stud
                                                                                                                                                      from £13.51
                                                                                                                                                      # 052
                                                                                                                                                      PN: 16100824
                                                                                                                                                      Nut
                                                                                                                                                      from £0.47
                                                                                                                                                      # 053
                                                                                                                                                      PN: 12601379
                                                                                                                                                      Washer
                                                                                                                                                      from £0.65
                                                                                                                                                      # 054
                                                                                                                                                      PN: 103039
                                                                                                                                                      Sealing ring
                                                                                                                                                      (minimum order quantity = 10)
                                                                                                                                                      from £0.85
                                                                                                                                                      # 055
                                                                                                                                                      PN: 13546121
                                                                                                                                                      Stud
                                                                                                                                                      from £0.47
                                                                                                                                                      # 056
                                                                                                                                                      PN: 13540921
                                                                                                                                                      Stud
                                                                                                                                                      Supersession
                                                                                                                                                      # 057
                                                                                                                                                      PN: 145992
                                                                                                                                                      Dowel
                                                                                                                                                      from £36.93
                                                                                                                                                      # 058
                                                                                                                                                      PN: 123315
                                                                                                                                                      Rear cover
                                                                                                                                                      from £1,142.02
                                                                                                                                                      # 059
                                                                                                                                                      PN: 136102
                                                                                                                                                      Gasket
                                                                                                                                                      from £4.10
                                                                                                                                                      # 059
                                                                                                                                                      PN: 136102
                                                                                                                                                      Gasket
                                                                                                                                                      - Valid after depletion of 120784
                                                                                                                                                      from £4.10
                                                                                                                                                      # 060
                                                                                                                                                      PN: 12354524
                                                                                                                                                      Stud
                                                                                                                                                      from £14.73
                                                                                                                                                      # 062
                                                                                                                                                      PN: 12601379
                                                                                                                                                      Washer
                                                                                                                                                      from £0.71
                                                                                                                                                      # 063
                                                                                                                                                      PN: 148047
                                                                                                                                                      Fitting
                                                                                                                                                      from £56.27
                                                                                                                                                      # 064
                                                                                                                                                      PN: 144252
                                                                                                                                                      Gasket
                                                                                                                                                      - Valid till depletion
                                                                                                                                                      from £0.47
                                                                                                                                                      # 064
                                                                                                                                                      PN: 144252
                                                                                                                                                      Gasket
                                                                                                                                                      - Valid after depletion of 106437
                                                                                                                                                      from £0.47
                                                                                                                                                      # 065
                                                                                                                                                      PN: 137506
                                                                                                                                                      Stud
                                                                                                                                                      from £8.25
                                                                                                                                                      # 066
                                                                                                                                                      PN: 13539024
                                                                                                                                                      Stud
                                                                                                                                                      from £0.64
                                                                                                                                                      # 067
                                                                                                                                                      PN: 15896411
                                                                                                                                                      Nut
                                                                                                                                                      from £0.58
                                                                                                                                                      NUT FOR GLASS LIFT ECU AS (15896411) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 068
                                                                                                                                                      PN: 127493
                                                                                                                                                      Washer
                                                                                                                                                      from £0.51
                                                                                                                                                      # 069
                                                                                                                                                      PN: 13546421
                                                                                                                                                      Stud
                                                                                                                                                      from £6.16
                                                                                                                                                      # 070
                                                                                                                                                      PN: 12575611
                                                                                                                                                      Nut
                                                                                                                                                      Supersession
                                                                                                                                                      # 071
                                                                                                                                                      PN: 12601479
                                                                                                                                                      Washer
                                                                                                                                                      from £0.69
                                                                                                                                                      CRINKLE RUB.WASHER D.10.50-2 (12601479) Genuine Maserati Part - New (to order)
                                                                                                                                                      # 072
                                                                                                                                                      PN: 121845
                                                                                                                                                      Front support
                                                                                                                                                      - Not for USA
                                                                                                                                                      from £635.10
                                                                                                                                                      # 072
                                                                                                                                                      PN: 143763
                                                                                                                                                      Front support
                                                                                                                                                      - Valid for USA
                                                                                                                                                      from £368.65
                                                                                                                                                      # 074
                                                                                                                                                      PN: 121856
                                                                                                                                                      Screw
                                                                                                                                                      from £118.54
                                                                                                                                                      # 075
                                                                                                                                                      PN: 12575911
                                                                                                                                                      Nut
                                                                                                                                                      Supersession
                                                                                                                                                      # 076
                                                                                                                                                      PN: 10520221
                                                                                                                                                      Washer
                                                                                                                                                      from £14.08
                                                                                                                                                      # 077
                                                                                                                                                      PN: 15970621
                                                                                                                                                      Screw
                                                                                                                                                      Supersession
                                                                                                                                                      # 079
                                                                                                                                                      PN: 127497
                                                                                                                                                      Washer
                                                                                                                                                      from £0.53
                                                                                                                                                      CRINKLE SPLIT WASHER FOR (127497) Genuine Maserati Part - New in stock
                                                                                                                                                      # 080
                                                                                                                                                      PN: 13541521
                                                                                                                                                      Stud
                                                                                                                                                      from £0.50
                                                                                                                                                      # 081
                                                                                                                                                      PN: 132269
                                                                                                                                                      Pad
                                                                                                                                                      from £23.53
                                                                                                                                                      # 082
                                                                                                                                                      PN: 132268
                                                                                                                                                      Pad
                                                                                                                                                      from £9.72
