ferrari enzo doors - power window parts diagram

112 - Doors - Power Window

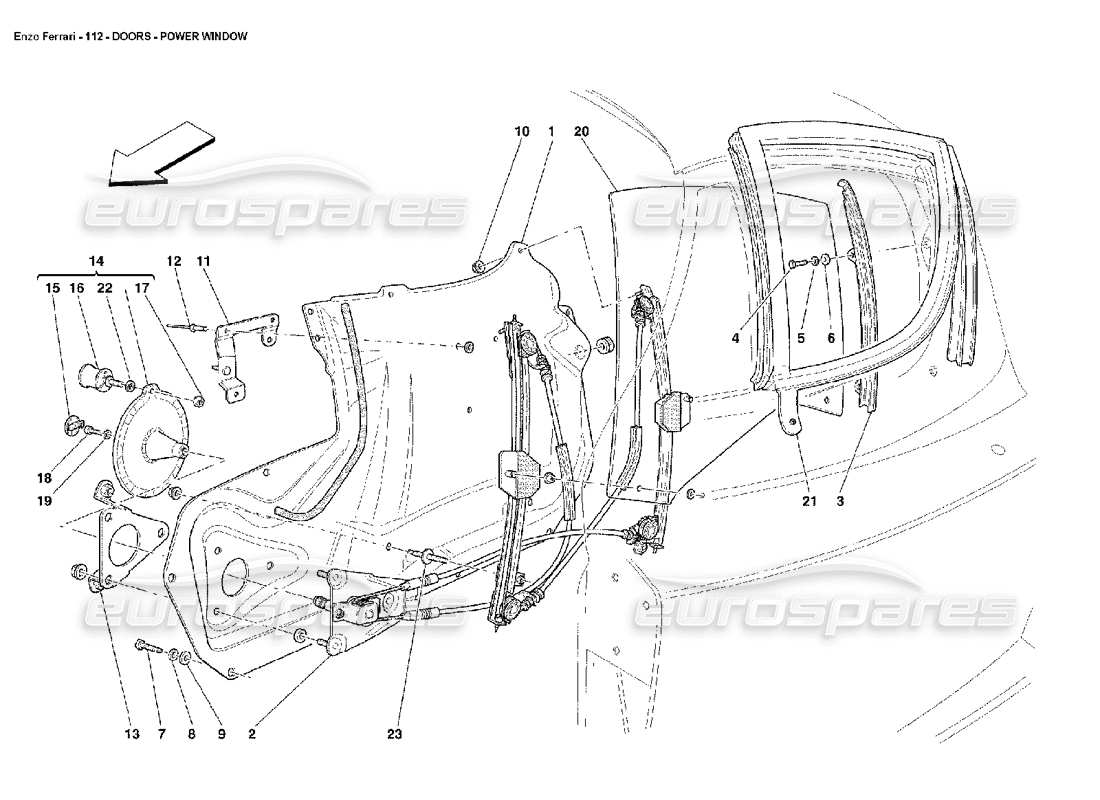

Ferrari Enzo Doors - Power Window Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 66536300
                                                LH CARRIER DOOR
                                                from £1,233.75
                                                from £1,233.75
                                                # 001
                                                MPN: 66539100
                                                RH CARRIER DOOR
                                                from £1,233.75
                                                from £1,233.75
                                                # 002
                                                MPN: 66561500
                                                LH DEVICE FOR GLASS LIFT
                                                from £183.81
                                                from £183.81
                                                # 002
                                                MPN: 66567400
                                                RH DEVICE FOR GLASS LIFT
                                                from £183.81
                                                from £183.81
                                                # 003
                                                MPN: 66560500
                                                LH REAR GUIDE
                                                from £354.10
                                                from £354.10
                                                # 003
                                                MPN: 66561400
                                                RH REAR GUIDE
                                                from £354.10
                                                from £354.10
                                                # 004
                                                MPN: 10902224
                                                SCREW
                                                from £0.51
                                                from £0.51
                                                # 005
                                                MPN: 12644424
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12644401 - and 1 more. Click to view details
                                                # 006
                                                MPN: 12601274
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                # 007
                                                MPN: 14305220
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                # 008
                                                MPN: 14498804
                                                WASHER
                                                from £0.71
                                                from £0.71
                                                # 009
                                                MPN: 12620474
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 12620479 - and 1 more. Click to view details
                                                # 010
                                                MPN: 12578211
                                                NUT
                                                from £0.47
                                                from £0.47
                                                # 011
                                                MPN: 66571800
                                                LH REAR BRACKET
                                                from £41.27
                                                from £41.27
                                                # 011
                                                MPN: 66805600
                                                RH REAR BRACKET
                                                from £34.63
                                                from £34.63
                                                # 012
                                                MPN: 67503500
                                                RIVET
                                                from £0.71
                                                from £0.71
                                                # 013
                                                MPN: 66805700
                                                FRONT BRACKET
                                                from £40.73
                                                from £40.73
                                                # 014
                                                MPN: 67384600
                                                GLASS LIF THANDLE
                                                from £1,472.73
                                                from £1,472.73
                                                # 014
                                                MPN: 67384900
                                                LINING
                                                from £167.03
                                                from £167.03
                                                # 015
                                                MPN: 67057000
                                                PLUG
                                                from £15.57
                                                from £15.57
                                                # 016
                                                MPN: 67552200
                                                COMPLETE KNOB
                                                from £678.34
                                                from £678.34
                                                # 017
                                                MPN: 10725914
                                                NUT
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 10725911 - and 1 more. Click to view details
                                                # 018
                                                MPN: 14304324
                                                SCREW
                                                from £0.57
                                                from £0.57
                                                # 019
                                                MPN: 12620374
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                # 020
                                                MPN: 66563000
                                                LH DOOR GLASS
                                                from £362.94
                                                from £362.94
                                                # 020
                                                MPN: 66563100
                                                RH DOOR GLASS
                                                from £362.94
                                                from £362.94
                                                # 021
                                                MPN: 66538900
                                                LH GLASS GASKET
                                                from £656.72
                                                from £656.72
                                                # 021
                                                MPN: 66561300
                                                RH GLASS GASKET
                                                from £751.46
                                                from £751.46
                                                # 022
                                                MPN: 14499324
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14499301 which we have in stock
                                                # 023
                                                MPN: 64854600
                                                ADJUSTMENT PIN
                                                from £9.95
                                                from £9.95
