110 - Opening Devices for Engine Bonnet and Gas Door

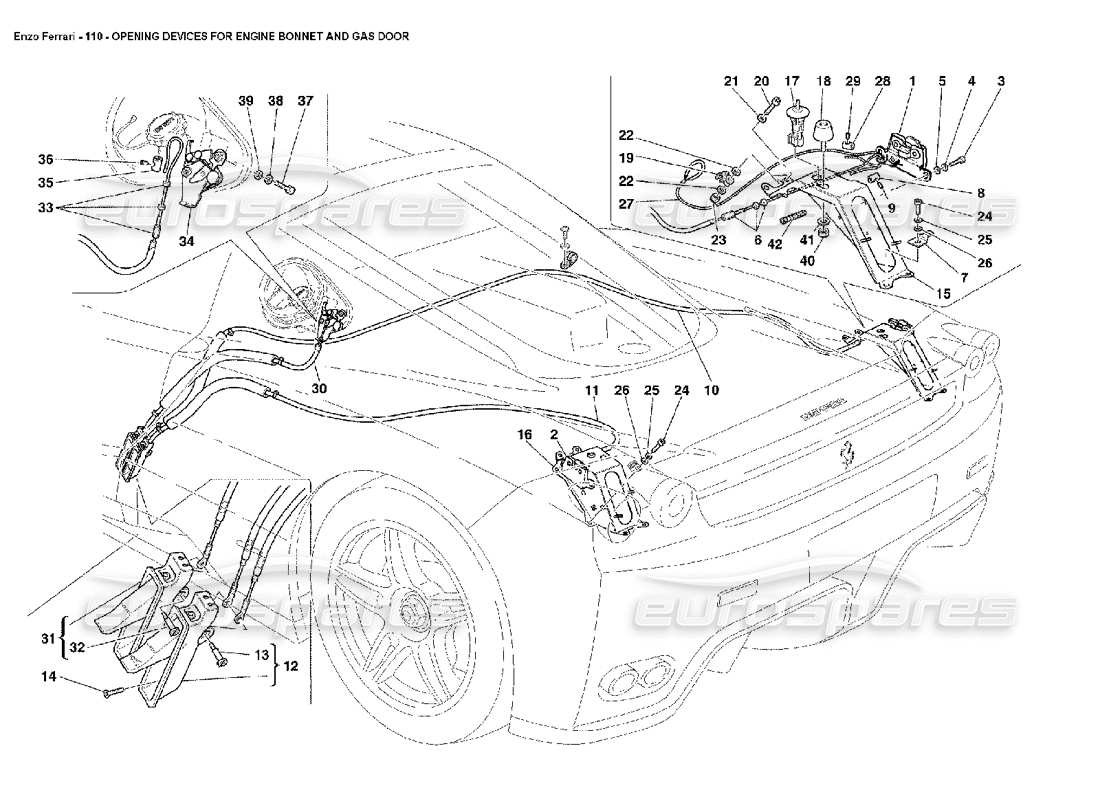

Ferrari Enzo Opening Devices for Engine Bonnet and Gas Door Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price

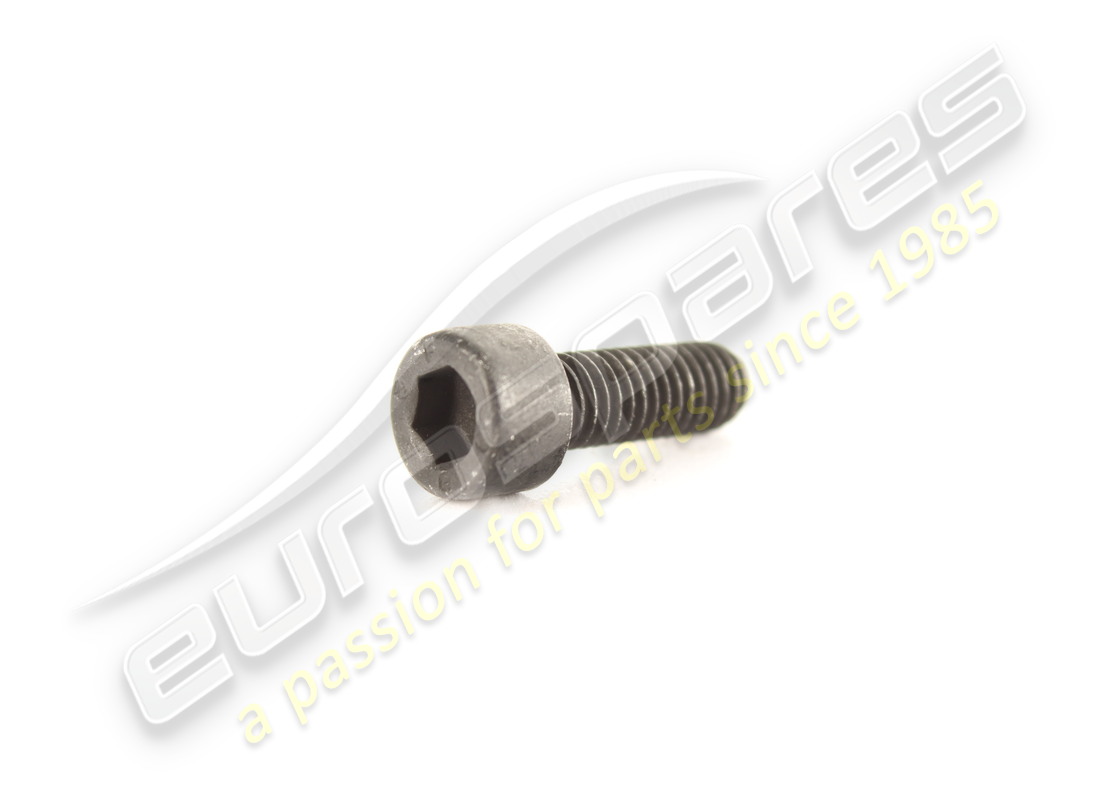

                                                                                    # 003
                                                                                    MPN: 14433126
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 004
                                                                                    MPN: 14498804
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 005
                                                                                    MPN: 12620477
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12648207
                                                                                    # 006
                                                                                    MPN: 67502400
                                                                                    COMPLETE REGULATOR
                                                                                    from £8.41
                                                                                    from £8.41
                                                                                    # 007
                                                                                    MPN: 170925
                                                                                    BRACKET
                                                                                    from £1.83
                                                                                    from £1.83
                                                                                    # 008
                                                                                    MPN: 60276607
                                                                                    CONNECTION
                                                                                    from £11.92
                                                                                    from £11.92
                                                                                    This part replaces part number 60276707 - and 4 more. Click to view details
                                                                                    # 009
                                                                                    MPN: 60276805
                                                                                    DOWEL
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 010
                                                                                    MPN: 66573100
                                                                                    RH CABLE FOR MOTOR BONNET OPENING
                                                                                    from £54.33
                                                                                    from £54.33
                                                                                    # 011
                                                                                    MPN: 67369200
                                                                                    LH CABLE FOR MOTOR BONNET OPENING
                                                                                    from £33.38
                                                                                    from £33.38

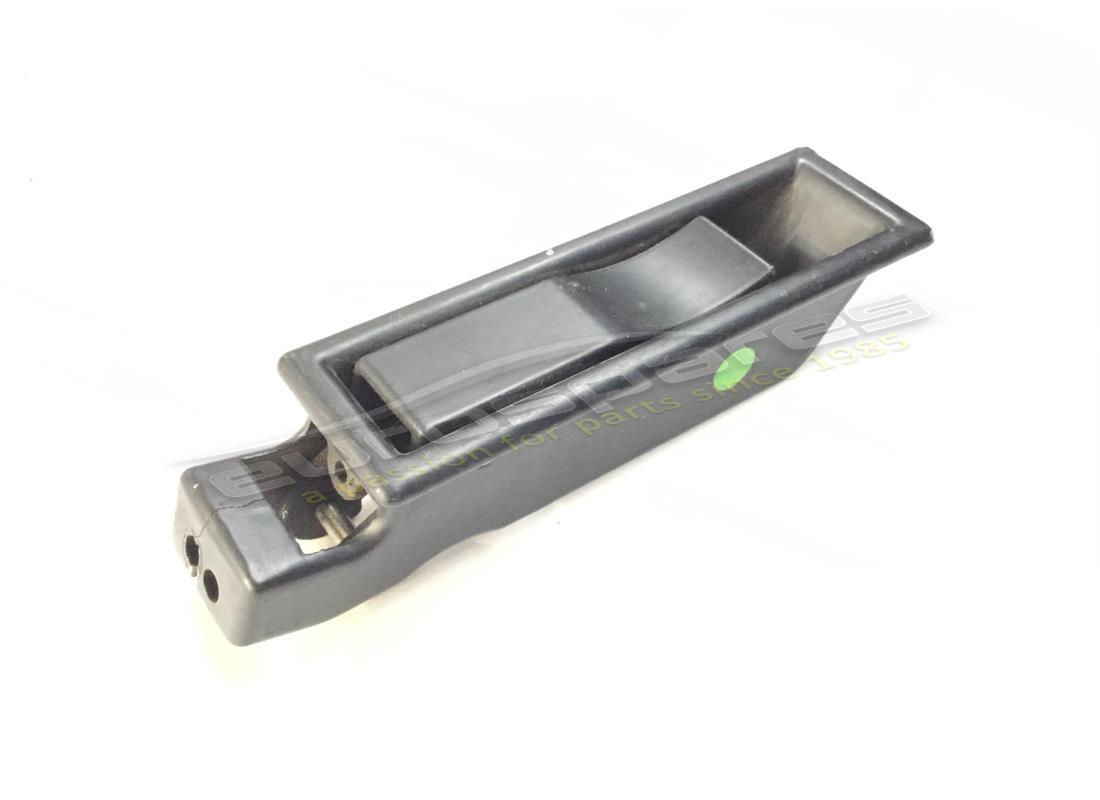

                                                                                    # 012
                                                                                    MPN: 66572700
                                                                                    HANDLE FOR MOTOR BONNET OPENING
                                                                                    from £1,661.63
                                                                                    from £1,661.63
                                                                                    # 013
                                                                                    MPN: 62552200
                                                                                    PIN
                                                                                    from £12.51
                                                                                    from £12.51
                                                                                    # 014
                                                                                    MPN: 13299477
                                                                                    SCREW
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 15937618
                                                                                    # 015
                                                                                    MPN: 66625200
                                                                                    RH SUPPORT BRACKET
                                                                                    from £165.35
                                                                                    from £165.35
                                                                                    # 016
                                                                                    MPN: 66625300
                                                                                    LH SUPPORT BRACKET
                                                                                    from £171.49
                                                                                    from £171.49
                                                                                    # 017
                                                                                    MPN: 179697
                                                                                    SWITCH
                                                                                    from £34.80
                                                                                    from £34.80
                                                                                    # 018
                                                                                    MPN: 64577100
                                                                                    ANTIVIBRATION PAD
                                                                                    from £4.35
                                                                                    from £4.35
                                                                                    This part replaces part number 66847800
                                                                                    # 019
                                                                                    MPN: 65897700
                                                                                    CLIP
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 020
                                                                                    MPN: 14305587
                                                                                    SCREW
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 021
                                                                                    MPN: 12646624
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 022
                                                                                    MPN: 12643778
                                                                                    WASHER
                                                                                    (minimum order quantity = 20)
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 12643777 - and 1 more. Click to view details
                                                                                    # 023
                                                                                    MPN: 102741
                                                                                    NUT
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                    # 024
                                                                                    MPN: 14305234
                                                                                    SCREW
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 14305287
                                                                                    # 025
                                                                                    MPN: 12644477
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    This part replaces part number 12644406
                                                                                    # 026
                                                                                    MPN: 12620477
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12648207
                                                                                    # 027
                                                                                    MPN: 66573400
                                                                                    HOOD SAFETY CABLE
                                                                                    from £10.58
                                                                                    from £10.58
                                                                                    # 028
                                                                                    MPN: 60276607
                                                                                    CONNECTION
                                                                                    from £11.92
                                                                                    from £11.92
                                                                                    This part replaces part number 60276707 - and 4 more. Click to view details
                                                                                    # 029
                                                                                    MPN: 60276805
                                                                                    DOWEL
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 030
                                                                                    MPN: 66578200
                                                                                    CABLE FOR FUEL INLET LID
                                                                                    from £24.88
                                                                                    from £24.88
                                                                                    # 031
                                                                                    MPN: 67016800
                                                                                    HANDLE FOR FUEL INLET LID
                                                                                    from £759.34
                                                                                    from £759.34
                                                                                    # 032
                                                                                    MPN: 62552200
                                                                                    PIN
                                                                                    from £12.51
                                                                                    from £12.51
                                                                                    # 033
                                                                                    MPN: 67502400
                                                                                    COMPLETE REGULATOR
                                                                                    from £8.41
                                                                                    from £8.41
                                                                                    # 034
                                                                                    MPN: 66956600
                                                                                    ROCKER
                                                                                    from £481.62
                                                                                    from £481.62
                                                                                    # 035
                                                                                    MPN: 60276607
                                                                                    CONNECTION
                                                                                    from £11.92
                                                                                    from £11.92
                                                                                    This part replaces part number 60276707 - and 4 more. Click to view details
                                                                                    # 036
                                                                                    MPN: 60276805
                                                                                    DOWEL
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 037
                                                                                    MPN: 10902224
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 038
                                                                                    MPN: 14498804
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    # 039
                                                                                    MPN: 12620474
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12620479 - and 1 more. Click to view details
                                                                                    # 040
                                                                                    MPN: 15896377
                                                                                    NUT
                                                                                    from £0.93
                                                                                    from £0.93
                                                                                    # 041
                                                                                    MPN: 14496678
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 14496677

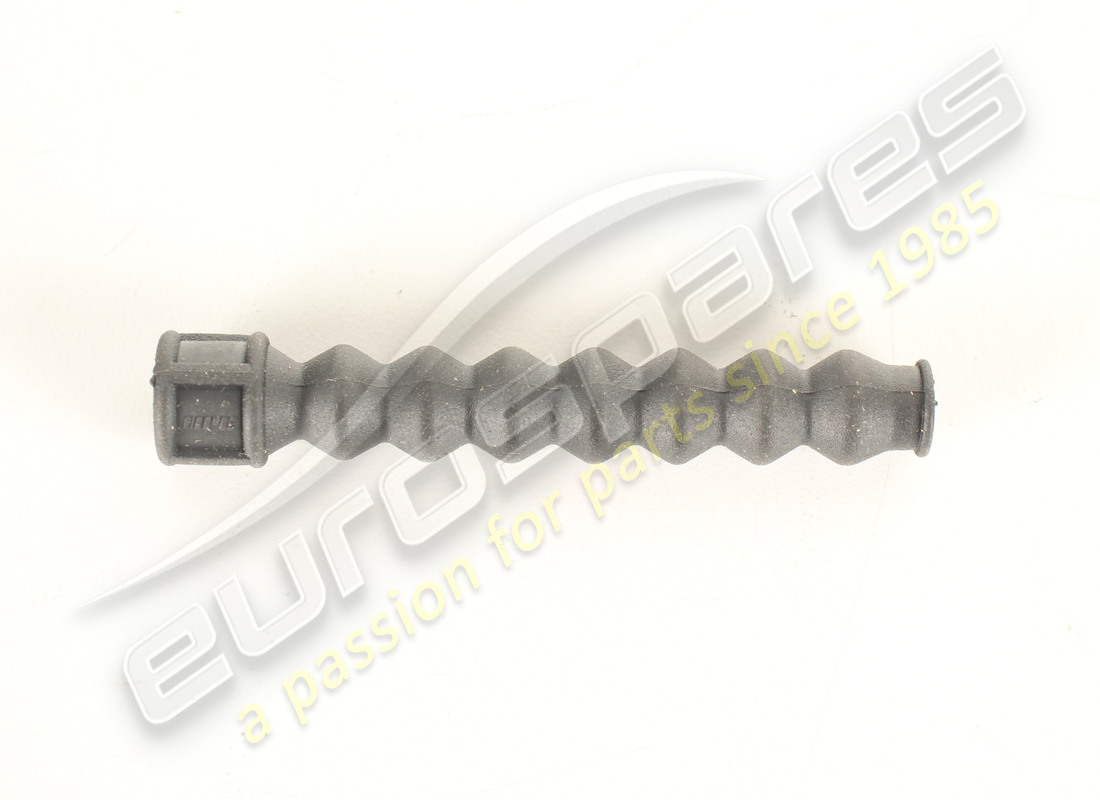

                                                                                    # 042
                                                                                    MPN: 63895000
                                                                                    RUBBER BOOT
                                                                                    from £20.95
                                                                                    from £20.95
                                                                                    This part replaces part number 63708200
