100 - Monocoque Body Frame Front Frame Central Flat Floor Pan

Ferrari Enzo Monocoque Body Frame Front Frame Central Flat Floor Pan Parts Diagram

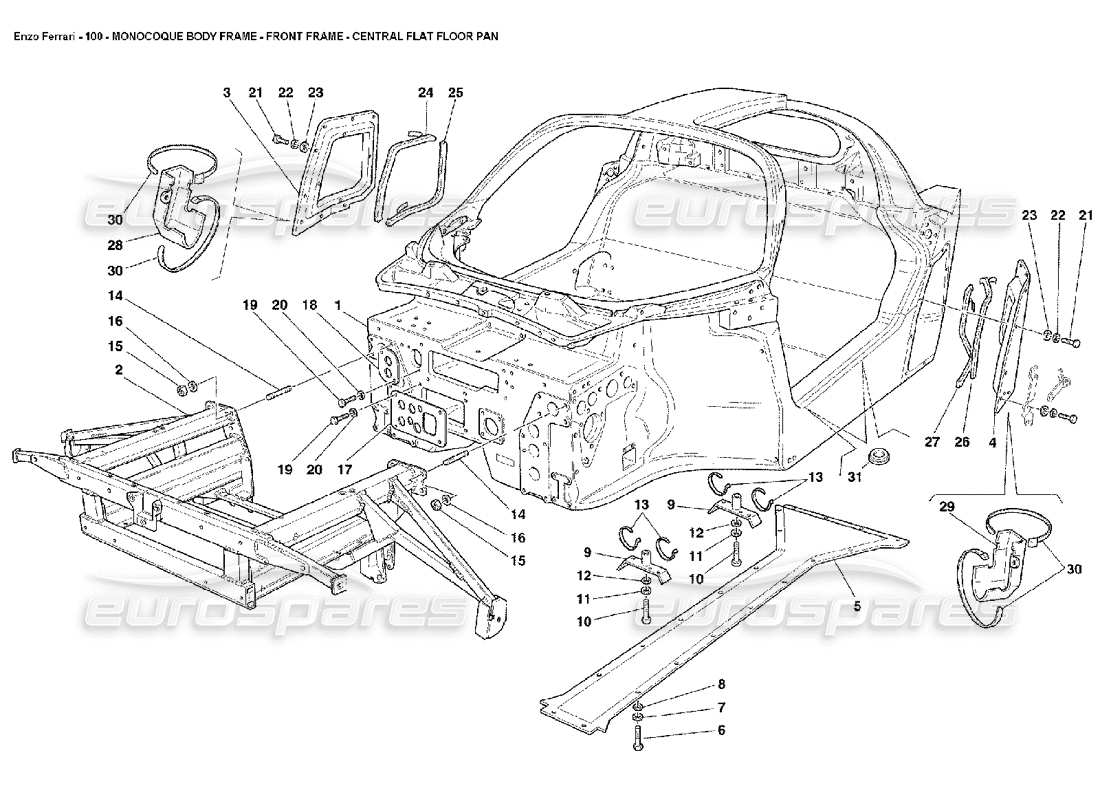

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 66535400
                                                              COMPLETE FRAME
                                                              from £134,210.45
                                                              from £134,210.45
                                                              # 002
                                                              MPN: 66486900
                                                              FRONT FRAME
                                                              from £3,070.00
                                                              from £3,070.00
                                                              # 003
                                                              MPN: 189795
                                                              RH COVER FIXING FUEL TANK
                                                              from £307.72
                                                              from £307.72
                                                              # 004
                                                              MPN: 189796
                                                              LH COVER FIXING FUEL TANK
                                                              from £321.35
                                                              from £321.35
                                                              # 005
                                                              MPN: 66534000

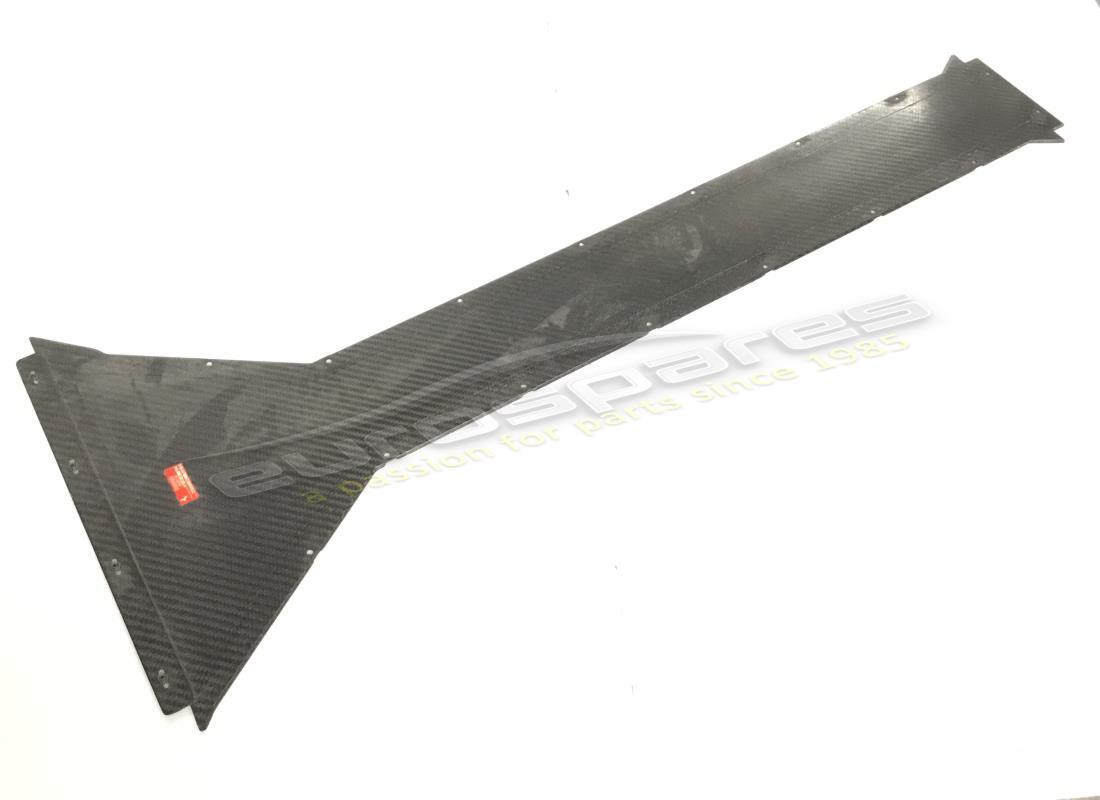

                                                              CENTRAL UNDER THE BODY SHELL SHIELD
                                                              from £3,036.86
                                                              from £3,036.86
                                                              # 006
                                                              MPN: 10902224
                                                              SCREW
                                                              from £0.48
                                                              from £0.48
                                                              # 007
                                                              MPN: 14498804
                                                              WASHER
                                                              from £0.71
                                                              from £0.71
                                                              # 008
                                                              MPN: 12620474
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12620479 - and 1 more. Click to view details
                                                              # 009
                                                              MPN: 185664
                                                              BRACKET FOR ELECTRICAL SYSTEM FIXING
                                                              from £63.77
                                                              from £63.77
                                                              # 010
                                                              MPN: 10903224
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 10903221
                                                              # 011
                                                              MPN: 14496424
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 14496401 - and 3 more. Click to view details
                                                              # 012
                                                              MPN: 12601274
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                              # 013
                                                              MPN: 145854
                                                              CLAMP
                                                              from £0.47
                                                              from £0.47
                                                              # 014
                                                              MPN: 13543324
                                                              STUD
                                                              from £0.84
                                                              from £0.84
                                                              This part replaces part number 13543321
                                                              # 015
                                                              MPN: 177778
                                                              NUT
                                                              from £0.75
                                                              from £0.75
                                                              This part replaces part number 133215 - and 1 more. Click to view details
                                                              # 016
                                                              MPN: 12638524
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 12638501 - and 2 more. Click to view details
                                                              # 017
                                                              MPN: 67113500
                                                              PLATE FOR HEATER CABLE BUSHING
                                                              from £45.04
                                                              from £45.04
                                                              # 018
                                                              MPN: 67113600
                                                              PLATE FOR CABLE BUSHING
                                                              from £52.97
                                                              from £52.97
                                                              # 019
                                                              MPN: 10902324
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                              # 020
                                                              MPN: 14498801
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              # 021
                                                              MPN: 10902424
                                                              SCREW
                                                              from £0.48
                                                              from £0.48
                                                              This part replaces part number 10902324 - and 3 more. Click to view details
                                                              # 022
                                                              MPN: 10523424
                                                              WASHER
                                                              from £0.50
                                                              from £0.50
                                                              # 023
                                                              MPN: 127494
                                                              WASHER
                                                              (minimum order quantity = 20)
                                                              from £0.50
                                                              from £0.50
                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                              # 024
                                                              MPN: 192956
                                                              RH UPPER RUBBER THICKNESS
                                                              from £9.57
                                                              from £9.57
                                                              # 025
                                                              MPN: 192957
                                                              RH LOWER RUBBER THICKNESS
                                                              from £9.57
                                                              from £9.57
                                                              # 026
                                                              MPN: 192955
                                                              LH UPPER RUBBER THICKNESS
                                                              from £7.97
                                                              from £7.97
                                                              # 027
                                                              MPN: 192954
                                                              LH LOWER RUBBER THICKNESS
                                                              from £4.78
                                                              from £4.78
                                                              # 028
                                                              MPN: 191990
                                                              RH CONTOUR
                                                              from £315.06
                                                              from £315.06
                                                              # 029
                                                              MPN: 191991
                                                              LH CONTOUR
                                                              from £315.06
                                                              from £315.06
                                                              # 030
                                                              MPN: 145854
                                                              CLAMP
                                                              from £0.47
                                                              from £0.47
                                                              # 031
                                                              MPN: 14507787
                                                              PLUG
                                                              from £0.47
                                                              from £0.47
