049 - air conditioning system

Ferrari Enzo Air Conditioning System Parts Diagram

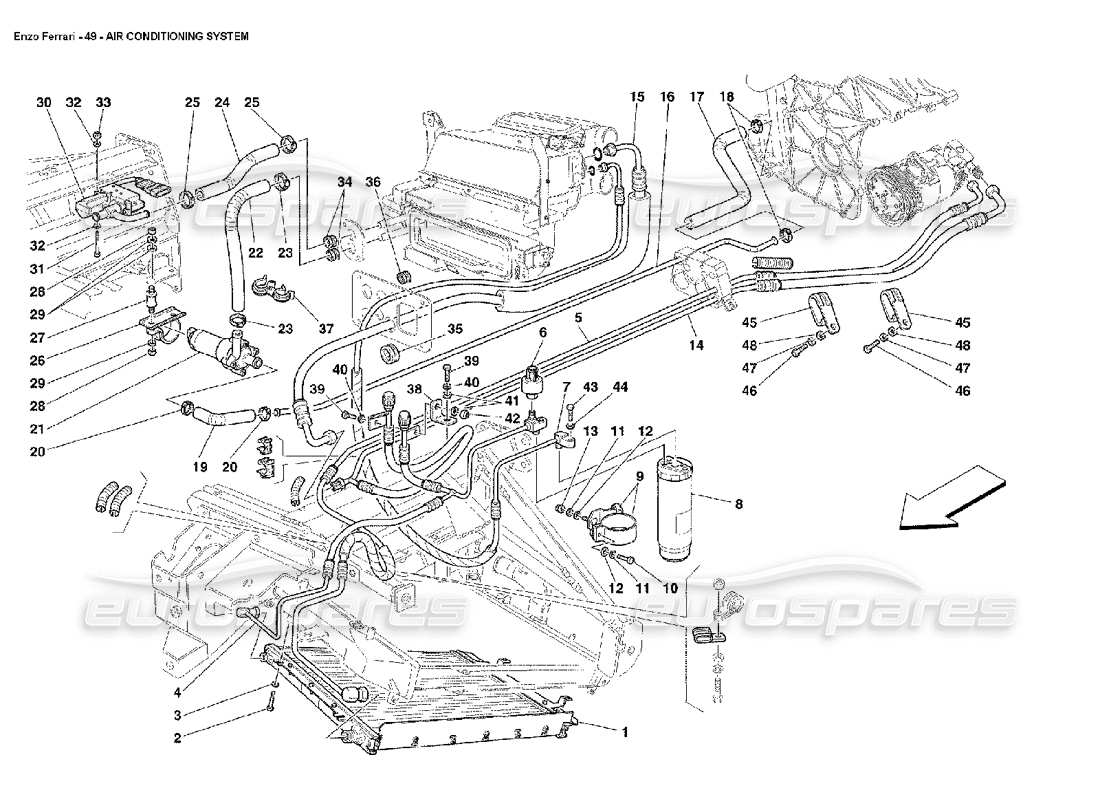

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 190618
                                                                                                  A.C. CONDENSER
                                                                                                  from £1,359.98
                                                                                                  from £1,359.98
                                                                                                  # 002
                                                                                                  MPN: 10977524
                                                                                                  SCREW
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  # 003
                                                                                                  MPN: 11197777
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 004
                                                                                                  MPN: 66697400
                                                                                                  PIPE FROM CONDENSER TO FILTER
                                                                                                  from £179.61
                                                                                                  from £179.61
                                                                                                  # 005
                                                                                                  MPN: 66697300
                                                                                                  PIPE FROM COMPRESSOR TO CONDENSER
                                                                                                  from £160.25
                                                                                                  from £160.25
                                                                                                  # 006
                                                                                                  MPN: 65628200
                                                                                                  PRESSOSTAT
                                                                                                  from £87.04
                                                                                                  from £87.04
                                                                                                  # 007
                                                                                                  MPN: 66697500
                                                                                                  PIPE FROM FILTER TO EVAPORATOR
                                                                                                  from £389.56
                                                                                                  from £389.56
                                                                                                  # 008
                                                                                                  MPN: 67085100
                                                                                                  DEHYDRATING FILTER
                                                                                                  from £16.32
                                                                                                  from £16.32
                                                                                                  This part replaces part number 82195800 - and 13 more. Click to view details
                                                                                                  # 009
                                                                                                  MPN: 66952600
                                                                                                  CLAMP FOR FILTER
                                                                                                  from £22.96
                                                                                                  from £22.96
                                                                                                  # 010
                                                                                                  MPN: 10902124
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                  # 011
                                                                                                  MPN: 14498801
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 012
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                  # 013
                                                                                                  MPN: 10720114
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 014
                                                                                                  MPN: 67085500
                                                                                                  CONJUNCTION GAS PIPE TO COMPRESSOR
                                                                                                  from £536.10
                                                                                                  from £536.10
                                                                                                  # 015
                                                                                                  MPN: 66697600
                                                                                                  PIPE FROM EVAPORATOR TO CONJUNCTION
                                                                                                  from £98.28
                                                                                                  from £98.28
                                                                                                  # 016
                                                                                                  MPN: 193479
                                                                                                  WATER PIPE FOR HEATER
                                                                                                  from £49.24
                                                                                                  from £49.24
                                                                                                  # 017
                                                                                                  MPN: 194064
                                                                                                  WATER PIPE FROM ENGINE
                                                                                                  from £40.65
                                                                                                  from £40.65
                                                                                                  # 018
                                                                                                  MPN: 13433370
                                                                                                  COLLAR FOR SLEEVE
                                                                                                  from £0.60
                                                                                                  from £0.60
                                                                                                  This part replaces part number 247921
                                                                                                  # 019
                                                                                                  MPN: 67191200
                                                                                                  WATER PIPE FROM UNDER FLOOR TO PUMP
                                                                                                  from £109.03
                                                                                                  from £109.03
                                                                                                  # 020
                                                                                                  MPN: 13000490
                                                                                                  SCREW COLLAR
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                  # 021
                                                                                                  MPN: 65460300
                                                                                                  MINIMUM PUMP
                                                                                                  from £130.15
                                                                                                  from £130.15
                                                                                                  This part replaces part number 70000900 - and 3 more. Click to view details
                                                                                                  # 022
                                                                                                  MPN: 67191700
                                                                                                  PIPE FROM PUMP TO HEATER
                                                                                                  from £122.65
                                                                                                  from £122.65
                                                                                                  # 023
                                                                                                  MPN: 13000390
                                                                                                  SCREW COLLAR
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                  # 024
                                                                                                  MPN: 67191500
                                                                                                  PIPE FROM TGK VALVE TO HEATER
                                                                                                  from £166.23
                                                                                                  from £166.23
                                                                                                  # 025
                                                                                                  MPN: 13000390
                                                                                                  SCREW COLLAR
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                                  # 026
                                                                                                  MPN: 63994900
                                                                                                  BRACKET FOR PUMP FIXING
                                                                                                  from £4.14
                                                                                                  from £4.14
                                                                                                  This part replaces part number 64246500
                                                                                                  # 027
                                                                                                  MPN: 142202
                                                                                                  PAD
                                                                                                  from £14.37
                                                                                                  from £14.37
                                                                                                  # 028
                                                                                                  MPN: 15896214
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 15896211
                                                                                                  # 029
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  from £0.52
                                                                                                  from £0.52
                                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                  # 030
                                                                                                  MPN: 65066400
                                                                                                  TGK VALVE
                                                                                                  from £99.10
                                                                                                  from £99.10
                                                                                                  # 031
                                                                                                  MPN: 15210824
                                                                                                  SCREW
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 032
                                                                                                  MPN: 10519224
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10519201 which we have in stock
                                                                                                  # 033
                                                                                                  MPN: 62790300
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12574011 - and 1 more. Click to view details
                                                                                                  # 034
                                                                                                  MPN: 10396580
                                                                                                  CABLE GROMMET
                                                                                                  from £1.07
                                                                                                  from £1.07
                                                                                                  This part replaces part number 100286
                                                                                                  # 035
                                                                                                  MPN: 10397980
                                                                                                  CABLE GROMMET
                                                                                                  from £1.07
                                                                                                  from £1.07
                                                                                                  # 036
                                                                                                  MPN: 10396480
                                                                                                  CABLE GROMMET
                                                                                                  from £2.30
                                                                                                  from £2.30
                                                                                                  This part replaces part number 103516
                                                                                                  # 037
                                                                                                  MPN: 140730
                                                                                                  FIXING CLIP
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 179357 which we have in stock
                                                                                                  # 038
                                                                                                  MPN: 67380500
                                                                                                  BRACKET
                                                                                                  from £17.93
                                                                                                  from £17.93
                                                                                                  # 039
                                                                                                  MPN: 10902287
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 040
                                                                                                  MPN: 14499378
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  # 042
                                                                                                  MPN: 102741
                                                                                                  NUT
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                  # 043
                                                                                                  MPN: 10902624
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10902621
                                                                                                  # 044
                                                                                                  MPN: 11193274
                                                                                                  WASHER
                                                                                                  from £0.54
                                                                                                  from £0.54
                                                                                                  This part replaces part number 11193279 which we have in stock
                                                                                                  # 045
                                                                                                  MPN: 138478
                                                                                                  CLAMP
                                                                                                  from £2.75
                                                                                                  from £2.75
                                                                                                  # 046
                                                                                                  MPN: 10902224
                                                                                                  SCREW
                                                                                                  from £0.51
                                                                                                  from £0.51
                                                                                                  # 047
                                                                                                  MPN: 12644424
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                  # 048
                                                                                                  MPN: 12601274
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
