043 - Rear Suspensions Shock Absorber and Stabilizer Bar

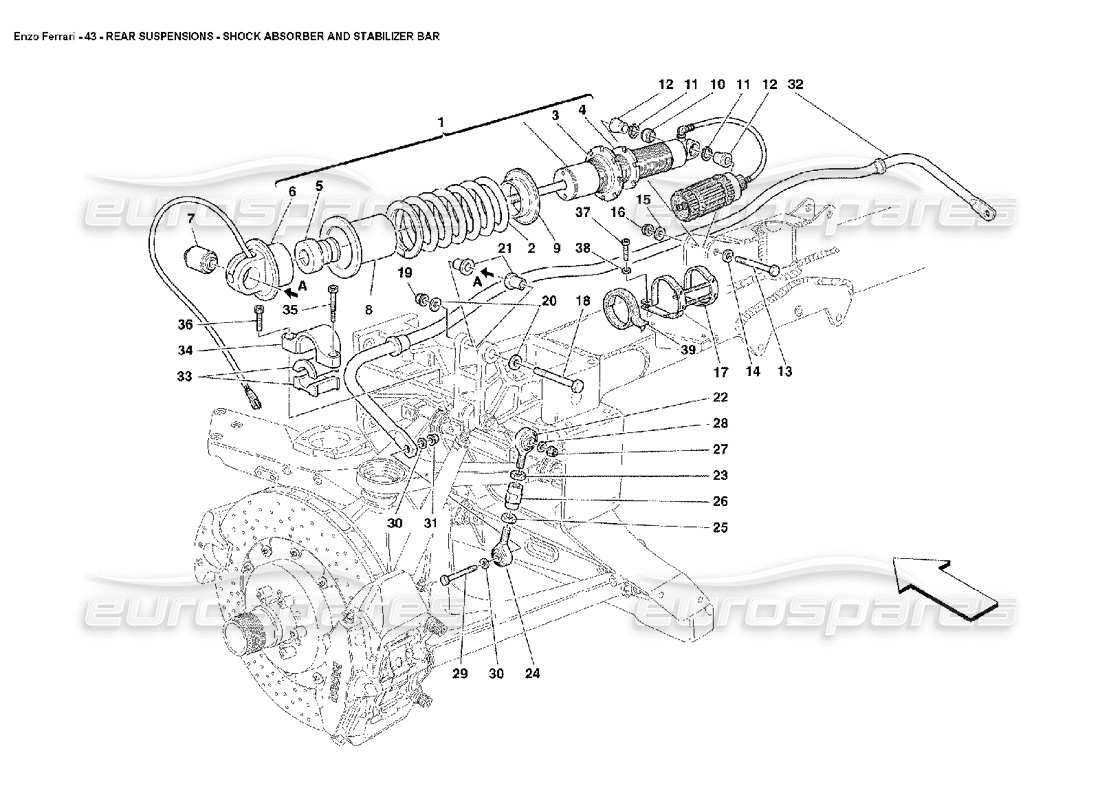

Ferrari Enzo Rear Suspensions Shock Absorber and Stabilizer Bar Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 187701

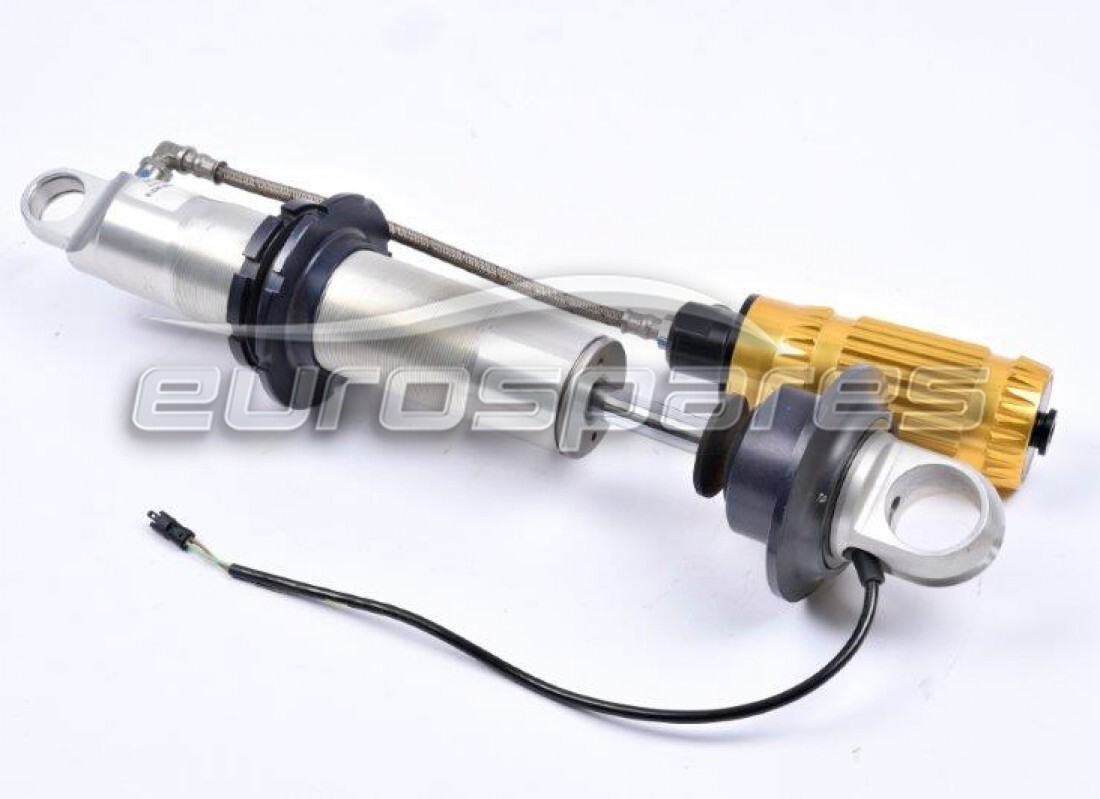

REAR SHOCK ABSORBER
from £6,950.42
from £6,950.42
# 002
MPN: 185803
SUSPENSION SPRING
from £179.34
from £179.34
# 003
MPN: 174725
SPACER
from £70.40
from £70.40
# 004
MPN: 174726
RING NUT
from £38.16
from £38.16
# 005
MPN: 174728
SHOCK ABSORBER PAD
from £32.08
from £32.08
# 006
MPN: 187702
SPRING RETAINING UPPER SPACER
from £24.98
from £24.98
# 007
MPN: 157630
SILENT BLOCK BUSH
Flanblock
from £48.50
from £48.50
This part replaces part number 159262
# 008
MPN: 177688
UPPER SPACER
from £3.34
from £3.34
# 009
MPN: 169684
LOWER SPACER
from £2.30
from £2.30
# 010
MPN: 149354
BALL JOINT
from £43.48
from £43.48
# 011
MPN: 194143
FLEXIBLE RING
from £0.53
from £0.53
# 012
MPN: 189126
BUSHING
- Not as spare part now - Replaced by 197134
Supersession
Supersession
# 012
MPN: 197134
BUSHING
from £14.53
from £14.53
This part replaces part number 189126
# 013
MPN: 194211
PIN
from £30.95
from £30.95
# 014
MPN: 12641024
WASHER
from £1.41
from £1.41
This part replaces part number 12641021
# 015
MPN: 14499624
WASHER
from £0.53
from £0.53
# 016
MPN: 133216
NUT
from £4.80
from £4.80
# 017
MPN: 192654
SHIELD AND SUPPORT TANK
- Valid after stock exhaustion of 195987
from £95.20
from £95.20
This part replaces part number 195987
# 017
MPN: 195987
SHIELD AND SUPPORT TANK
- Valid till stock exhaustion
Supersession
Supersession
# 018
MPN: 192018
SCREW
from £16.05
from £16.05
# 019
MPN: 169183
NUT
Supersession
Supersession
This part replaces part number 12575725 - and 1 more. Click to view details
# 020
MPN: 10732531
WASHER
from £0.53
from £0.53
# 021
MPN: 150082
BUSHING
from £322.46
from £322.46
# 022
MPN: 188575
BALL JOINT
from £252.35
from £252.35
# 023
MPN: 10788714
NUT
from £0.53
from £0.53
# 024
MPN: 188574
BALL JOINT
from £232.59
from £232.59
# 025
MPN: 11690914
NUT
from £2.46
from £2.46
# 026
MPN: 188576
SHACKLE FOR STABILIZER BAR
from £15.24
from £15.24
# 027
MPN: 177778
NUT
from £1.03
from £1.03
This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
# 028
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 029
MPN: 16044124
SCREW
from £0.53
from £0.53
This part replaces part number 16044121 - and 1 more. Click to view details
# 030
MPN: 12638524
WASHER
from £0.47
from £0.47
This part replaces part number 12638501 - and 2 more. Click to view details
# 031
MPN: 177778
NUT
from £1.03
from £1.03
This part replaces part number 133215 which we have in stock - and 1 more. Click to view details
# 032
MPN: 188375

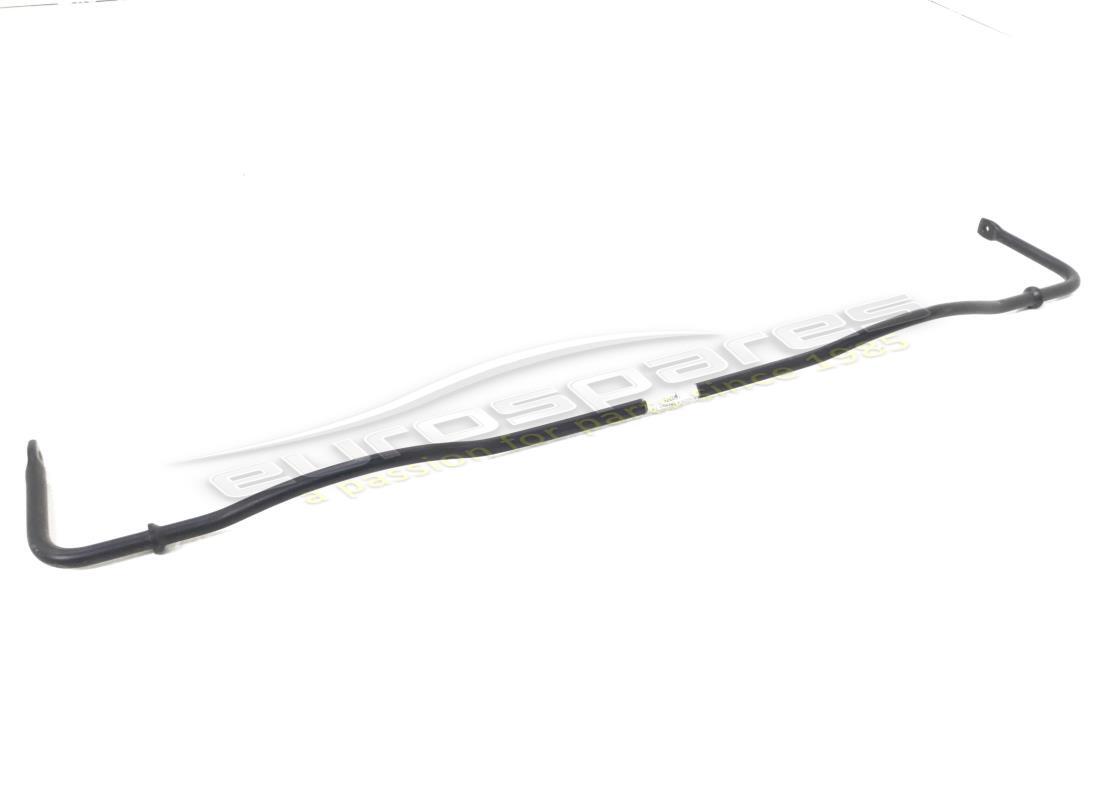

REAR TORSION BAR
from £150.39
from £150.39
# 033
MPN: 189134
BUSHING
from £59.37
from £59.37
# 034
MPN: 189135
SUPPORT
from £47.15
from £47.15
# 035
MPN: 193061
SCREW
from £6.87
from £6.87
# 036
MPN: 14306524
SCREW
from £0.53
from £0.53
This part replaces part number 14306521
# 037
MPN: 14305224
SCREW
from £0.51
from £0.51
# 038
MPN: 14499304
WASHER
from £0.57
from £0.57
# 039
MPN: 195101
ANTI VIBRATIONS
from £0.68
from £0.68
