035 - Hand Brake Control and Caliper

Ferrari Enzo Hand Brake Control and Caliper Parts Diagram

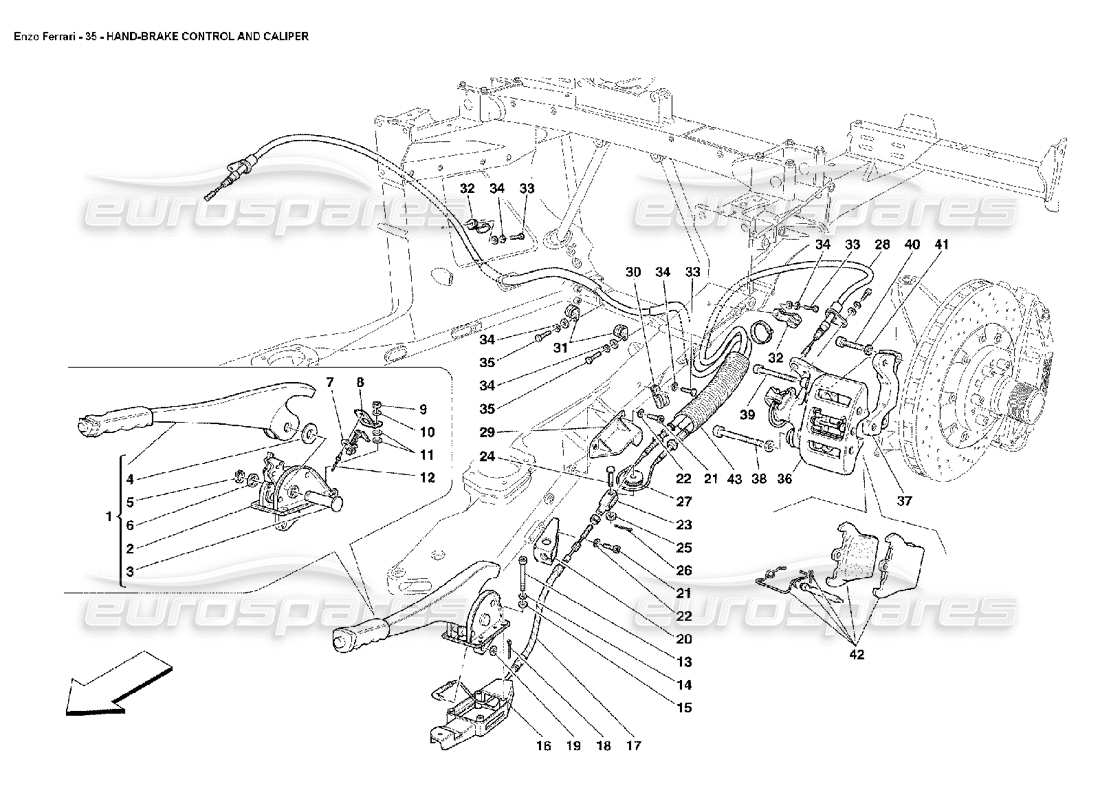

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 154095
                                                                                    HAND BRAKE LEVER
                                                                                    - Without lining - See relevant table for leather colours
                                                                                    from £248.58
                                                                                    from £248.58
                                                                                    This part replaces part number 141460 - and 2 more. Click to view details
                                                                                    # 001
                                                                                    MPN: 629965..
                                                                                    LINING
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 002
                                                                                    MPN: 191634
                                                                                    COMPLETE MECHANISM
                                                                                    from £187.00
                                                                                    from £187.00
                                                                                    # 003
                                                                                    MPN: 191635
                                                                                    PIN
                                                                                    from £17.11
                                                                                    from £17.11
                                                                                    # 004
                                                                                    MPN: 191636
                                                                                    WASHER
                                                                                    from £7.39
                                                                                    from £7.39
                                                                                    # 005
                                                                                    MPN: 191638
                                                                                    SEEGER RING
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 006
                                                                                    MPN: 191637
                                                                                    SPACER WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 008
                                                                                    MPN: 169291
                                                                                    SUPPORT BRACKET
                                                                                    from £1.60
                                                                                    from £1.60
                                                                                    # 009
                                                                                    MPN: 15896470
                                                                                    NUT
                                                                                    (minimum order quantity = 20)
                                                                                    from £0.79
                                                                                    from £0.79
                                                                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                    # 010
                                                                                    MPN: 12605274
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    This part replaces part number 12605270 - and 1 more. Click to view details
                                                                                    # 012
                                                                                    MPN: 50084409
                                                                                    RIVET
                                                                                    from £0.93
                                                                                    from £0.93
                                                                                    # 013
                                                                                    MPN: 14304824
                                                                                    SCREW
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 14304821
                                                                                    # 014
                                                                                    MPN: 12601274
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                    # 015
                                                                                    MPN: 12644424
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                    # 016
                                                                                    MPN: 67354000
                                                                                    LEVER SUPPORT
                                                                                    from £227.21
                                                                                    from £227.21
                                                                                    # 017
                                                                                    MPN: 191974
                                                                                    HAND BRAKE CONTROL FRONT CABLE
                                                                                    from £57.69
                                                                                    from £57.69
                                                                                    # 018
                                                                                    MPN: 10734208
                                                                                    SPLIT PIN
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 10734201
                                                                                    # 019
                                                                                    MPN: 13550301
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 020
                                                                                    MPN: 192894
                                                                                    CABLE FIXING BRACKET
                                                                                    from £38.87
                                                                                    from £38.87
                                                                                    # 021
                                                                                    MPN: 14306374
                                                                                    SCREW
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    This part replaces part number 14306334
                                                                                    # 022
                                                                                    MPN: 12601374
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                    # 023
                                                                                    MPN: 10248271
                                                                                    FORK
                                                                                    from £13.21
                                                                                    from £13.21
                                                                                    # 024
                                                                                    MPN: 10050814
                                                                                    PIN
                                                                                    from £1.29
                                                                                    from £1.29
                                                                                    This part replaces part number 10050811
                                                                                    # 025
                                                                                    MPN: 13550301
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 026
                                                                                    MPN: 10734208
                                                                                    SPLIT PIN
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    This part replaces part number 10734201
                                                                                    # 027
                                                                                    MPN: 122091
                                                                                    PULLEY FOR CABLE
                                                                                    from £4.30
                                                                                    from £4.30
                                                                                    # 028
                                                                                    MPN: 194962
                                                                                    HAND BRAKE CONTROL REAR CABLE
                                                                                    from £171.46
                                                                                    from £171.46
                                                                                    # 029
                                                                                    MPN: 192395
                                                                                    BRACKET FOR TIGHTENER FIXING
                                                                                    from £138.90
                                                                                    from £138.90
                                                                                    # 030
                                                                                    MPN: 10441890
                                                                                    BRACKET WITH SHEATH
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 031
                                                                                    MPN: 181245
                                                                                    BRACKET WITH SHEATH
                                                                                    from £2.87
                                                                                    from £2.87
                                                                                    # 032
                                                                                    MPN: 10441390
                                                                                    BRACKET WITH SHEATH
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 033
                                                                                    MPN: 10977524
                                                                                    SCREW
                                                                                    from £0.52
                                                                                    from £0.52
                                                                                    # 034
                                                                                    MPN: 12601274
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                    # 035
                                                                                    MPN: 10902224
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 036
                                                                                    MPN: 196139
                                                                                    RH CALIPER FOR HAND BRAKE
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 036
                                                                                    MPN: 196140
                                                                                    LH CALIPER FOR HAND BRAKE
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 037
                                                                                    MPN: 194960
                                                                                    LH BRACKET
                                                                                    from £491.13
                                                                                    from £491.13
                                                                                    # 037
                                                                                    MPN: 194961
                                                                                    RH BRACKET
                                                                                    from £335.09
                                                                                    from £335.09
                                                                                    # 038
                                                                                    MPN: 14308424
                                                                                    SCREW
                                                                                    from £1.60
                                                                                    from £1.60
                                                                                    # 039
                                                                                    MPN: 14308924
                                                                                    SCREW
                                                                                    from £2.12
                                                                                    from £2.12
                                                                                    # 040
                                                                                    MPN: 195556
                                                                                    SCREW
                                                                                    from £3.45
                                                                                    from £3.45
                                                                                    # 041
                                                                                    MPN: 12604574
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 042
                                                                                    MPN: 70001614

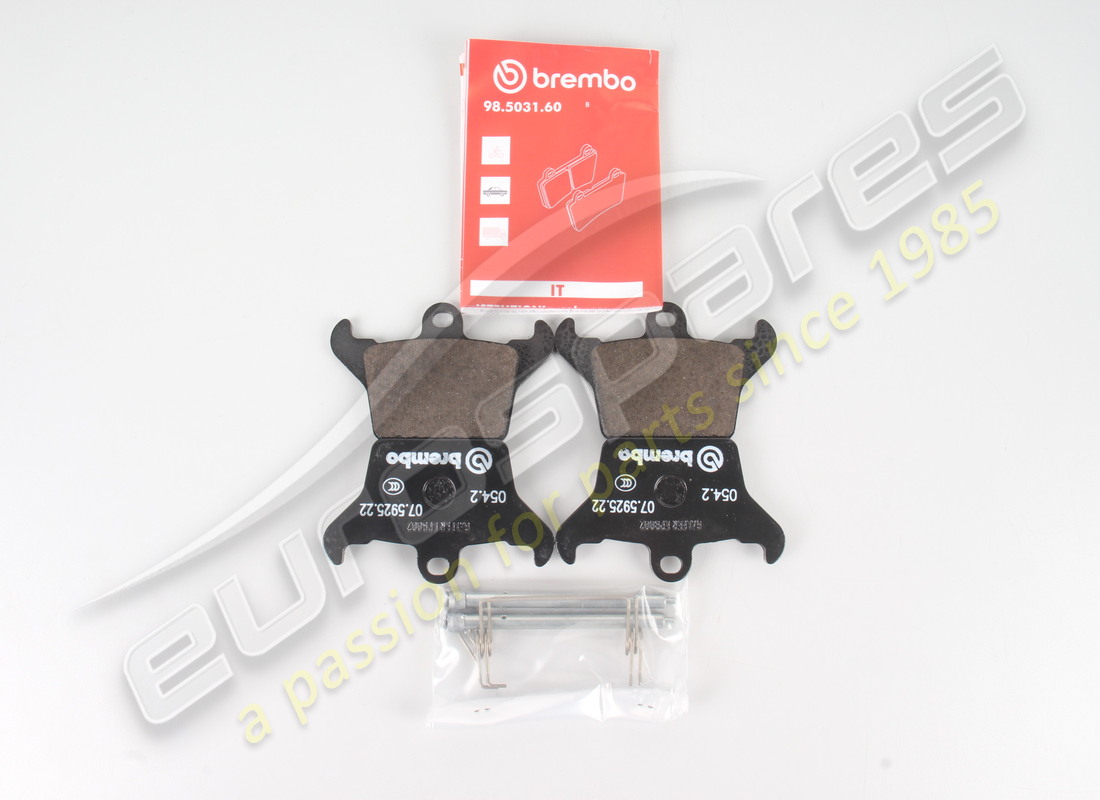

                                                                                    KIT OF HAND BRAKES PADS WITH SPRING
                                                                                    from £196.71
                                                                                    from £196.71
                                                                                    This part replaces part number 70000969
                                                                                    # 043
                                                                                    MPN: 195878
                                                                                    PROTECTION PIPE
                                                                                    from £66.43
                                                                                    from £66.43
                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
