034 - Front and Rear Brakes Calipers

Ferrari Enzo Front and Rear Brakes Calipers Parts Diagram

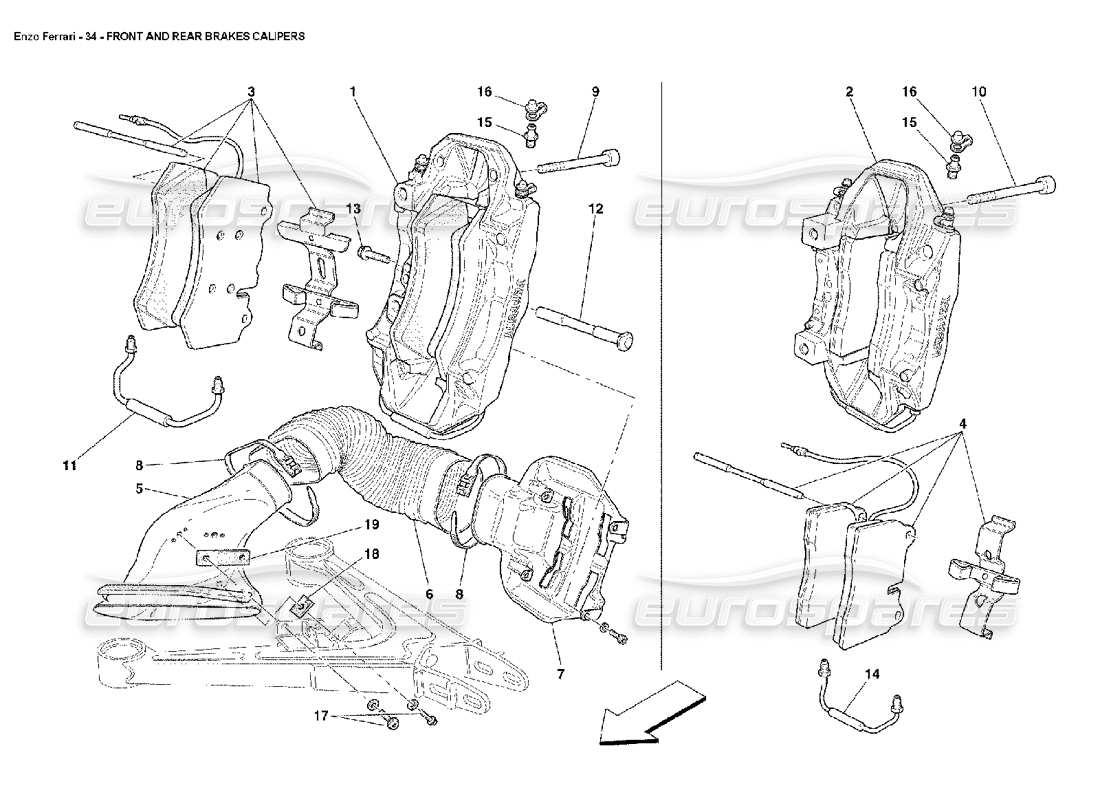

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 193800
                                      RH FRONT CALIPER UNIT WITH PADS
                                      Supersession
                                      Supersession
                                      # 001
                                      MPN: 193801
                                      LH FRONT CALIPER UNIT WITH PADS
                                      Supersession
                                      Supersession
                                      # 002
                                      MPN: 194950
                                      RH REAR CALIPER UNIT WITH PADS
                                      Supersession
                                      Supersession
                                      # 002
                                      MPN: 194951
                                      LH REAR CALIPER UNIT WITH PADS
                                      Supersession
                                      Supersession
                                      # 003
                                      MPN: 70000965

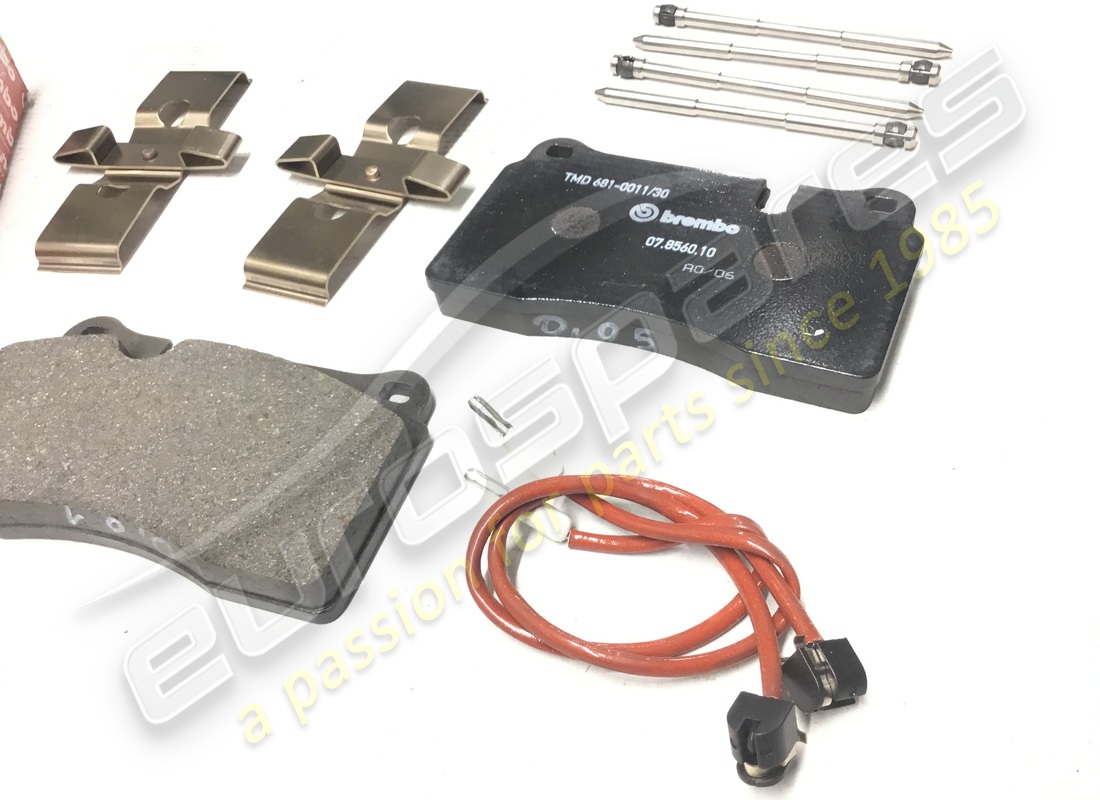

                                      KIT OF FRONT PADS WITH SPRING
                                      Supersession
                                      Supersession
                                      # 004
                                      MPN: 70000966
                                      KIT OF REAR PADS WITH SPRING
                                      from £556.76
                                      from £556.76
                                      # 005
                                      MPN: 194957
                                      LH AIR INTAKE
                                      from £636.63
                                      from £636.63
                                      # 005
                                      MPN: 194958
                                      RH AIR INTAKE
                                      from £636.63
                                      from £636.63
                                      # 006
                                      MPN: 198049
                                      AIR DELIVERY TUBE
                                      - Not as spare part now - Replaced by 201149
                                      Supersession
                                      Supersession
                                      # 006
                                      MPN: 201149
                                      AIR DELIVERY TUBE
                                      from £127.52
                                      from £127.52
                                      This part replaces part number 198049
                                      # 007
                                      MPN: 194955
                                      AIR INTAKE ON CALIPER
                                      from £1,224.93
                                      from £1,224.93
                                      # 008
                                      MPN: 196655
                                      CLAMP
                                      from £0.64
                                      from £0.64
                                      # 009
                                      MPN: 196367

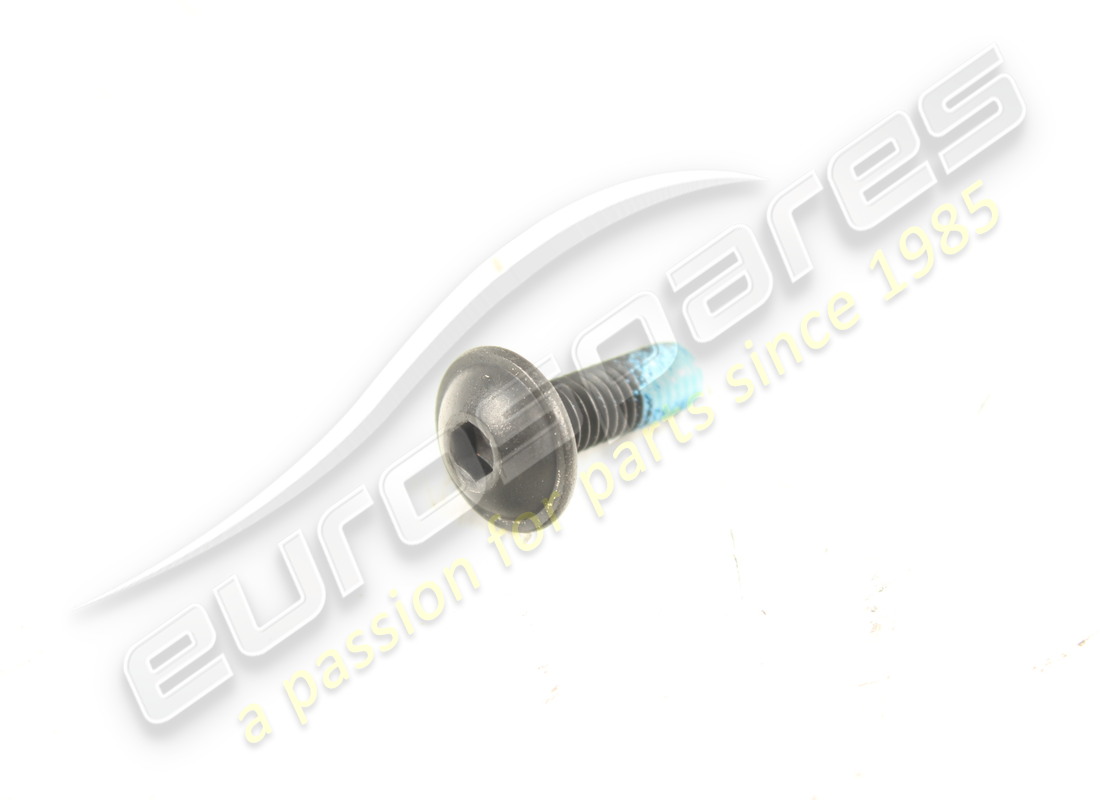

                                      SCREW
                                      from £42.11
                                      from £42.11
                                      # 010
                                      MPN: 196381
                                      SCREW
                                      from £23.10
                                      from £23.10
                                      # 011
                                      MPN: 198012
                                      FRONT CONNECTION PIPE
                                      from £17.44
                                      from £17.44
                                      # 012
                                      MPN: 198015
                                      TIE ROD
                                      from £32.39
                                      from £32.39
                                      # 013
                                      MPN: 198014
                                      SCREW
                                      from £5.40
                                      from £5.40
                                      # 014
                                      MPN: 198013
                                      REAR CONNECTION PIPE
                                      from £14.79
                                      from £14.79
                                      # 015
                                      MPN: 152954
                                      UNIONWITH EXHAUST VALVE
                                      from £3.18
                                      from £3.18
                                      # 016
                                      MPN: 152955
                                      PROTECTION BOOT
                                      from £2.95
                                      from £2.95
                                      # 017
                                      MPN: 66207700
                                      SCREW
                                      from £1.37
                                      from £1.37
                                      This part replaces part number 10558628
                                      # 018
                                      MPN: 196355
                                      ANTI VIBRATIONS
                                      from £0.71
                                      from £0.71
                                      # 019
                                      MPN: 196350
                                      ANTI VIBRATIONS
                                      from £0.47
                                      from £0.47
