Ferrari Enzo  Parts Diagram

030 - Differential & Axle Shafts

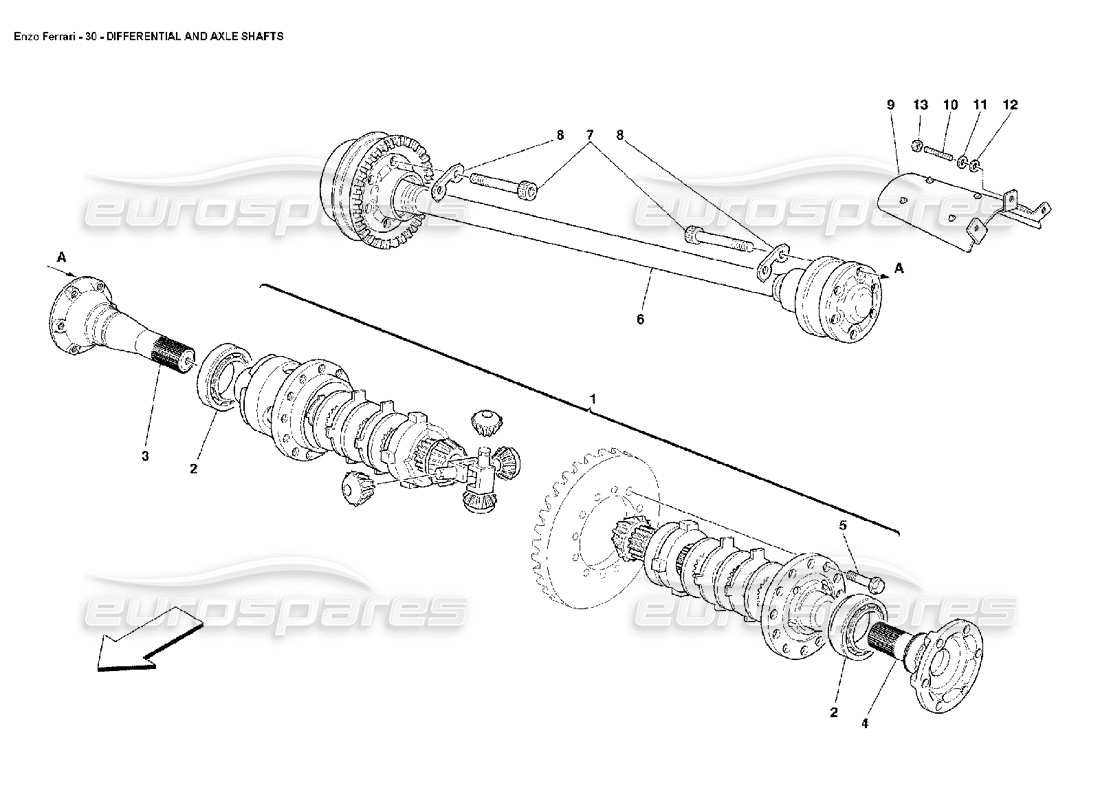

Ferrari Enzo Differential & Axle Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 190006
                        COMPLETE DIFFERENTIAL
                        from £2,159.85
                        from £2,159.85
                        This part replaces part number 183932 which we have in stock - and 1 more. Click to view details
                        # 002
                        MPN: 184998
                        ROLLER BEARING
                        from £73.23
                        from £73.23
                        # 003
                        MPN: 185014
                        RH SHAFT FOR DIFFERENTIAL EXIT
                        - Not as spare part now - Replaced by 199055
                        Supersession
                        Supersession
                        # 003
                        MPN: 199055
                        RH SHAFT
                        from £626.37
                        from £626.37
                        This part replaces part number 185014
                        # 004
                        MPN: 182322
                        LH SHAFT FOR DIFFERENTIAL EXIT
                        - Not as spare part now - Replaced by 199056
                        Supersession
                        Supersession
                        # 004
                        MPN: 199056
                        LH SHAFT FOR DIFFERENTIAL EXIT
                        from £623.12
                        from £623.12
                        This part replaces part number 182322
                        # 005
                        MPN: 183909
                        SCREW
                        from £3.34
                        from £3.34
                        # 006
                        MPN: 187647
                        AXLE SHAFT
                        from £1,922.09
                        from £1,922.09
                        # 007
                        MPN: 206086
                        SCREW
                        from £44.56
                        from £44.56
                        # 007
                        MPN: 223916
                        SCREW
                        from £1.38
                        from £1.38
                        This part replaces part number 181910
                        # 008
                        MPN: 149415
                        PLATE
                        from £1.11
                        from £1.11
                        # 009
                        MPN: 184083
                        SHIELD FOR AXLE SHAFT PROTECTION
                        from £97.41
                        from £97.41
                        This part replaces part number 179312
                        # 010
                        MPN: 13540924
                        STUD
                        from £0.70
                        from £0.70
                        This part replaces part number 13540921
                        # 011
                        MPN: 12639724
                        WASHER
                        from £0.53
                        from £0.53
                        This part replaces part number 12639725 - and 1 more. Click to view details
                        # 012
                        MPN: 12601274
                        WASHER
                        from £0.52
                        from £0.52
                        This part replaces part number 12601221 - and 5 more. Click to view details
                        # 013
                        MPN: 14048115
                        NUT
                        Supersession
                        Supersession
                        This part replaces part number 14048611 - and 1 more. Click to view details
