029 - Cooling System Gearbox Oil

Ferrari Enzo Cooling System Gearbox Oil Parts Diagram

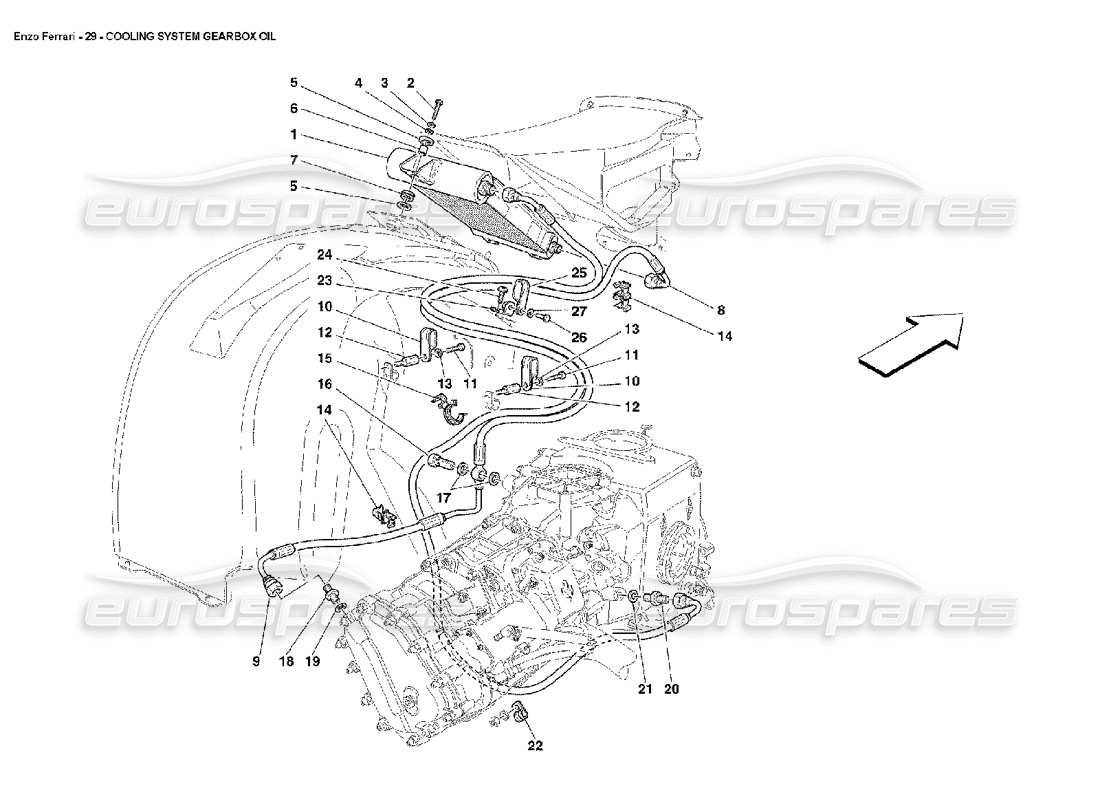

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 187119
                                                    OIL RADIATOR
                                                    from £2,179.38
                                                    from £2,179.38
                                                    # 002
                                                    MPN: 16043934
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 16043921 - and 1 more. Click to view details
                                                    # 003
                                                    MPN: 127496
                                                    WASHER
                                                    from £0.54
                                                    from £0.54
                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                    # 004
                                                    MPN: 14496524
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 14496525 - and 1 more. Click to view details
                                                    # 005
                                                    MPN: 107979
                                                    CUP
                                                    from £1.11
                                                    from £1.11
                                                    # 006
                                                    MPN: 155395
                                                    SPACER
                                                    from £0.64
                                                    from £0.64
                                                    # 007
                                                    MPN: 107978
                                                    PAD
                                                    from £1.10
                                                    from £1.10
                                                    # 008
                                                    MPN: 195019
                                                    OIL DELIVERY RADIATOR HOSE
                                                    from £475.52
                                                    from £475.52
                                                    # 009
                                                    MPN: 195020
                                                    SEMI RIGID RETURN PIPE FROM OIL RADIATOR
                                                    - RIGID RETURN PIPE FROM
                                                    from £544.78
                                                    from £544.78
                                                    # 010
                                                    MPN: 10116401
                                                    BRACKET WITH SHEATH
                                                    from £1.59
                                                    from £1.59
                                                    # 011
                                                    MPN: 10979424
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 012
                                                    MPN: 178772
                                                    STUD
                                                    from £5.72
                                                    from £5.72
                                                    # 013
                                                    MPN: 14496424
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 14496401 - and 3 more. Click to view details
                                                    # 014
                                                    MPN: 145543
                                                    FLEXIBLE CLIP
                                                    from £0.47
                                                    from £0.47
                                                    # 015
                                                    MPN: 183098
                                                    FLEXIBLE CLIP
                                                    from £1.11
                                                    from £1.11
                                                    # 016
                                                    MPN: 184727
                                                    UNION
                                                    from £1.56
                                                    from £1.56
                                                    This part replaces part number 153419 which we have in stock - and 5 more. Click to view details
                                                    # 017
                                                    MPN: 145192
                                                    GASKET
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 143311
                                                    # 018
                                                    MPN: 134988
                                                    UNION
                                                    from £19.30
                                                    from £19.30
                                                    # 019
                                                    MPN: 10257060
                                                    GASKET
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10253060 - and 2 more. Click to view details
                                                    # 020
                                                    MPN: 194163
                                                    UNION
                                                    - Not as spare part now - Replaced by 203182
                                                    Supersession
                                                    Supersession
                                                    # 020
                                                    MPN: 203182
                                                    UNION
                                                    from £18.58
                                                    from £18.58
                                                    This part replaces part number 194163
                                                    # 021
                                                    MPN: 10280060
                                                    GASKET
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 100501 - and 3 more. Click to view details
                                                    # 022
                                                    MPN: 10450390
                                                    BRACKET WITH SHEATH
                                                    from £0.71
                                                    from £0.71
                                                    # 023
                                                    MPN: 142060
                                                    BRACKET
                                                    from £3.42
                                                    from £3.42
                                                    # 024
                                                    MPN: 64830600
                                                    SCREW
                                                    from £1.00
                                                    from £1.00
                                                    This part replaces part number 64882800 - and 1 more. Click to view details
                                                    # 025
                                                    MPN: 10441890
                                                    BRACKET WITH SHEATH
                                                    from £0.47
                                                    from £0.47
                                                    # 026
                                                    MPN: 10979414
                                                    SCREW
                                                    from £0.47
                                                    from £0.47
                                                    # 027
                                                    MPN: 12644424
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12644401 - and 1 more. Click to view details
