028 - Inside Gearbox Controls

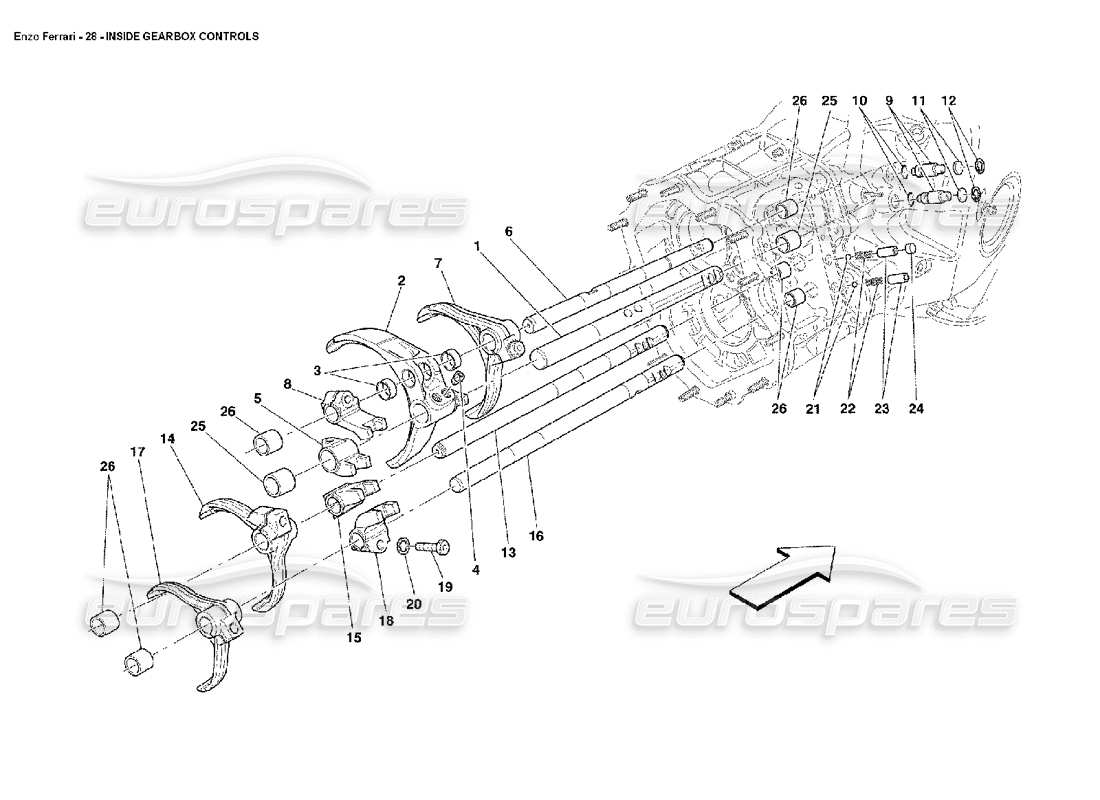

Ferrari Enzo Inside Gearbox Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 189531
                                                      ROD FOR 1ST AND 2ND GEAR
                                                      from £61.61
                                                      from £61.61
                                                      # 002
                                                      MPN: 189080
                                                      CONTROL FORK FOR 1ST AND 2ND GEAR
                                                      from £336.67
                                                      from £336.67
                                                      # 003
                                                      MPN: 185566
                                                      SELF - LUBRICATING BUSHING
                                                      from £3.85
                                                      from £3.85
                                                      This part replaces part number 175729
                                                      # 004
                                                      MPN: 142245
                                                      SCREW
                                                      from £0.54
                                                      from £0.54
                                                      # 005
                                                      MPN: 189078
                                                      ROD FORK FOR 1ST AND 2ND GEAR
                                                      from £223.15
                                                      from £223.15
                                                      # 006
                                                      MPN: 185314
                                                      CONTROL ROD FOR REVERSE
                                                      from £90.32
                                                      from £90.32
                                                      # 007
                                                      MPN: 189528
                                                      CONTROL FORK FOR REVERSE
                                                      from £201.63
                                                      from £201.63
                                                      # 008
                                                      MPN: 189077
                                                      ROD FORK REVERSE
                                                      from £223.15
                                                      from £223.15
                                                      # 009
                                                      MPN: 153719
                                                      PIN
                                                      from £16.13
                                                      from £16.13
                                                      # 010
                                                      MPN: 14453381
                                                      O.R. GASKET
                                                      from £0.64
                                                      from £0.64
                                                      This part replaces part number 14453380
                                                      # 011
                                                      MPN: 154698
                                                      PAD
                                                      from £1.98
                                                      from £1.98
                                                      This part replaces part number 153709
                                                      # 012
                                                      MPN: 11057476
                                                      SEEGER RING
                                                      from £0.51
                                                      from £0.51
                                                      # 013
                                                      MPN: 158051
                                                      ROD FOR 3RD AND 4TH GEAR
                                                      from £60.59
                                                      from £60.59
                                                      This part replaces part number 159716 - and 1 more. Click to view details
                                                      # 014
                                                      MPN: 261486
                                                      CONTROL FORK FOR 3RD AND 4TH GEAR
                                                      from £775.59
                                                      from £775.59
                                                      This part replaces part number 189532
                                                      # 015
                                                      MPN: 189081
                                                      ROD FORK FOR 3ND AND 4RD GEAR
                                                      from £223.15
                                                      from £223.15
                                                      # 016
                                                      MPN: 189533
                                                      ROD FOR 5TH AND 6TH GEAR
                                                      from £81.44
                                                      from £81.44
                                                      # 017
                                                      MPN: 189534
                                                      CONTROL FORK FOR 5TH AND 6TH GEAR
                                                      from £119.09
                                                      from £119.09
                                                      # 018
                                                      MPN: 189082
                                                      ROD FORK FOR 5TH AND 6TH GEAR
                                                      from £223.15
                                                      from £223.15
                                                      # 019
                                                      MPN: 16043634
                                                      SCREW
                                                      from £0.49
                                                      from £0.49
                                                      # 020
                                                      MPN: 10571779
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      # 021
                                                      MPN: 101612
                                                      BALL
                                                      from £0.71
                                                      from £0.71
                                                      This part replaces part number 93309
                                                      # 022
                                                      MPN: 100750
                                                      SPRING
                                                      from £0.91
                                                      from £0.91
                                                      This part replaces part number 523899
                                                      # 023
                                                      MPN: 115376
                                                      BUSHING
                                                      from £29.82
                                                      from £29.82
                                                      # 024
                                                      MPN: 150173
                                                      SPACER
                                                      from £2.62
                                                      from £2.62
                                                      # 025
                                                      MPN: 150093
                                                      SELF - LUBRICATING BUSHING
                                                      from £4.28
                                                      from £4.28
                                                      This part replaces part number 150035
                                                      # 026
                                                      MPN: 106500
                                                      SELF - LUBRICATING BUSHING
                                                      from £5.85
                                                      from £5.85
