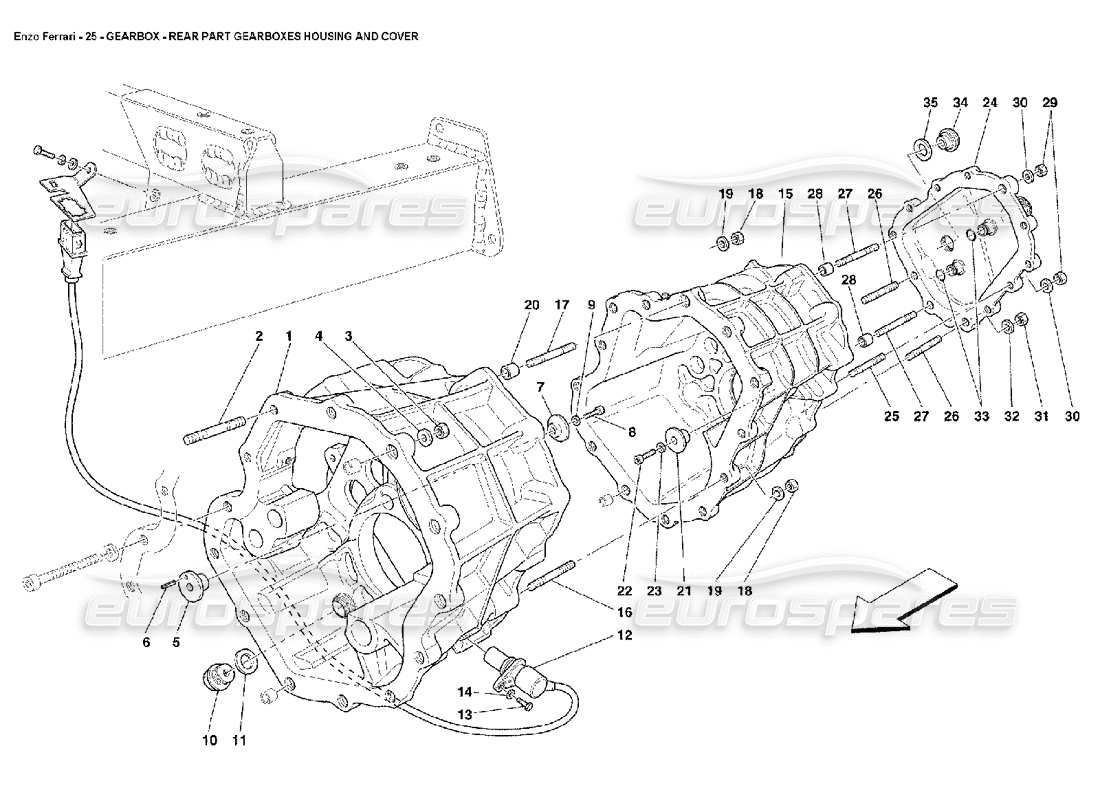

025 - Gearbox Rear Part Gearboxes Housing and Cover
Ferrari Enzo Gearbox Rear Part Gearboxes Housing and Cover Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 194234
COMPLETE GEARBOX ASSEMBLY
from £3,101.92
from £3,101.92
This part replaces part number 185743 - and 2 more. Click to view details
# 001
MPN: 185744
GEAR BOX 3RD ELEMENT
- With the complete gearbox 194234
from £585.98
from £585.98
# 002
MPN: 13543524
STUD
from £2.03
from £2.03
This part replaces part number 13543521
# 003
MPN: 16100812
NUT
from £0.71
from £0.71
# 004
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 005
MPN: 157009
BUSHING
from £4.48
from £4.48
# 006
MPN: 14159470
FLEXIBLE PIN
from £2.81
from £2.81
# 007
MPN: 157010
BUSHING
from £5.34
from £5.34
# 008
MPN: 14305731
SCREW
from £0.47
from £0.47
# 009
MPN: 10569274
WASHER
from £0.86
from £0.86
# 010
MPN: 10305111
THREADED PLUG
from £3.55
from £3.55
# 011
MPN: 10263460
GASKET
from £0.47
from £0.47
This part replaces part number 95119
# 012
MPN: 168729
ELECTROMAGNETIC SENSOR
from £71.48
from £71.48
# 013
MPN: 10902224
SCREW
from £0.53
from £0.53
# 014
MPN: 11194377
WASHER
from £0.71
from £0.71
# 015
MPN: 185743
GEAR BOX 2RD ELEMENT
- With the complete gearbox 194234
# 016
MPN: 13543524
STUD
from £2.03
from £2.03
This part replaces part number 13543521
# 017
MPN: 13543624
STUD
from £0.51
from £0.51
This part replaces part number 13543621
# 018
MPN: 16100812
NUT
from £0.71
from £0.71
# 019
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 020
MPN: 102704
CENTERING DOWEL
from £1.59
from £1.59
This part replaces part number 500805
# 021
MPN: 131757
BUSHING
from £3.67
from £3.67
# 022
MPN: 14305731
SCREW
from £0.47
from £0.47
# 023
MPN: 10569274
WASHER
from £0.86
from £0.86
# 024
MPN: 185372
REAR COVER
from £555.30
from £555.30
# 025
MPN: 13543624
STUD
from £0.48
from £0.48
This part replaces part number 13543621
# 026
MPN: 13546524
STUD
from £0.68
from £0.68
This part replaces part number 13546521
# 027
MPN: 13543724
STUD
from £0.87
from £0.87
This part replaces part number 13543721
# 028
MPN: 102704
CENTERING DOWEL
from £1.59
from £1.59
This part replaces part number 500805
# 029
MPN: 16100812
NUT
from £0.71
from £0.71
# 030
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 031
MPN: 12164712
NUT
from £1.32
from £1.32
# 032
MPN: 12601474
WASHER
from £0.54
from £0.54
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 033
MPN: 137192
O.R. GASKET
from £0.53
from £0.53
# 034
MPN: 10305111
THREADED PLUG
from £3.55
from £3.55
# 035
MPN: 10263460
GASKET
from £0.47
from £0.47
This part replaces part number 95119
