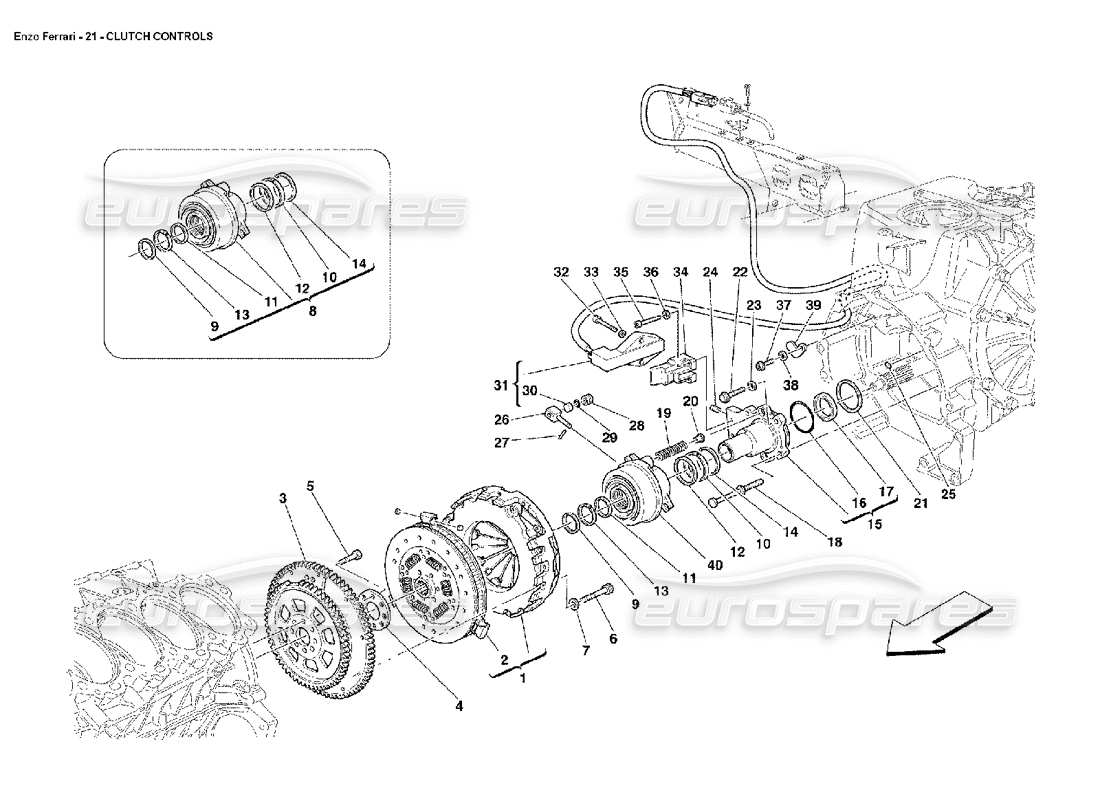

Ferrari Enzo Clutch Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 198824
CLUTCH KIT
- Valid after stock exhaustion of 194517
from £2,542.80
from £2,542.80
This part replaces part number 194517
# 002
MPN: 186415

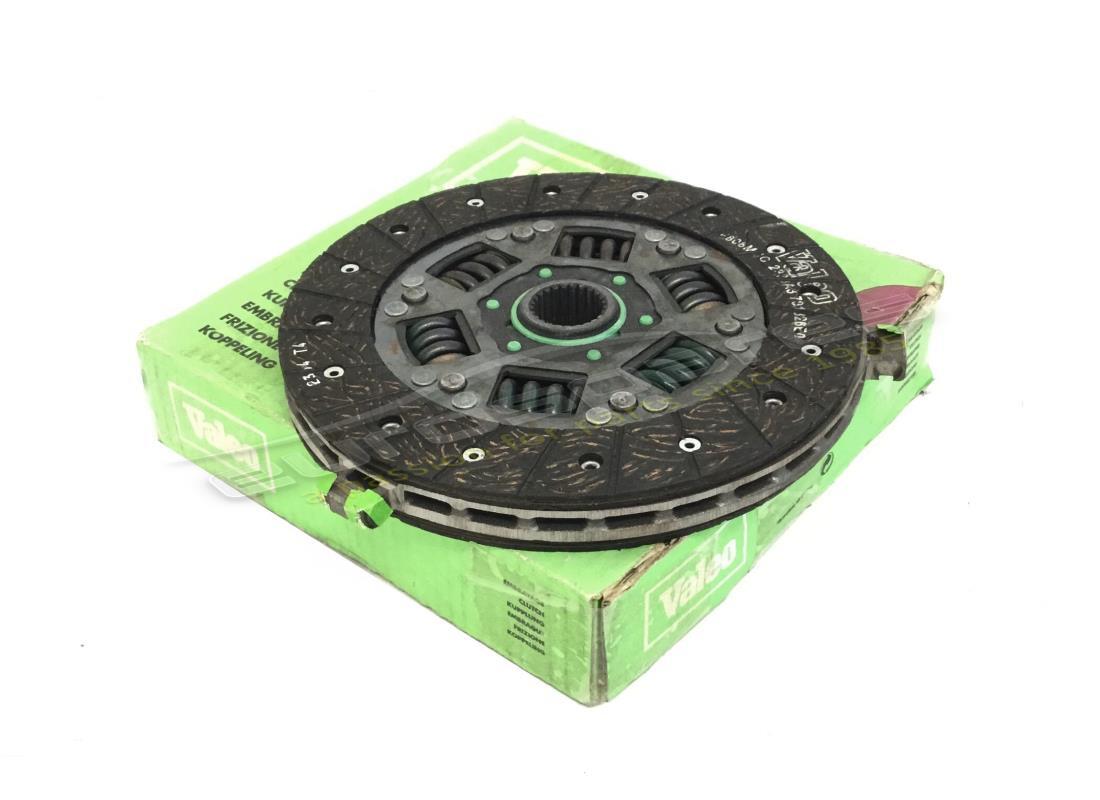

CLUTCH CENTRAL PLATE
After stock exhaustion use complete 194517
from £2,112.31
from £2,112.31
# 003
MPN: 230426
FLYWHEEL
from £408.30
from £408.30
This part replaces part number 185983 - and 5 more. Click to view details
# 004
MPN: 103876
FLYWHEEL FIXING WASHER
from £2.82
from £2.82
This part replaces part number 12833 - and 1 more. Click to view details
# 005
MPN: 201755
SCREW
from £1.16
from £1.16
This part replaces part number 103875
# 006
MPN: 185206
SCREW
from £1.17
from £1.17
# 007
MPN: 11194377
WASHER
from £0.71
from £0.71
# 008
MPN: 234953
CLUTCH BEARING WITH SEALS
Valid for F1 Cars only
from £495.00
from £495.00
# 009
MPN: 181837
SCRAPER RING
from £13.14
from £13.14
# 010
MPN: 154507
SLIDING RING
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 010
MPN: 154507
SLIDING RING
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 011
MPN: 181838
SEAL RING
from £12.32
from £12.32
# 012
MPN: 181828
SEAL RING
from £15.35
from £15.35
# 013
MPN: 170416
RING
from £1.23
from £1.23
This part replaces part number 189183
# 013
MPN: 170416
SLIDING RING
from £1.23
from £1.23
This part replaces part number 189183
# 014
MPN: 181836
SCRAPER RING
from £14.44
from £14.44
# 015
MPN: 194670
FLANGE SUPPORTING BEARING
from £545.30
from £545.30
# 016
MPN: 136140
O.R. GASKET
from £0.72
from £0.72
# 017
MPN: 172363
SEAL RING
from £15.00
from £15.00
# 018
MPN: 201322
STUD FOR END OF STROKE
from £29.31
from £29.31
# 018
MPN: 205396
STUD FOR END OF STROKE
from £30.43
from £30.43
This part replaces part number 171458
STUD FOR END OF STROKE. Genuine Ferrari Part - New In stock
suggested to replace sensor support (950760)
suggested to replace sensor support (950760)
# 019
MPN: 155207
PRELOAD SPRING
from £2.27
from £2.27
# 020
MPN: 155206
SPACER
from £1.75
from £1.75
# 021
MPN: 173360
SPACER
from £10.51
from £10.51
# 022
MPN: 16052024
SCREW
from £1.34
from £1.34
# 023
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 024
MPN: 65928500
THREADED PLUG
from £24.36
from £24.36
This part replaces part number 10267550
# 025
MPN: 166432
O.R. GASKET
from £0.47
from £0.47
This part replaces part number 121813
# 026
MPN: 165567
PIN
from £22.68
from £22.68
# 027
MPN: 14158570
FLEXIBLE PIN
from £0.47
from £0.47
# 028
MPN: 167802
PLUG
from £22.08
from £22.08
# 029
MPN: 165658
O.R. GASKET
from £4.13
from £4.13
# 030
MPN: 165676
MAGNET
- Not supplied - Included in 182311
from £73.80
from £73.80
# 031
MPN: 244801
COMPLETE SENSOR KIT
from £172.65
from £172.65
This part replaces part number 182311 - and 3 more. Click to view details
# 031
MPN: 244801
COMPLETE SENSOR KIT
from £172.65
from £172.65
This part replaces part number 182311 - and 3 more. Click to view details
# 032
MPN: 14303324
SCREW
from £0.53
from £0.53
This part replaces part number 014303324
# 033
MPN: 10519224
WASHER
from £0.47
from £0.47
This part replaces part number 10519201 which we have in stock
# 034
MPN: 201282
SUPPORT
from £46.25
from £46.25
This part replaces part number 178545
# 035
MPN: 14358524
SCREW
from £0.47
from £0.47
# 036
MPN: 10519378
WASHER
from £0.47
from £0.47
This part replaces part number 10519377 which we have in stock - and 2 more. Click to view details
# 037
MPN: 14778114
SCREW
from £2.73
from £2.73
# 038
MPN: 11188079
WASHER
from £0.71
from £0.71
# 039
MPN: 194250
SMALL PLATE
from £27.20
from £27.20
# 040
MPN: 234953
CLUTCH BEARING WITH SEALS
Valid for F1 Cars only
from £495.00
from £495.00
