020 - Cooling System Radiators

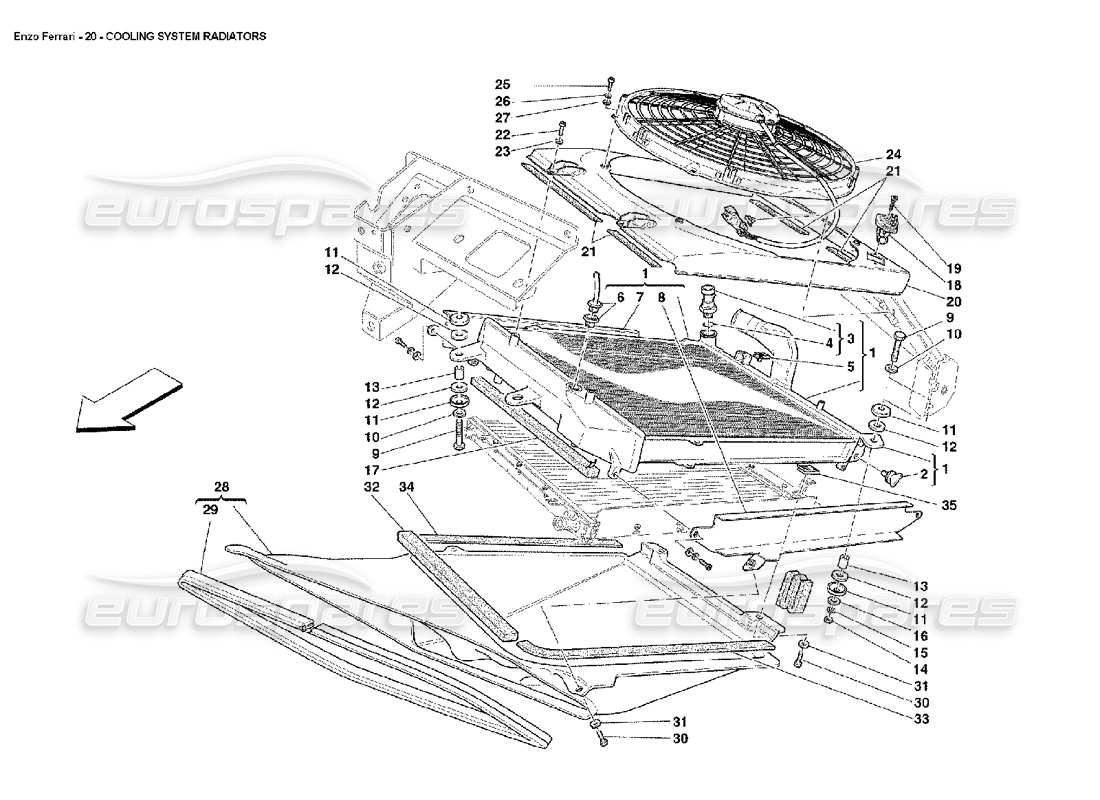

Ferrari Enzo Cooling System Radiators Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Price
                                                        # 001
                                                        MPN: 185774

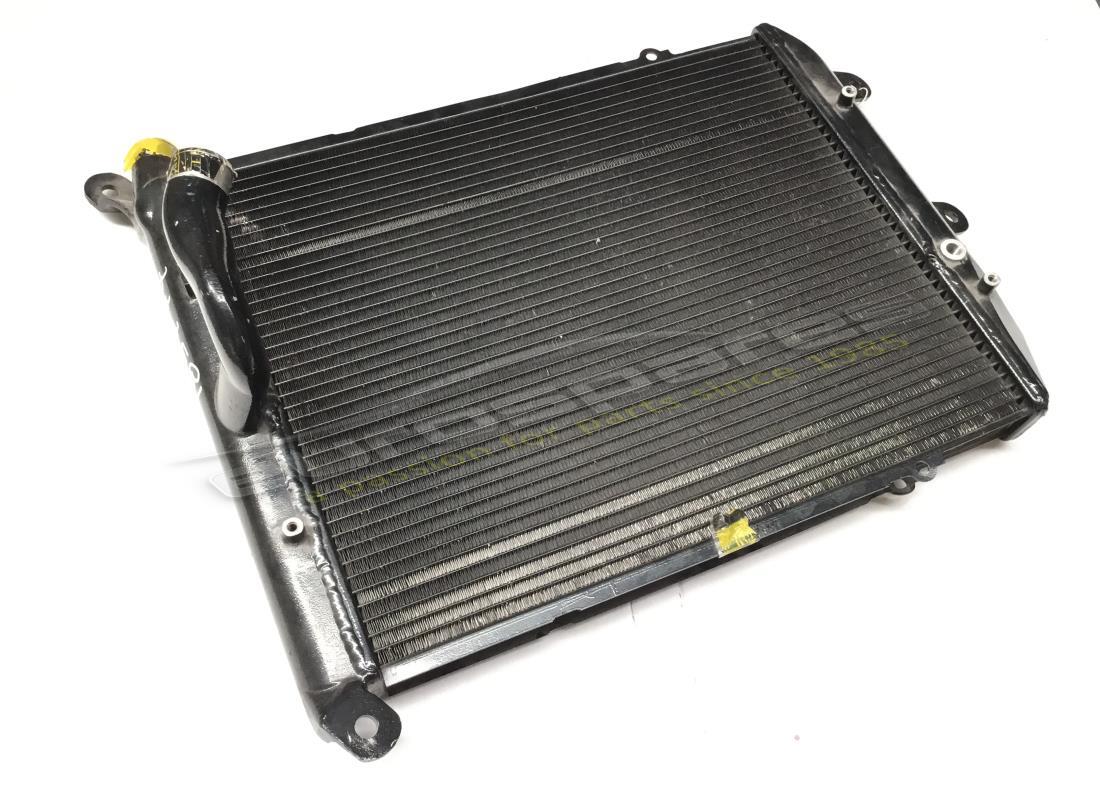

                                                        WATER RH RADIATOR
                                                        from £3,158.13
                                                        from £3,158.13
                                                        # 001
                                                        MPN: 185782
                                                        WATER LH RADIATOR
                                                        from £3,158.13
                                                        from £3,158.13

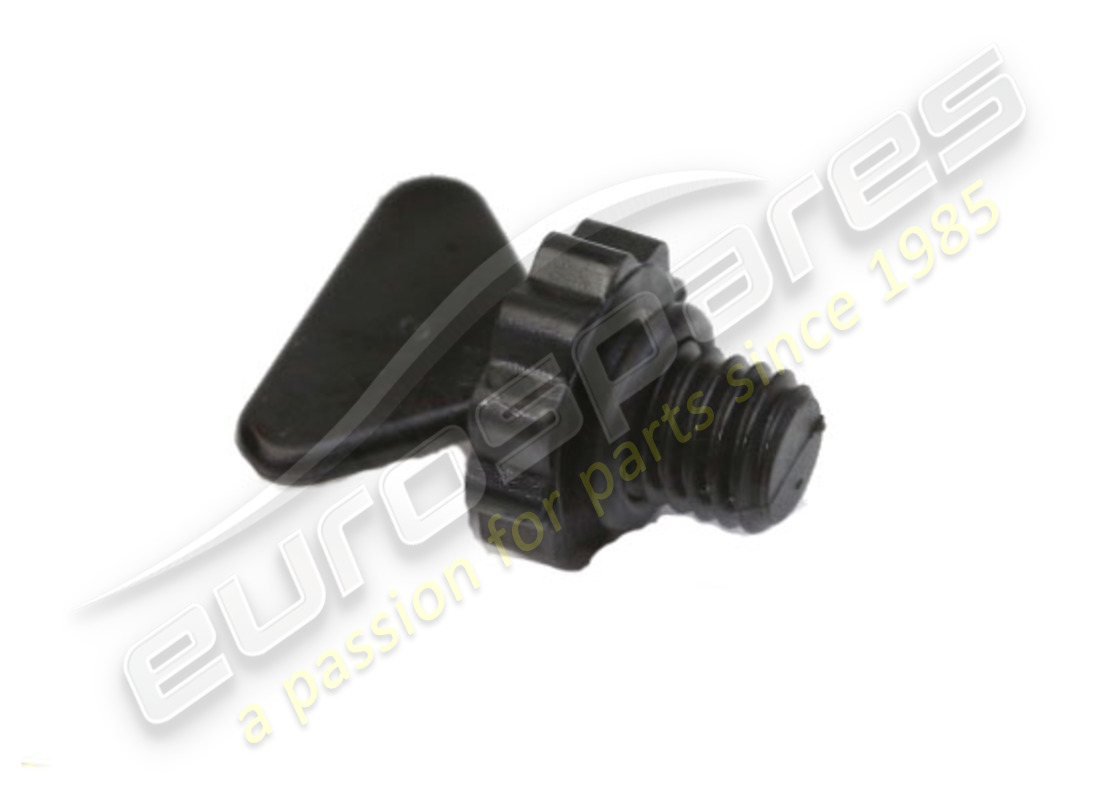

                                                        # 002
                                                        MPN: 176324
                                                        WATER OUTLET PLUG
                                                        from £30.95
                                                        from £30.95

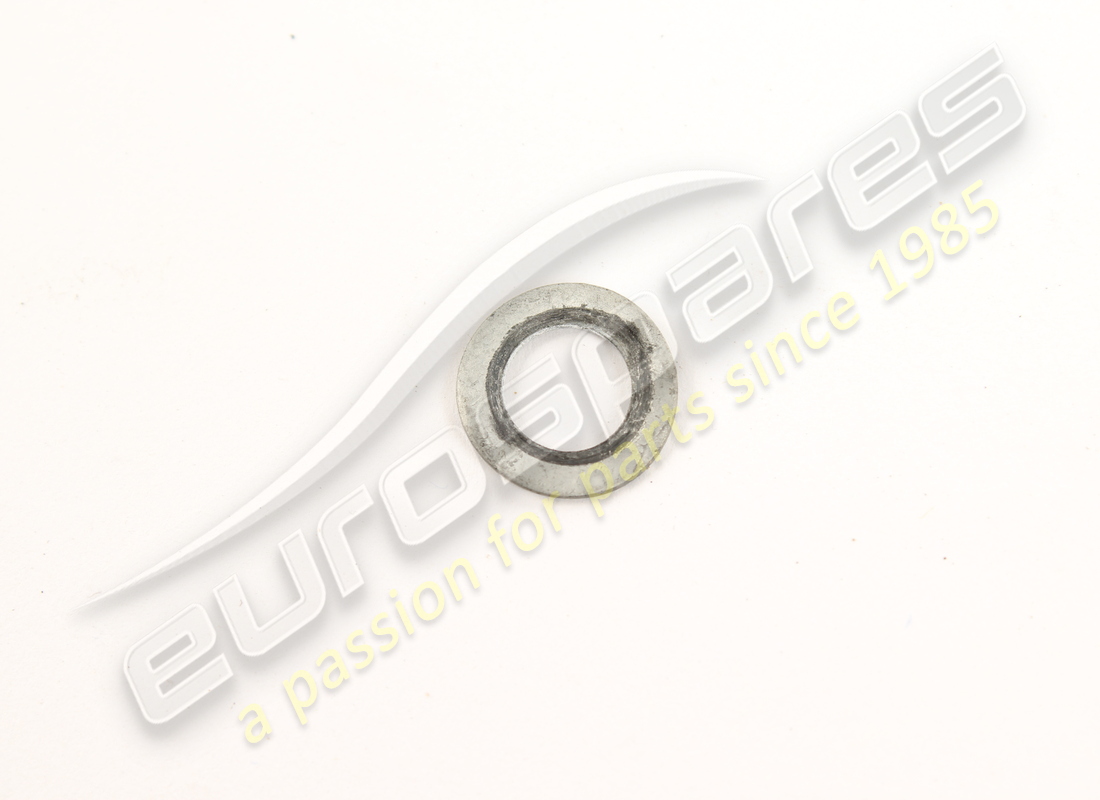

                                                        # 004
                                                        MPN: 101508
                                                        GASKET
                                                        from £0.69
                                                        from £0.69
                                                        This part replaces part number 94706
                                                        # 005
                                                        MPN: 194127
                                                        FLEXIBLE CLIP
                                                        from £5.58
                                                        from £5.58
                                                        # 006
                                                        MPN: 194126
                                                        VENT PIPE
                                                        from £94.28
                                                        from £94.28
                                                        # 007
                                                        MPN: 190286
                                                        RH STRAP
                                                        from £43.22
                                                        from £43.22
                                                        # 008
                                                        MPN: 190287
                                                        LH STRAP
                                                        from £50.53
                                                        from £50.53
                                                        # 009
                                                        MPN: 16043934
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 16043921 - and 1 more. Click to view details
                                                        # 010
                                                        MPN: 11193974
                                                        WASHER
                                                        from £0.26
                                                        from £0.26
                                                        # 011
                                                        MPN: 107979
                                                        CUP
                                                        from £1.11
                                                        from £1.11
                                                        # 012
                                                        MPN: 107978
                                                        PAD
                                                        from £1.10
                                                        from £1.10
                                                        # 013
                                                        MPN: 155395
                                                        SPACER
                                                        from £0.64
                                                        from £0.64
                                                        # 014
                                                        MPN: 16100814
                                                        NUT
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 16100811 - and 1 more. Click to view details
                                                        # 015
                                                        MPN: 127496
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                        # 016
                                                        MPN: 14496524
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 14496525 - and 1 more. Click to view details
                                                        # 017
                                                        MPN: 67363800
                                                        GASKET
                                                        - Valid for RH radiator
                                                        from £0.70
                                                        from £0.70
                                                        # 017
                                                        MPN: 67363900
                                                        GASKET
                                                        - Valid for LH radiator
                                                        from £0.70
                                                        from £0.70

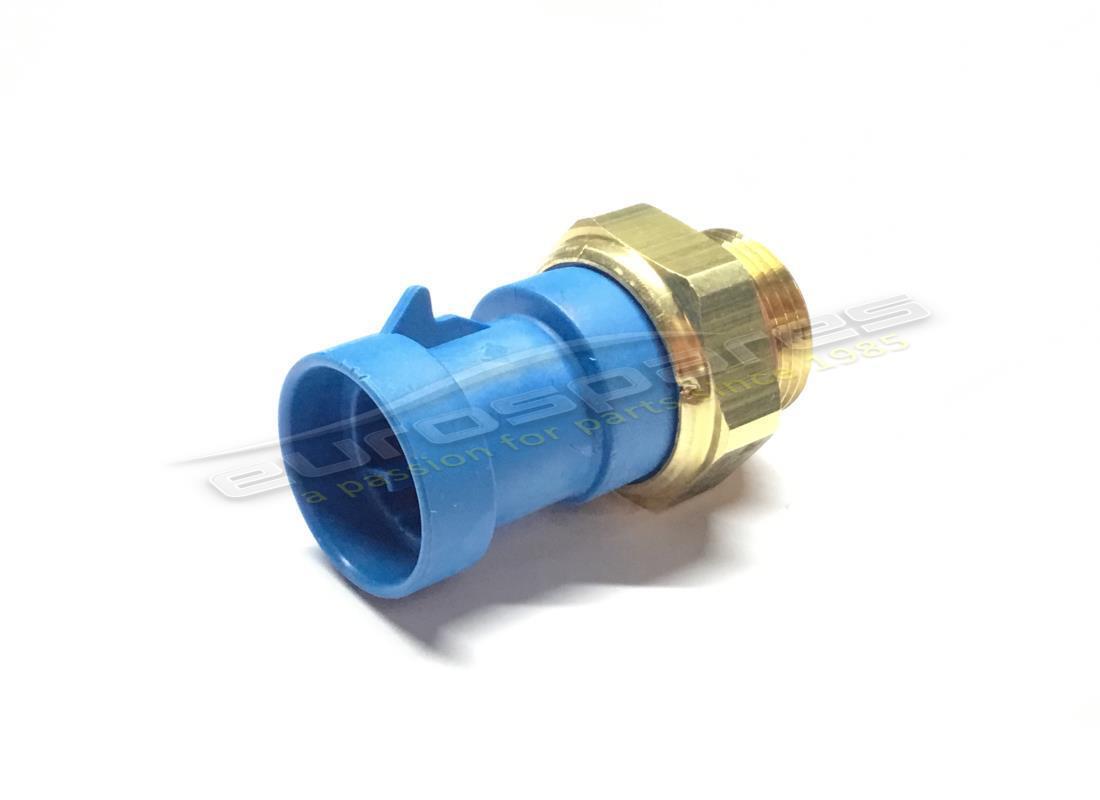

                                                        # 018
                                                        MPN: 185543
                                                        RESISTOR
                                                        from £90.00
                                                        from £90.00
                                                        # 019
                                                        MPN: 15688375
                                                        SCREW
                                                        (minimum order quantity = 30)
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 15688306 which we have in stock
                                                        # 020
                                                        MPN: 185785
                                                        LH HOOD FOR ELECTROFAN
                                                        from £292.03
                                                        from £292.03
                                                        # 020
                                                        MPN: 188767
                                                        RH HOOD FOR ELECTROFAN
                                                        from £299.43
                                                        from £299.43
                                                        # 021
                                                        MPN: 195144
                                                        GASKET
                                                        - Valid for hood front and rear side
                                                        from £8.89
                                                        from £8.89
                                                        # 022
                                                        MPN: 62940900
                                                        SCREW
                                                        - M6x15
                                                        from £0.73
                                                        from £0.73
                                                        This part replaces part number 67352400
                                                        # 022
                                                        MPN: 67352400
                                                        SCREW
                                                        - M6x12
                                                        Supersession
                                                        Supersession
                                                        # 023
                                                        MPN: 166601
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        # 024
                                                        MPN: 195199
                                                        ELECTROFAN
                                                        from £359.73
                                                        from £359.73
                                                        # 025
                                                        MPN: 14304224
                                                        SCREW
                                                        from £0.47
                                                        from £0.47
                                                        # 026
                                                        MPN: 12637824
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 12637801 - and 1 more. Click to view details
                                                        # 027
                                                        MPN: 127493
                                                        WASHER
                                                        from £0.48
                                                        from £0.48
                                                        This part replaces part number 106849 - and 1 more. Click to view details
                                                        # 028
                                                        MPN: 66534700
                                                        RH AIR INLET
                                                        from £518.14
                                                        from £518.14
                                                        # 028
                                                        MPN: 66534900
                                                        LH AIR INLET
                                                        from £564.77
                                                        from £564.77
                                                        # 029
                                                        MPN: 66584700
                                                        LH GASKET
                                                        from £30.15
                                                        from £30.15
                                                        # 029
                                                        MPN: 66584800
                                                        RH GASKET
                                                        from £30.15
                                                        from £30.15
                                                        # 030
                                                        MPN: 10902124
                                                        SCREW
                                                        - M6x14
                                                        from £0.50
                                                        from £0.50
                                                        This part replaces part number 10902111 - and 1 more. Click to view details
                                                        # 030
                                                        MPN: 62940900
                                                        SCREW
                                                        - M6x15
                                                        from £0.73
                                                        from £0.73
                                                        This part replaces part number 67352400
                                                        # 031
                                                        MPN: 11193274
                                                        WASHER
                                                        from £0.53
                                                        from £0.53
                                                        This part replaces part number 11193279 which we have in stock
                                                        # 031
                                                        MPN: 12644477
                                                        WASHER
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 12644406
                                                        # 032
                                                        MPN: 67363700
                                                        GASKET
                                                        - Valid for RH radiator
                                                        from £0.53
                                                        from £0.53
                                                        # 032
                                                        MPN: 67364100
                                                        GASKET
                                                        - Valid for LH radiator
                                                        from £0.47
                                                        from £0.47
                                                        # 033
                                                        MPN: 67363600
                                                        GASKET
                                                        - Valid for RH radiator
                                                        from £0.47
                                                        from £0.47
                                                        # 033
                                                        MPN: 67364000
                                                        GASKET
                                                        - Valid for LH radiator
                                                        from £1.11
                                                        from £1.11
                                                        # 034
                                                        MPN: 67363600
                                                        GASKET
                                                        - Valid for RH radiator
                                                        from £0.47
                                                        from £0.47
                                                        # 034
                                                        MPN: 67364200
                                                        GASKET
                                                        - Valid for LH radiator
                                                        from £0.47
                                                        from £0.47
                                                        # 035
                                                        MPN: 62766300
                                                        CLIP
                                                        from £0.47
                                                        from £0.47
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
