011 - Antievaporation Device

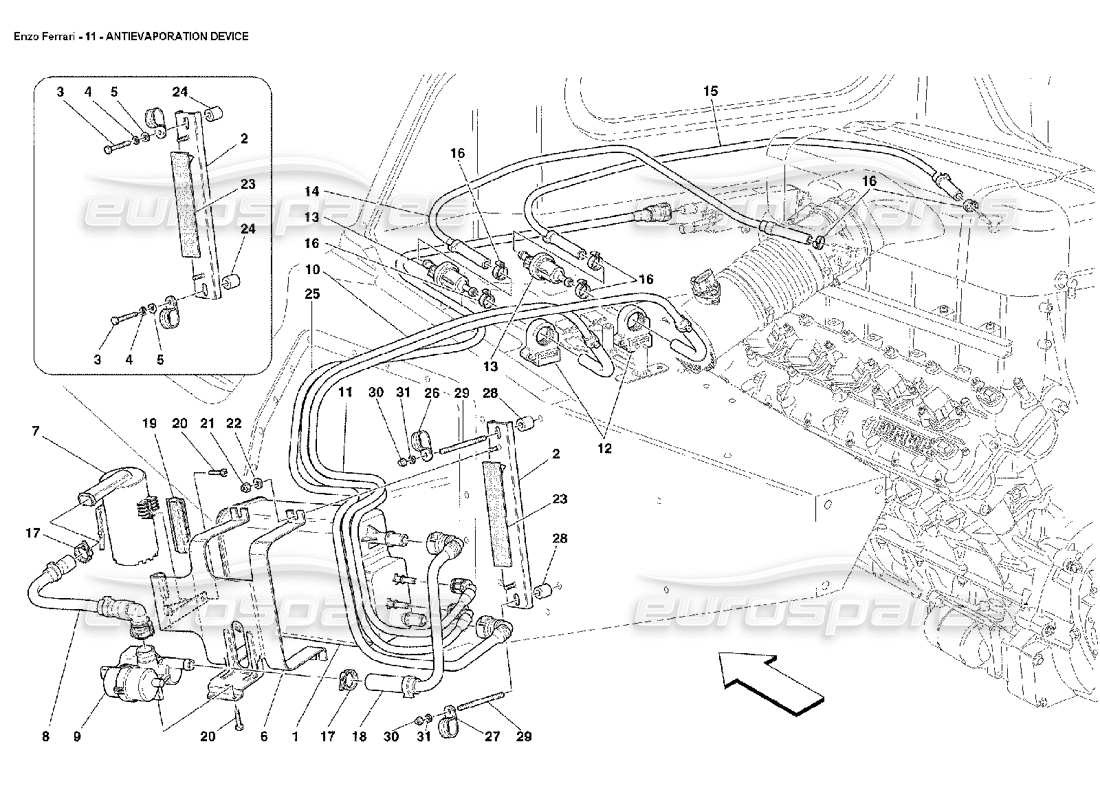

Ferrari Enzo Antievaporation Device Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 184465
FUEL VAPOR FILTER
from £115.17
from £115.17
# 002
MPN: 189925
BRACKET
from £17.93
from £17.93
# 003
MPN: 10978224
SCREW
- Valid till car Ass. Nr. 45997 - (minimum order quantity = 10)
Supersession
Supersession
This part replaces part number 10978221 which we have in stock
# 004
MPN: 10571570
WASHER
- Valid till car Ass. Nr. 45997
from £0.84
from £0.84
# 005
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 006
MPN: 189924
BRACKET FOR VAPOR FILTER FIXING
from £73.47
from £73.47
# 007
MPN: 183221
FILTER FOR OBD PUMP
from £7.40
from £7.40
# 008
MPN: 189386
UNIONS COMPLETE TUBE
from £140.68
from £140.68
# 009
MPN: 185405
DIAGNOSIS PUMP
from £146.75
from £146.75
# 010
MPN: 188115
UNIONS COMPLETE TUBE
from £124.89
from £124.89
# 011
MPN: 188114
UNIONS COMPLETE TUBE
from £155.06
from £155.06
# 012
MPN: 174623
BUFFER FOR SUPPORT
from £3.88
from £3.88
# 013
MPN: 162412
WASHER VALVE
from £39.06
from £39.06
# 014
MPN: 188117
UNIONS COMPLETE TUBE
from £125.66
from £125.66
# 015
MPN: 188118
UNIONS COMPLETE TUBE
from £121.82
from £121.82
# 016
MPN: 13432070
COLLAR FOR SLEEVE
from £0.50
from £0.50
This part replaces part number 13125570

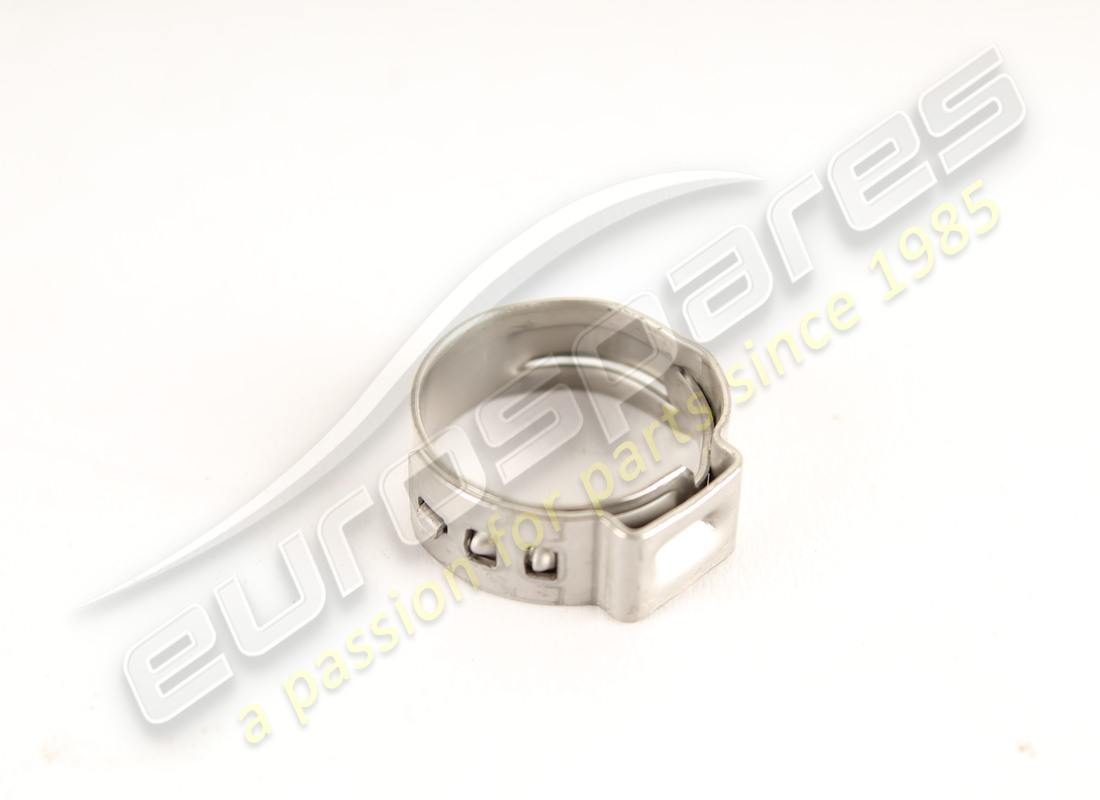

# 017
MPN: 13000390
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12179590 - and 1 more. Click to view details
# 018
MPN: 188112
UNIONS COMPLETE TUBE
from £133.13
from £133.13
# 019
MPN: 196103
ANTI VIBRATION GASKET
from £0.62
from £0.62
# 020
MPN: 15688375
SCREW
(minimum order quantity = 30)
from £0.53
from £0.53
This part replaces part number 15688306 which we have in stock
# 021
MPN: 113647
NUT
from £0.53
from £0.53
# 022
MPN: 14496324
WASHER
from £1.38
from £1.38
This part replaces part number 14496301 which we have in stock
# 023
MPN: 66202100
ADHESIVE
from £0.76
from £0.76
# 024
MPN: 189926
SPACER
- L= 10,5mm - Valid till car Ass. Nr. 45997
from £39.17
from £39.17
# 024
MPN: 189927
SPACER
- L= 12,5mm - Valid till car Ass. Nr. 45997
from £7.88
from £7.88
# 025
MPN: 190878
PIPE FROM FILTER TO DISAREATOR
from £130.27
from £130.27
# 026
MPN: 10441690
BRACKET WITH SHEATH
from £1.07
from £1.07
This part replaces part number 1044690
# 027
MPN: 10441790
BRACKET WITH SHEATH
from £0.54
from £0.54
# 028
MPN: 13604115
SPACER
- Valid from car Ass. Nr. 45998
from £0.89
from £0.89
This part replaces part number 13604111
# 029
MPN: 11001524
STUD
- Valid from car Ass. Nr. 45998
from £1.33
from £1.33
This part replaces part number 11001521
# 030
MPN: 12637824
WASHER
- Valid from car Ass. Nr. 45998
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 031
MPN: 113647
NUT
- Valid from car Ass. Nr. 45998
from £0.53
from £0.53
