Ferrari Enzo timing controls Parts Diagram

006 - timing controls

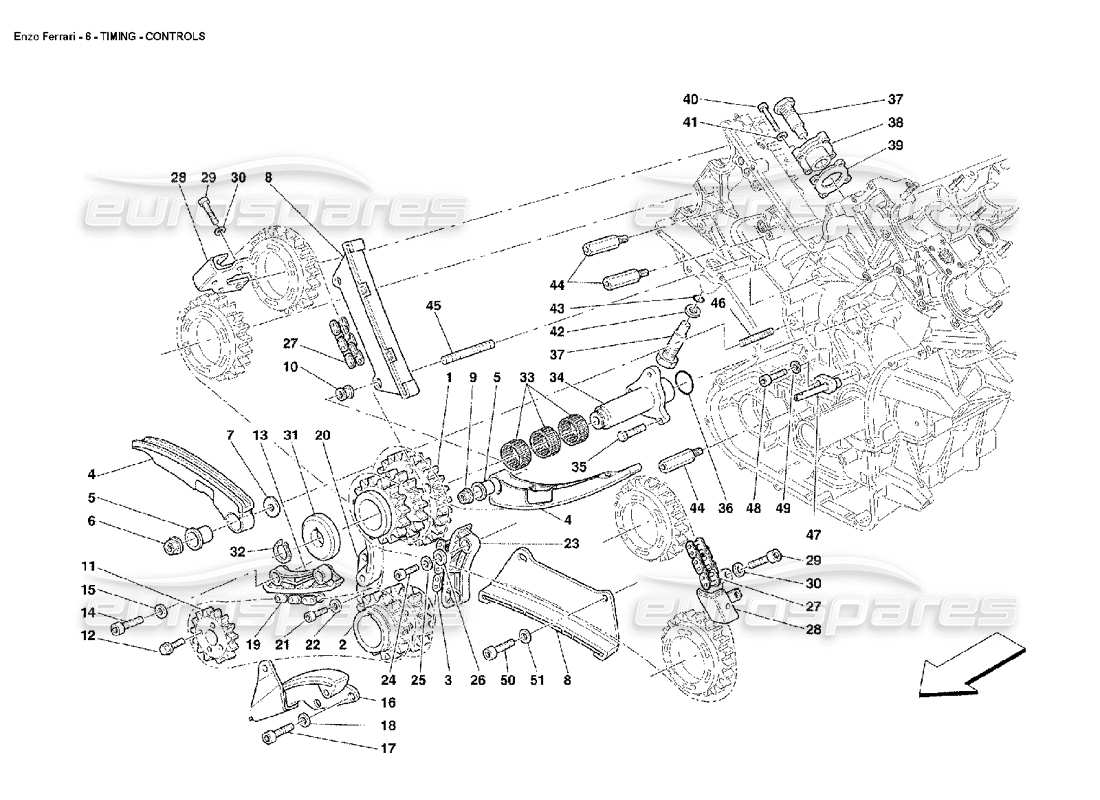

Ferrari Enzo Timing Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 193528
                                                                                                      TRANSMISSION TOOTHED WHEEL
                                                                                                      from £777.85
                                                                                                      from £777.85
                                                                                                      # 003
                                                                                                      MPN: 175286
                                                                                                      TRANSMISSION CHAIN
                                                                                                      from £24.50
                                                                                                      from £24.50
                                                                                                      # 004
                                                                                                      MPN: 183761
                                                                                                      MOBILE GUIDE SHOE
                                                                                                      from £365.40
                                                                                                      from £365.40
                                                                                                      # 005
                                                                                                      MPN: 175303
                                                                                                      BUSHING
                                                                                                      from £13.31
                                                                                                      from £13.31
                                                                                                      # 006
                                                                                                      MPN: 177778
                                                                                                      NUT
                                                                                                      from £1.06
                                                                                                      from £1.06
                                                                                                      This part replaces part number 133215
                                                                                                      # 008
                                                                                                      MPN: 186185
                                                                                                      FIXED TENSION
                                                                                                      from £40.11
                                                                                                      from £40.11
                                                                                                      # 009
                                                                                                      MPN: 177778
                                                                                                      NUT
                                                                                                      from £1.06
                                                                                                      from £1.06
                                                                                                      This part replaces part number 133215
                                                                                                      # 010
                                                                                                      MPN: 183929
                                                                                                      BUSHING
                                                                                                      from £4.05
                                                                                                      from £4.05
                                                                                                      # 011
                                                                                                      MPN: 187656
                                                                                                      TOOTHED WHEEL CONTROL PUMP
                                                                                                      from £213.07
                                                                                                      from £213.07
                                                                                                      # 012
                                                                                                      MPN: 186668
                                                                                                      SCREW
                                                                                                      from £8.82
                                                                                                      from £8.82
                                                                                                      # 013
                                                                                                      MPN: 186186
                                                                                                      FIXED TENSION
                                                                                                      from £16.37
                                                                                                      from £16.37
                                                                                                      # 014
                                                                                                      MPN: 14305424
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 14305421 - and 2 more. Click to view details
                                                                                                      # 015
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 016
                                                                                                      MPN: 192922
                                                                                                      SUPPORT
                                                                                                      from £25.74
                                                                                                      from £25.74
                                                                                                      # 017
                                                                                                      MPN: 14305624
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 14305621
                                                                                                      # 018
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 019
                                                                                                      MPN: 175314
                                                                                                      PUMPS CONTROL CHAIN
                                                                                                      from £27.06
                                                                                                      from £27.06
                                                                                                      # 021
                                                                                                      MPN: 14305724
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 11567624 which we have in stock - and 2 more. Click to view details
                                                                                                      # 022
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 023
                                                                                                      MPN: 186181
                                                                                                      FIXED TENSION
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 024
                                                                                                      MPN: 14432224
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 14432221
                                                                                                      # 025
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 026
                                                                                                      MPN: 12647624
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 12647611
                                                                                                      # 027
                                                                                                      MPN: 193529
                                                                                                      TIMING CONTROL CHAIN
                                                                                                      from £96.86
                                                                                                      from £96.86
                                                                                                      # 029
                                                                                                      MPN: 14305934
                                                                                                      SCREW
                                                                                                      from £0.81
                                                                                                      from £0.81
                                                                                                      This part replaces part number 14305931
                                                                                                      # 030
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 031
                                                                                                      MPN: 190134
                                                                                                      SHOULDER
                                                                                                      from £388.87
                                                                                                      from £388.87
                                                                                                      # 032
                                                                                                      MPN: 11066876
                                                                                                      SEEGER RING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 11066875
                                                                                                      # 033
                                                                                                      MPN: 187742
                                                                                                      ROLLER CAGE
                                                                                                      from £7.62
                                                                                                      from £7.62
                                                                                                      # 034
                                                                                                      MPN: 190133
                                                                                                      TRANSMISSION SUPPORT
                                                                                                      from £380.87
                                                                                                      from £380.87
                                                                                                      # 035
                                                                                                      MPN: 181336

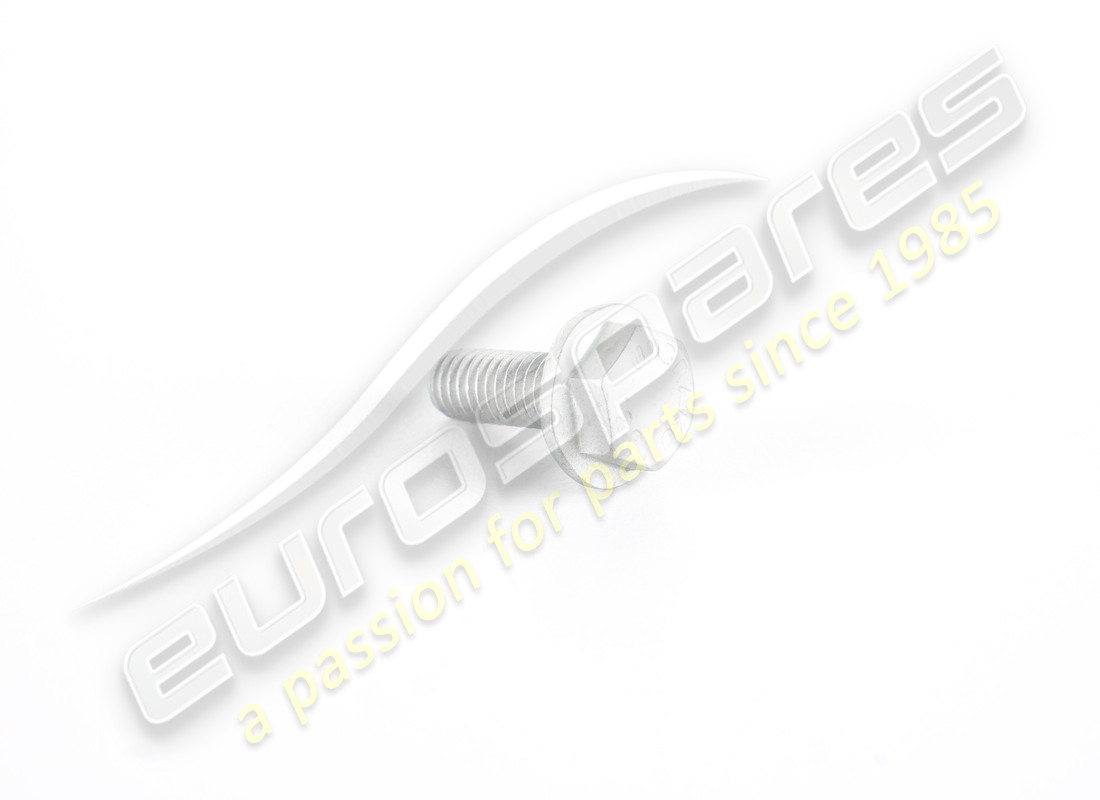

                                                                                                      SCREW
                                                                                                      from £1.96
                                                                                                      from £1.96
                                                                                                      # 036
                                                                                                      MPN: 148225

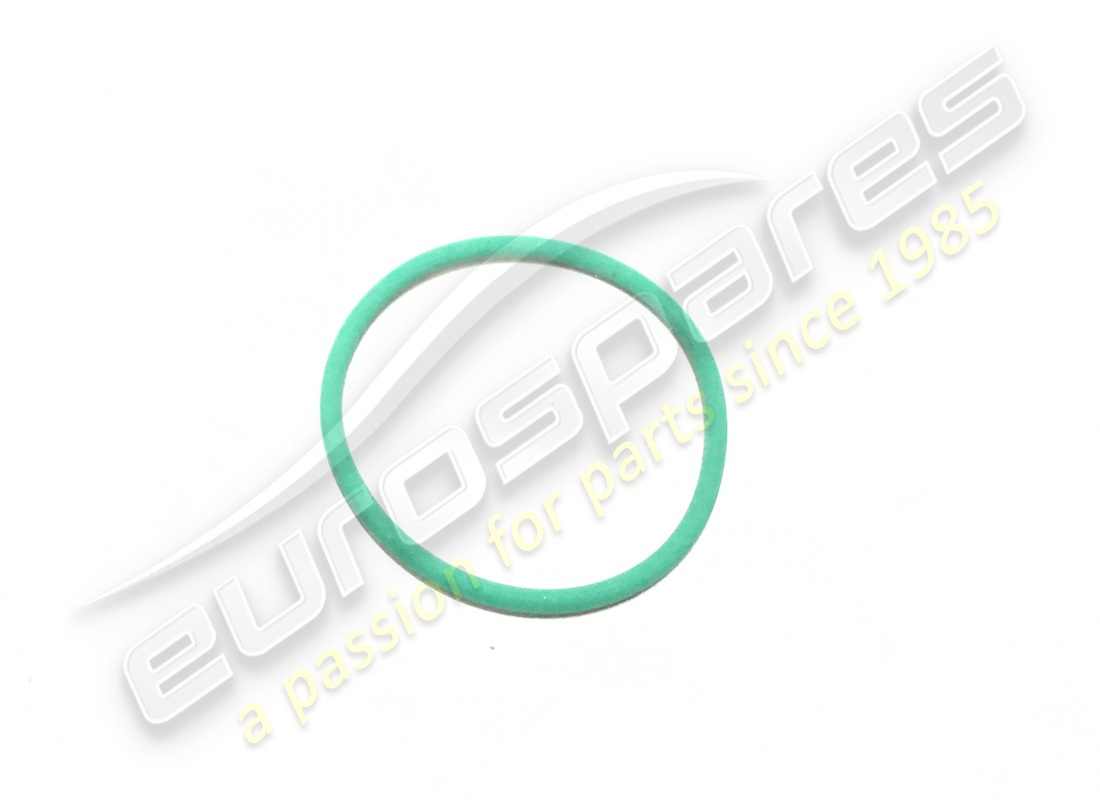

                                                                                                      O.R. GASKET
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 037
                                                                                                      MPN: 180316
                                                                                                      HYDRAULIC TIGHTENER
                                                                                                      from £34.06
                                                                                                      from £34.06
                                                                                                      # 039
                                                                                                      MPN: 247147

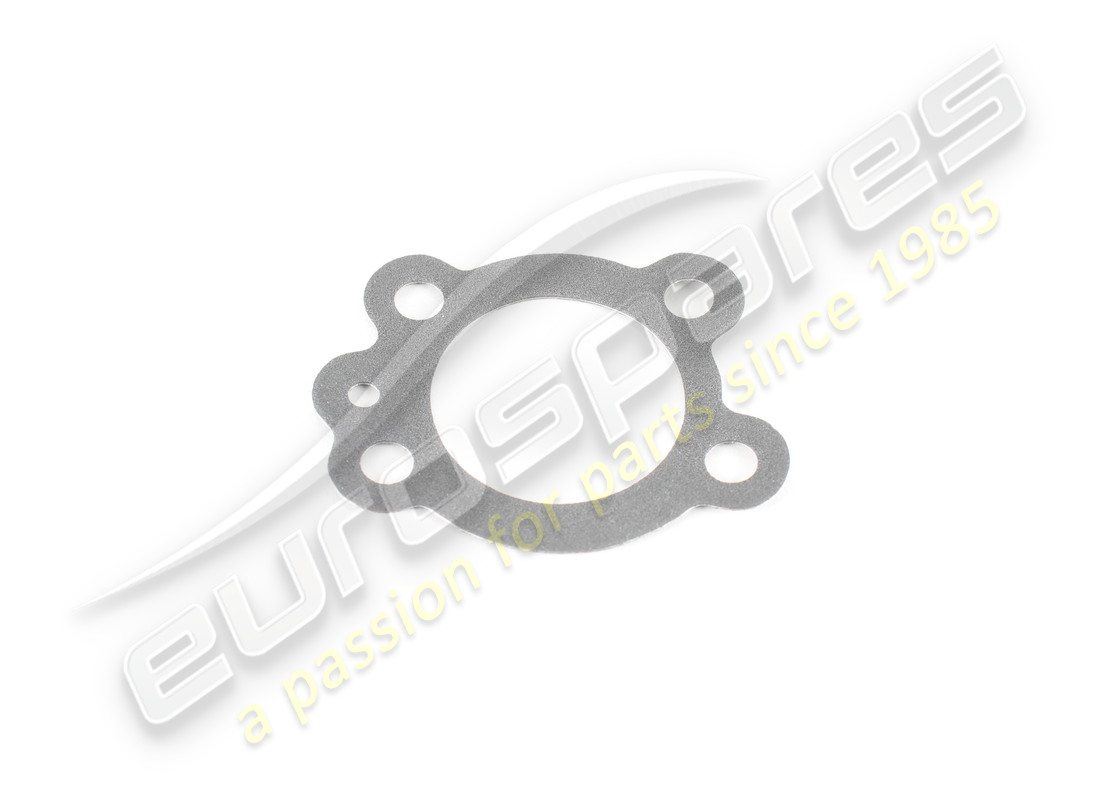

                                                                                                      GASKET
                                                                                                      from £2.58
                                                                                                      from £2.58
                                                                                                      This part replaces part number 185854
                                                                                                      # 040
                                                                                                      MPN: 14432224
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 14432221
                                                                                                      # 041
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 043
                                                                                                      MPN: 192069
                                                                                                      O.R. GASKET
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 044
                                                                                                      MPN: 175410
                                                                                                      STUD
                                                                                                      from £4.31
                                                                                                      from £4.31
                                                                                                      # 045
                                                                                                      MPN: 13543824
                                                                                                      STUD
                                                                                                      from £2.31
                                                                                                      from £2.31
                                                                                                      This part replaces part number 13543821
                                                                                                      # 046
                                                                                                      MPN: 13543124
                                                                                                      STUD
                                                                                                      from £4.04
                                                                                                      from £4.04
                                                                                                      This part replaces part number 13543121
                                                                                                      # 047
                                                                                                      MPN: 187818
                                                                                                      JET
                                                                                                      from £51.37
                                                                                                      from £51.37
                                                                                                      # 048
                                                                                                      MPN: 14305224
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      # 049
                                                                                                      MPN: 11197774
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                      # 050
                                                                                                      MPN: 14306224
                                                                                                      SCREW
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      This part replaces part number 14306221 - and 1 more. Click to view details
                                                                                                      # 051
                                                                                                      MPN: 11193874
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 11193879 which we have in stock
