005 - Timing Tappets and Shafts

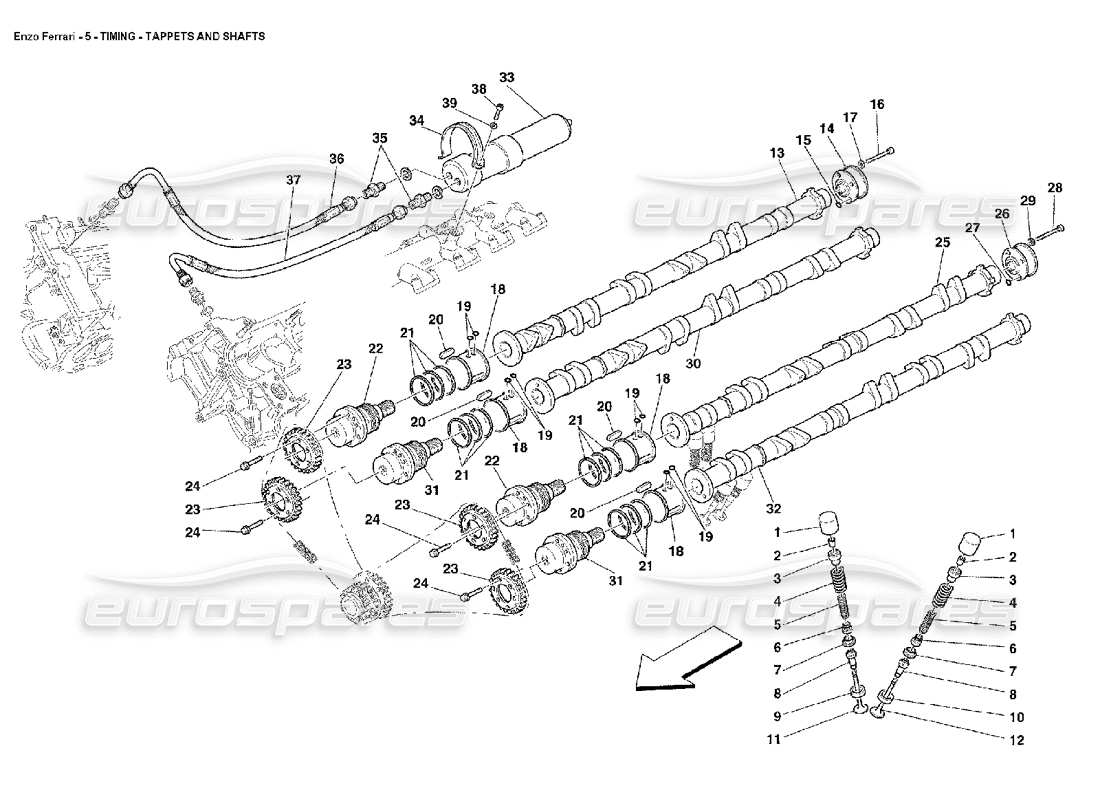

Ferrari Enzo Timing Tappets and Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 193631
TAPPET FOR VALVE CONTROL
from £12.68
from £12.68
# 002
MPN: 179763
COTTER FOR VALVE SPRING CUP
from £0.26
from £0.26
COTTER FOR SPRING VALVE (179763) Genuine Maserati Part - Used In stock
Removed from 4200 engine 81090
Removed from 4200 engine 81090
# 003
MPN: 187489
UPPER CUP
from £5.06
from £5.06
# 004
MPN: 188849
OUTER SPRING FOR VALVE RETURN
from £16.46
from £16.46
# 005
MPN: 184055
INNER SPRING FOR VALVE RETURN
from £27.64
from £27.64

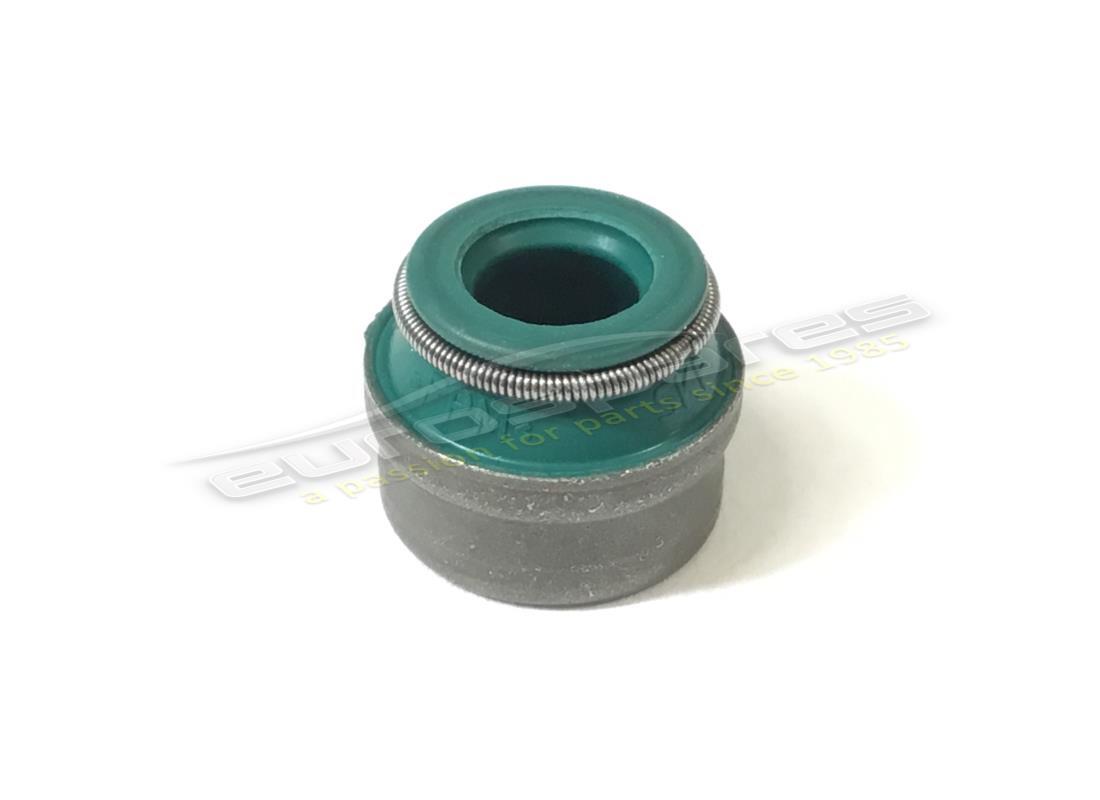

# 006
MPN: 148153
OIL RING FOR VALVE GUIDE
from £1.90
from £1.90
# 007
MPN: 190388
LOWER CUP
- Not as spare part - Replaced by 204178
from £4.38
from £4.38
# 007
MPN: 204178
LOWER CUP
from £5.55
from £5.55
# 007
MPN: 204179
LOWER CUP
- Oversized
from £91.80
from £91.80

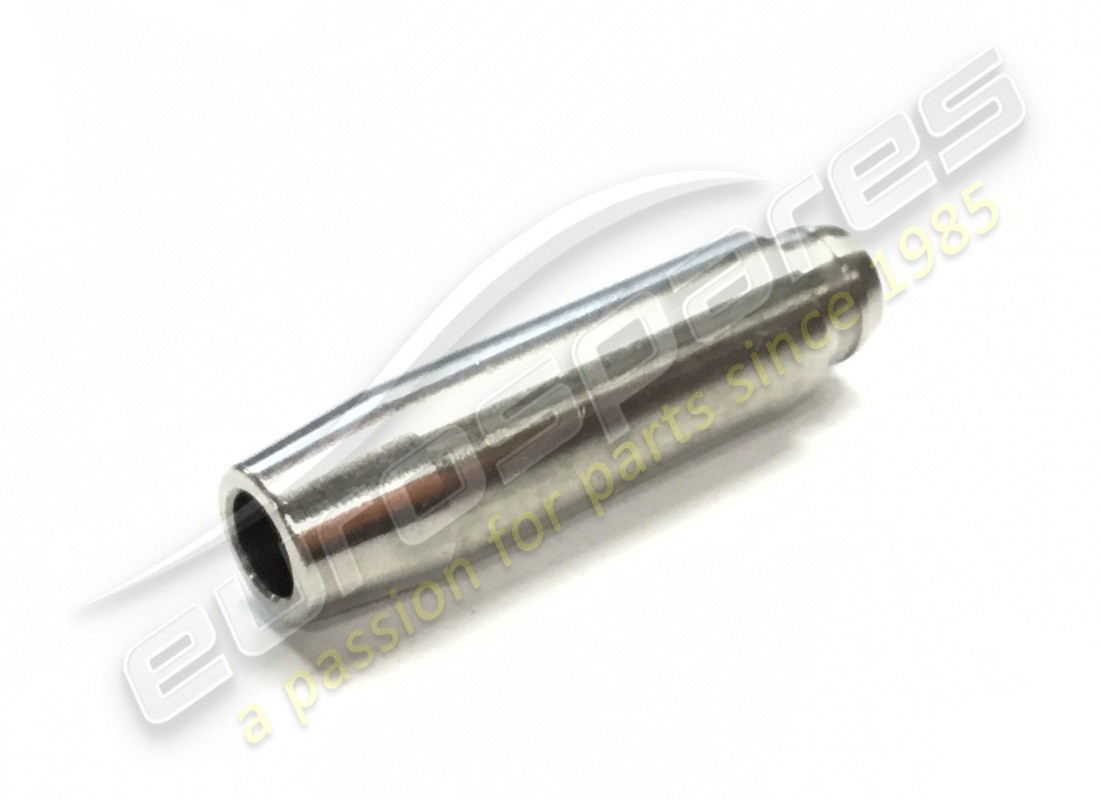

# 008
MPN: 172452
VALVE GUIDE
- Oversized
Supersession
Supersession
# 008
MPN: 176437
INTAKE VALVE GUIDE
from £48.00
from £48.00
This part replaces part number 149900 - and 1 more. Click to view details
# 009
MPN: 175381
INTAKE VALVE SEAT
from £7.89
from £7.89
# 010
MPN: 179959
EXHAUST VALVE SEAT
Supersession
Supersession

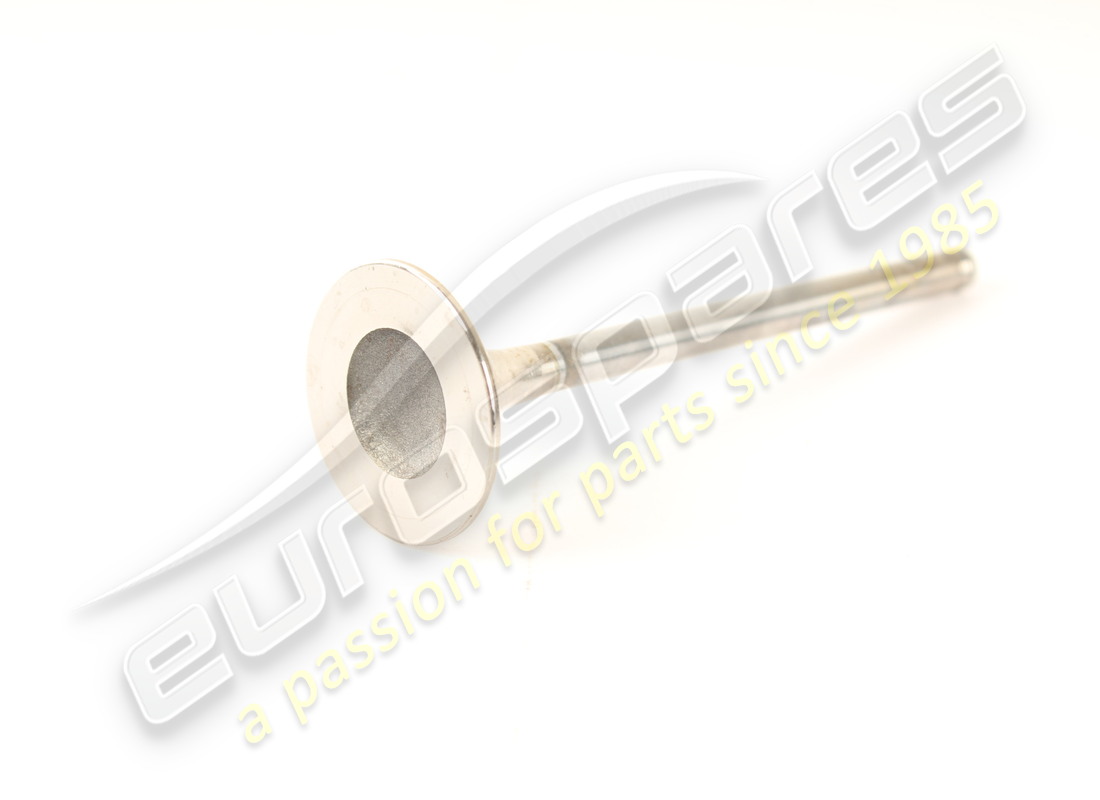

# 011
MPN: 190525
INTAKE VALVE
from £89.21
from £89.21
# 012
MPN: 189351
EXHAUST VALVE
from £60.58
from £60.58
# 013
MPN: 187848
RH INDUCTION DISTRIBUTION CAM SHAFT
from £2,386.55
from £2,386.55
# 014
MPN: 186321
RH VARIATOR OIL PUMP
from £181.16
from £181.16
# 015
MPN: 134701
O.R. GASKET
from £0.53
from £0.53
# 016
MPN: 14303474
SCREW
from £0.53
from £0.53
# 017
MPN: 127492
WASHER
from £0.59
from £0.59
This part replaces part number 106848
# 018
MPN: 206785
BUSHING FOR VARIATORS
- Valid till stock exhaustion
from £869.01
from £869.01
This part replaces part number 190123
# 018
MPN: 206785
BUSHING FOR VARIATORS
from £869.01
from £869.01
This part replaces part number 190123
# 019
MPN: 134701
GASKET
from £0.51
from £0.51
# 020
MPN: 14721120
Key
from £0.51
from £0.51
# 021
MPN: 185288
GASKET
from £25.20
from £25.20
# 022
MPN: 187820
INDUCTION PHASE VARIATOR
from £644.66
from £644.66
# 023
MPN: 193527
TOOTHED WHEEL
from £688.17
from £688.17
# 024
MPN: 194977
SCREW
from £5.63
from £5.63
# 025
MPN: 187850
LH INDUCTION DISTRIBUTION CAM SHAFT
from £2,085.24
from £2,085.24
# 026
MPN: 186322
LH VARIATOR OIL PUMP
from £122.31
from £122.31
# 027
MPN: 134701
O.R. GASKET
from £0.53
from £0.53
# 028
MPN: 14303474
SCREW
from £0.53
from £0.53
# 029
MPN: 127492
WASHER
from £0.59
from £0.59
This part replaces part number 106848
# 030
MPN: 187849
RH EXHAUST CAM SHAFT
from £2,085.24
from £2,085.24
# 031
MPN: 185422
EXHAUST PHASE VARIATOR
from £1,162.34
from £1,162.34
# 032
MPN: 187851
LH EXHAUST CAM SHAFT
from £2,386.55
from £2,386.55
# 033
MPN: 184188
OIL ACCUMULATOR
from £276.24
from £276.24
# 034
MPN: 184800
BRACKET FIXING ACCUMULATOR
from £7.73
from £7.73
# 035
MPN: 182426
THREADED UNION
from £8.95
from £8.95
# 036
MPN: 192823
RH OIL PIPE
from £293.61
from £293.61
# 037
MPN: 187534
LH OIL PIPE
from £184.40
from £184.40
# 038
MPN: 14305724
SCREW
from £0.53
from £0.53
This part replaces part number 11567624 - and 2 more. Click to view details
# 039
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
