Ferrari Enzo LH Cylinder Head Parts Diagram

004 - LH cylinder head

Ferrari Enzo L.H. Cylinder Head Parts Diagram

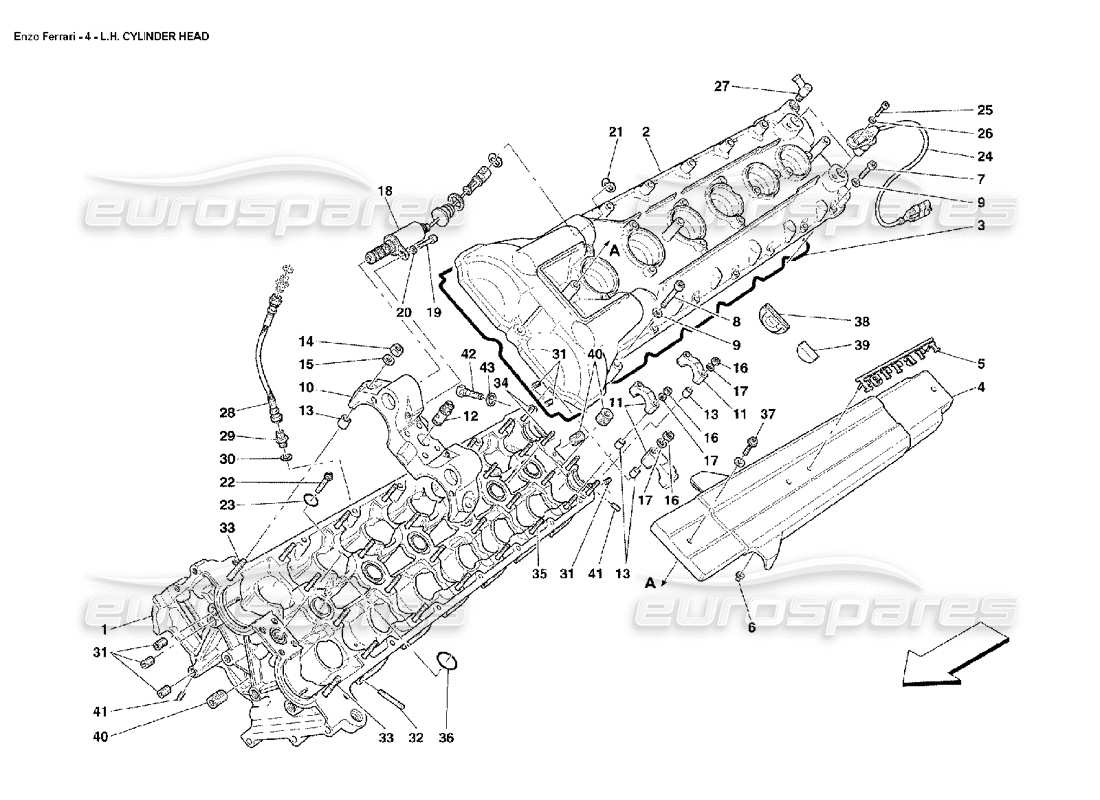

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 001
                                                                            MPN: 198021
                                                                            LH HEAD
                                                                            from £5,068.56
                                                                            from £5,068.56
                                                                            This part replaces part number 186429
                                                                            # 002
                                                                            MPN: 181835
                                                                            LH CYLINDERS HEAD COVER
                                                                            from £2,829.87
                                                                            from £2,829.87
                                                                            # 003
                                                                            MPN: 195370
                                                                            LH HEAD COVER GASKET
                                                                            from £107.65
                                                                            from £107.65
                                                                            # 004
                                                                            MPN: 192456
                                                                            CABLES SMALL COVER
                                                                            from £1,573.35
                                                                            from £1,573.35
                                                                            # 005
                                                                            MPN: 61025000
                                                                            Ferrari MARK
                                                                            (2 Pin)
                                                                            from £57.89
                                                                            from £57.89
                                                                            This part replaces part number 30028500 - and 1 more. Click to view details
                                                                            # 006
                                                                            MPN: 60324506
                                                                            CLIP
                                                                            from £1.57
                                                                            from £1.57
                                                                            This part replaces part number 62773000
                                                                            # 007
                                                                            MPN: 157218

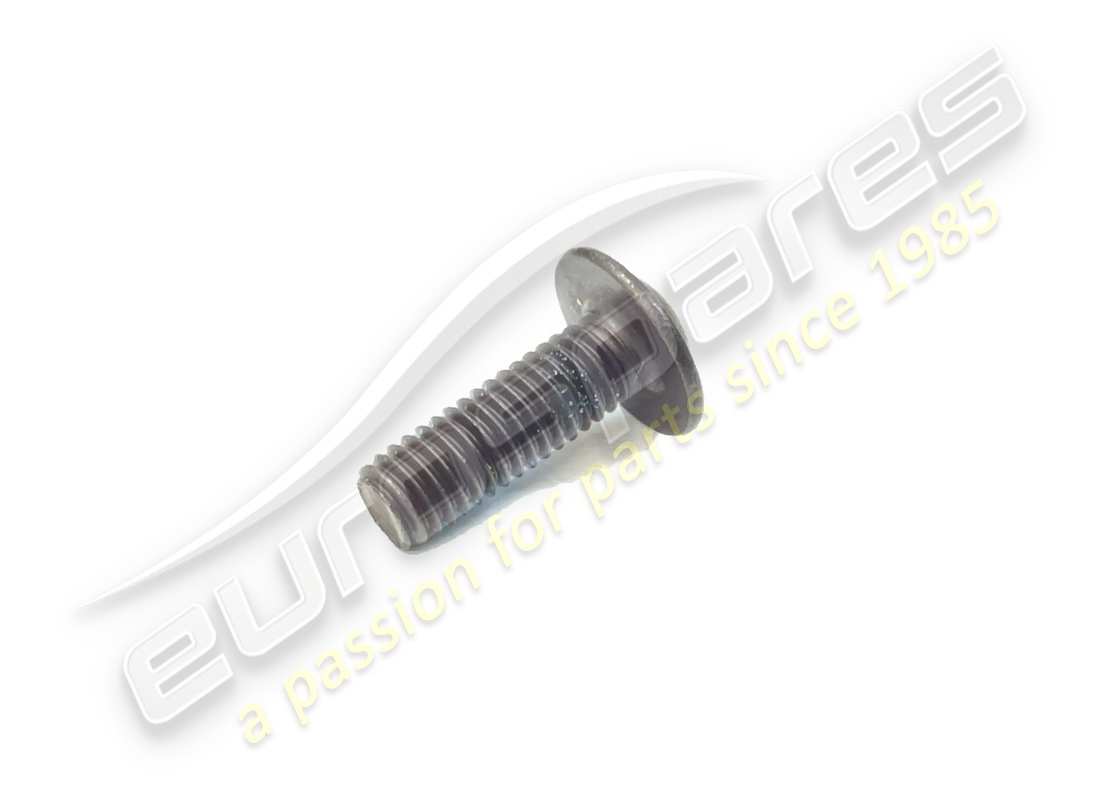

                                                                            SCREW
                                                                            from £0.49
                                                                            from £0.49
                                                                            # 008
                                                                            MPN: 156830
                                                                            SCREW
                                                                            from £0.58
                                                                            from £0.58
                                                                            # 009
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.52
                                                                            from £0.52
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            # 010
                                                                            -
                                                                            FRONT CAP
                                                                            # 011
                                                                            -
                                                                            CAP
                                                                            # 012
                                                                            MPN: 188142
                                                                            PRESSURE CONTROL VALVE
                                                                            from £71.90
                                                                            from £71.90
                                                                            # 013
                                                                            MPN: 102032
                                                                            CENTERING DOWEL
                                                                            from £2.00
                                                                            from £2.00
                                                                            This part replaces part number 4146789
                                                                            # 014
                                                                            MPN: 16100814
                                                                            NUT
                                                                            - Not as spare part - Replaced by 16100812
                                                                            from £0.49
                                                                            from £0.49
                                                                            This part replaces part number 16100811 - and 1 more. Click to view details
                                                                            # 015
                                                                            MPN: 11193874
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11193879 which we have in stock
                                                                            # 016
                                                                            MPN: 15896211
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 15896210
                                                                            # 017
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.50
                                                                            from £0.50
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            # 018
                                                                            MPN: 250646

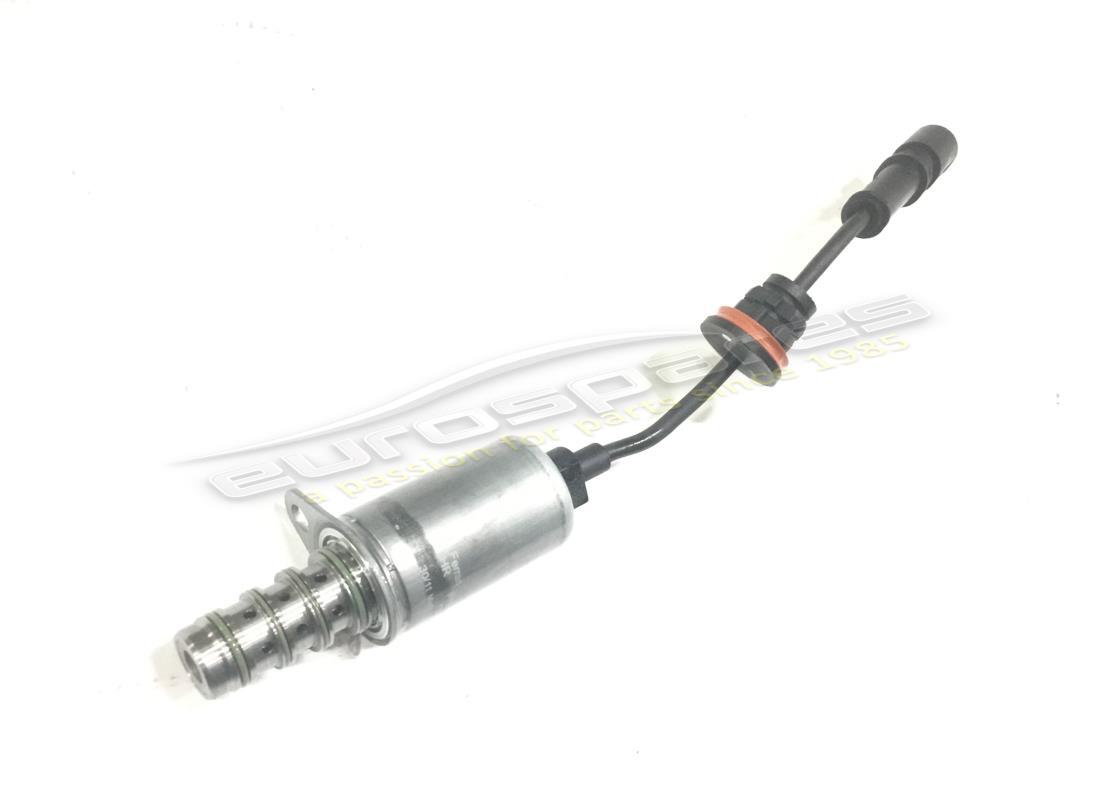

                                                                            VARIATOR CONTROL SOLENOID VALVE
                                                                            from £523.08
                                                                            from £523.08
                                                                            This part replaces part number 212422
                                                                            # 019
                                                                            MPN: 14433124
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 14433121
                                                                            # 020
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            # 021
                                                                            MPN: 11087374
                                                                            FLEXIBLE RING
                                                                            from £1.49
                                                                            from £1.49
                                                                            # 022
                                                                            MPN: 180266
                                                                            OIL FILTER
                                                                            Supersession
                                                                            Supersession
                                                                            # 023
                                                                            MPN: 134233
                                                                            GASKET
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 025
                                                                            MPN: 14305224
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 026
                                                                            MPN: 11197774
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                            # 027
                                                                            MPN: 195510
                                                                            THREADED UNION
                                                                            from £3.92
                                                                            from £3.92
                                                                            This part replaces part number 224116
                                                                            # 028
                                                                            MPN: 187535
                                                                            OIL HOSE FROM HEAD TO SUCTION MANIFOLD
                                                                            from £150.66
                                                                            from £150.66
                                                                            # 029
                                                                            MPN: 182426
                                                                            THREADED UNION
                                                                            from £8.96
                                                                            from £8.96
                                                                            # 030
                                                                            MPN: 10261060
                                                                            GASKET
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 031
                                                                            MPN: 14326001
                                                                            THREADED PLUG
                                                                            from £0.50
                                                                            from £0.50
                                                                            This part replaces part number 194495
                                                                            # 031
                                                                            MPN: 194495
                                                                            THREADED PLUG
                                                                            - Not as spare part now - Replaced by 14326001
                                                                            Supersession
                                                                            Supersession
                                                                            # 032
                                                                            MPN: 13543524
                                                                            STUD
                                                                            from £2.04
                                                                            from £2.04
                                                                            This part replaces part number 13543521
                                                                            # 033
                                                                            MPN: 13543821
                                                                            STUD
                                                                            from £1.85
                                                                            from £1.85
                                                                            This part replaces part number 210x1,25
                                                                            # 034
                                                                            MPN: 11501021
                                                                            STUD
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 11501020
                                                                            # 035
                                                                            MPN: 13541521
                                                                            STUD
                                                                            from £0.49
                                                                            from £0.49
                                                                            # 036
                                                                            MPN: 148225
                                                                            O.R. GASKET
                                                                            from £0.52
                                                                            from £0.52
                                                                            # 037
                                                                            MPN: 65377400
                                                                            SCREW
                                                                            from £1.31
                                                                            from £1.31
                                                                            This part replaces part number 156814 - and 3 more. Click to view details
                                                                            # 038
                                                                            MPN: 180109
                                                                            COVER GASKET
                                                                            from £34.76
                                                                            from £34.76
                                                                            # 039
                                                                            MPN: 180110
                                                                            COVER GASKET
                                                                            from £34.64
                                                                            from £34.64
                                                                            # 040
                                                                            MPN: 127635
                                                                            THREADED PLUG
                                                                            from £1.50
                                                                            from £1.50
                                                                            This part replaces part number 183447
                                                                            # 041
                                                                            MPN: 141563
                                                                            THREADED PLUG
                                                                            from £1.04
                                                                            from £1.04
                                                                            This part replaces part number 194493
                                                                            # 041
                                                                            MPN: 194493
                                                                            THREADED PLUG
                                                                            - Not as spare part now - Replaced by 141563
                                                                            Supersession
                                                                            Supersession
                                                                            # 042
                                                                            MPN: 180267
                                                                            NONRETURN VALVE
                                                                            from £19.44
                                                                            from £19.44
                                                                            # 043
                                                                            MPN: 10261060
                                                                            GASKET
                                                                            from £0.53
                                                                            from £0.53
                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
